Emotiv EPOC X EEG Brainwear® Headset

Emotiv EPOC X EEG Brainwear® Headset

Professional-grade portable & wireless EEG system.

🎯 Overview

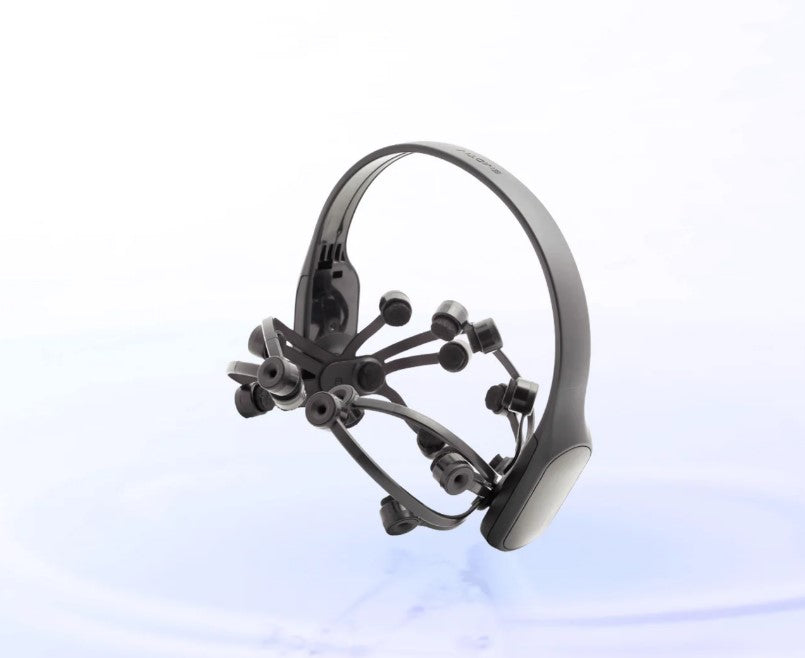

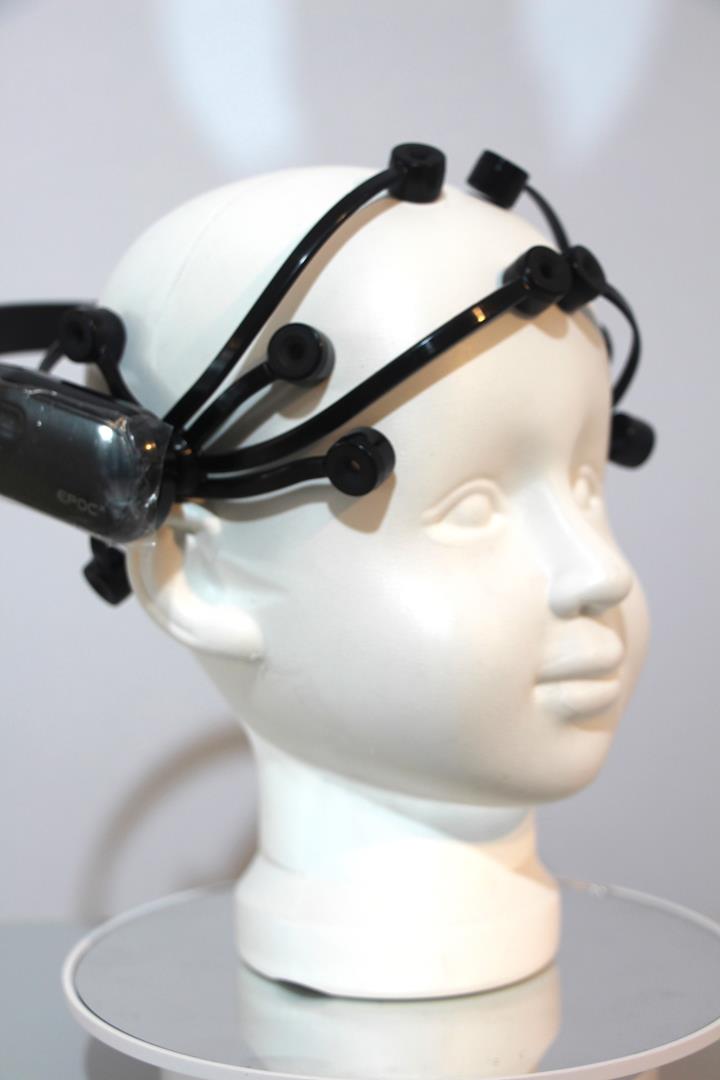

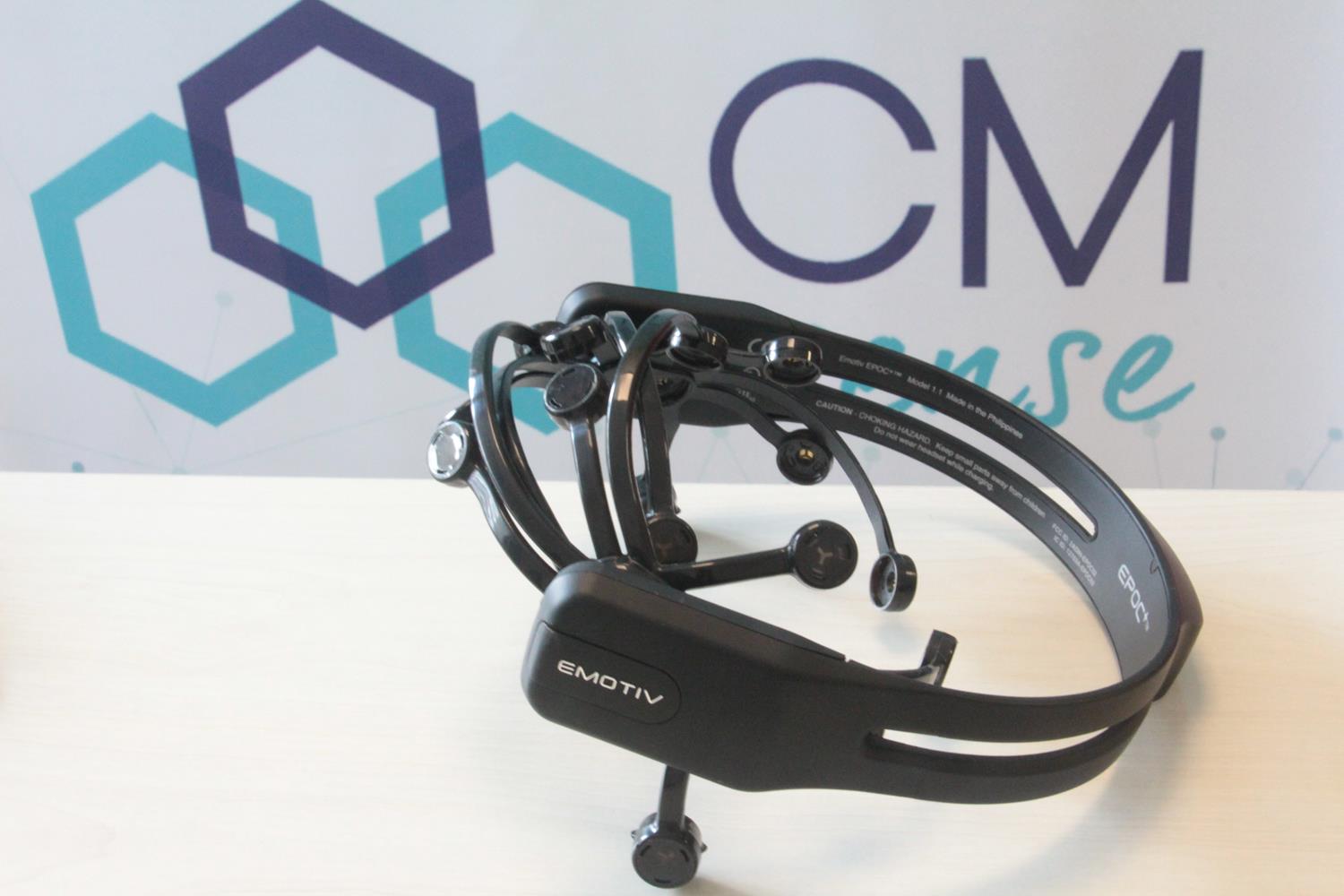

The Emotiv EPOC X is a 14‑channel EEG headset featuring a rotating headband and 9‑axis motion sensors, delivering high‑precision brainwave data ideal for both academic research and commercial neuroscience applications. Redesigned with user-friendly, saline‑based electrodes and Quick‑Rehydrate pads, it integrates seamlessly with AutoTrainBrain applications and Emotiv Pro software.

🧠 Brain & Emotion Analysis

• 14 EEG Channels: AF3, F7, F3, FC5, T7, P7, O1, O2, P8, T8, FC6, F4, F8, AF4

• Reference Electrodes: CMS/DRL (P3/P4) or optional mastoids

• Electrodes: Saline‑based felt pads

• Mental Commands: Neutral + up to 4 custom commands per profile

• Performance Metrics: Excitement, Engagement, Relaxation, Interest, Stress, Focus

📶 Connectivity & Compatibility

• Wireless: Bluetooth Low Energy

• Wired: USB (for setup & data transfer)

• Included: 2.4 GHz proprietary USB dongle

• Compatible Devices: Windows PC, macOS, select Android tablets (Samsung S6 Lite or newer recommended)

🔋 Power & Battery Life

• Internal Battery: 595 mAh Li‑Polymer

  • Up to 6 hours in Bluetooth mode

  • Up to 12 hours in USB mode

• Charging: Via USB connection

📐 Physical Specs

• Weight: 170 g

• Dimensions: 9 × 15 × 15 cm

• Design: Adjustable rotating headband fits various head shapes

🛠️ Use Cases

• Brain–Computer Interfaces (BCI)

• Neuromarketing & UX research

• Mental control and training applications

• Mental state tracking and performance monitoring

• Academic and clinical pilot studies

• Compatible with AutoTrainBrain platform

💻 Software & Licensing

Requires Emotiv Pro software for:

• Data collection & event marking

• Performance metric computation & analysis

• Lab Streaming Layer (LSL) support

📦 Package Includes

• Emotiv EPOC X EEG Headset

• Hard carrying case

• USB dongle

• Charging cable

• Quick‑Start guide

⚠️ Note

For optimal Bluetooth performance and software compatibility on Android, a tablet equivalent to or newer than Samsung S6 Lite is recommended.
