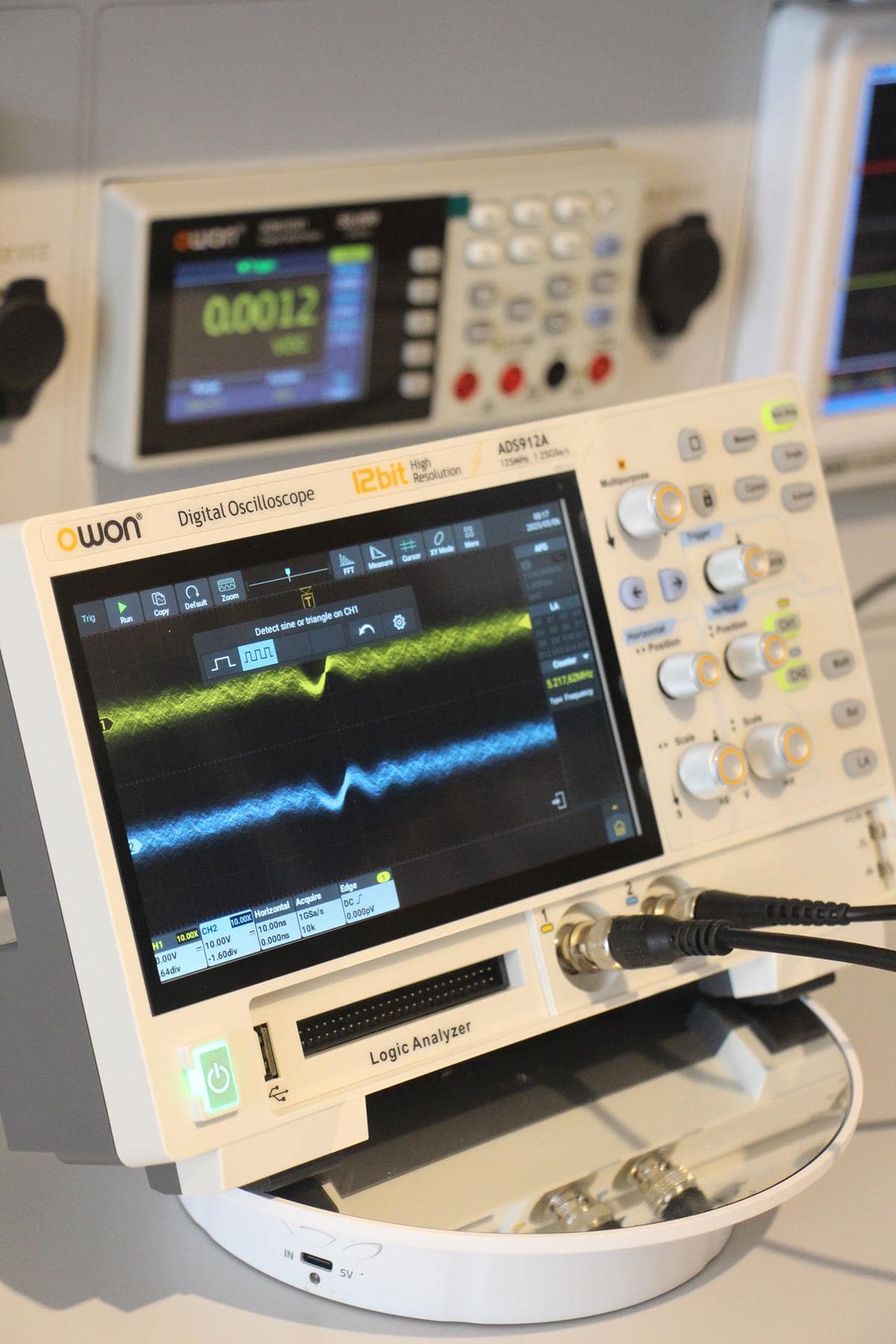

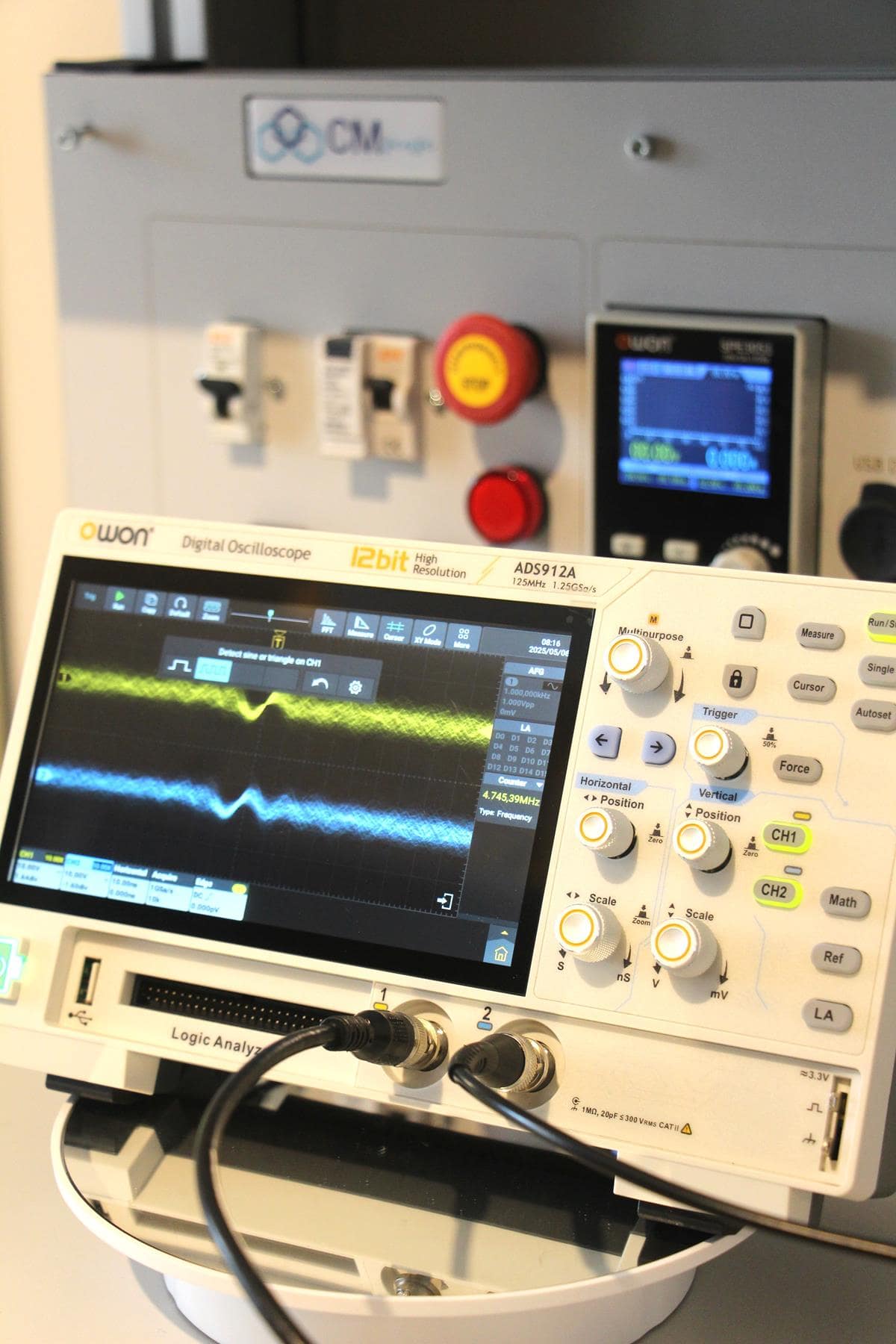

Owon ADS912A Digital Oscilloscope – 125 MHz Bandwidth, 2 Channels, 12-bit, with Touchscreen and Optional Logic Analyzer

🟦 Product Description

Owon ADS912A Digital Oscilloscope – 125 MHz Bandwidth, 2 Channels, 12-bit, with Touchscreen and Optional Logic Analyzer

Owon ADS912A is a powerful multifunction digital oscilloscope featuring 12-bit vertical resolution and a bandwidth of 125 MHz. Built on Owon’s advanced X-Vision III architecture, it ensures lower noise, deeper memory, and faster waveform updates. This compact unit combines oscilloscope, spectrum analyzer, multimeter, optional signal generator, and logic analyzer into a single platform—ideal for R&D labs, service centers, and embedded system development.

Oscilloscope Features
–––––––––––––––––––––––––
Bandwidth: 125 MHz
Channels: 2
Sampling Rate: 1.25 GS/s
Memory Depth: 40 Mpts
Waveform Refresh Rate: 1,000,000 wfms/s
Vertical Resolution: 12-bit
Vertical Sensitivity: 500 µV/div – 10 V/div
Trigger Types: Edge, video, pulse width, slope, timeout, Nth edge, logic, UART, I2C, SPI, CAN, LIN
Protocol Decoding: 2-channel hardware decoding (UART, I2C, SPI, CAN, LIN)
Math Functions: +, –, ×, ÷, FFT, log, integration, derivative, filtering

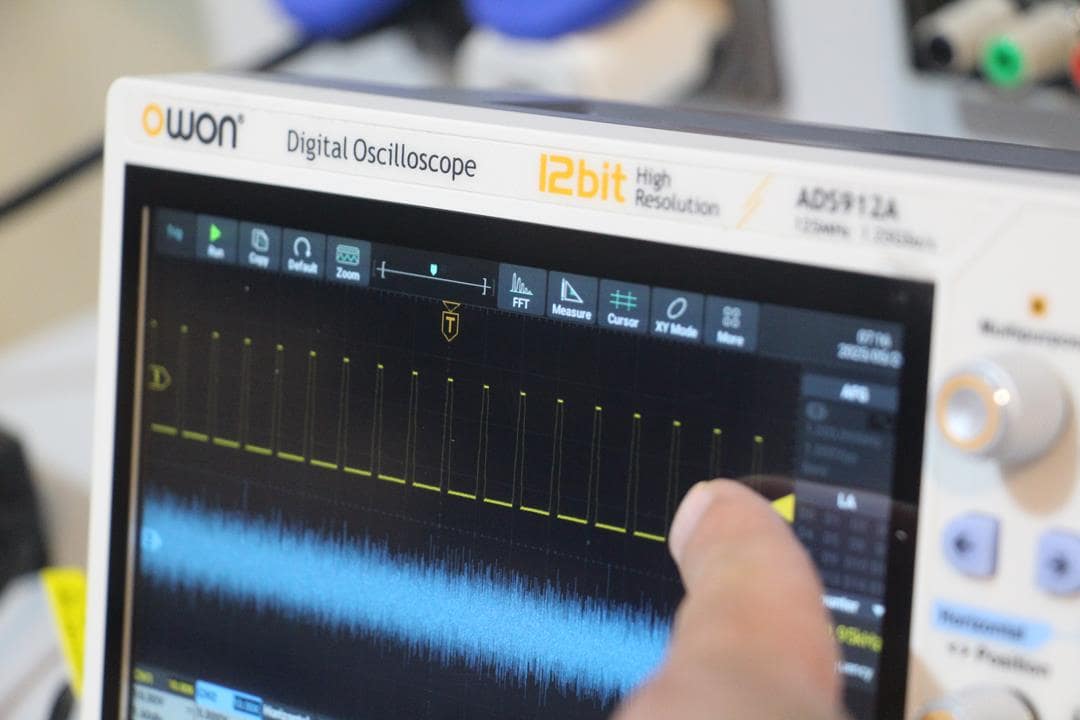

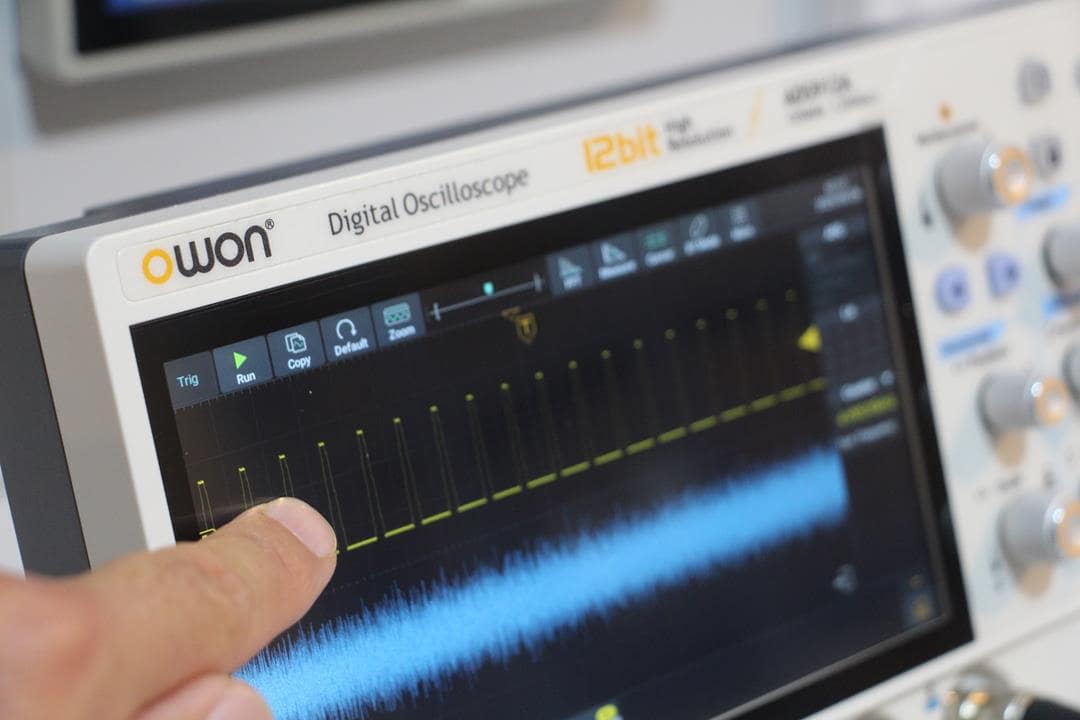

Display: 7" capacitive touchscreen, 800×600 resolution

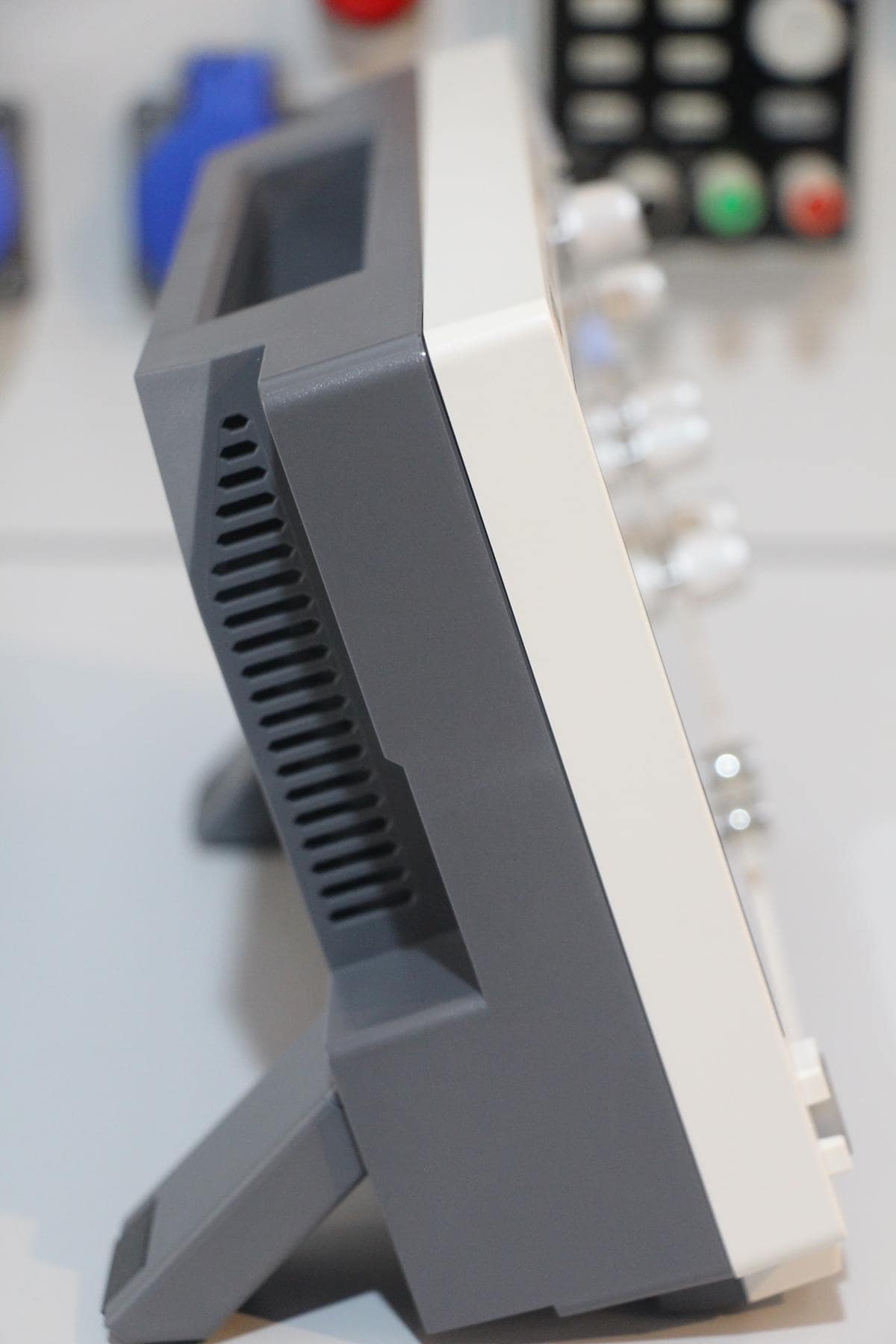

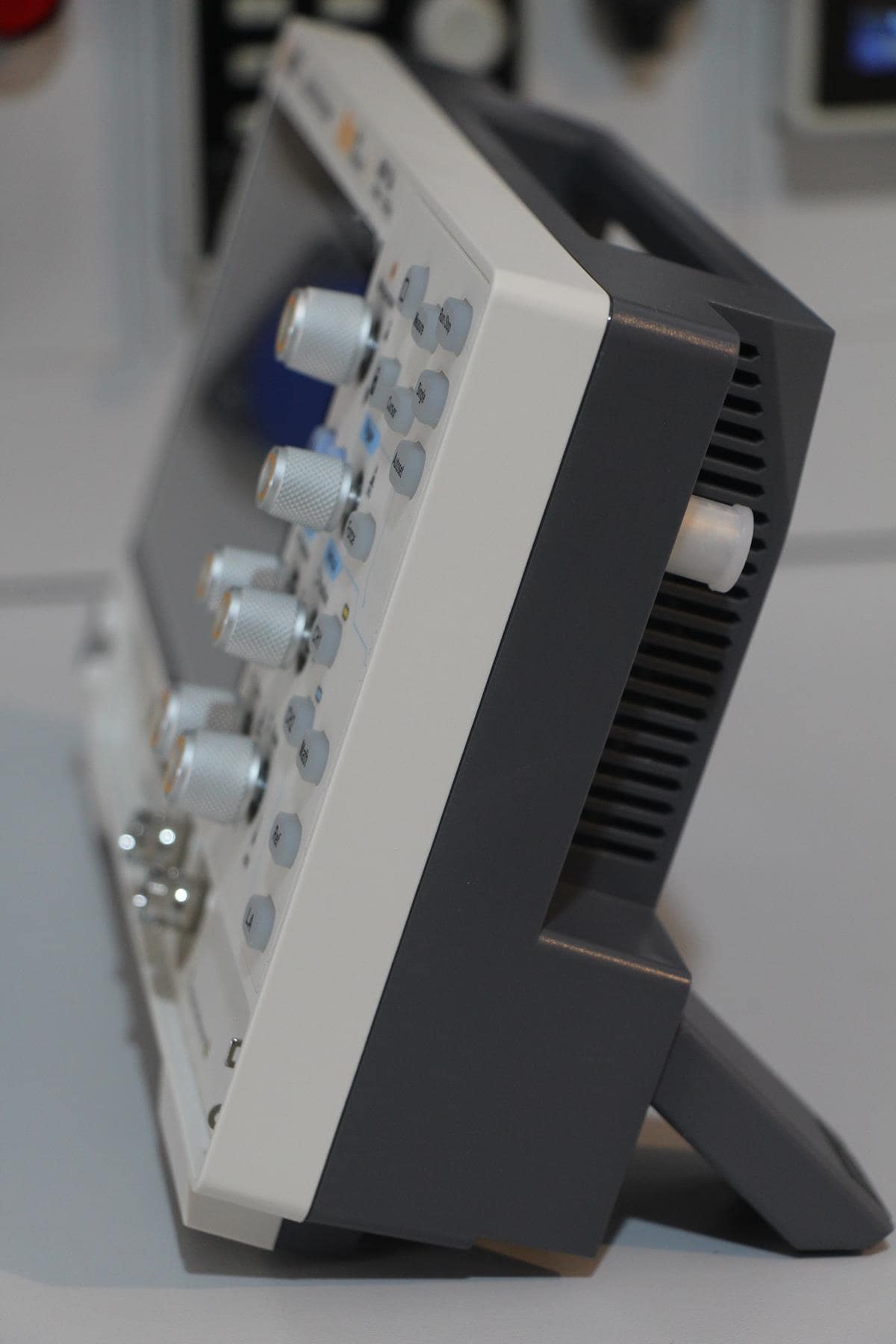

Dimensions: 270 × 190 × 90 mm
Weight: ~1.7 kg
Segmented Memory and Mask Test: Supported

Digital Voltmeter
–––––––––––––––––––––––––
Source Channels: CH1, CH2, CH3, CH4
Functions: AC RMS, DC, AC+DC RMS
Resolution: 4-bit RMS display
Limit Alert: Configurable upper/lower thresholds with on-screen warnings

Built-in Signal Generator
–––––––––––––––––––––––––
Max Frequency: 25 MHz
Waveforms: Sine, square, ramp, pulse, arbitrary
Arbitrary Types: Sinc, Gaussian, exp rise/fall, 160+ presets
Sampling Rate: 125 MSa/s
Vertical Resolution: 14-bit
Waveform Length: 8k
Output Amplitude (50Ω): 0.005 Vpp – 3 Vpp
DC Offset: ±3 V

Logic Analyzer (Optional)
–––––––––––––––––––––––––
Channels: 16
Sampling Rate: 1 GS/s
Supported Protocols: UART, SPI, I2C, CAN
Analysis: Timing and protocol decoding

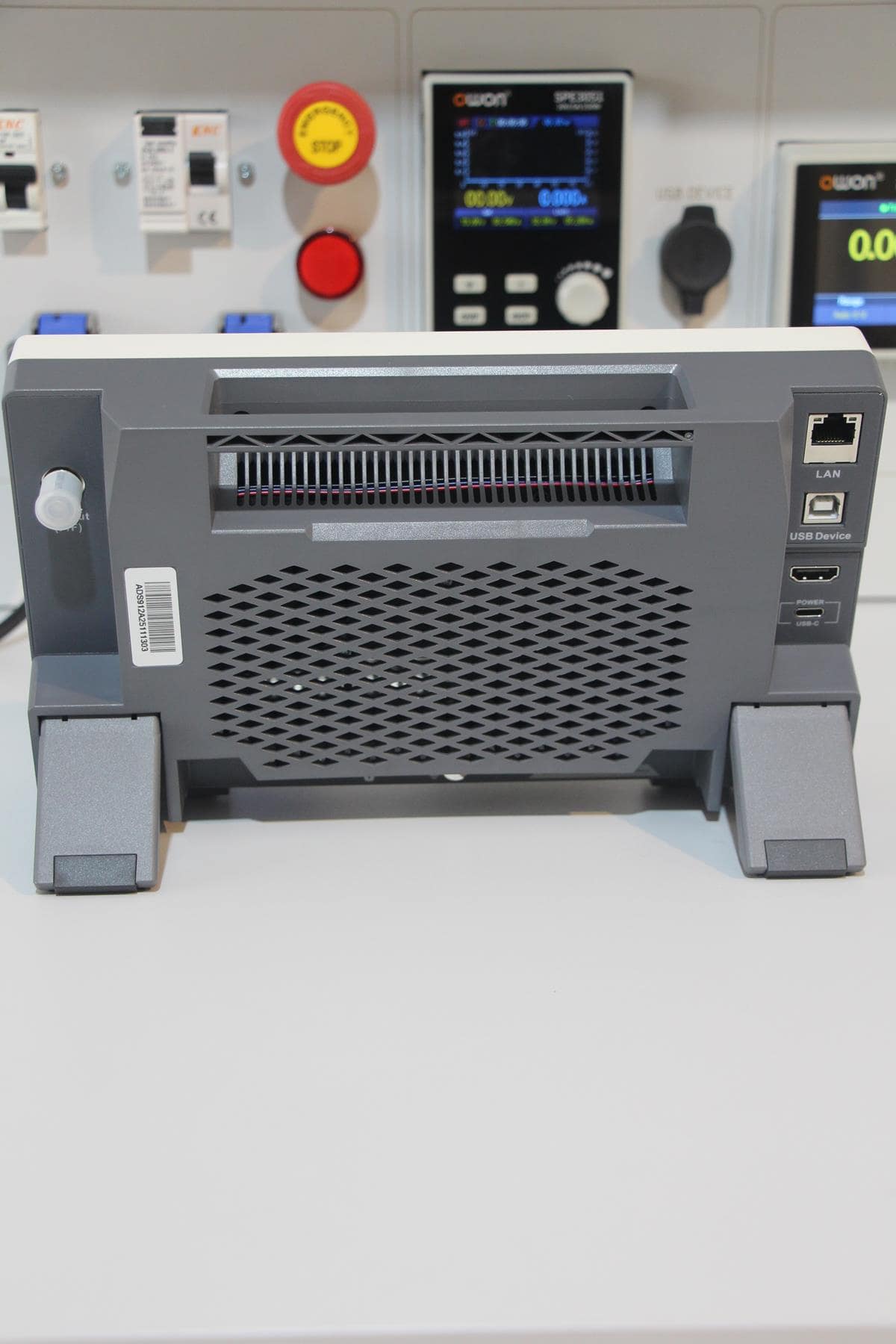

Connectivity and Power
–––––––––––––––––––––––––
USB Ports: USB Host & Device
PC Software: SCPI and LabVIEW compatible
Touch Control: Multi-touch supported
Power Input: USB Type-C (12 V / 3 A adapter)
Design: Compact and desktop-friendly

Box Contents
–––––––––––––––––––––––––
Power cord
USB cable
2 oscilloscope probes
Multimeter probe set
Probe adjustment tool
Quick start guide
Optional: Signal generator, logic analyzer, BNC-to-alligator probe, carrying case
