🟩 Product Description

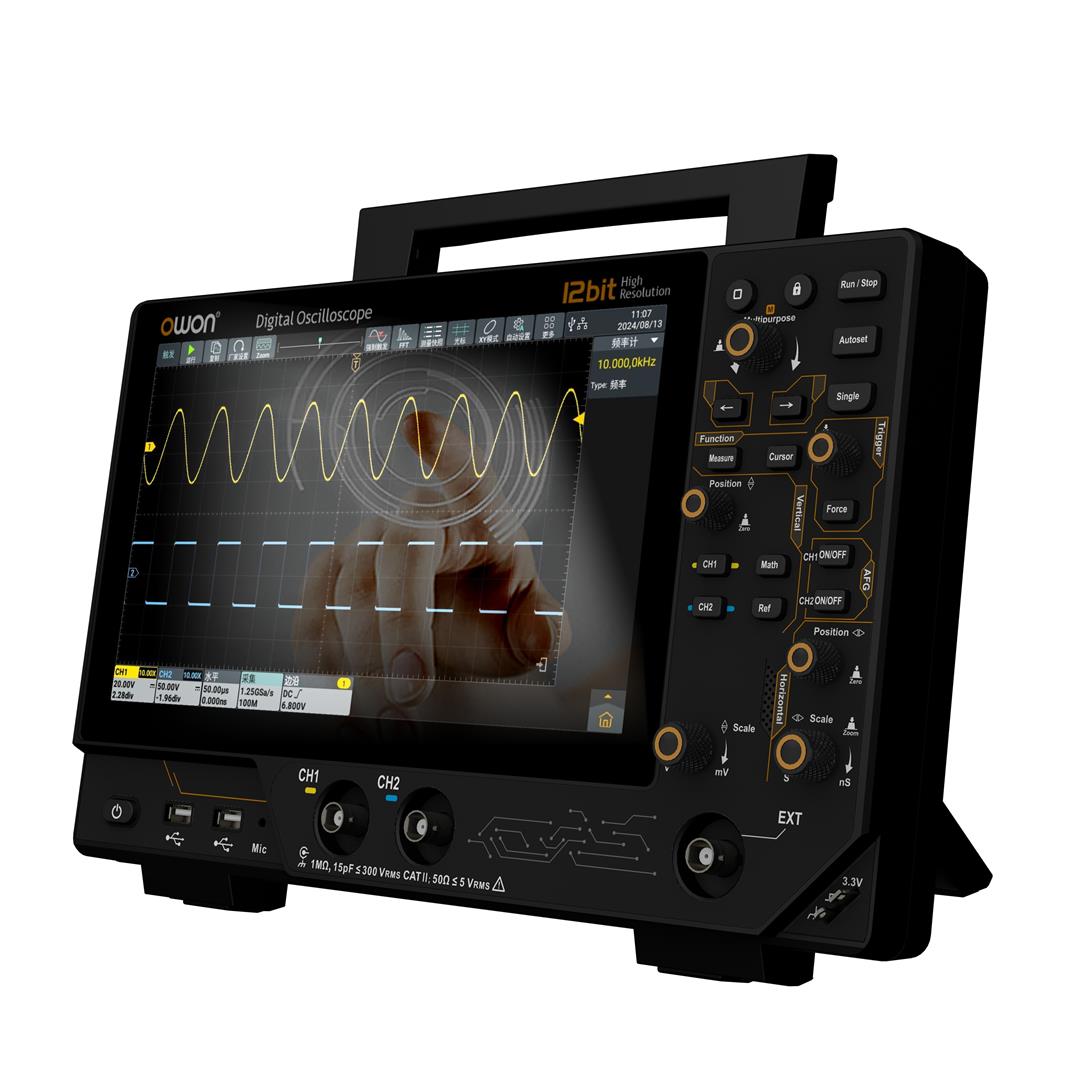

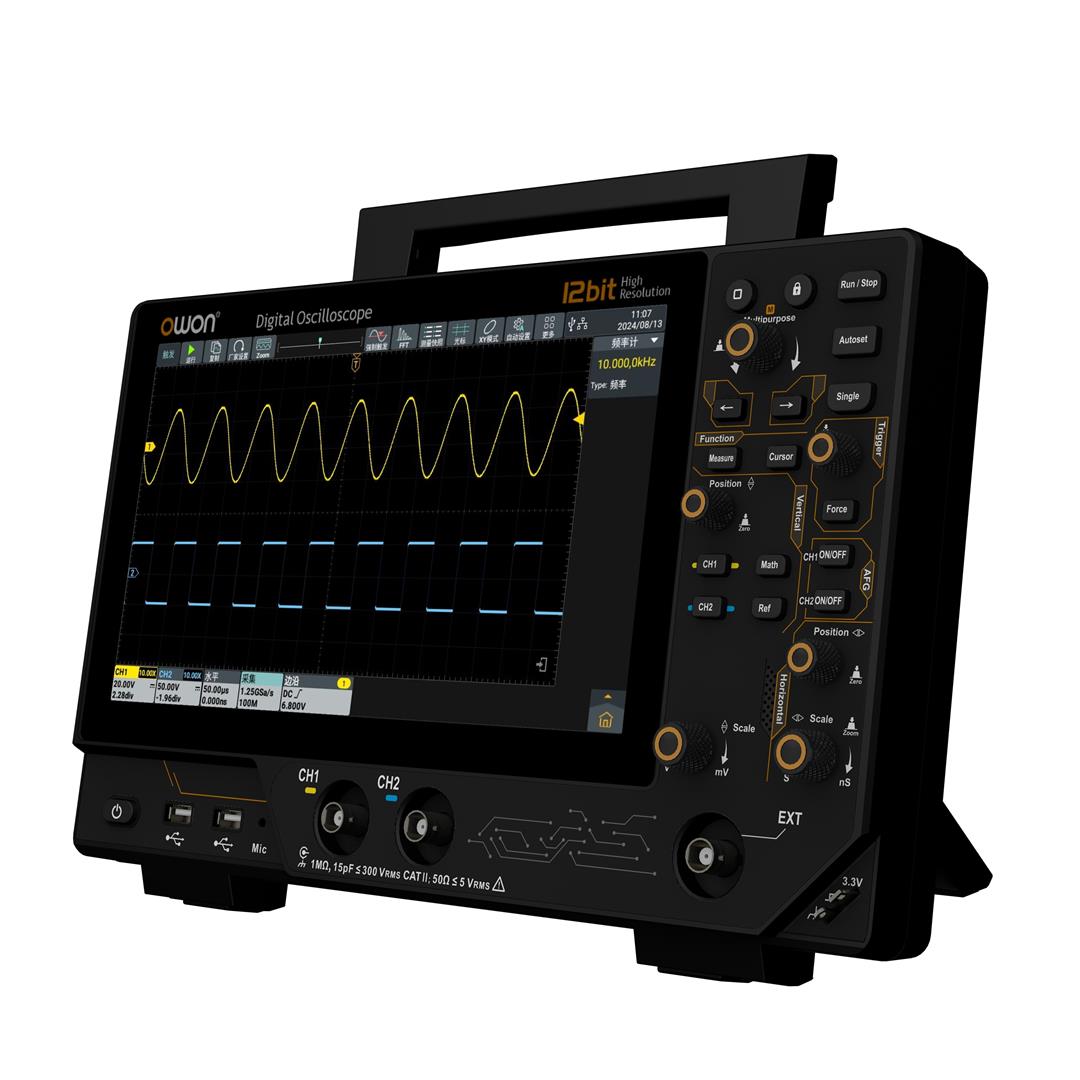

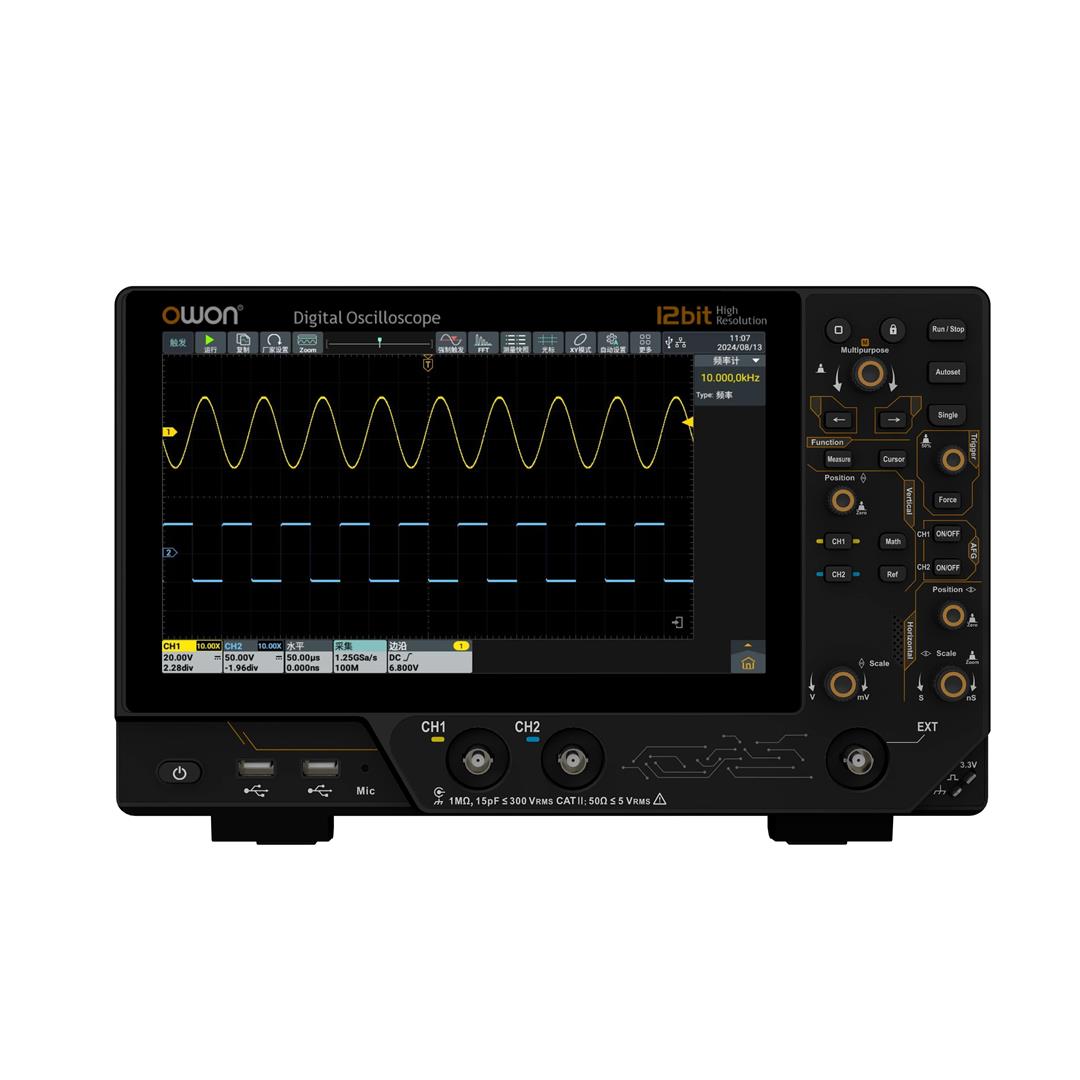

The Owon ADS3102A is a versatile mixed-domain digital oscilloscope that combines multiple test functionalities into a single compact device. With its 100 MHz bandwidth, 2.5 GSa/s real-time sampling rate, 12-bit high-resolution ADC, and deep 100 Mpts memory, it ensures precise signal acquisition for a wide range of applications.

This advanced device integrates an oscilloscope, 50 MHz arbitrary waveform generator, frequency counter, voltmeter, FFT spectrum analyzer, protocol decoder, and Bode plot capability. Thanks to its large 10.1-inch multi-touch LCD screen, intuitive UI, and extensive connectivity options, the ADS3102A is ideal for education, research labs, and professional debugging environments.

🔧 Key Features

–––––––––––––––––––––––––
Bandwidth: 100 MHz
Channels: 2 + EXT
Sampling Rate: 2.5 GSa/s (single channel), 1.25 GSa/s (dual)
Memory Depth: 100M
Waveform Refresh Rate: 500,000 wfms/s
Vertical Resolution: 12-bit
Voltage Range: 500 µV/div – 10 V/div
Trigger Types: Edge, Video, Pulse, Slope, Runt, Timeout, Nth Edge, Window, Logic, RS232/UART, I2C, SPI, CAN, LIN
Math Functions: +, –, ×, ÷, FFT, integration, differentiation, user-defined functions, digital filters
Auto Measurements: 43 types including frequency, Vpp, RMS, rise/fall time, phase difference

🎛 Arbitrary Waveform Generator

–––––––––––––––––––––––––
Channels: Dual
Max Output Frequency: 50 MHz
Sampling Rate: 160 MSa/s
Resolution: 14-bit
Modulation: AM, FM, PM, FSK, Sweep, Burst
Bode Plot: Supported with AFG models

🖥 Display & Interface

–––––––––––––––––––––––––
Display: 10.1-inch multi-touch LCD (1024 × 600)

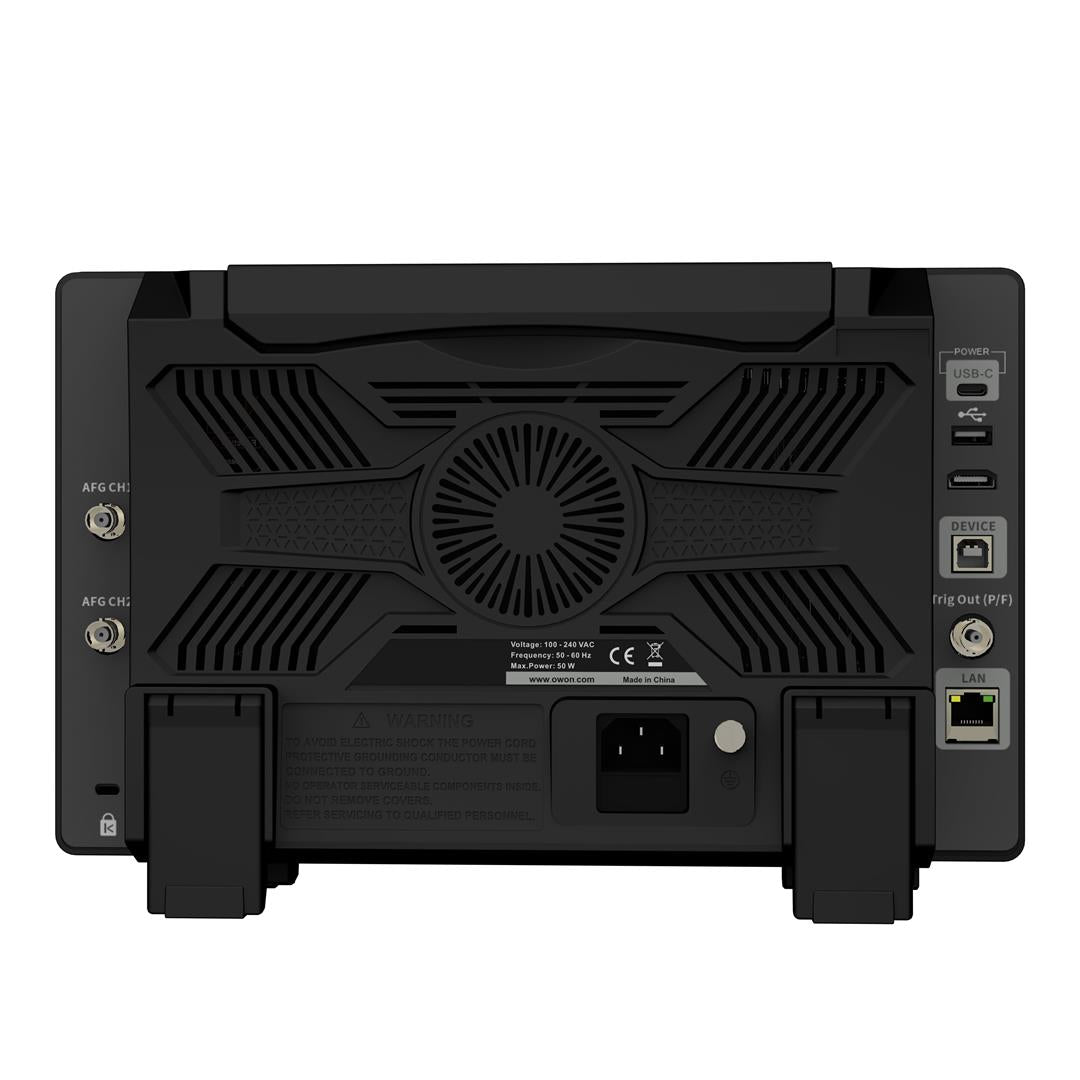

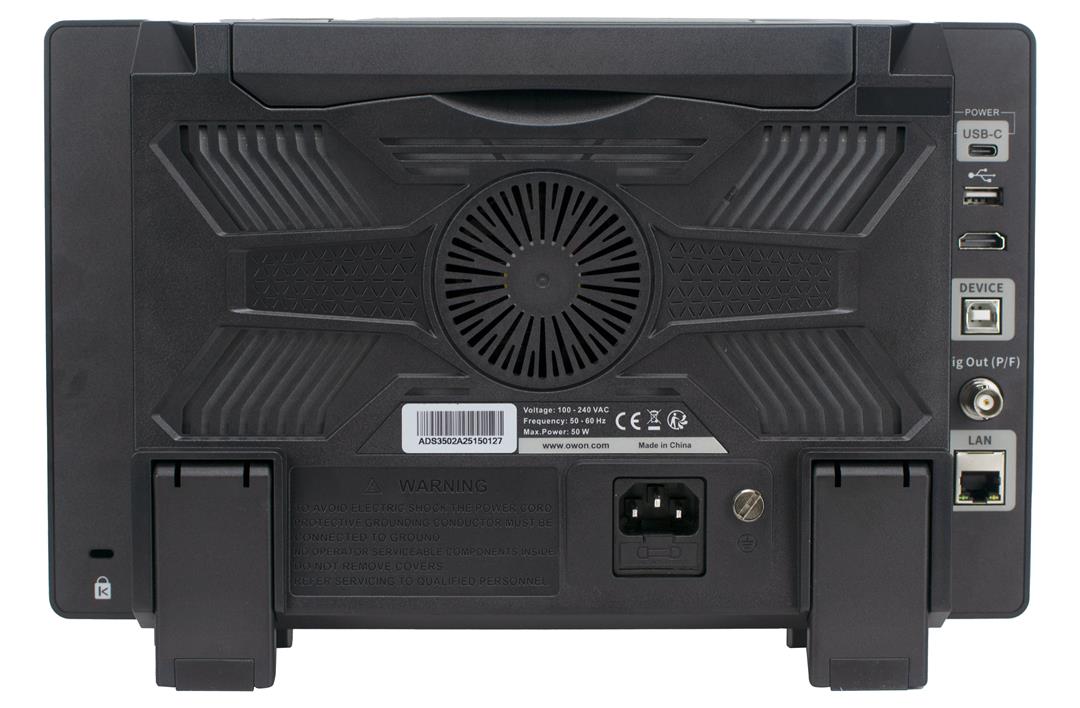

Connectivity: USB (host ×3, device ×1), LAN (SCPI, Web control), HDMI, Trigger Out
Wireless (Optional): Wi-Fi / Bluetooth for mobile app and wireless printer
External Devices: Supports USB keyboard and mouse
Built-in Audio: Microphone and speaker

💾 Storage & Power

–––––––––––––––––––––––––
Power Input: 100–240V AC, 50/60 Hz
Adapter: 12V/≥4A (with AFG) or 12V/≥3A (no AFG)
Dimensions: 325 × 209 × 111.5 mm
Weight: ~3.2 kg

🔍 Applications

–––––––––––––––––––––––––

• Embedded system design and protocol debugging

• Electrical engineering education and traningAutomotive diagnostics and field testingResearch labs needing high-resolution and long-memory analysis

📦 What’s in the Box

–––––––––––––––––––––––––

ADS3102A Oscilloscope

Passive probes (×2)

Power adapter

USB cable

Quick start guide

Optional: Wi-Fi/Bluetooth module, carrying case
