The Owon ADS3000A Series combines an oscilloscope, dual-channel 50 MHz arbitrary waveform generator (included), frequency counter, voltmeter, FFT spectrum analyzer, and protocol analyzer into a powerful all-in-one device. With 100 MHz bandwidth, 2.5 GSa/s sample rate, and 12-bit vertical resolution, it captures even the fastest signal transitions with high fidelity. The large 10.1-inch touchscreen, advanced connectivity, and software support make it ideal for both education and professional applications.

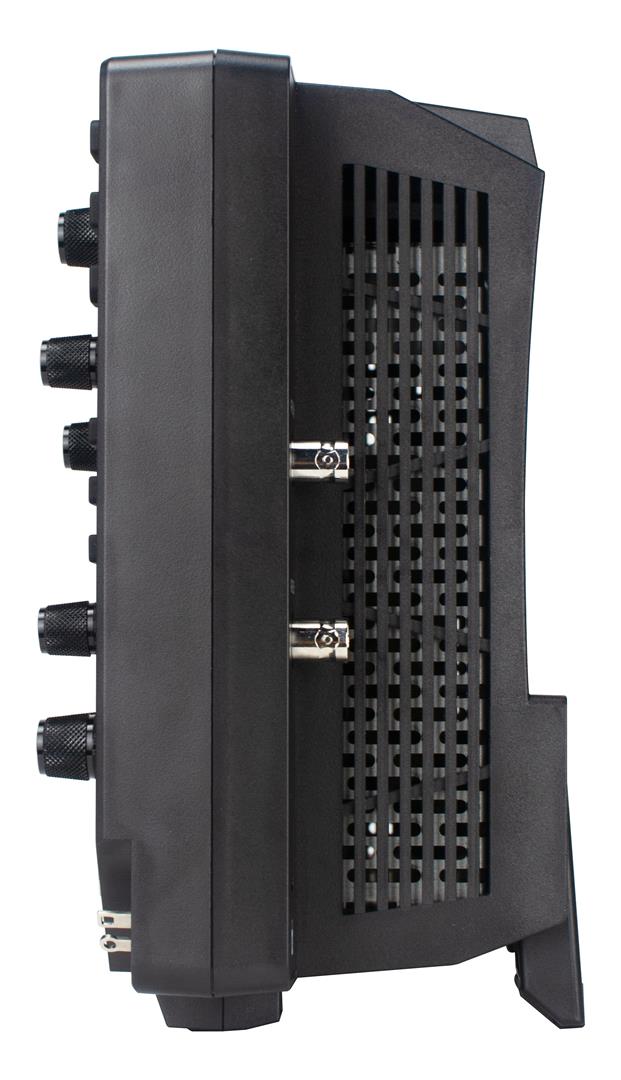

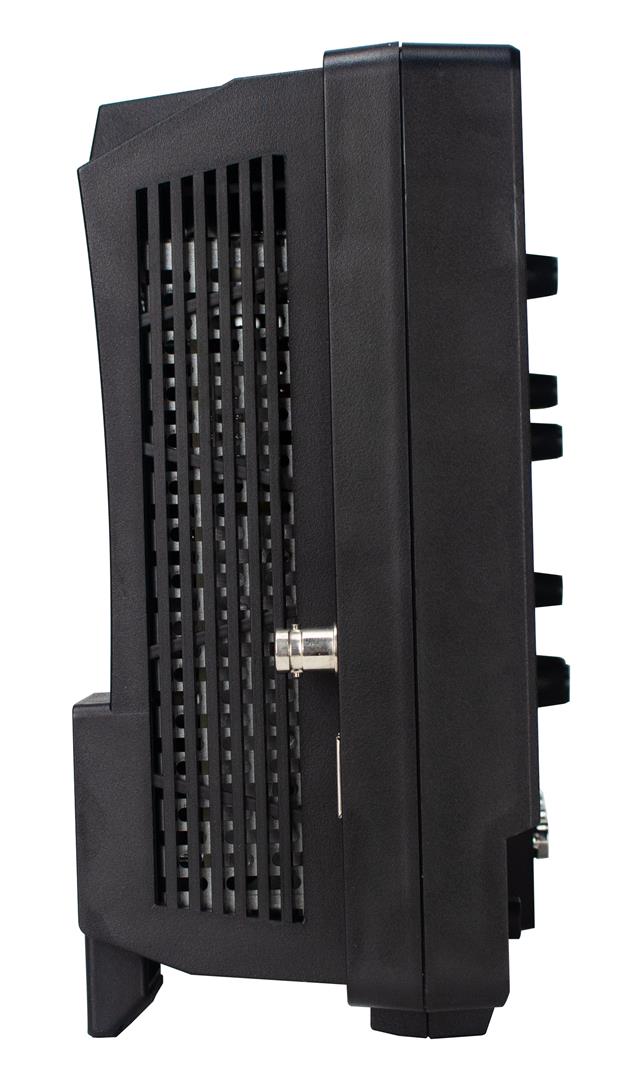

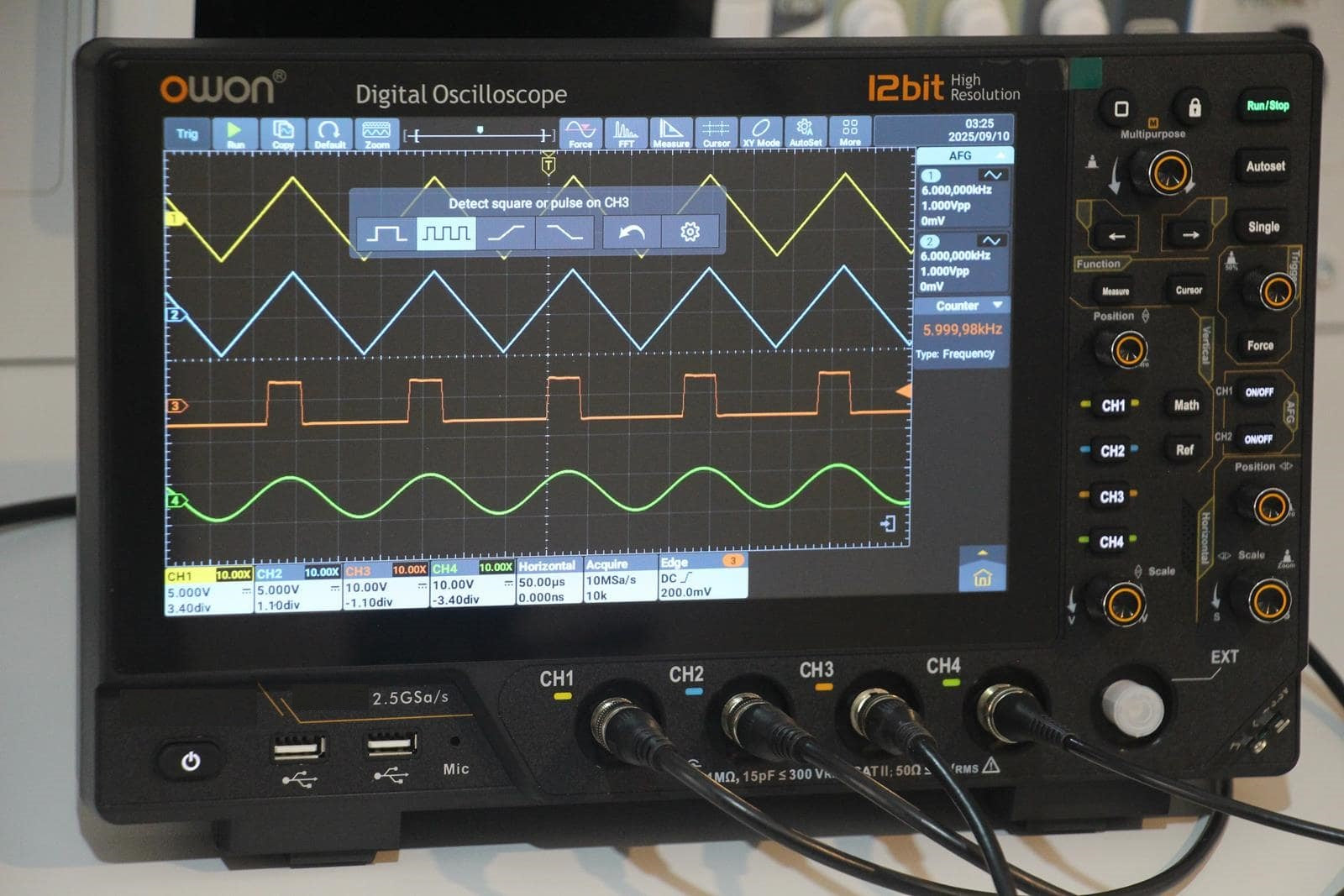

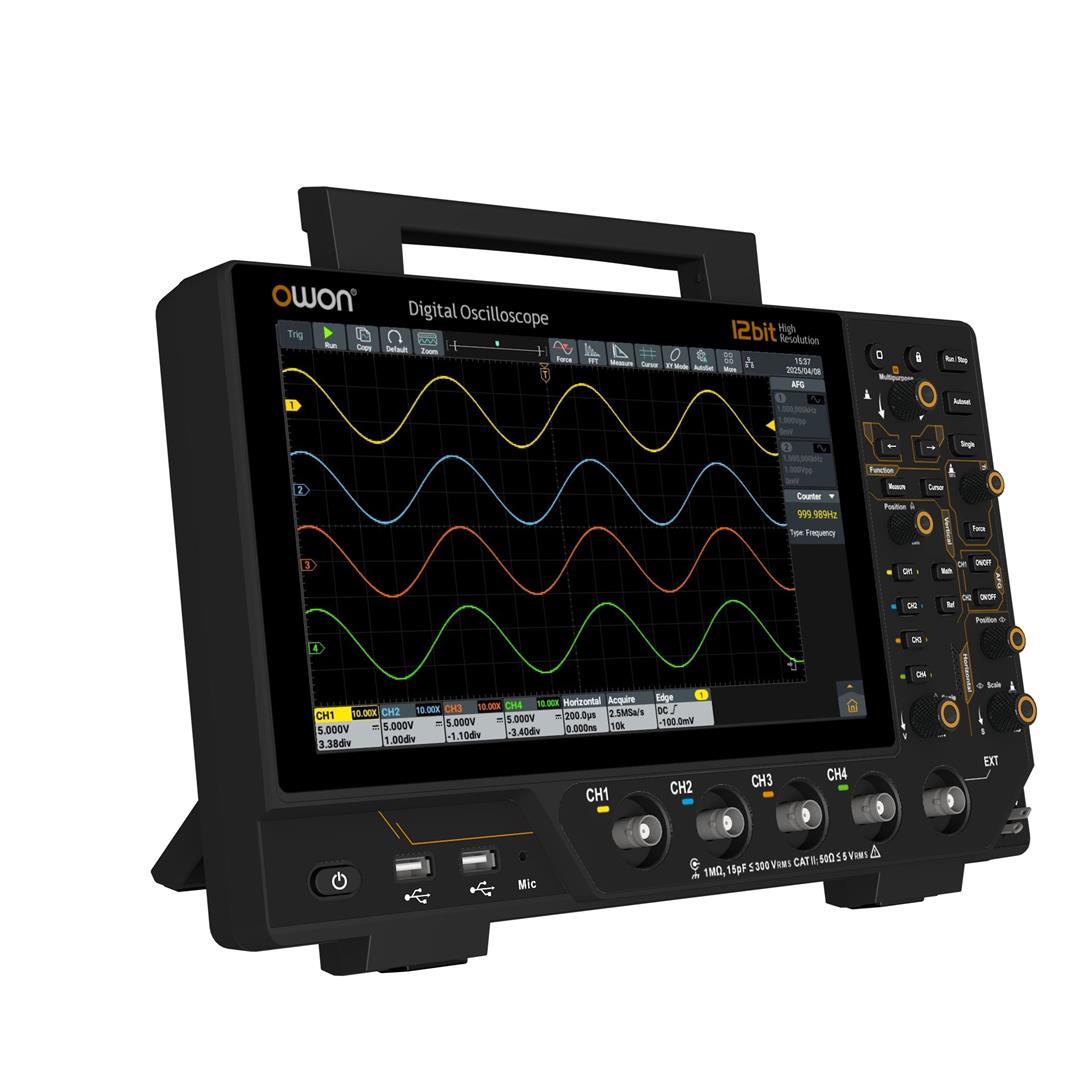

Owon ADS3104A Oscilloscope - 100MHz - 4Ch - 10” Touchscreen - 12Bit
Technical Specifications
––––––––––––––––––––––––––
Bandwidth (-3 dB): 100 MHz
Channels: 4 + EXT
Real-Time Sample Rate: 2.5 GSa/s (1 or 2 ch), 1.25 GSa/s (all channels)
Memory Depth: 100 Mpts
Waveform Refresh Rate: 500,000 wfms/s
Vertical Resolution: 12-bit
Vertical Sensitivity (S/div): 500 μV/div – 10 V/div
Time Base Range: 500 ps/div – 1000 s/div
Time Base Accuracy: ±1 ppm (typical)
DC Gain Accuracy: ±3% (≤1mV), ±2% (2mV), ±1.5% (≥5mV)
Input Impedance: 1 MΩ ±2% (15 pF ±5) / 50 Ω ±2%

Additional Features
––––––––––––––––––––––––––
Segmented Memory: Yes, supports segmentation
Mask Test (Pass/Fail): Yes, configurable masks with output

Trigger and Measurement Capabilities
––––––––––––––––––––––––––
Probe Attenuation Factor: 1X – 1M X (customizable, 1-2-5 steps)
Trigger Types: Edge, Video, Pulse, Slope, Runt, Window, Timeout, N-Edge, Logic, RS232/UART, I2C, SPI, CAN, LIN
Bus Decoding: UART, I2C, SPI, CAN, LIN
Auto Measurements: 43 types (Frequency, Period, Rise/Fall time, RMS, Vpp, Phase, etc.)
Math Functions: +, –, ×, ÷, &&, ||, ^, !, Integral, Derivative, √, Log, Trig, FFT, User-defined functions, Digital filters (LPF, HPF, BPF, BSF)
Frequency Counter: 6 digits, max frequency: analog bandwidth
Voltmeter: DC / AC+DC RMS / AC RMS, resolution: 4 digits

Arbitrary Function Generator (AFG – Built-in)
––––––––––––––––––––––––––
Waveform Cloning & Bode Plot: Supported on AFG models
Max Output Frequency: 50 MHz (dual-channel)
Sample Rate: 160 MSa/s
Vertical Resolution: 14-bit
Modulation Types: AM, FM, PM, FSK, Sweep, Burst
Bode Diagram: Requires AFG model

Display and Visualization
––––––––––––––––––––––––––
Screen: 10.1" multi-touch LCD
Resolution: 1024 × 600

Storage and Software
––––––––––––––––––––––––––
Data Management: Advanced file handling and export

Power and Physical Specs
––––––––––––––––––––––––––
Power Input: 100–240 V AC RMS, 50/60 Hz, CAT II
Dimensions: 325 × 209 × 111.5 mm
Weight: ~3.2 kg
Power Adapter: 12 V/≥3 A (non-AFG) or 12 V/≥4 A (AFG models, with handshake support)

Connectivity and Interfaces
––––––––––––––––––––––––––

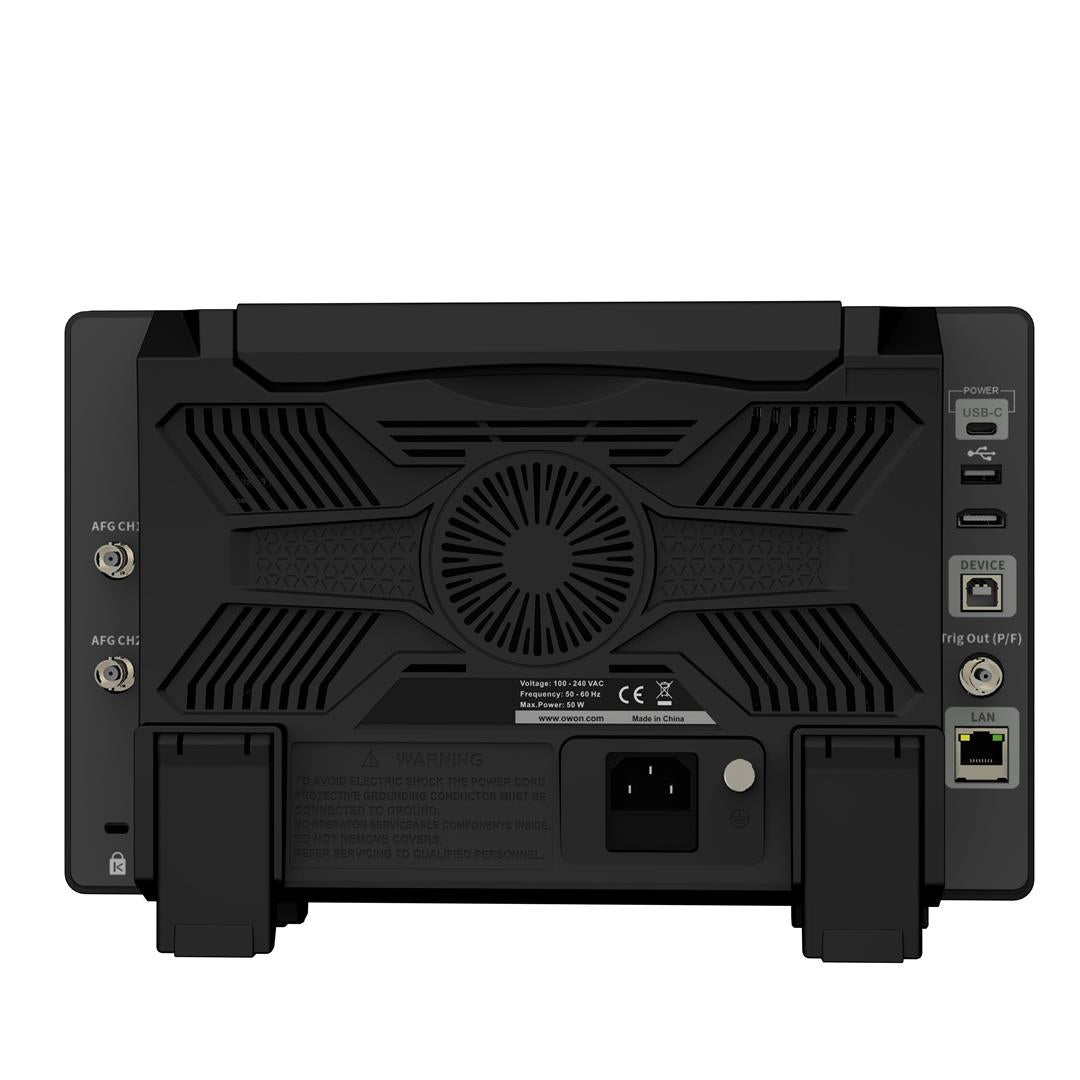

USB Ports: 1 × USB Device / 3 × USB Host
LAN: SCPI & Web control supported
HDMI: Yes
Trig Out (Pass/Fail): Yes
Type-C Power Input: Optional
Wireless Module (Optional): Wi-Fi / Bluetooth (supports FTP, printing, mobile hotspot)
Audio: Built-in microphone and speaker
External Devices: Keyboard and mouse supported

Application Areas
––––––––––––––––––––––––––
Protocol Analysis: UART, I2C, SPI, CAN, LIN
Education & R&D: All-in-one flexible usage
Field Service: Portable form factor for on-site diagnostics

Box Contents
––––––––––––––––––––––––––
ADS3104A oscilloscope
Probes
Power adapter
USB cable
User manual
(Optional) Wi-Fi/Bluetooth module, carrying case
