The OWON ADS3354 is a multifunction digital oscilloscope built on the advanced X-Vision II architecture, delivering 350 MHz bandwidth and 4-channel input for demanding measurement tasks. Thanks to this architecture, the instrument provides low noise performance, large memory depth, and high waveform update rates, enabling accurate visualization and analysis of complex signals.

Combining multiple instruments in a single platform, the ADS3354 integrates an oscilloscope, FFT spectrum analyzer, voltmeter, and a built-in dual-channel 50 MHz signal generator, offering a compact and powerful solution for professional test and measurement applications.

Oscilloscope Specifications

Channels: 4 + EXT
Bandwidth: 350 MHz
Real-Time Sampling Rate: 2.5 GS/s (single channel), 1.25 GS/s (all channels)
Memory Depth: 100 Mpts
Waveform Update Rate: Up to 500,000 wfms/s
Vertical Resolution: 8-bit
Vertical Sensitivity: 500 µV/div – 10 V/div
Time Base Range: 500 ps/div – 1000 s/div
DC Gain Accuracy: ≤ 1 mV: ±4%, ≥ 2 mV: ±3%
Input Impedance: 1 MΩ ±2%, 15 pF ±5 pF (parallel), selectable 50 Ω ±2%

Trigger Types: Edge, video, pulse, slope, timeout, window, Nth, RS232/UART, I2C, SPI, CAN, LIN
Built-in Protocol Decode: UART, I2C, SPI, CAN, LIN

Math Functions: +, −, ×, ÷, FFT, FFT RMS, log, ln, exp, abs, sin, cos, tan, derivative, integral, square root, digital filtering

Automatic Measurements: Period, frequency, positive/negative width, rise/fall time, duty cycle, RMS, Vpp, overshoot, area, phase, delay, and more

Display: 10.1-inch LCD, 1024 × 600 resolution, multi-touch
Dimensions: 325 × 209 × 111.5 mm
Weight: Approx. 3.2 kg

Additional Features:
Segmented memory support
Pass/Fail mask test with output

Voltmeter Functions

Measurement Types: DC, AC RMS, AC+DC RMS
Resolution: 4 digits
Application: Basic voltage measurements

FFT Spectrum Analyzer

FFT Points: 1 million
Advanced Functions: FFT RMS, zoom, digital filtering (low-pass, high-pass, band-pass, band-stop)
Application: Accurate frequency-domain analysis of voltage signals

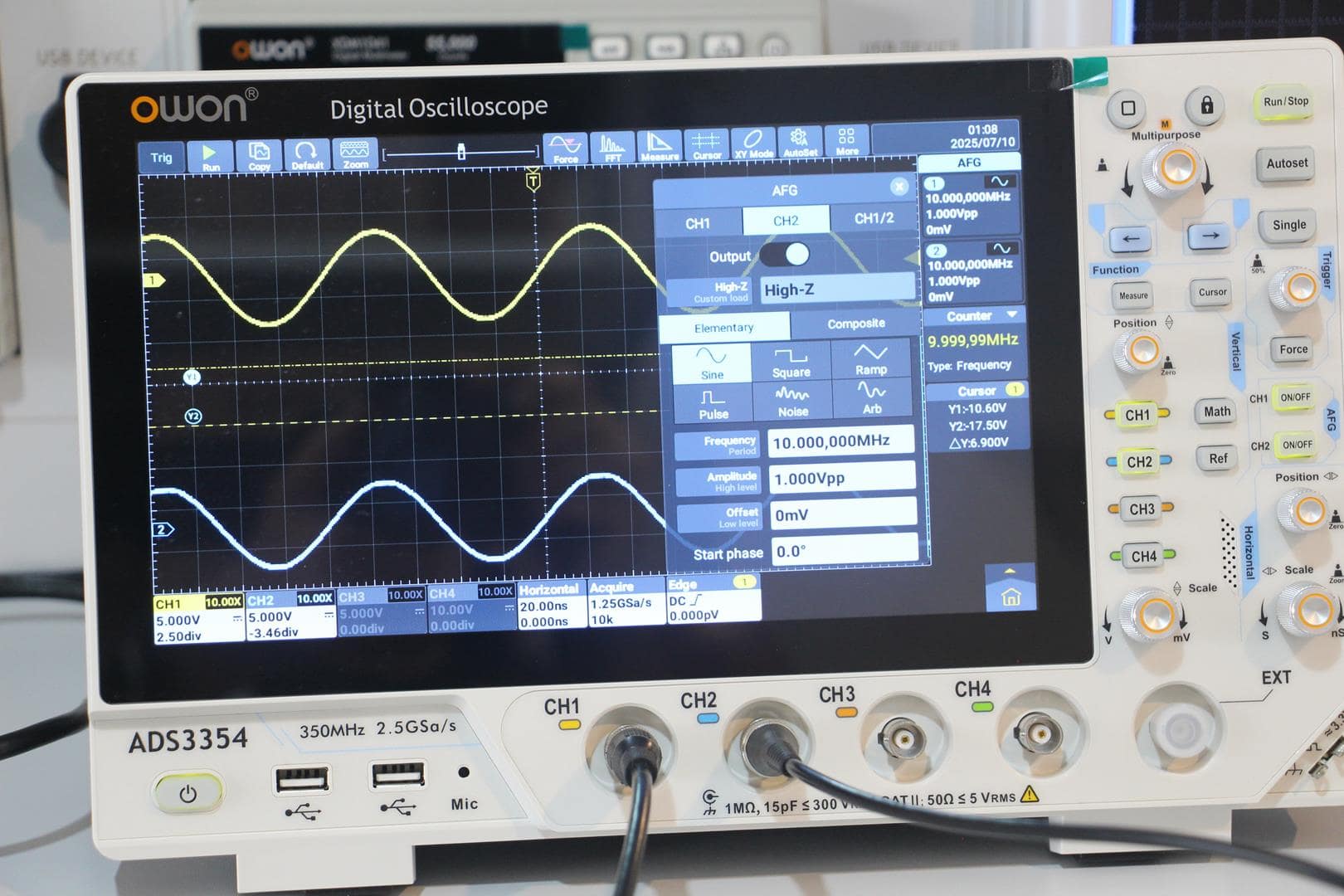

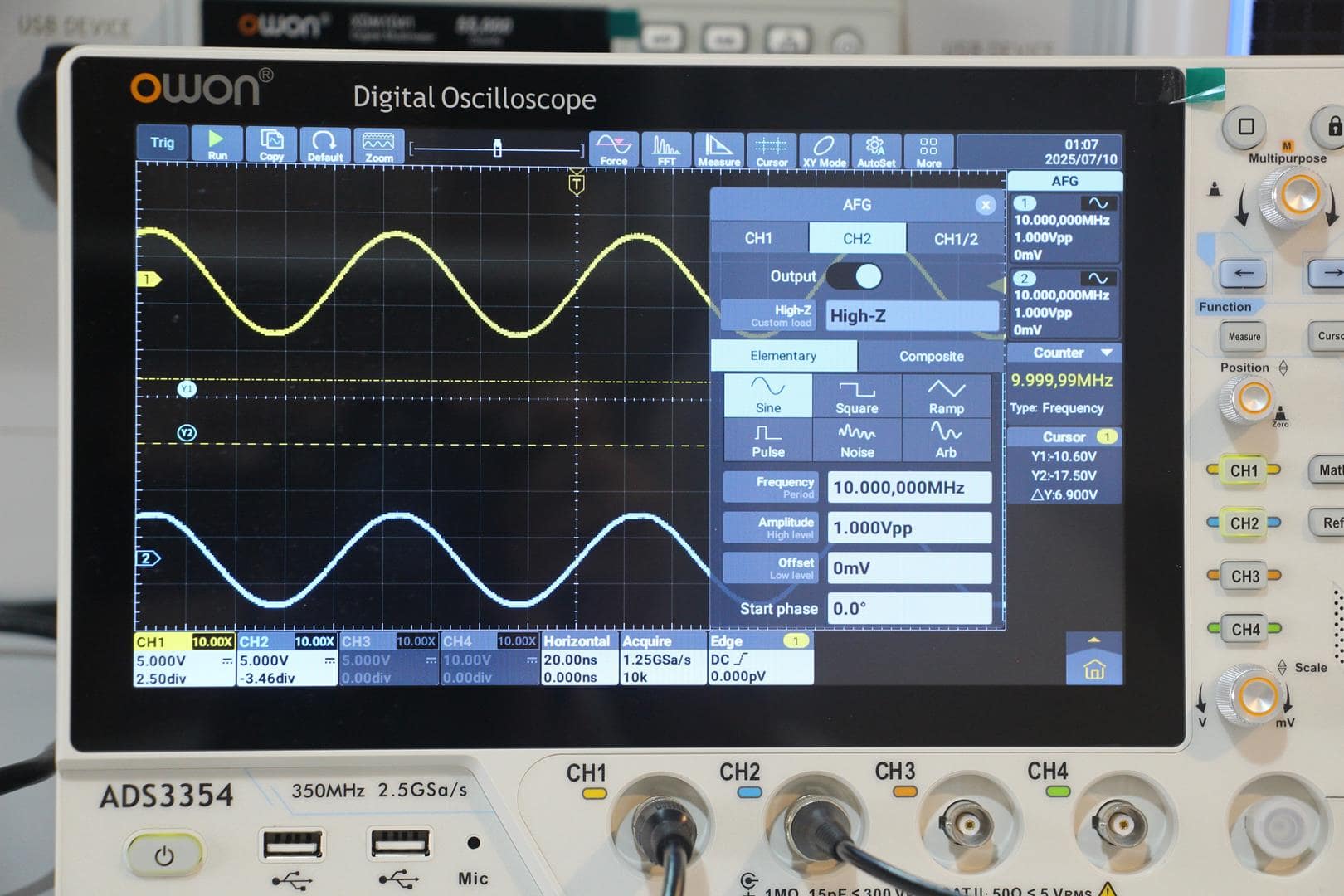

Integrated Signal Generator

Channels: 2
Maximum Frequency: 50 MHz
Sampling Rate: 160 MSa/s
Vertical Resolution: 14-bit
Standard Waveforms: Sine, square, ramp, pulse, noise
Arbitrary Waveforms: sin(x)/x, exponential, step (28 types total)
Arbitrary Waveform Frequency Range: 1 μHz – 10 MHz
Waveform Length: 2K – 16K points
Amplitude:
• 2 mVpp – 10 Vpp (high impedance)
• 1 mVpp – 5 Vpp (50 Ω)
Modulation: AM, FM, PM, FSK, Sweep, Burst

System & Connectivity

Operating System: Android-based
Built-in Hardware: Microphone and speaker
Expandability: USB keyboard and mouse support, HDMI output
Wireless (Optional): Wi-Fi, Bluetooth, FTP, mobile hotspot, printer support

Power Input: Type-C, 12 V / 4 A adapter
Interfaces:
USB Host ×3
USB Device
HDMI
LAN
Trigger Out
Type-C power input

Box Contents

Power cord
USB cable
4 × oscilloscope probes
Voltage measurement probe set
Probe adjustment tool
Quick start guide
Optional: BNC to alligator clip probe, carrying case
