The Owon ADS3000A Series is a powerful test and measurement platform that combines an oscilloscope, 50 MHz dual-channel arbitrary waveform generator, frequency counter, voltmeter, FFT spectrum analyzer, and protocol analyzer in a single device. With its 350 MHz bandwidth, 2.5 GSa/s sampling rate, and 12-bit vertical resolution, it captures even the most complex signals with precision. Its 10.1-inch capacitive touchscreen, rich triggering options, and comprehensive analysis tools make it ideal for both educational and advanced engineering applications.

Technical Specifications
–––––––––––––––––––––––––
Bandwidth: 350 MHz
Channels: 4 + EXT
Real-Time Sampling Rate: 2.5 GSa/s (single/dual channel), 1.25 GSa/s (all channels)
Record Length: 100M
Waveform Refresh Rate: 500,000 wfms/s
Vertical Resolution: 12-bit
Voltage Range (S/div): 500 µV/div – 10 V/div
Time Base Range: 500 ps/div – 1000 s/div
DC Gain Accuracy: ±3% (≤1 mV), ±2% (2 mV), ±1.5% (≥5 mV)
Input Impedance: 1 MΩ ±2% or 50 Ω ±2%
Probe Attenuation: 1X – 1M X, user-configurable

Additional Features
–––––––––––––––––––––––––
Segmented memory support
Pass/Fail mask testing with output trigger

Triggering and Measurements
–––––––––––––––––––––––––
Trigger Types: Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth Edge, Logic
Protocol Triggering: RS232/UART, I2C, SPI, CAN, LIN
Auto Measurements: 43 types including frequency, period, RMS, Vpp, phase
Math Operations: Basic arithmetic, logical, integration, derivative, FFT, filtering, and user-defined functions
Frequency Counter: 6-digit resolution
Voltmeter: DC / AC RMS modes

Arbitrary Function Generator (AFG – Included)
–––––––––––––––––––––––––
Max Output Frequency: 50 MHz, dual-channel
Sample Rate: 160 MSa/s
Resolution: 14-bit
Modulation Modes: AM, FM, PM, FSK, Sweep, Burst
Advanced Functions: Bode plot and waveform cloning (available in AFG models)

Display and Visual Interface
–––––––––––––––––––––––––
Screen Size: 10.1-inch capacitive multi-touch LCD
Resolution: 1024 × 600

Storage and Software
–––––––––––––––––––––––––
Advanced file management
Data editing and export capabilities

Power and Physical Characteristics
–––––––––––––––––––––––––
Power Input: 100V–240V AC, 50/60 Hz
Power Adapter: 12V/≥4A (for AFG models)
Dimensions: 325 × 209 × 111.5 mm
Weight: ~3.2 kg

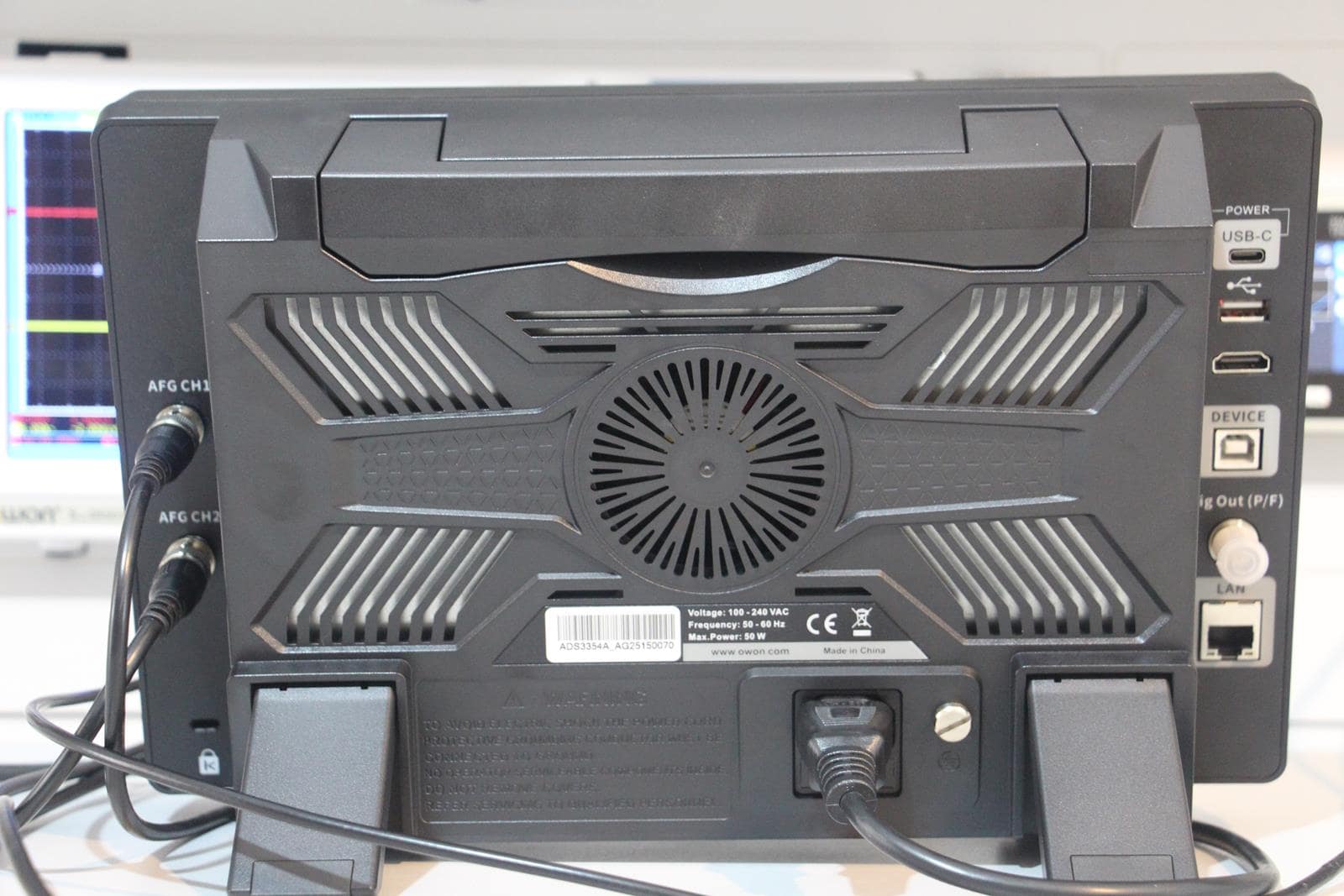

Communication and Connectivity
–––––––––––––––––––––––––
USB Ports: 1 × USB device, 3 × USB host
LAN Interface: SCPI command and web control supported
HDMI Output: Available
Type-C Input: Optional
Wireless Communication (Optional): Wi-Fi / Bluetooth
External Devices: Keyboard and mouse support
Audio Features: Built-in microphone and speaker

Applications
–––––––––––––––––––––––––
Protocol decoding for UART, I2C, SPI, CAN, and LIN
Educational and R&D environments requiring multi-functionality
Field technicians needing a portable analysis platform

Package Contents
–––––––––––––––––––––––––

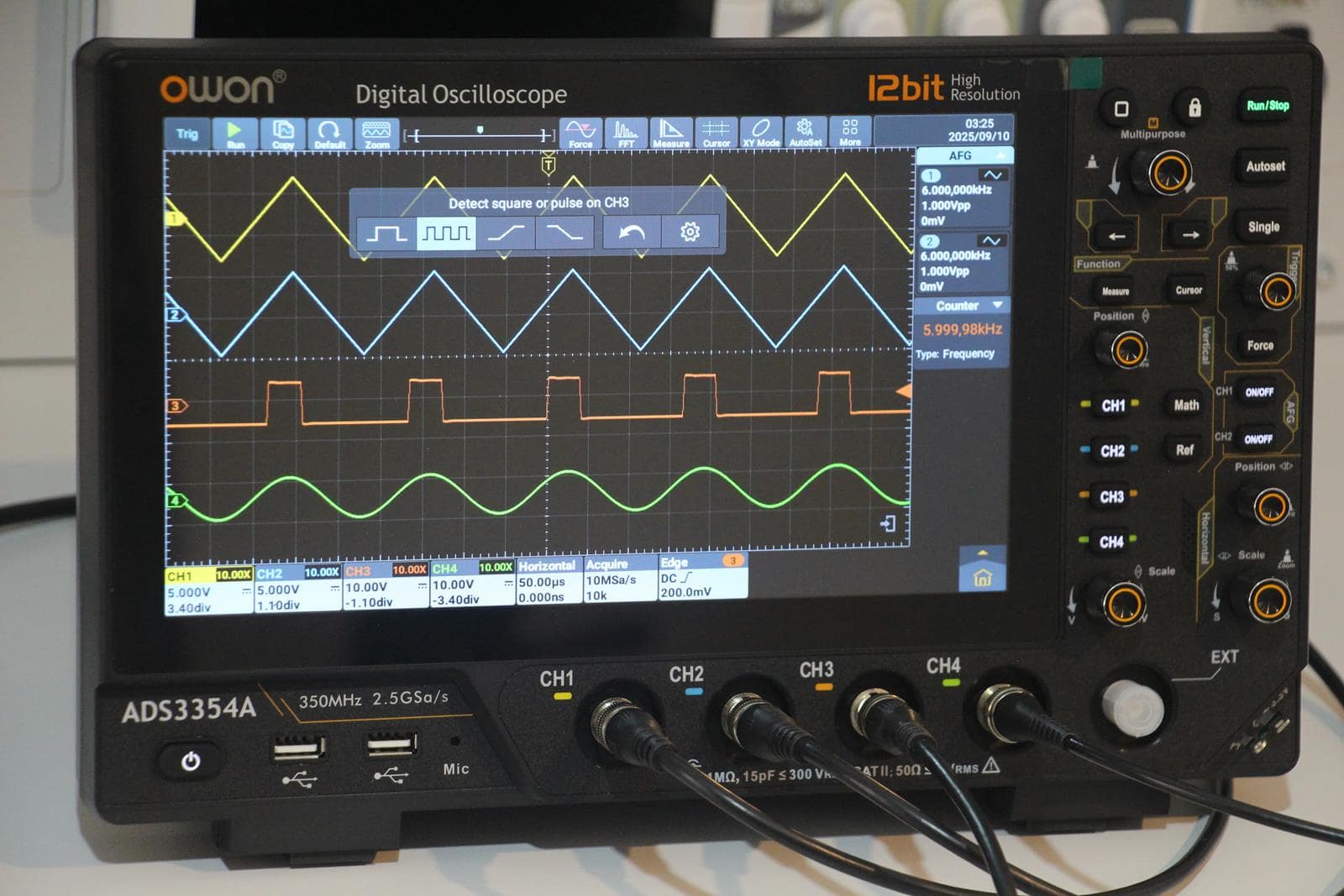

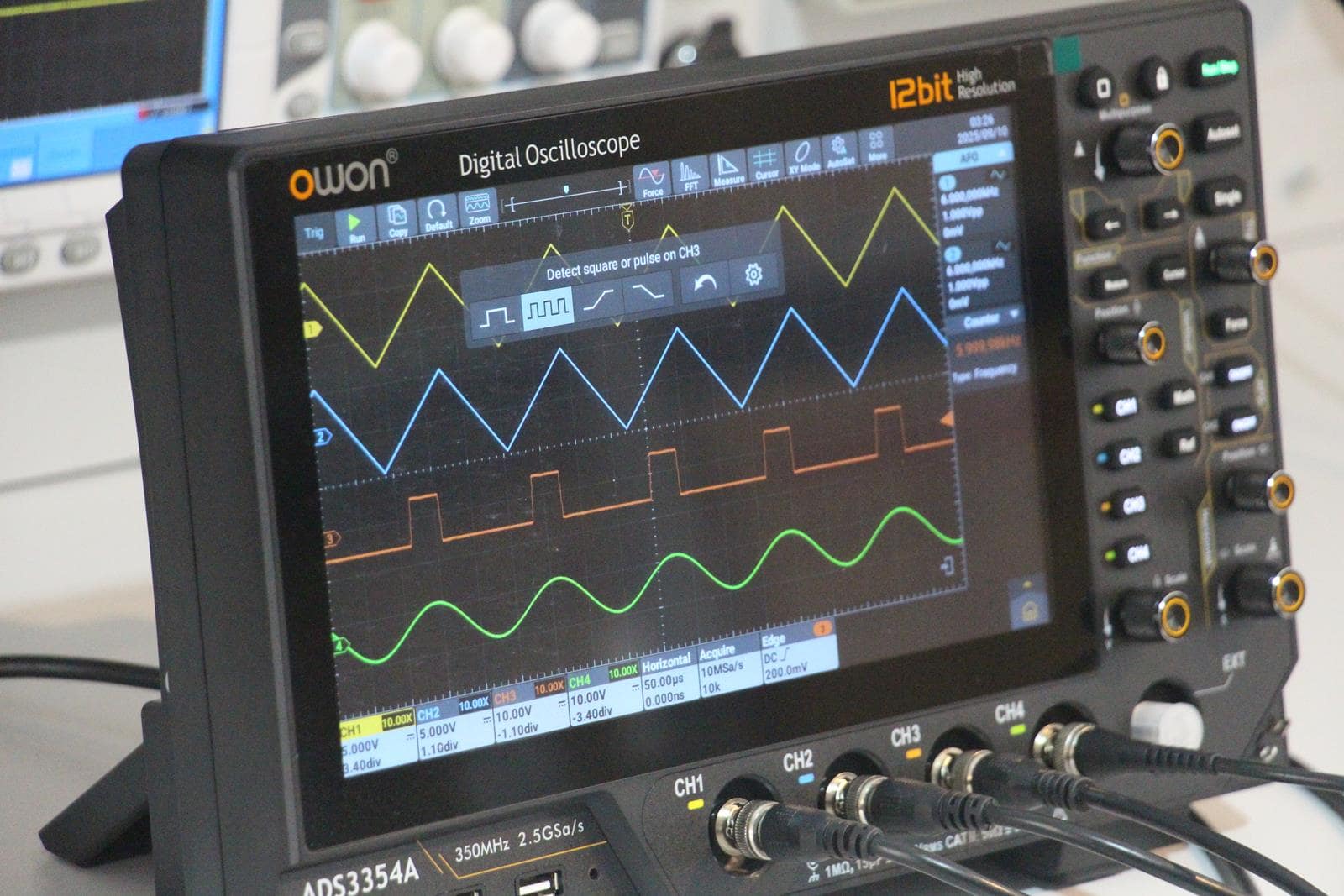

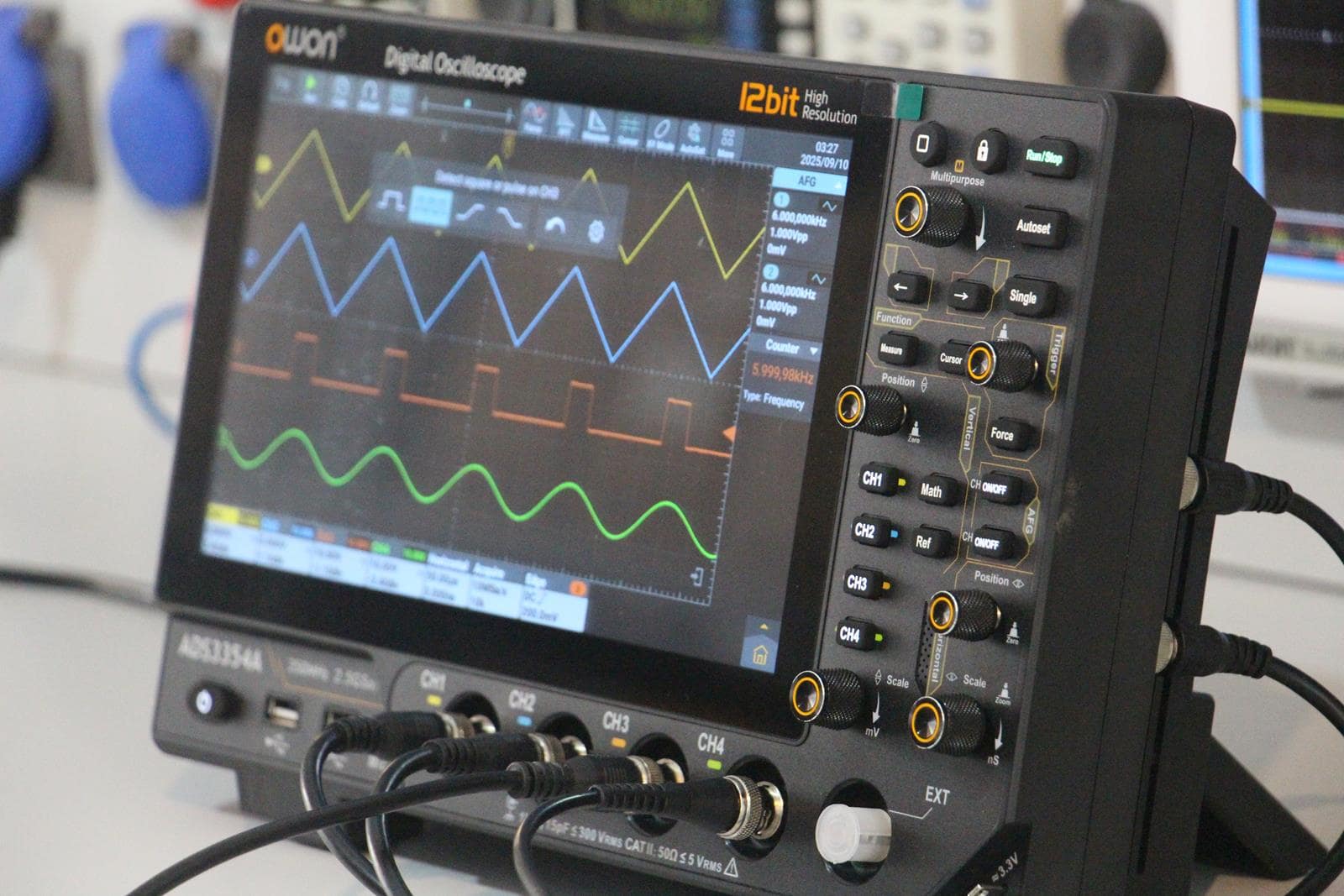

Owon ADS3354A Oscilloscope
Standard probe sets
Power adapter
USB cable
User manual
(Optional) Wi-Fi/Bluetooth module, carrying case
