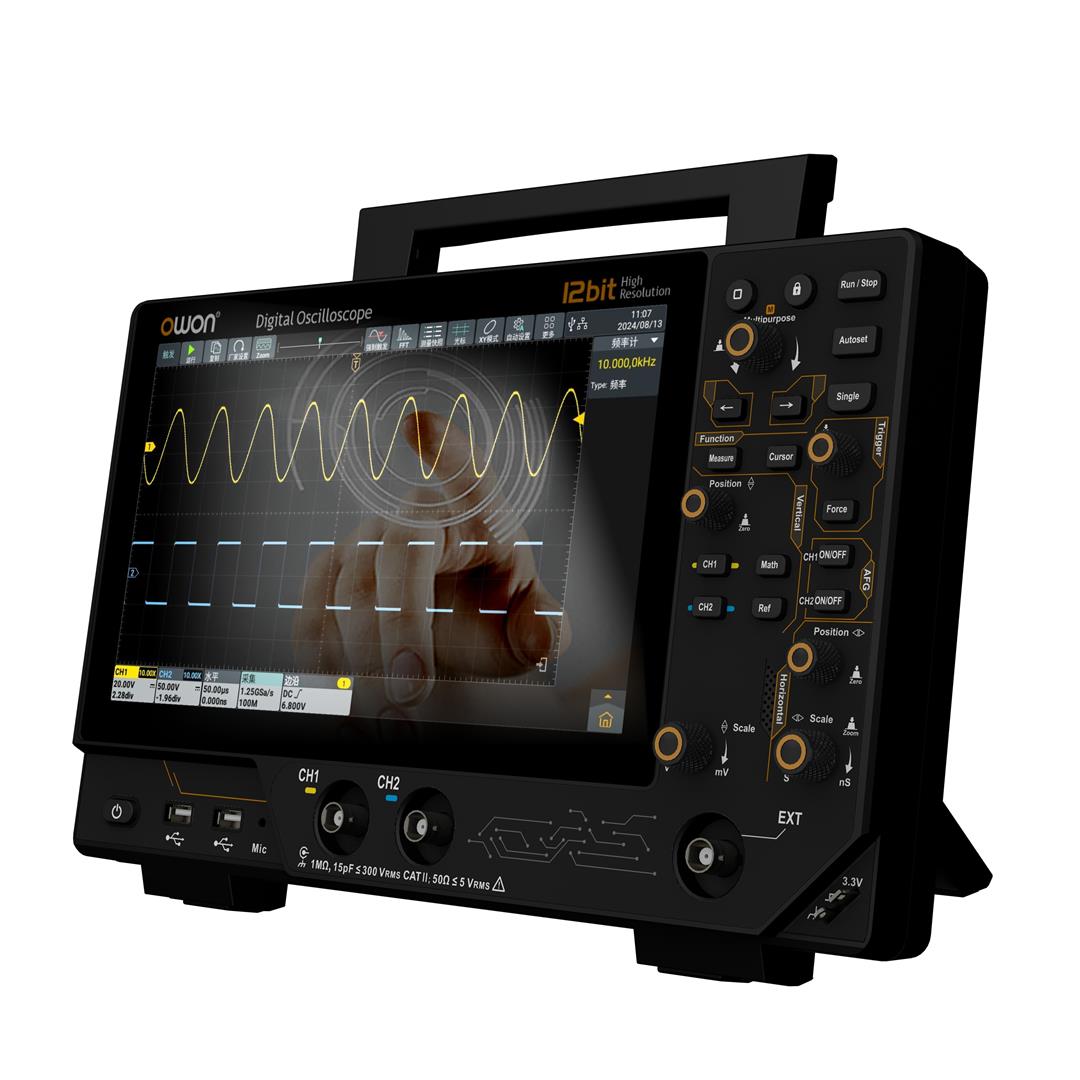

The OWON ADS3502A combines oscilloscope, arbitrary waveform generator (dual channel, 50 MHz), frequency counter, voltmeter, FFT spectrum analyzer, and protocol analyzer in a single compact unit. With up to 500 MHz bandwidth, ultra-fast 2.5 GSa/s sampling, and 12-bit resolution, it captures high-speed signals with exceptional accuracy. It supports advanced analysis features such as Bode plot and waveform cloning (AFG models), making it ideal for demanding R&D, academic, and field applications.

Key Specifications
––––––––––––––––––––––––––
Bandwidth: 500 MHz
Channels: 2 + EXT
Sample Rate: 2.5 GSa/s (single channel), 1.25 GSa/s (dual channel)
Memory Depth: 100M
Waveform Refresh Rate: 500,000 wfms/s
Vertical Resolution: 12-bit
Voltage Range: 500 µV/div – 10 V/div
Time Base: 500 ps/div – 1000 s/div
Input Impedance: 1 MΩ ±2% / 50 Ω ±2%
Probe Attenuation Ratio: 1X–1M X (customizable)

Advanced Features
––––––––––––––––––––––––––
Segmented Memory: Supported
Mask Test (Pass/Fail): Supported
Trigger Types: Edge, Pulse, Video, Slope, Runt, Window, Timeout, Nth Edge, Logic, RS232/UART, I2C, SPI, CAN, LIN
Bus Decoding: UART, I2C, SPI, CAN, LIN
Auto Measurements: 43 types (frequency, period, rise/fall time, RMS, Vpp, etc.)
Math Functions: +, –, ×, ÷, logic, FFT, integration, derivative, log, trig, filters (low/high/band pass/notch), and user-defined functions
Frequency Counter: 6 digits
Voltmeter: DC / AC+DC RMS / AC RMS

AFG (Built-in Arbitrary Function Generator)
––––––––––––––––––––––––––
Max Output Frequency: 50 MHz (dual channel)
Sample Rate: 160 MSa/s
Vertical Resolution: 14-bit
Modulations: AM, FM, PM, FSK, Sweep, Burst
Bode Plot: Supported (AFG required)
Waveform Cloning: Yes

Display & Interface
––––––––––––––––––––––––––
Screen: 10.1” 1024×600 LCD with multi-touch support

Storage & Software
––––––––––––––––––––––––––
Data Management: Advanced file editing and export options

Power & Physical
––––––––––––––––––––––––––
Power Input: 100–240 V AC, 50/60 Hz
Dimensions: 325 × 209 × 111.5 mm
Weight: ~3.2 kg
Adapter: 12V/≥3A (non-AFG) or 12V/≥4A (AFG)

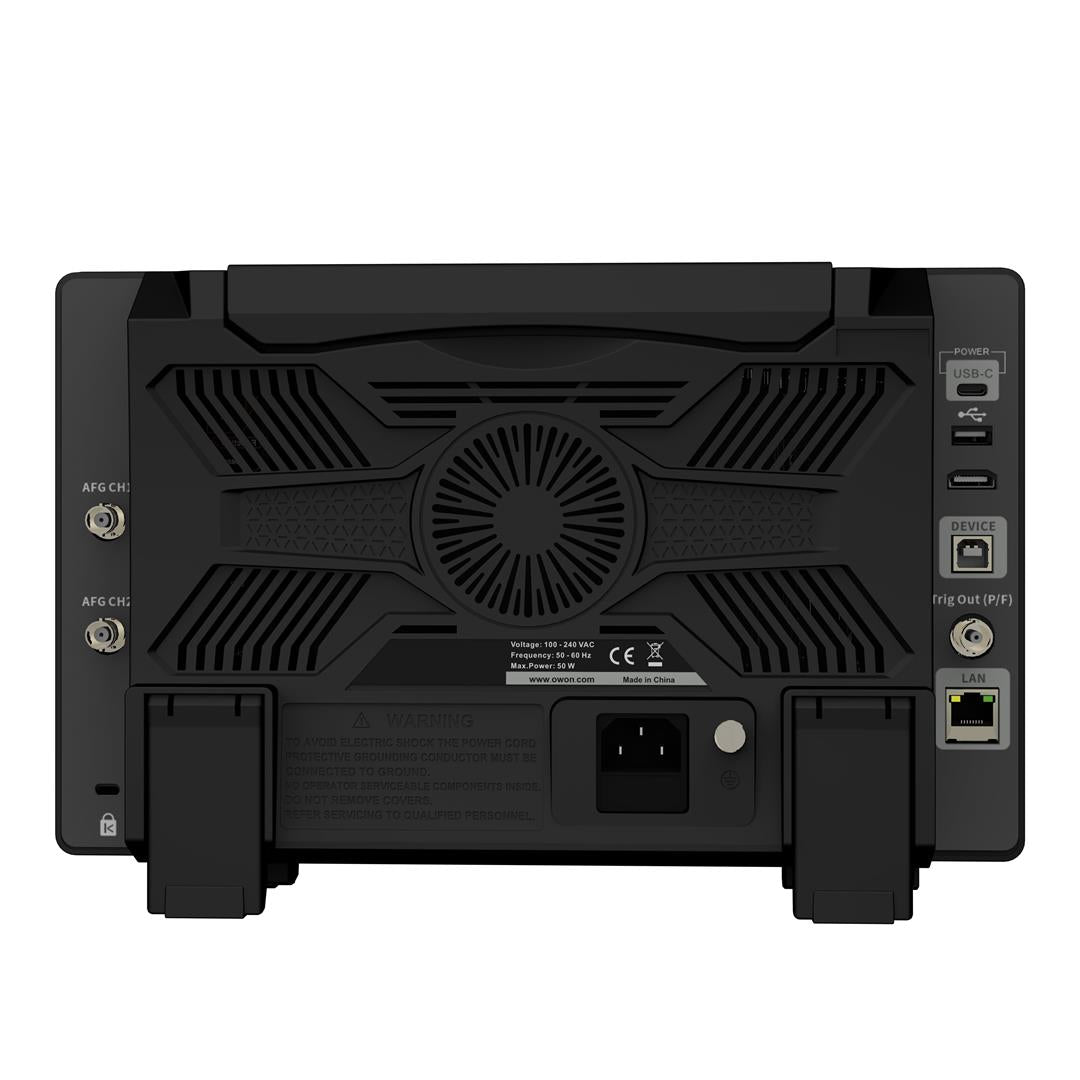

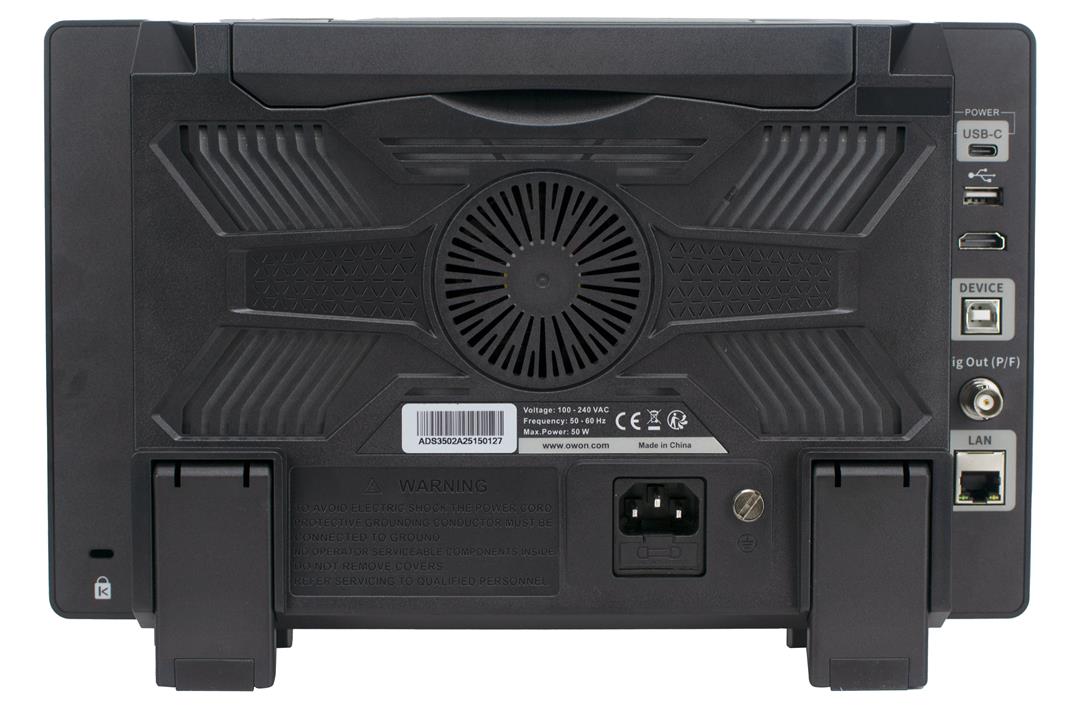

Connectivity
––––––––––––––––––––––––––
USB: 1 × device, 3 × host
LAN: SCPI, web remote supported
HDMI: Yes
Trigger Out: Yes
Type-C Power: Optional
Wireless (optional): Wi-Fi / Bluetooth (FTP, printer, hotspot)
Audio I/O: Built-in microphone and speaker
Peripheral Support: USB keyboard and mouse

Applications
––––––––––––––––––––––––––

• Protocol debugging (UART / I2C / SPI / CAN / LIN)

• Advanced R&D and education

• Service and field operations

Package Includes
––––––––––––––––––––––––––
Standard: ADS3000A device, probes, power adapter, USB cable, user guide
Optional: Wi-Fi/Bluetooth module, carrying case
