Product Description

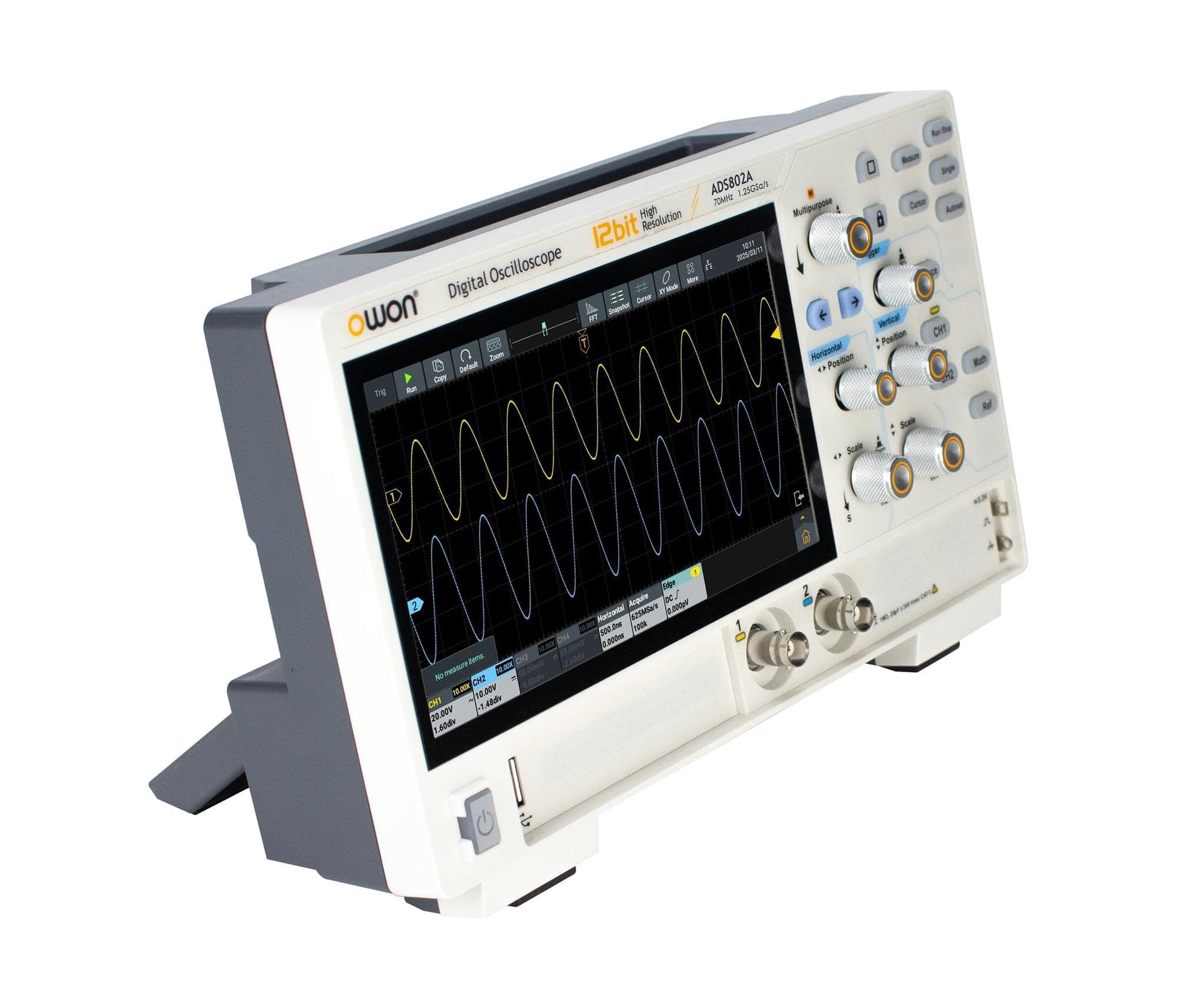

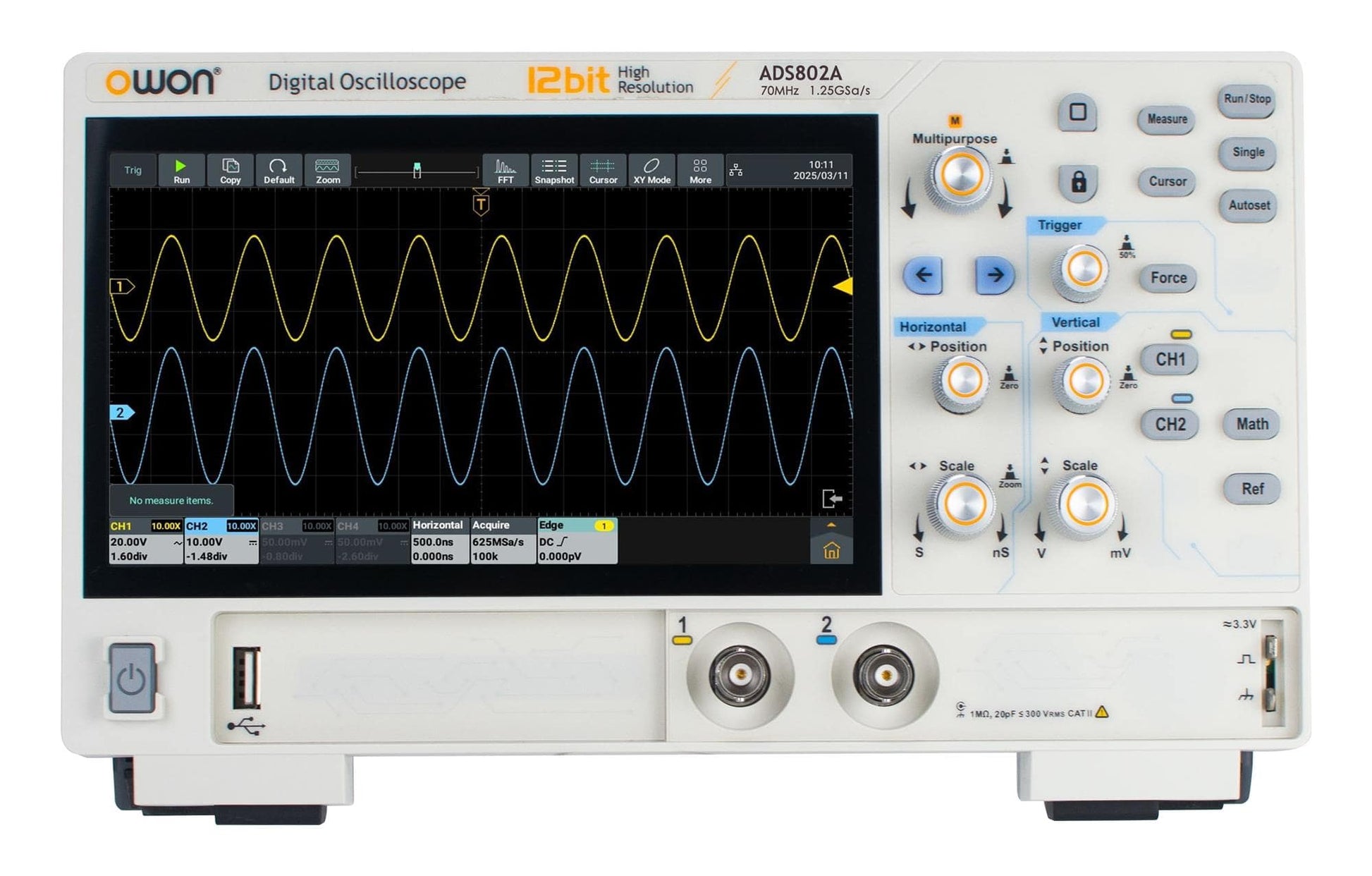

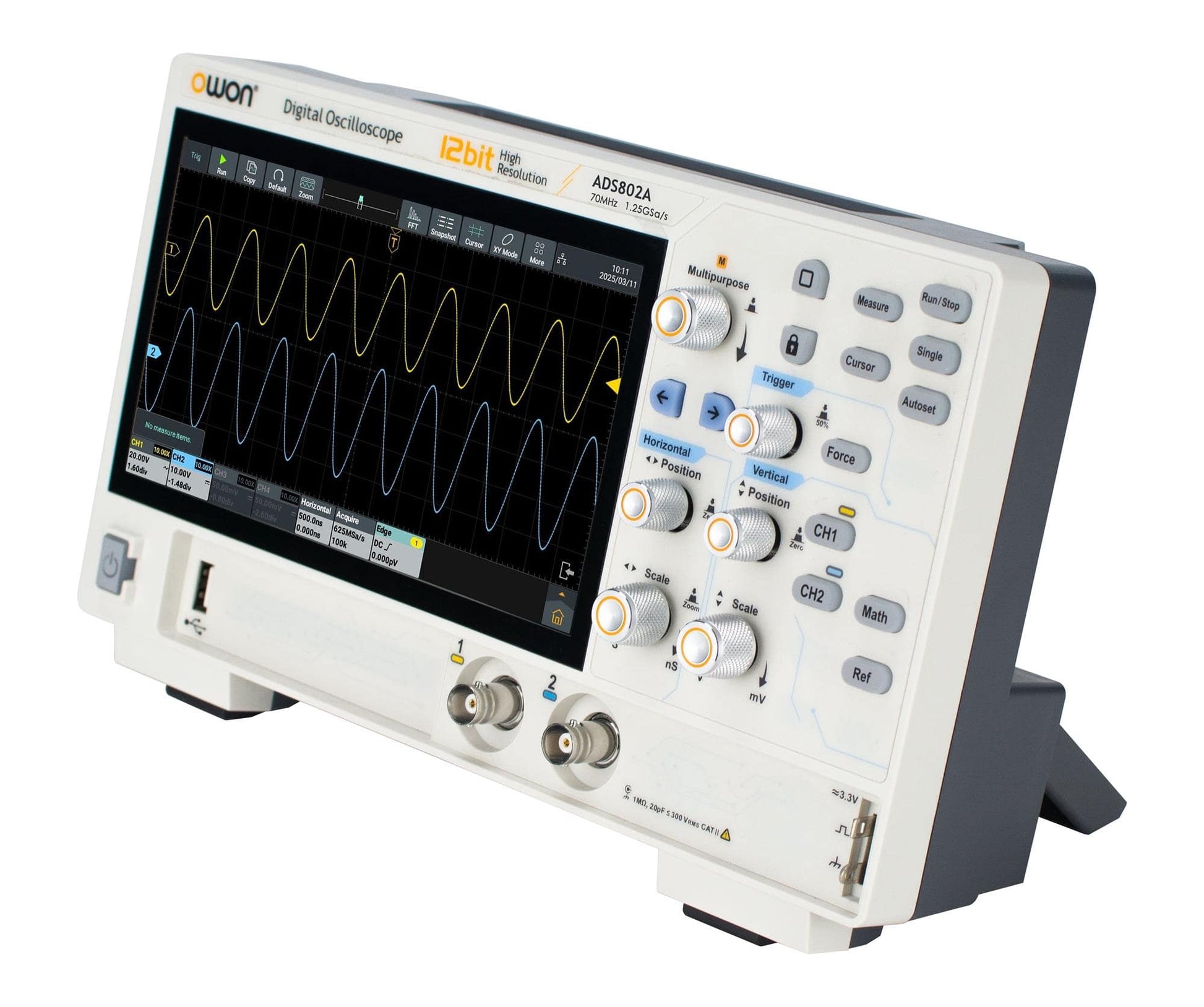

The Owon ADS802A is a compact and affordable 12-bit digital oscilloscope designed for education, test benches, and R&D labs. With 70 MHz bandwidth and 2 channels, it offers precise signal analysis through a high-speed 1.25 GSa/s sampling rate and 50 Mpts memory depth. The integrated 7" capacitive touchscreen allows intuitive multi-touch operation, enhancing workflow and efficiency.

Key Features
–––––––––––––––––––––––––
Channels: 2
Bandwidth: 70 MHz
Real-Time Sampling: 1.25 GSa/s (single channel), 625 MSa/s (dual channel)
Memory Depth: 50 Mpts
Waveform Update Rate: 700,000 wfms/s
Vertical Resolution: 12-bit
Vertical Sensitivity: 500 µV/div – 10 V/div
FFT Spectrum Analysis: 1M-point detailed FFT

Advanced Functions
–––––––––––––––––––––––––
Trigger Types: Edge, Video, Pulse Width, Slope, Window, Timeout, Nth Edge, Logic, UART, I2C, SPI, CAN, LIN
Hardware Protocol Decoding: UART, I2C, SPI, CAN, LIN
Segmented Memory: Supported
Pass/Fail Test: Built-in mask testing with output
External Control Support: Compatible with USB keyboard and mouse
Wi-Fi / Bluetooth Module (Optional): Wireless connectivity and network printer support
Design: Ultra-slim form factor for desktop space savings

Display & Usability
–––––––––––––––––––––––––
Screen: 7" capacitive touchscreen
Resolution: 1024×600
Multi-Touch: Yes
Weight: Approx. 1.5 kg
User Interface: Fast-access menus and intuitive layout

Technical Details
–––––––––––––––––––––––––
Dimensions: 260 × 160 × 78 mm
Input Impedance: 1 MΩ ±2%, 20 pF ±5%
Probe Attenuation Range: 1X to 1000X (customizable)
Voltmeter Function: DC, AC RMS, AC+DC RMS (4-digit resolution)
Frequency Counter: 6-digit high-accuracy counter
Power Input: USB Type-C, 12 V / 3 A adapter or power bank support

Application Areas
–––––––––––––––––––––––––
Perfect for cost-conscious users seeking high measurement precision. Widely used in educational setups, test benches, production lines, and R&D labs.

Package Contents
–––––––––––––––––––––––––
Power adapter
USB cable
Quick start guide
2x oscilloscope probes
Probe adjustment tool
Optional: Wireless module, carrying bag
