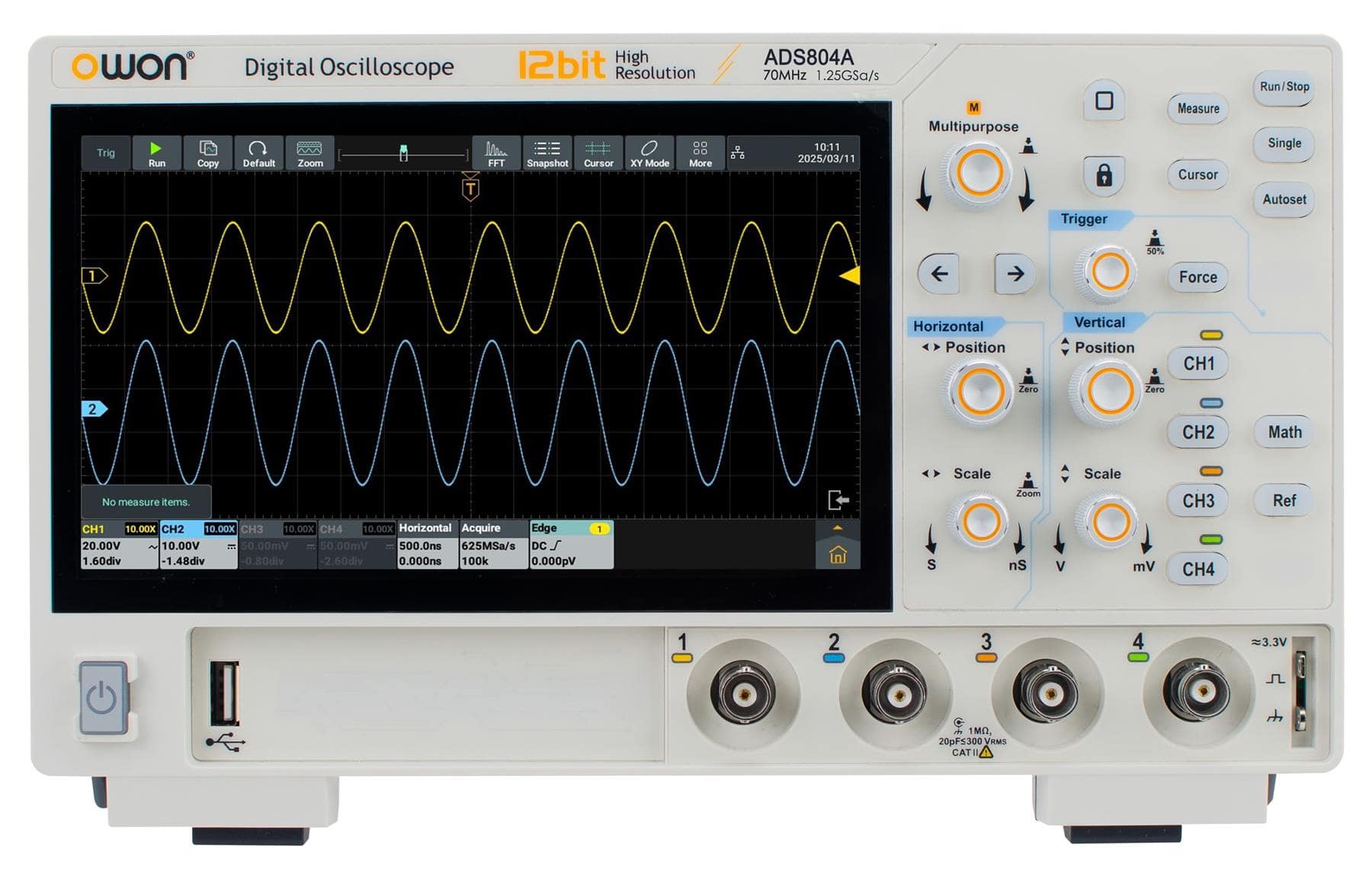

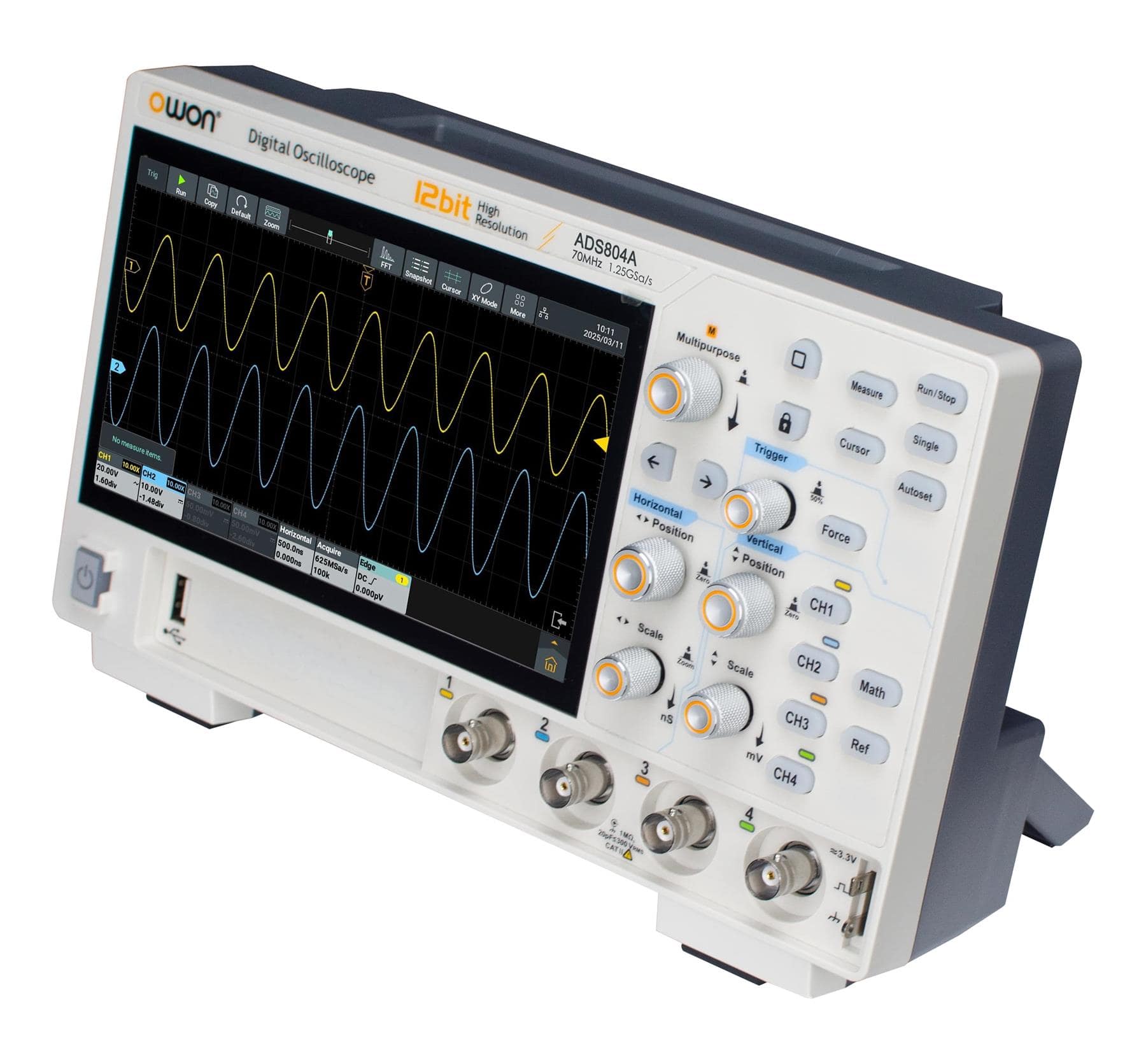

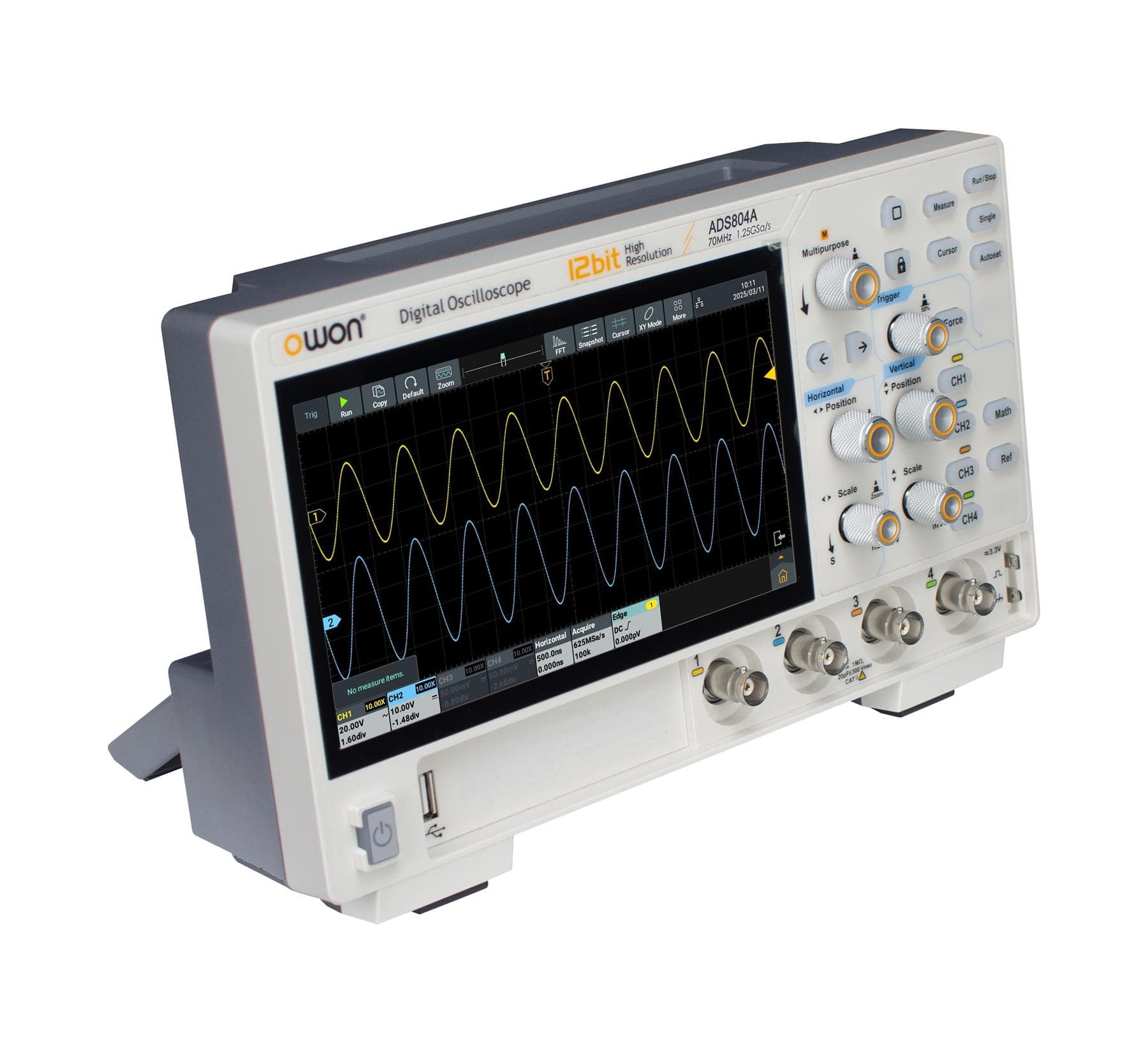

Owon ADS804A Oscilloscope – 70 MHz, 4CH, 7" Touchscreen, 12-Bit

Owon ADS804A Oscilloscope – 70 MHz, 4CH, 7" Touchscreen, 12-Bit

The Owon ADS804A is an affordable yet powerful digital oscilloscope designed for general-purpose multi-channel signal analysis. With 70 MHz bandwidth, 12-bit resolution, and four independent input channels, it is ideal for technicians, engineers, and educational users who need reliable performance on a budget. The advanced trigger functions, high waveform refresh rate, and intuitive touchscreen interface make it a practical solution for daily measurement tasks in labs, repair shops, or classroom environments.

Oscilloscope Specifications

–––––––––––––––––––––––––
Channels: 4
Bandwidth: 70 MHz
Real-Time Sampling Rate: 1.25 GSa/s (single channel), 625 MSa/s (all channels active)
Memory Depth: Up to 50 Mpts
Waveform Refresh Rate: Up to 700,000 wfms/s
Vertical Resolution: 12-bit
Vertical Sensitivity: 500 µV/div – 10 V/div
FFT Analysis: 1 million points for detailed frequency domain measurements

Advanced Features

–––––––––––––––––––––––––
The device supports multiple trigger types including edge, video, pulse, slope, runt, timeout, Nth edge, logic, and protocol triggers for RS232/UART, I2C, SPI, CAN, and LIN. Hardware-level protocol decoding is available for 2 channels. USB host capability allows connection of a mouse or keyboard, and optional Wi-Fi/Bluetooth modules support wireless printing. The slim, lightweight body design makes it easy to use in space-limited workbenches or portable setups.

Segmented memory enables targeted waveform capture and analysis. The integrated mask test function allows quick pass/fail analysis based on user-defined criteria.

Touchscreen and Usability

–––––––––––––––––––––––––
The 7-inch capacitive touchscreen with 1024×600 resolution supports multi-touch input and provides a user-friendly interface. The on-screen menu system and gesture control simplify measurement operations. At just 1.5 kg, the device is highly portable and easy to deploy in various environments.

Additional Technical Details

–––––––––––––––––––––––––
Dimensions: 260 mm × 160 mm × 78 mm
Input Impedance: 1 MΩ ±2%, parallel 20 pF ±5%
Probe Attenuation Range: 1× to 1000×, customizable
Voltmeter Function: Supports DC, AC, and AC+DC RMS with 4-digit resolution
Frequency Counter: Built-in 6-digit counter for accurate timing measurements
Power Input: Type-C port (12 V / 3 A), compatible with power banks
