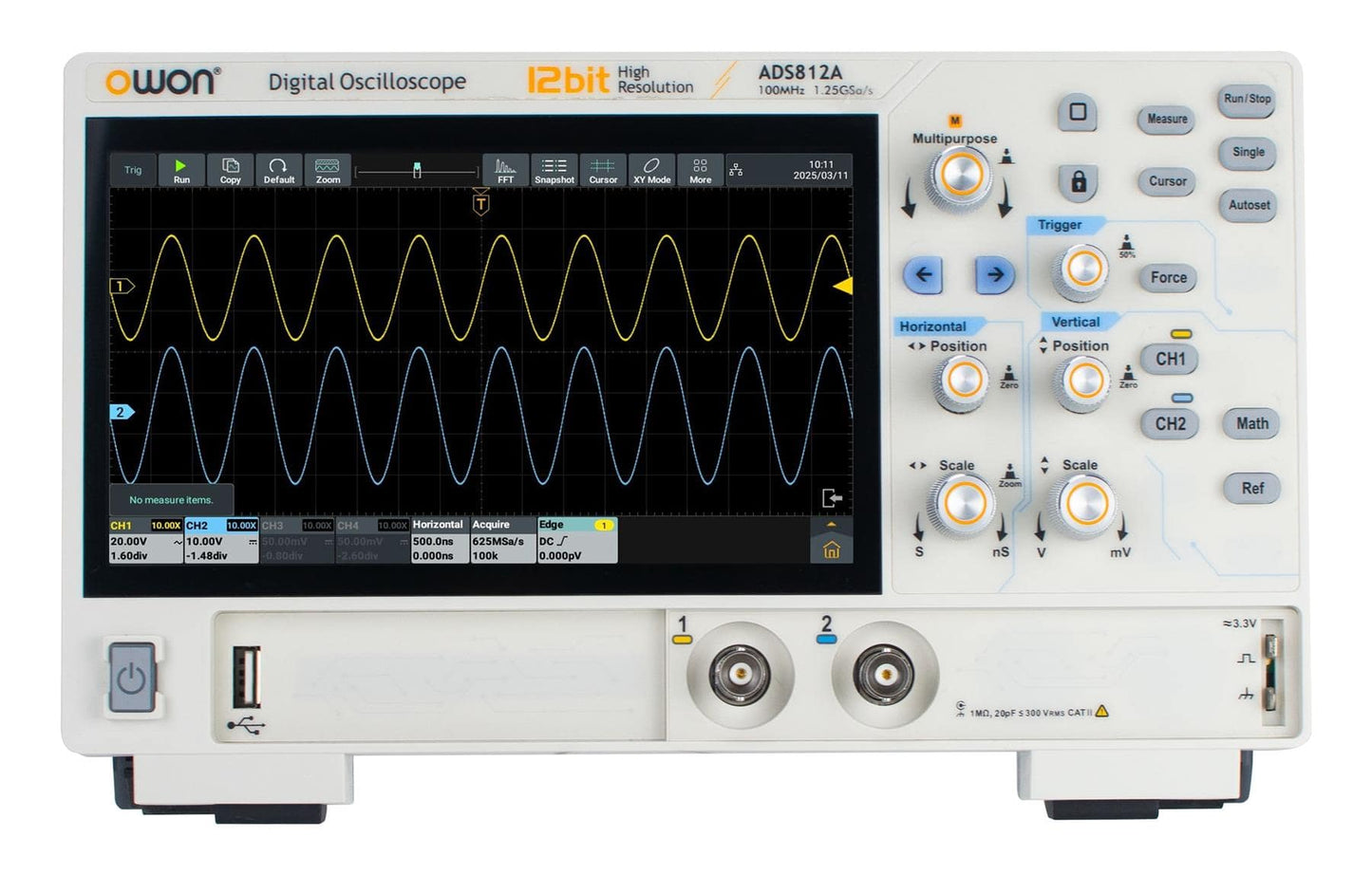

Owon ADS812A 12-bit Digital Oscilloscope | 100 MHz, 2CH, 7" Touchscreen

✅ Product Description

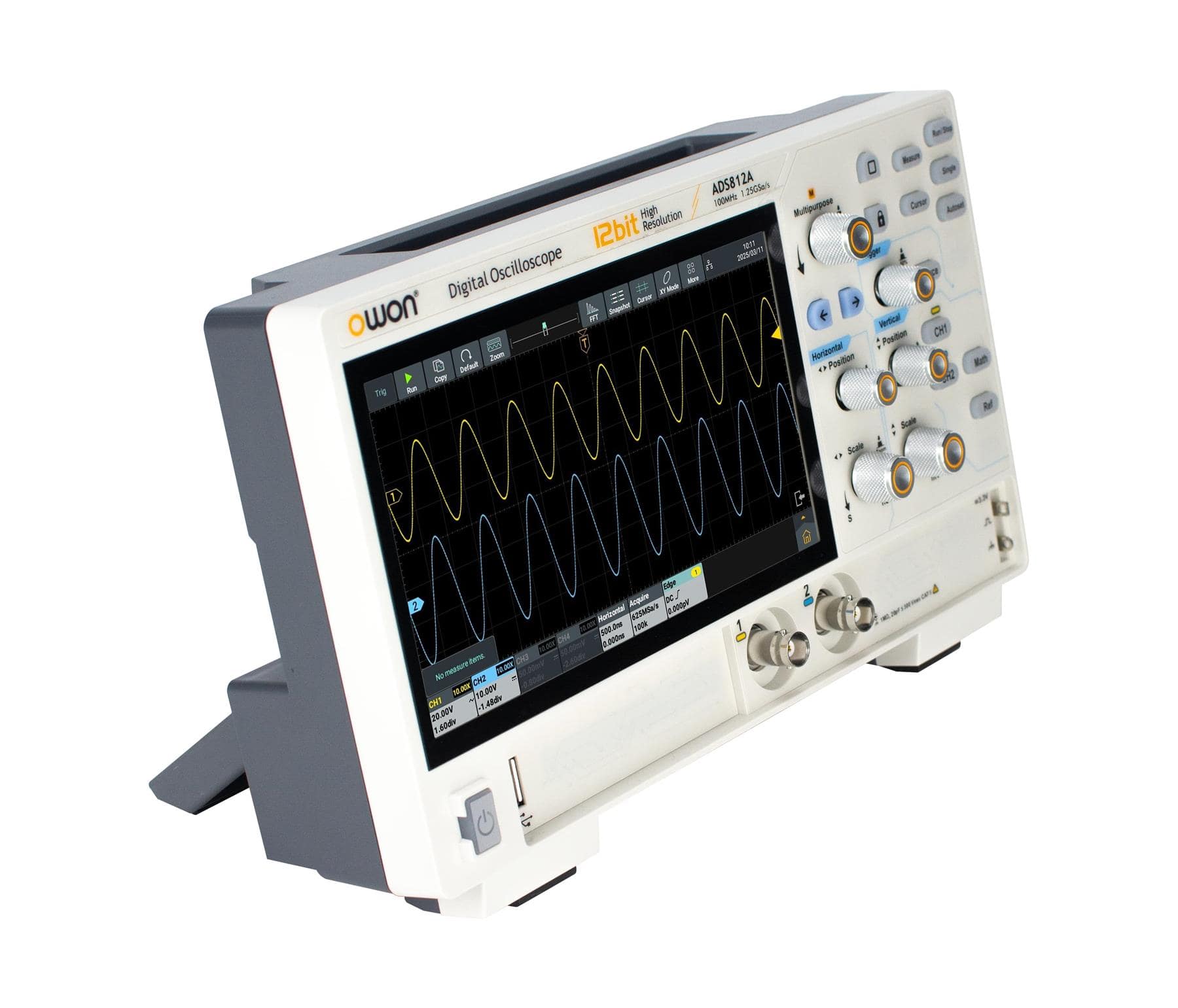

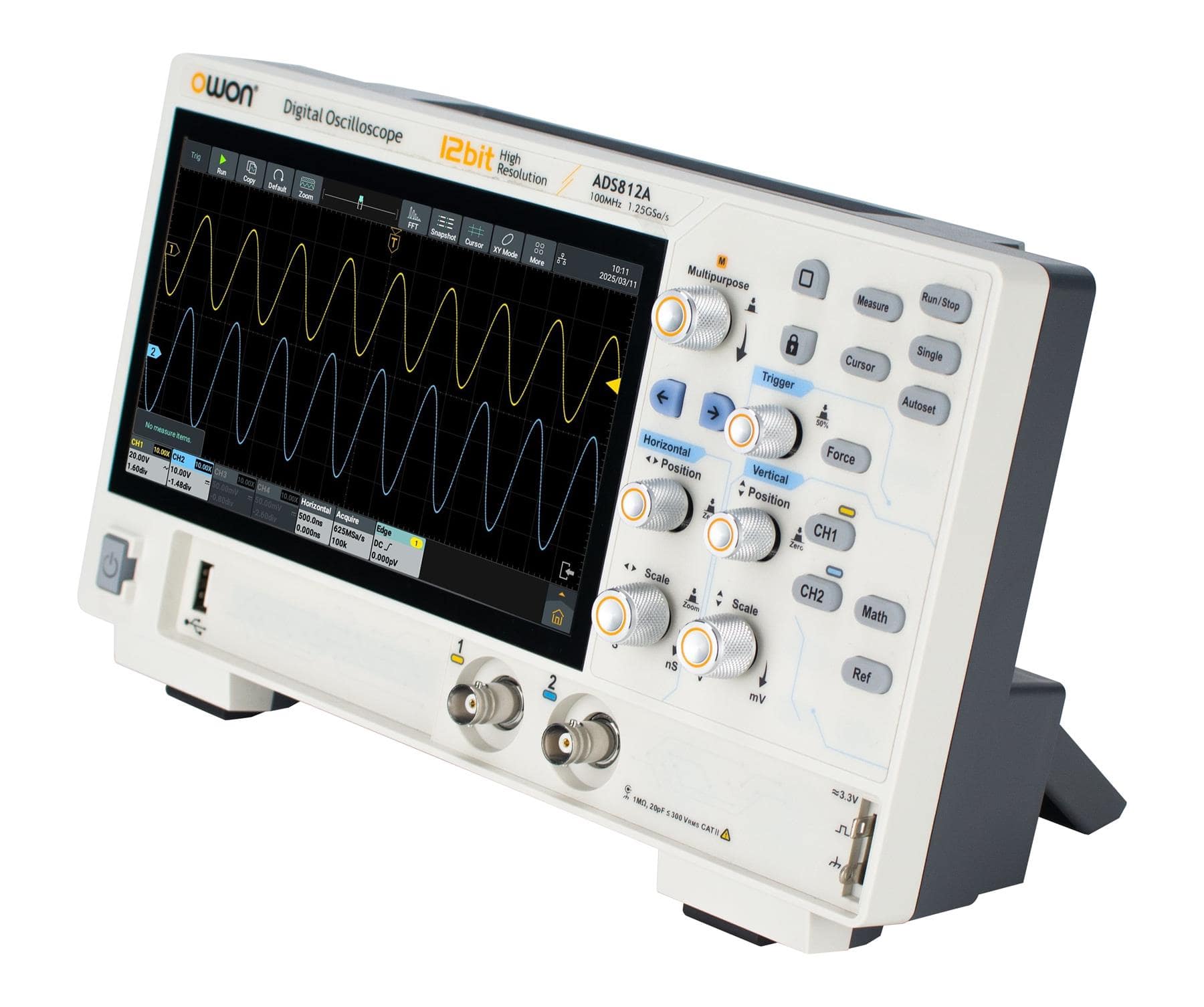

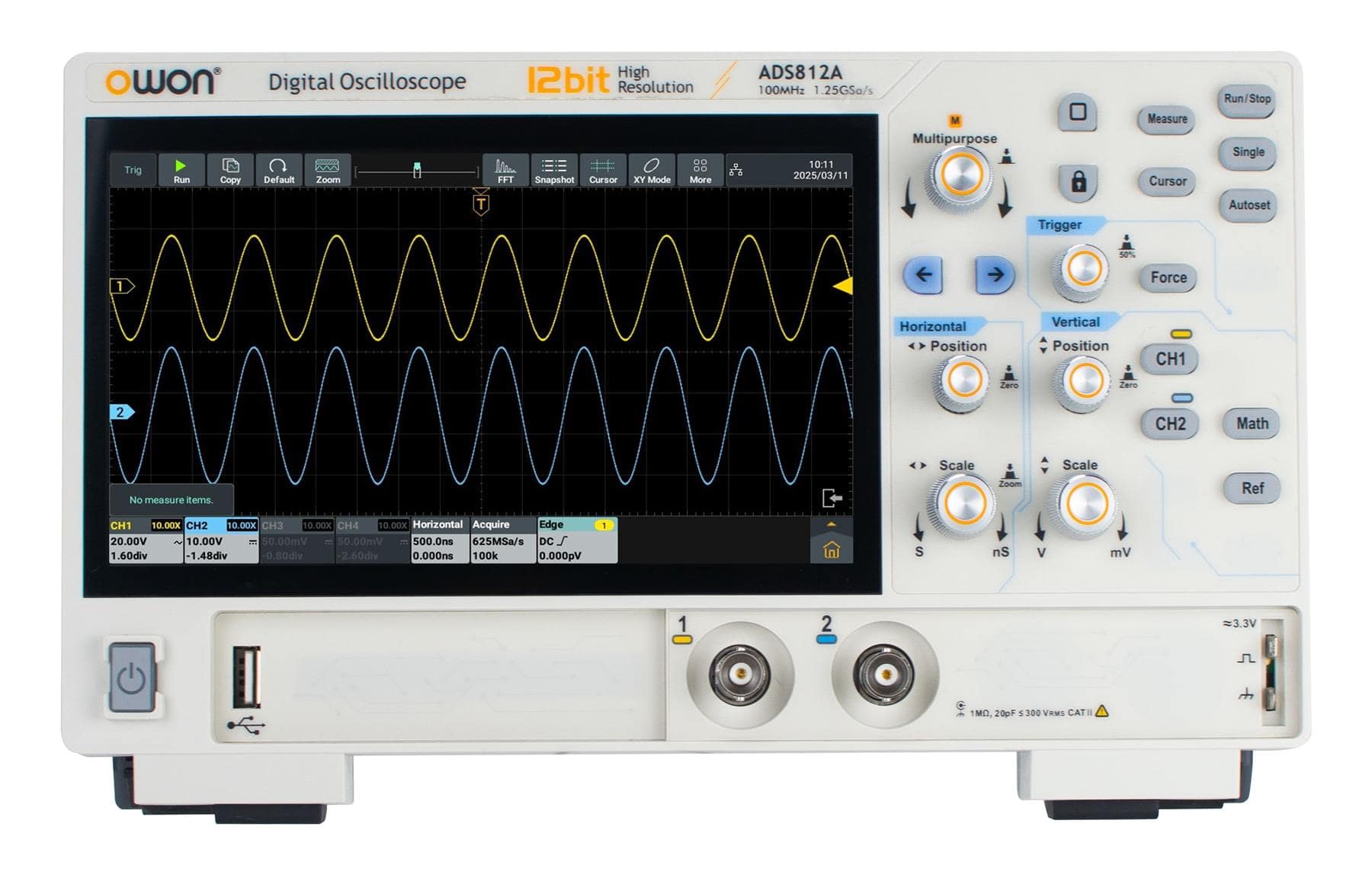

Owon ADS812A 100 MHz 2CH Touchscreen Digital Oscilloscope | 12-bit Resolution

The Owon ADS812A is a high-performance 4th generation digital oscilloscope designed for engineers, educators, and field technicians. With 100 MHz bandwidth, 2 channels, and 12-bit vertical resolution, it offers superior signal clarity and flexible protocol decoding capabilities. Its compact design and intuitive touchscreen make it ideal for both desktop and portable use.

Key Features
–––––––––––––––––––––––––
Channels: 2
Bandwidth: 100 MHz
Real-Time Sampling: 1.25 GSa/s (single channel), 625 MSa/s (dual channel)
Memory Depth: 50 Mpts
Waveform Refresh Rate: 700,000 wfms/s
Vertical Resolution: 12-bit
Vertical Sensitivity: 500 µV/div – 10 V/div
FFT Analysis: 1 million-point spectrum resolution

Advanced Capabilities
–––––––––––––––––––––––––
Trigger Types: Edge, Video, Pulse Width, Slope, Window, Timeout, Nth Edge, Logic, UART, I2C, SPI, CAN, LIN
Hardware Protocol Decoding: Supported for UART, I2C, SPI, CAN, LIN
Segmented Memory: Yes
Pass/Fail Mask Test: Integrated with digital output
External USB Control: Keyboard and mouse support
Wireless Modules (Optional): Wi-Fi / Bluetooth for printing and remote access
Compact Design: Saves bench space with ultra-slim body

Display & Usability
–––––––––––––––––––––––––
Screen: 7” capacitive touchscreen
Resolution: 1024×600
Multi-Touch: Supported
Weight: Approx. 1.5 kg
User Interface: Modern menus with fast access and intuitive controls

Technical Specifications
–––––––––––––––––––––––––
Dimensions: 260 × 160 × 78 mm
Input Impedance: 1 MΩ ±2%, parallel 20 pF ±5%
Probe Attenuation Range: 1X to 1000X (customizable)
Voltmeter Mode: DC, AC RMS, AC+DC RMS (4-digit display)
Frequency Counter: 6-digit built-in measurement
Power Input: USB Type-C 12 V / 3 A or compatible power bank

Application Areas
–––––––––––––––––––––––––
Ideal for high-precision measurement, fast signal inspection, and comprehensive debugging in education, maintenance, R&D, and production environments.

Package Contents
–––––––––––––––––––––––––
Power adapter
USB cable
Quick start guide
2x oscilloscope probes
Power cable
Optional: Wi-Fi/Bluetooth module, carry case
