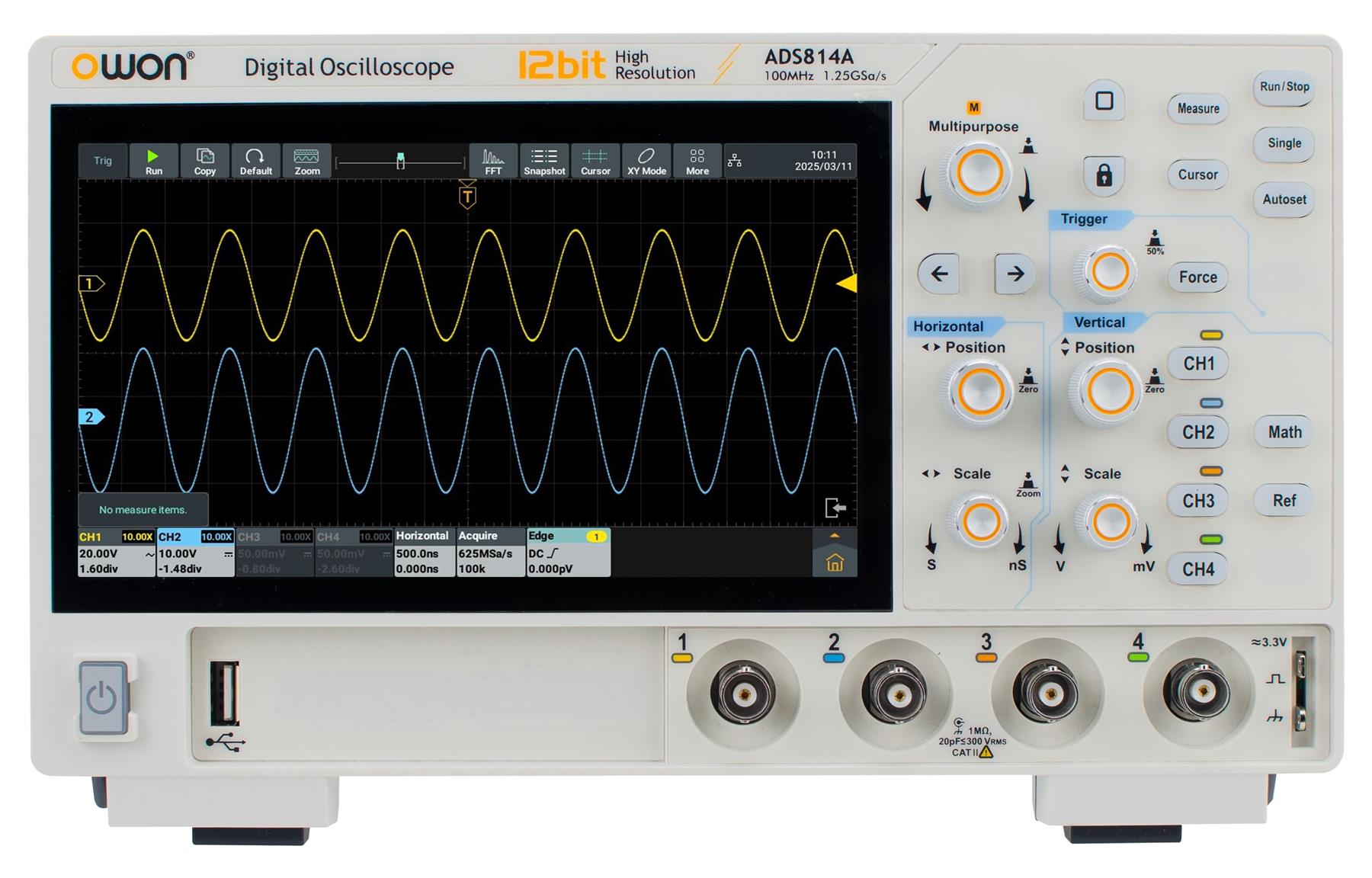

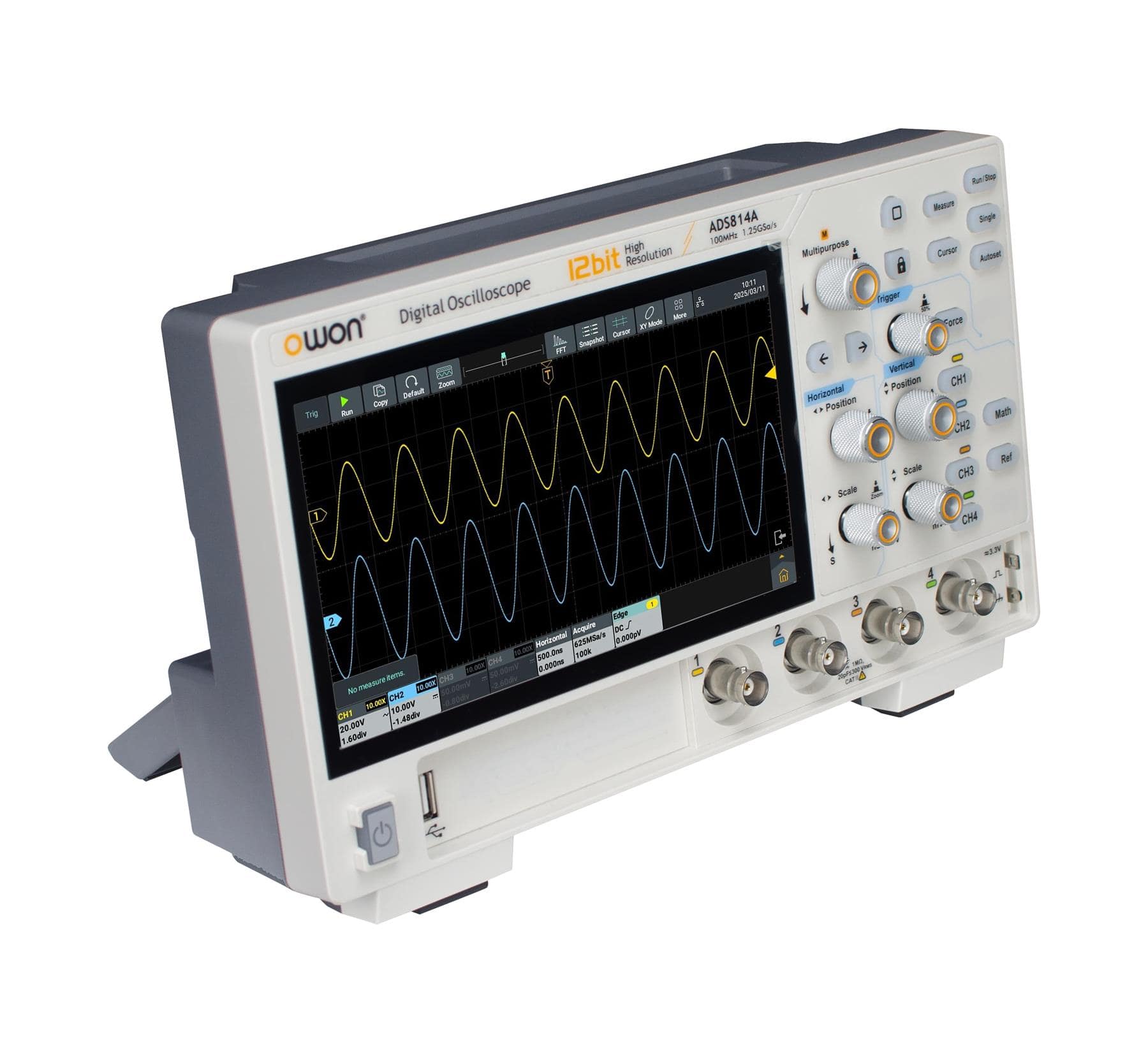

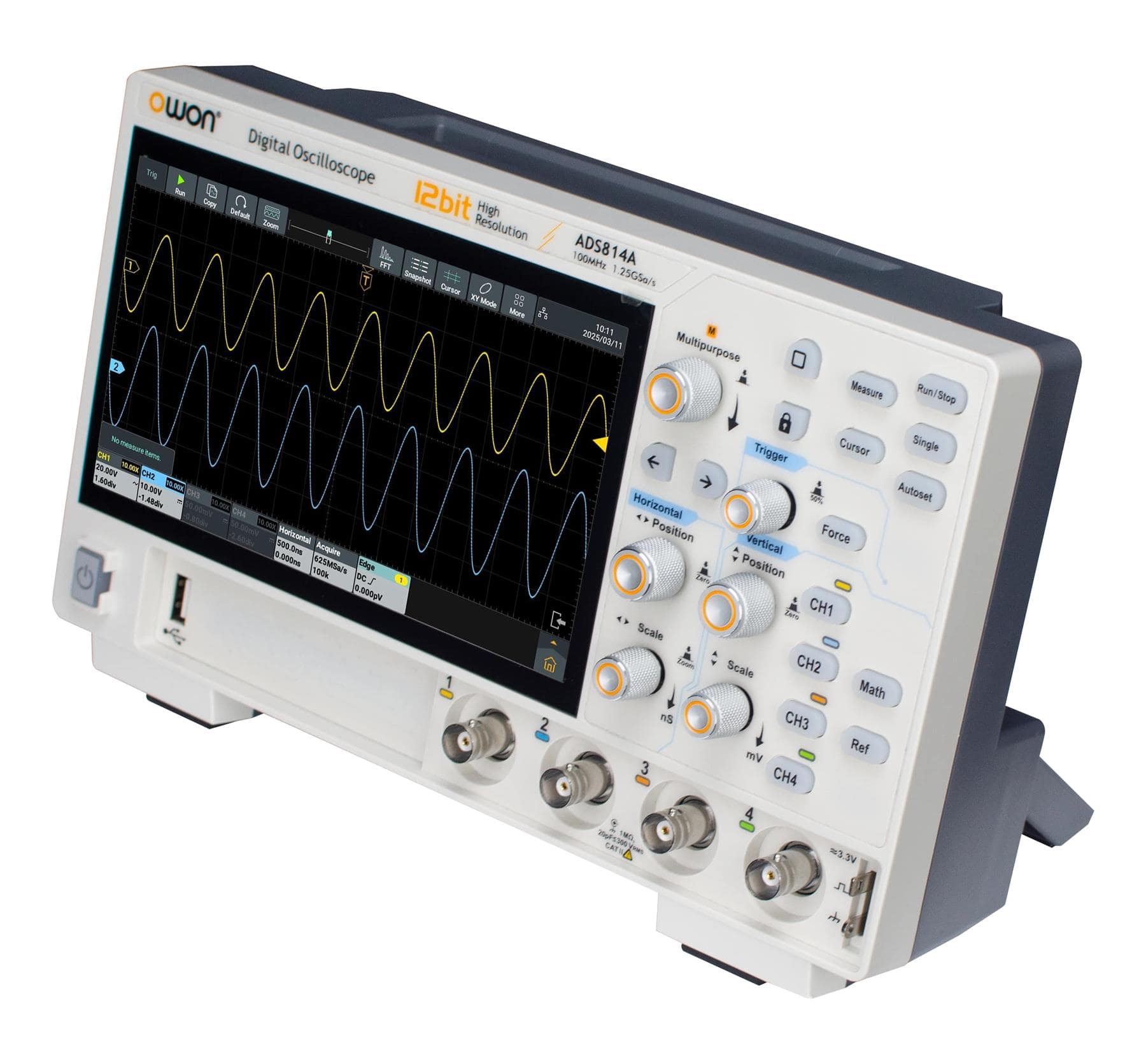

Owon ADS814A Oscilloscope – 100 MHz, 4 Channels, 12-Bit, 7” Touchscreen

Owon ADS814A Oscilloscope – 100 MHz, 4 Channels, 12-Bit, 7” Touchscreen

Owon ADS814A is a high-precision digital oscilloscope offering 100 MHz bandwidth and four channels for advanced signal analysis. Its true 12-bit vertical resolution and deep memory depth ensure detailed waveform capture, even at low amplitudes. With a sampling rate of up to 1.25 GSa/s and waveform refresh rate of 700,000 wfms/s, it delivers excellent performance in both educational and industrial environments.

Core Oscilloscope Features
–––––––––––––––––––––––––
Channels: 4 independent analog inputs
Bandwidth: 100 MHz
Vertical resolution: 12-bit
Sample rate: 1.25 GSa/s (single channel), 625 MSa/s (all channels)
Memory depth: 50 Mpts
Waveform refresh rate: Up to 700,000 wfms/s
Input sensitivity: 500 µV/div to 10 V/div
FFT resolution: 1M-point FFT spectrum analysis

Trigger and Decoding
–––––––––––––––––––––––––
Trigger types: Edge, Pulse, Video, Slope, Runt, Timeout, Logic, Nth Edge
Protocol decoding: Hardware decoding of UART, I2C, SPI, CAN, and LIN on 2 channels

Display and User Interface
–––––––––––––––––––––––––
Screen: 7” capacitive multi-touch display, 1024×600 resolution
Interface: Intuitive UI with gesture support
Form factor: Compact and portable, only 1.5 kg

Additional Features
–––––––––––––––––––––––––
Segmented memory: Supported
Pass/fail mask test: Included
Connectivity: USB Host & Device, optional Wi-Fi/Bluetooth
Accessories: Supports USB keyboard and mouse
Power: Type-C input (12 V/3 A), compatible with power banks
Dimensions: 260 × 160 × 78 mm

Applications
–––––––––––––––––––––––––
Owon ADS814A is ideal for electronics engineers, embedded system developers, technical training centers, and industrial test setups. Its powerful features make it suitable for both benchtop and field applications.

Included in the Box
–––––––––––––––––––––––––
Power adapter
USB cable
4 × Oscilloscope probes
User manual
Quick start guide
