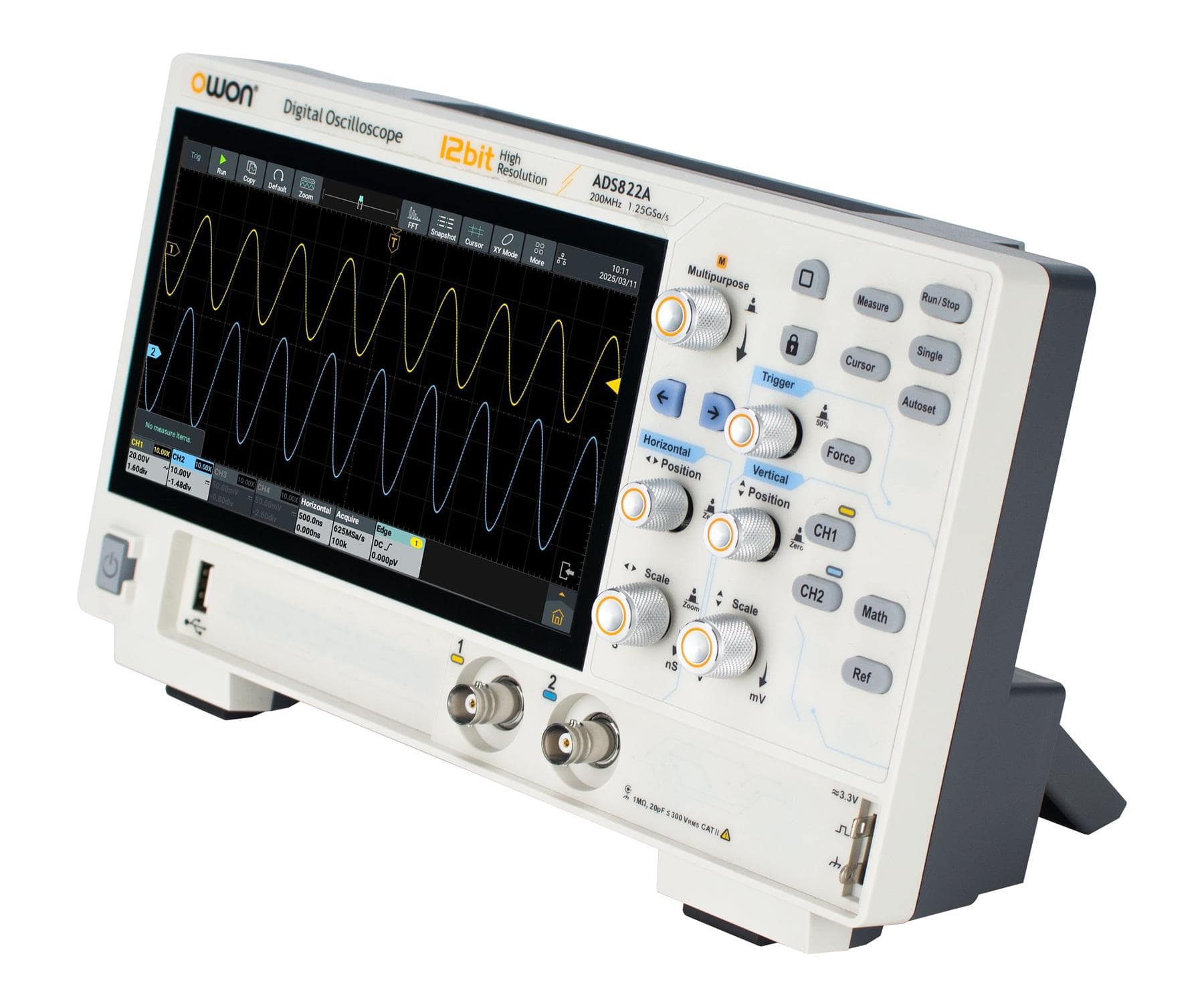

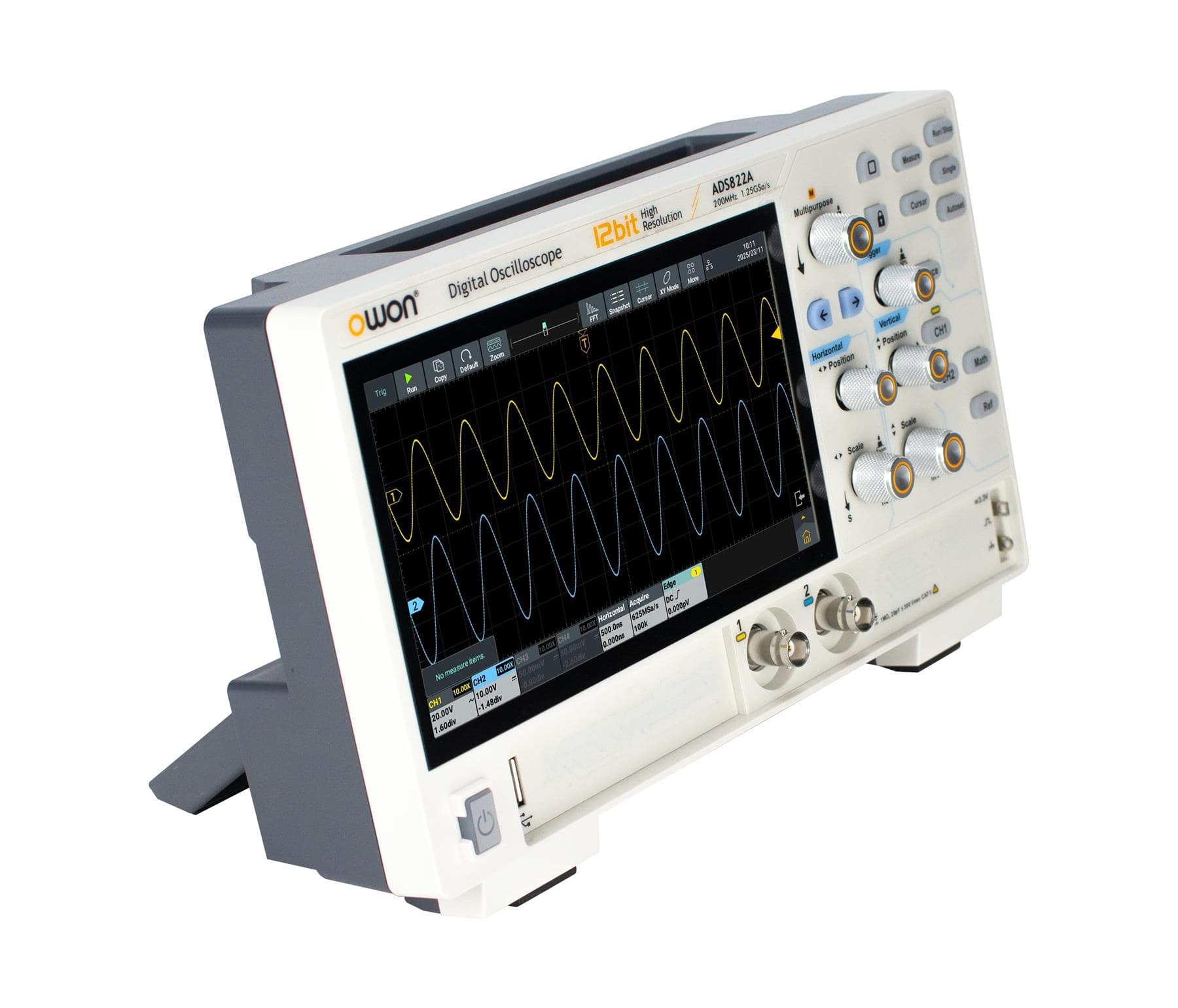

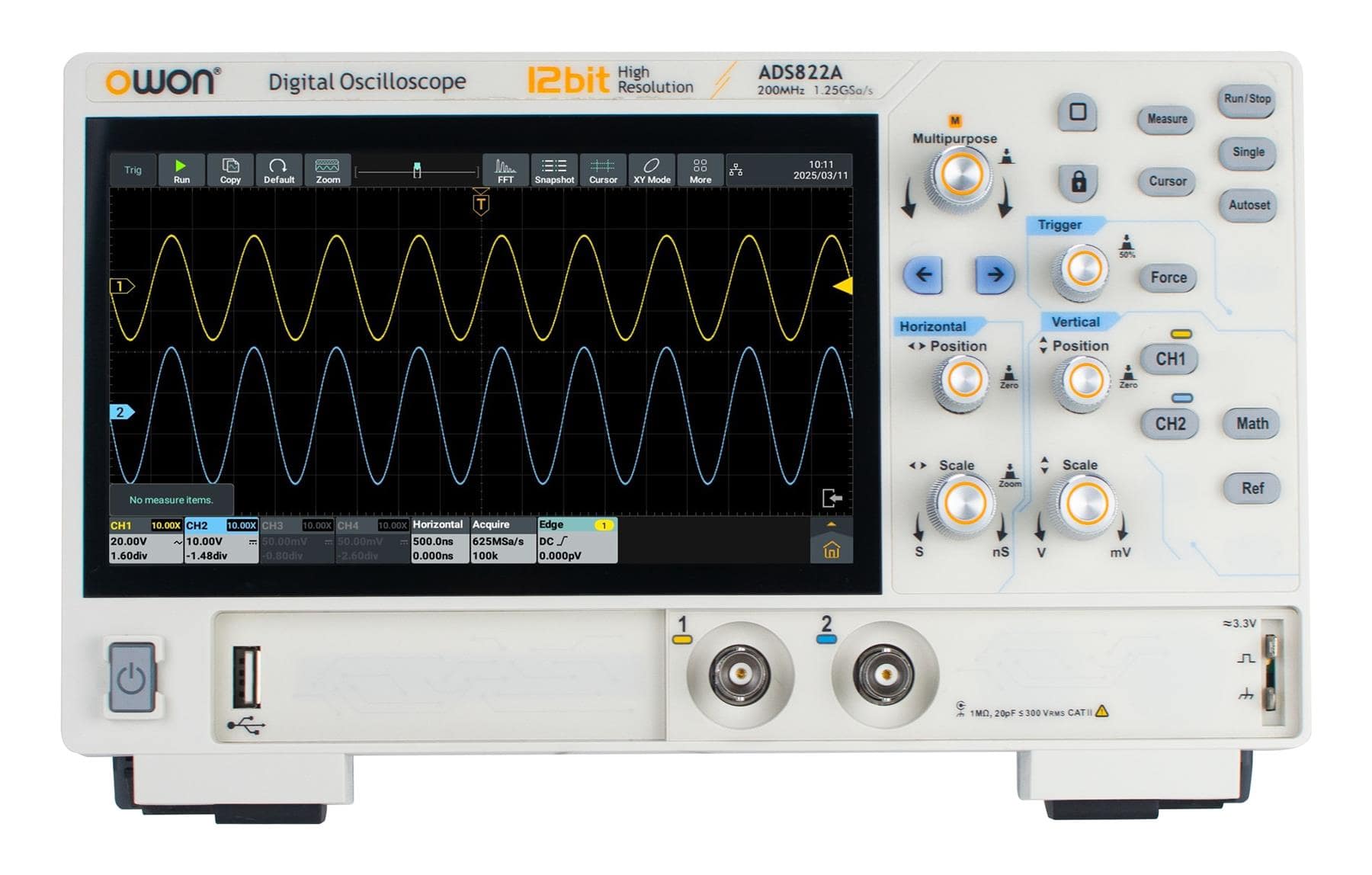

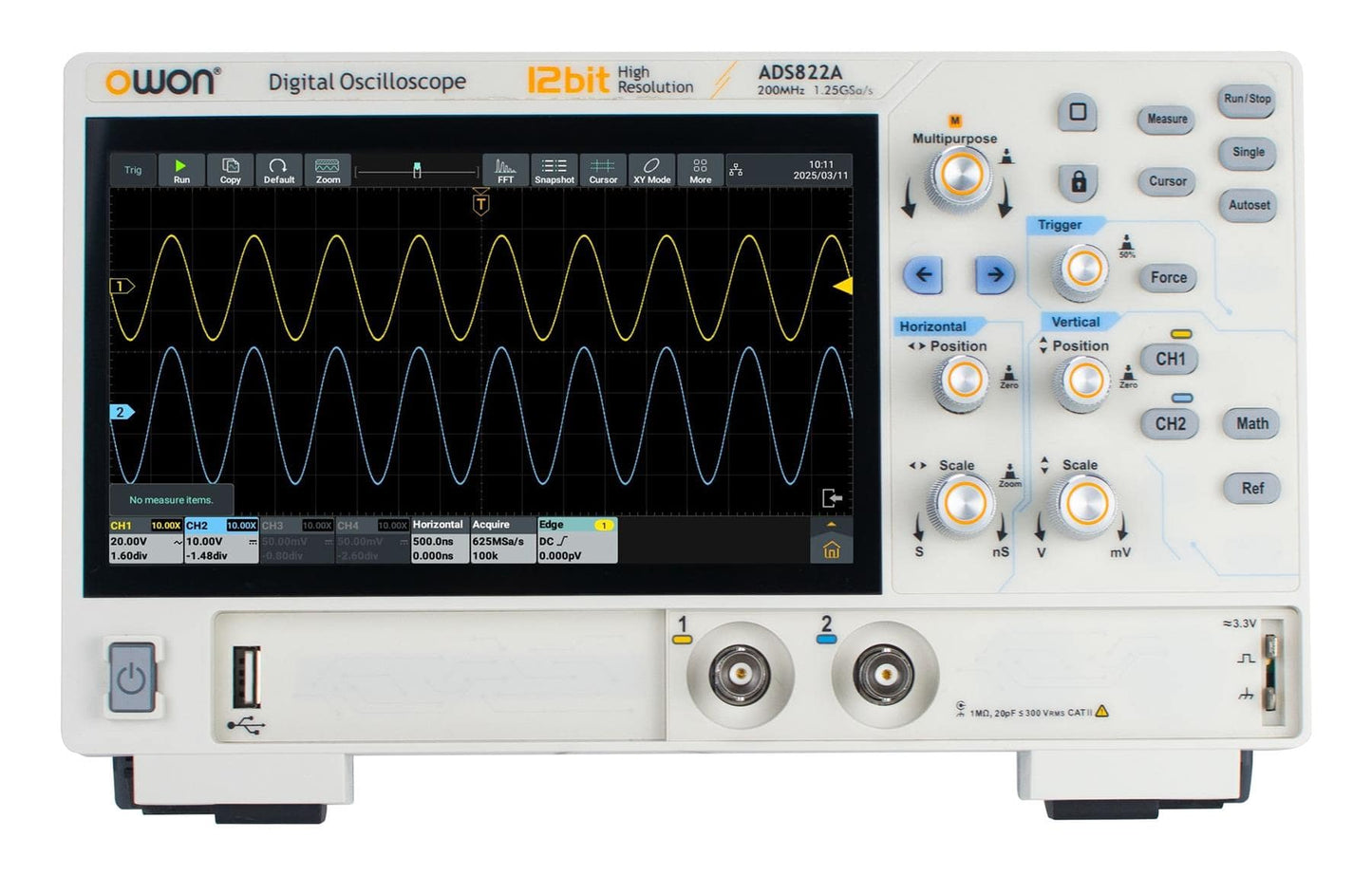

Owon ADS822A 12-bit Digital Oscilloscope | 200 MHz, 2CH, 7" Touchscreen

Owon ADS822A 12-bit Digital Oscilloscope | 200 MHz Bandwidth, 2 Channels, 7” Touchscreen

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

✅ Product Description

The Owon ADS822A is a high-performance 12-bit digital oscilloscope with 200 MHz bandwidth and 2-channel input, designed for demanding signal analysis. Its advanced triggering and decoding capabilities, ultra-compact design, and responsive touchscreen interface make it a reliable tool for R&D, maintenance, and education.

Key Features
–––––––––––––––––––––––––
Channels: 2
Bandwidth: 200 MHz
Real-Time Sampling Rate: 1.25 GSa/s (single channel), 625 MSa/s (dual channel)
Memory Depth: 50 Mpts
Waveform Refresh Rate: 700,000 wfms/s
Vertical Resolution: 12-bit
Vertical Sensitivity: 500 µV/div – 10 V/div
FFT Resolution: 1 million-point frequency domain analysis

Advanced Capabilities
–––––––––––––––––––––––––
Trigger Modes: Edge, Video, Pulse Width, Slope, Lower/Upper Amplitude, Timeout, Nth Edge, Logic, RS232/UART, I2C, SPI, CAN, LIN
Hardware Protocol Decoding: UART, I2C, SPI, CAN, LIN
Segmented Memory: Yes
Pass/Fail Testing: With rule setting and digital output
External Control Support: USB mouse and keyboard
Wireless Connectivity (Optional): Wi-Fi and Bluetooth support for network printing
Design: Ultra-slim and space-saving for compact bench setups

Display & Usability
–––––––––––––––––––––––––
Display: 7” Capacitive Touchscreen
Resolution: 1024×600 pixels
Touch Support: Multi-touch enabled
Weight: Approx. 1.5 kg
User Interface: Intuitive layout with fast-access menus

Technical Details
–––––––––––––––––––––––––
Dimensions: 260 × 160 × 78 mm
Input Impedance: 1 MΩ ±2%, parallel 20 pF ±5%
Probe Compatibility: 1X to 1000X attenuation range
Voltmeter Mode: DC, AC RMS, AC+DC RMS (4-digit precision)
Frequency Counter: 6-digit accuracy

Application Areas
–––––––––––––––––––––––––
The ADS822A is ideal for engineers and technicians seeking high bandwidth, precision, and versatility. Suitable for professional test benches, R&D labs, educational setups, and embedded system debugging.

Package Contents
–––––––––––––––––––––––––
Power adapter
Power cable
Quick guide
USB cable
2x oscilloscope probes
Optional accessories: Wireless module, carry case
