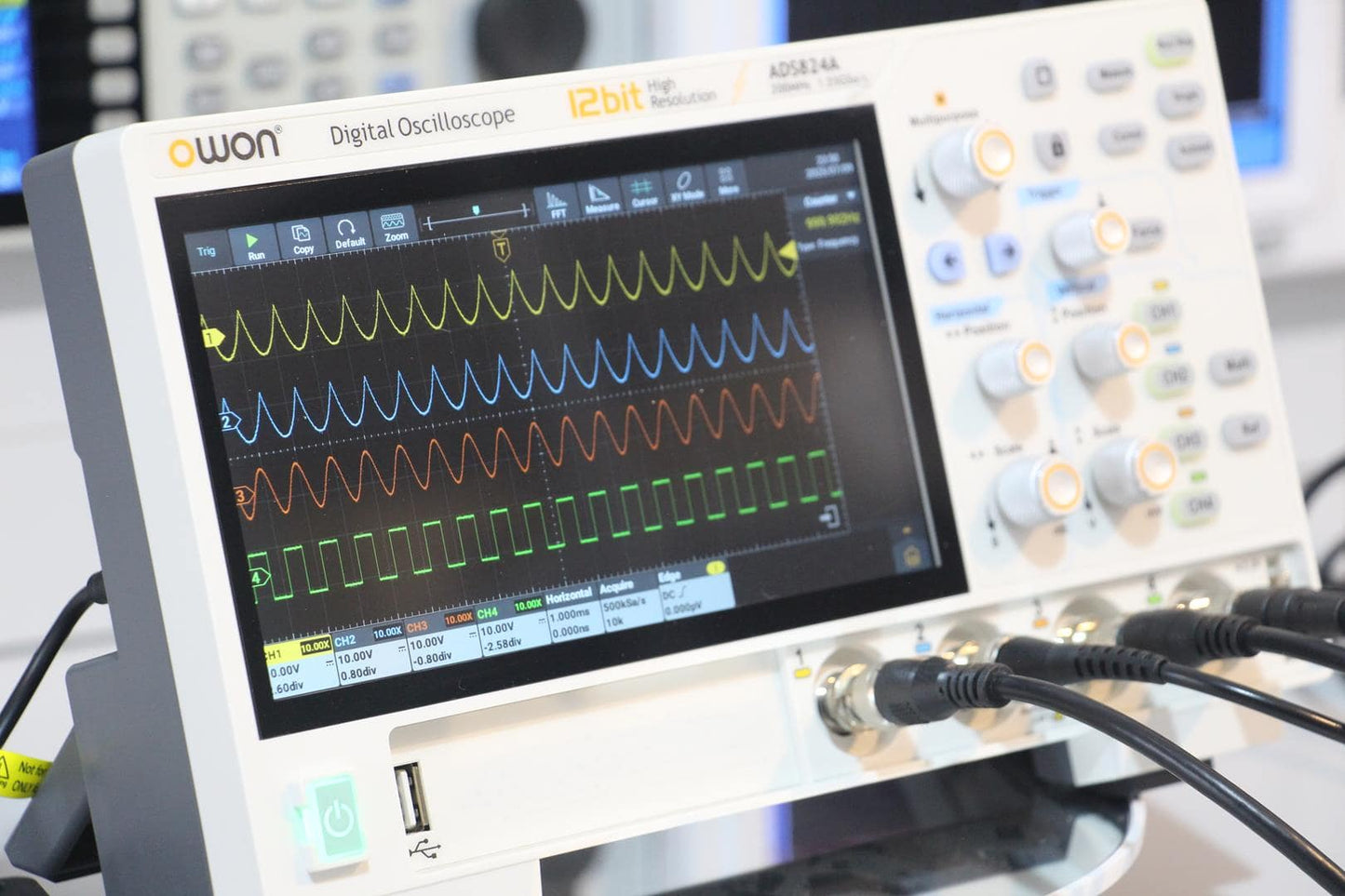

The Owon ADS824A is a professional-grade digital oscilloscope designed for high-speed and high-accuracy signal analysis. With 200 MHz bandwidth, 4-channel input, and a true 12-bit vertical resolution, it offers precise waveform capture and enhanced analysis capabilities. Its user-friendly touchscreen interface and compact design make it ideal for both benchtop and portable use in R&D, education, and field service environments.

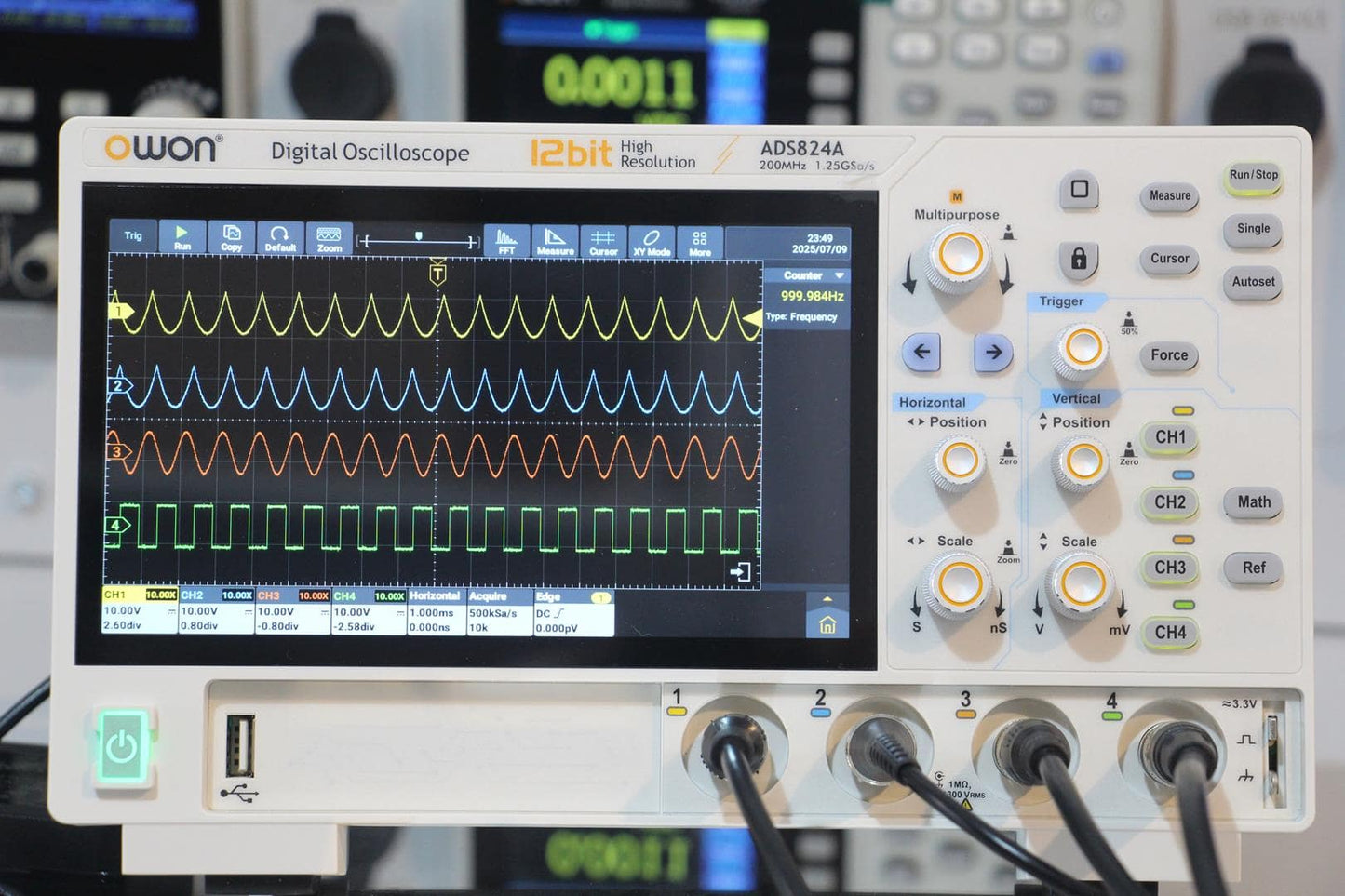

Core Oscilloscope Features
–––––––––––––––––––––––––
Channels: 4 analog inputs
Bandwidth: 200 MHz
Vertical resolution: 12-bit
Sample rate: 1.25 GSa/s (single channel), 625 MSa/s (all channels active)
Memory depth: 50 Mpts
Waveform refresh rate: Up to 700,000 wfms/s
Vertical sensitivity: 500 µV/div to 10 V/div
FFT analysis: 1M-point resolution for accurate spectral display

Advanced Triggering & Protocol Decoding
–––––––––––––––––––––––––
Trigger types: Edge, Pulse, Video, Slope, Runt, Timeout, Nth Edge, Logic, UART, I2C, SPI, CAN, LIN
Protocol decoding: Hardware decoding supported on 2 channels (UART, I2C, SPI, CAN, LIN)

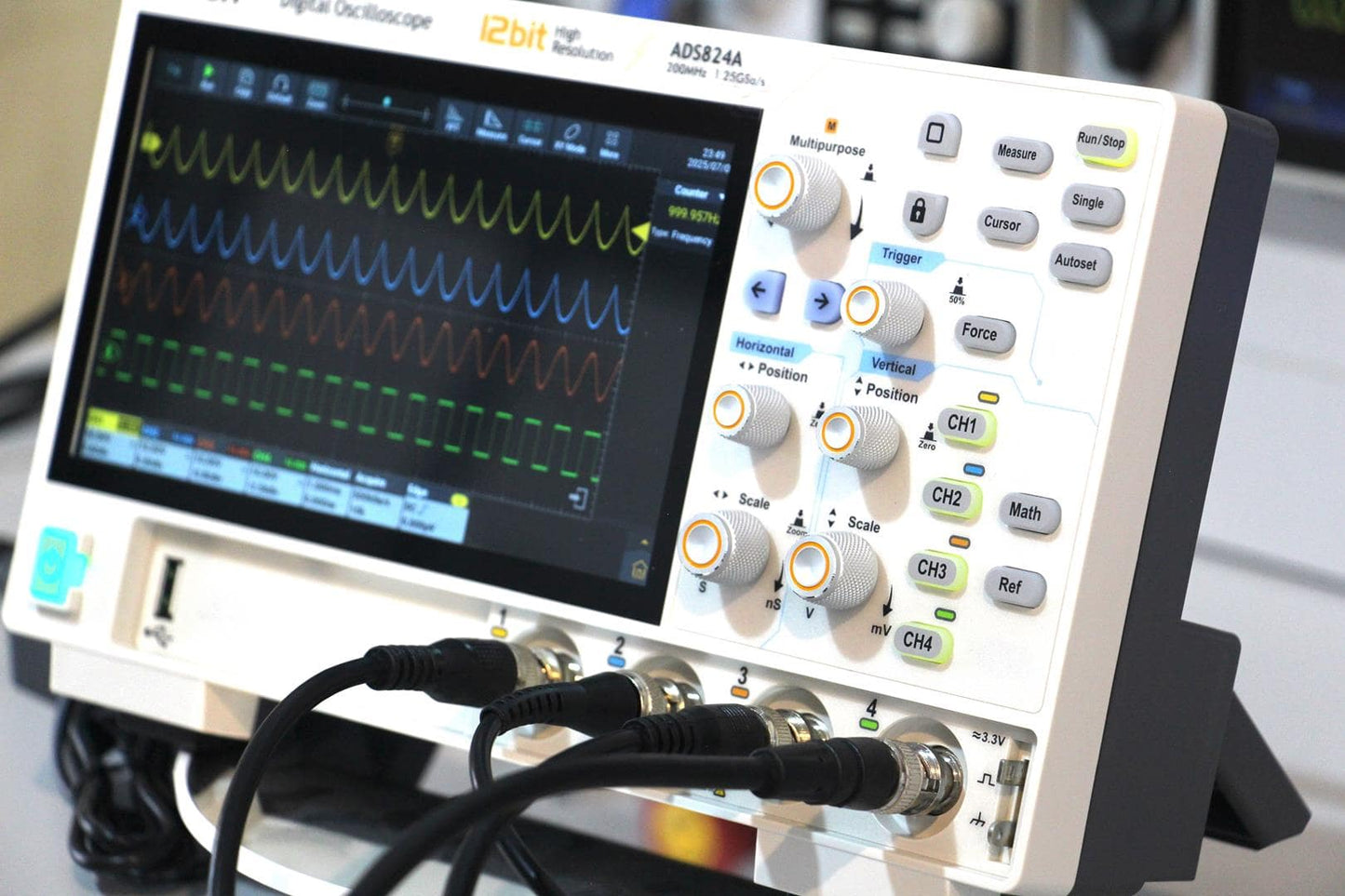

Display & User Interface
–––––––––––––––––––––––––
Screen: 7-inch capacitive multi-touch display, 1024×600 resolution
UI: Easy-access menus and responsive touchscreen controls
Portability: Lightweight design, approximately 1.5 kg

Additional Features
–––––––––––––––––––––––––
Segmented memory: Supported
Mask test: Pass/Fail test support with output
External device support: USB ports for mouse and keyboard
Wireless connectivity: Optional Wi-Fi and Bluetooth modules for network printing and file transfer

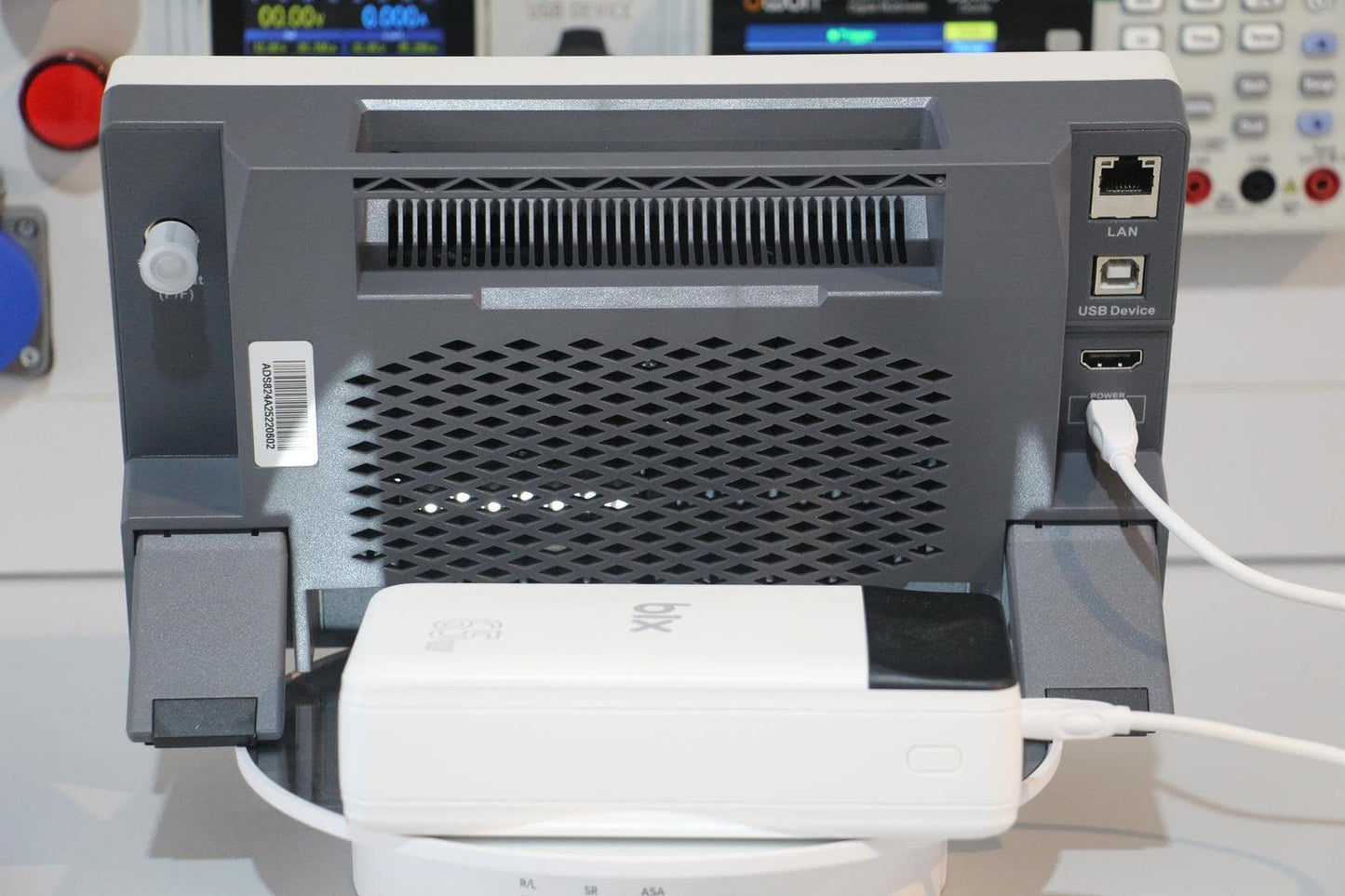

Power input: Type-C port (12 V/3 A) – supports external power adapters and compatible power banks
Dimensions: 260 × 160 × 78 mm

Applications
–––––––––––––––––––––––––
Owon ADS824A is a reliable oscilloscope solution for demanding applications in research labs, service centers, academic institutions, and production environments. Its combination of high performance, multi-channel capability, and compact form factor makes it suitable for versatile testing needs.

Included Accessories
–––––––––––––––––––––––––
Power adapter
Power cord
USB cable
4 × Oscilloscope probes
Quick start guide
User manual
