The OWON ADS914A is a powerful and compact 4-channel oscilloscope with 125 MHz bandwidth and 12-bit vertical resolution, ideal for laboratory, R&D, and professional test environments. It integrates oscilloscope, spectrum analyzer, digital multimeter, arbitrary waveform generator (AFG), and logic analyzer functions into one advanced system. Powered by the X-Vision III architecture, it offers higher speed, larger memory, and lower noise performance.

Oscilloscope Specifications
––––––––––––––––––––––––––
Channels: 4 analog
Bandwidth: 125 MHz
Sample Rate: 1.25 GSa/s
Memory Depth: 40 M
Waveform Refresh Rate: 1,000,000 wfms/s
Vertical Resolution: 12-bit
Voltage Sensitivity: 500 µV/div – 10 V/div
FFT Length: 1 million points
Math Functions: +, –, ×, ÷, FFT, log, integration, derivative, filtering
Trigger Types: Edge, Pulse, Video, Slope, Timeout, Nth Edge, Logic, UART, I2C, SPI, CAN, LIN
Protocol Decoding: Hardware-based 2-channel decoding (UART, I2C, SPI, CAN, LIN)
Screen: 7” capacitive touchscreen, 800×600 resolution
Dimensions: 270 × 190 × 90 mm
Weight: ~1.7 kg

Extra Features
––––––––––––––––––––––––––
Segmented Memory: Supported
Mask Test (Pass/Fail): Supported

Digital Voltmeter
––––––––––––––––––––––––––
Source Channels: CH1–CH4
Functions: AC RMS, DC, AC+DC RMS
Resolution: 4-digit RMS measurements
Limit Alarm: Configurable upper/lower thresholds with alert

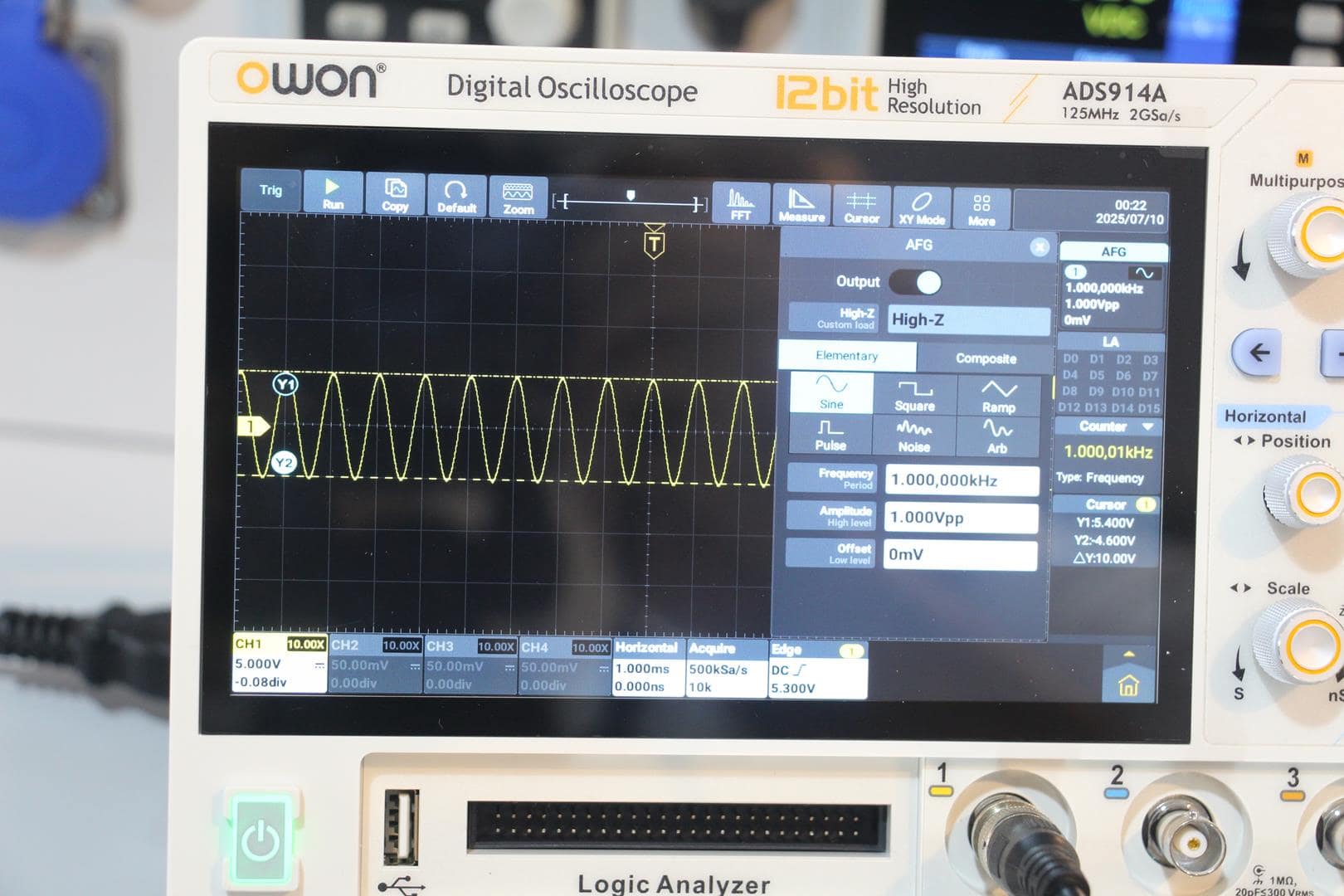

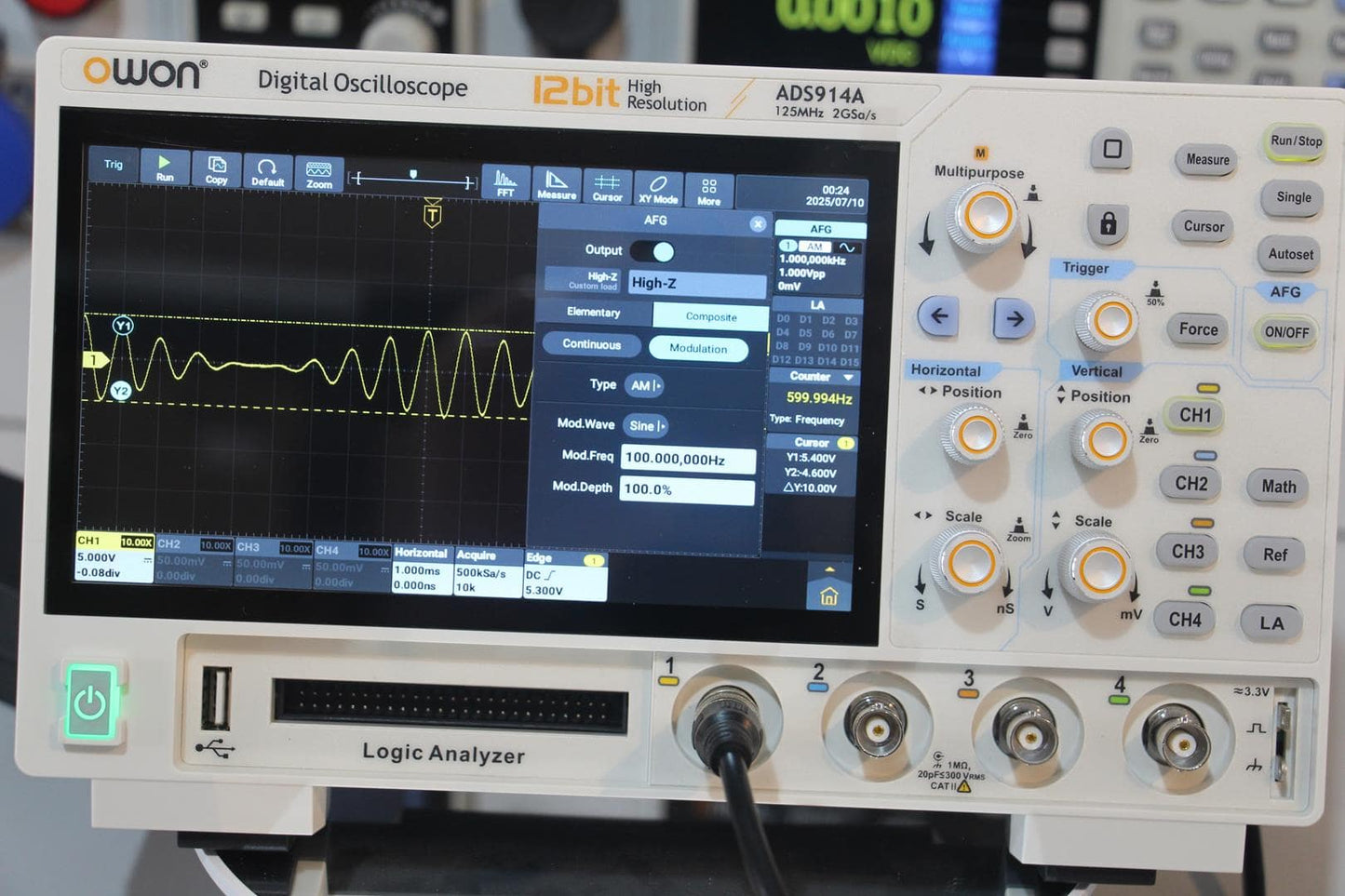

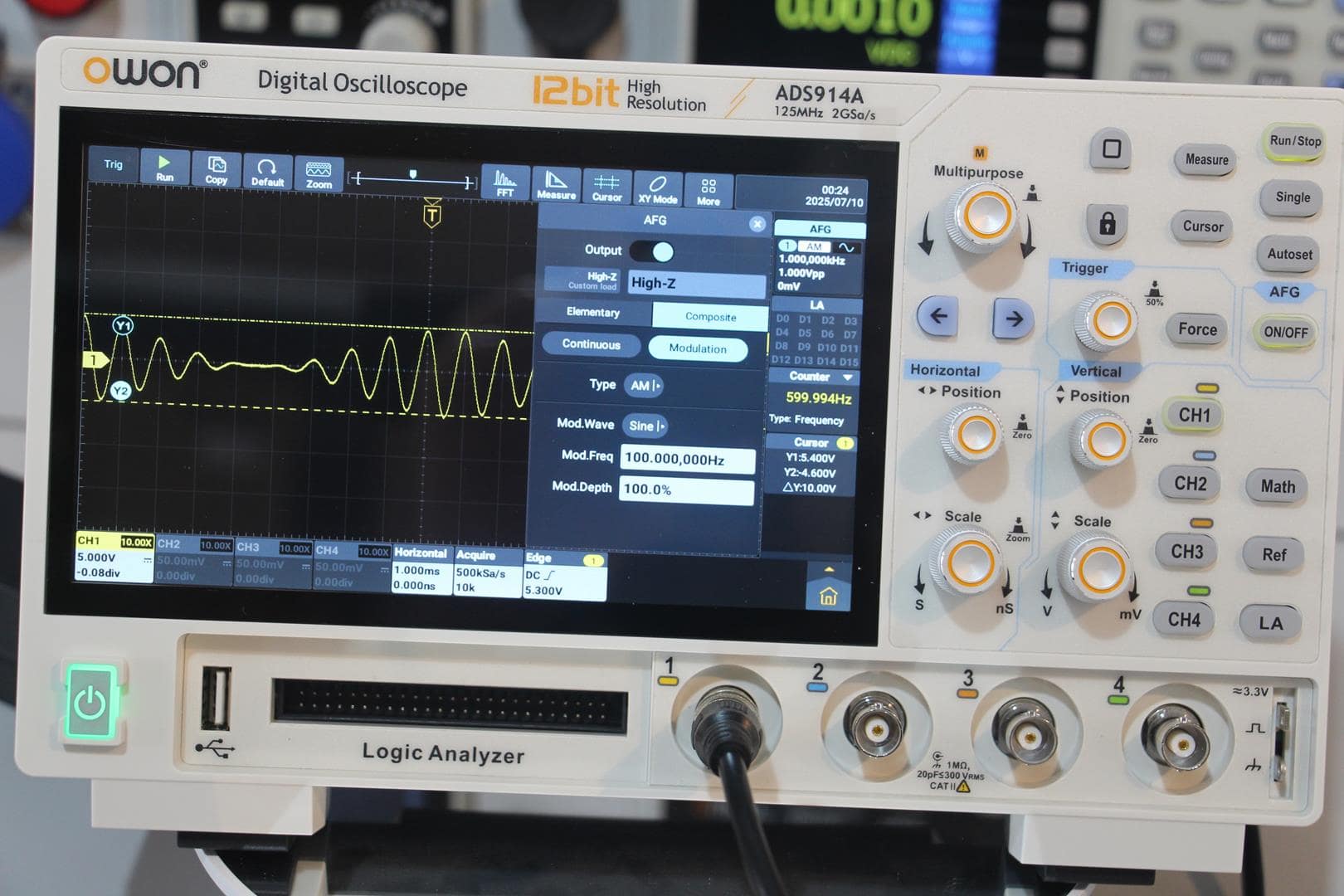

Signal Generator (Built-in AFG)
––––––––––––––––––––––––––
Max Frequency: 25 MHz
Channels: 1
Waveforms: Sine, square, ramp, pulse, arbitrary
Arbitrary Types: Sinc, Gaussian, exponential, and 160+ other types
Sample Rate: 125 MSa/s
Vertical Resolution: 14-bit
Waveform Length: 8k
Output Amplitude (50 Ω): 0.005 Vpp – 3 Vpp
DC Offset: ±3 V

Logic Analyzer (Optional Probe Required)
––––––––––––––––––––––––––
Digital Channels: 16
Sample Rate: 1 GSa/s
Supported Protocols: UART, SPI, I2C, CAN
Analysis Types: Timing and protocol decoding

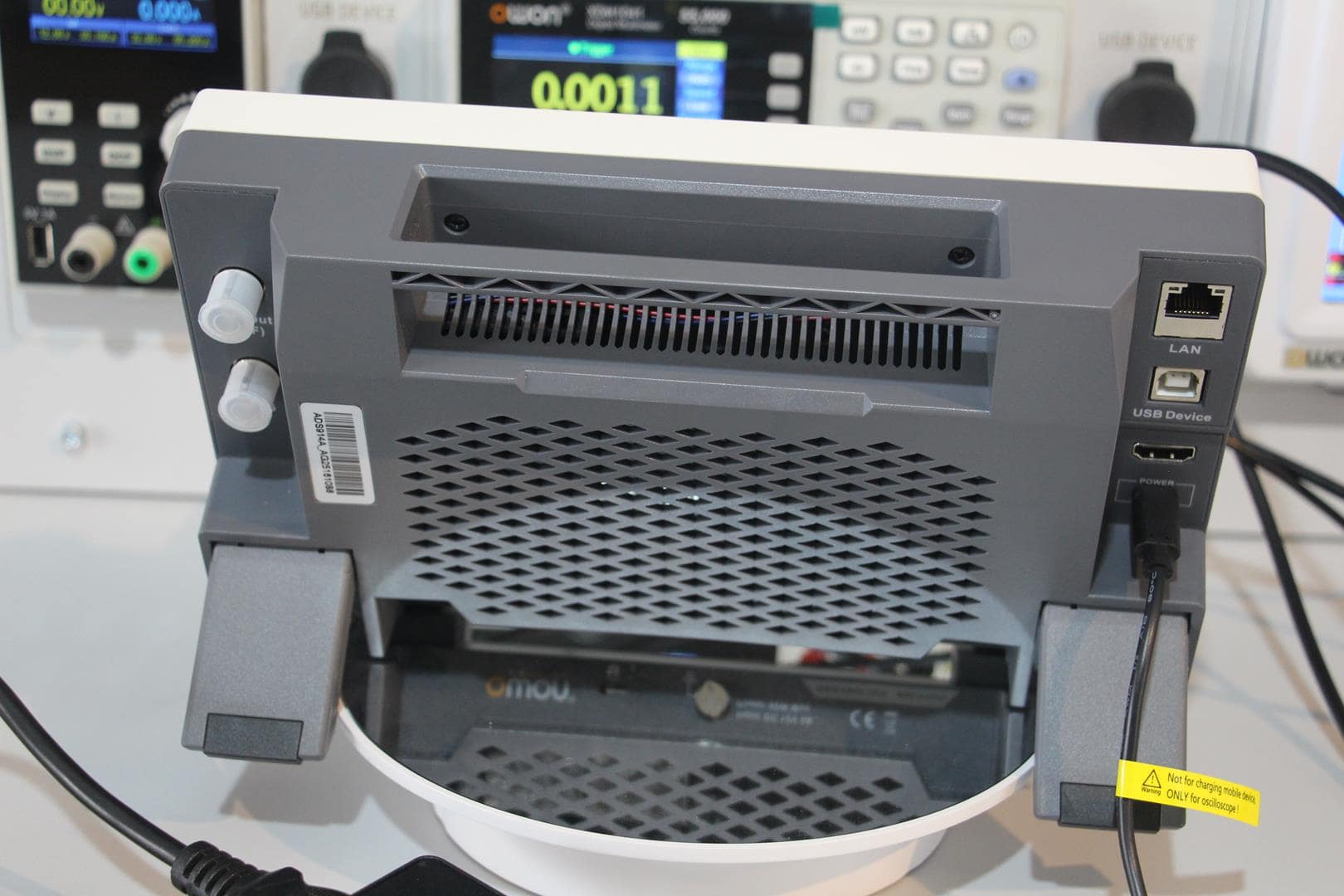

Connectivity & Integration
––––––––––––––––––––––––––
USB: USB Host and Device
Software: SCPI and LabVIEW compatible
Display: Multi-touch supported
Power Input: Type-C 12V/3A
Design: Compact and desktop-friendly

Applications
––––––––––––––––––––––––––

• Embedded system testing

• Education and training labs

• Industrial and R&D signal analysis

• Mixed-signal system debugging

Package Contents
––––––––––––––––––––––––––

• Power cable

• USB cable

• 4 × oscilloscope probes

• Multimeter probe set

• Probe adjustment tool

• Quick start guide
  Optional: Logic analyzer probe, BNC to alligator probe, carrying case
