Owon ADS922A 200 MHz 12-bit Oscilloscope | 2CH, 1.25 GS/s, 7" Touch, Multimeter, Signal Generator, Logic Analyzer

✅  Product Description

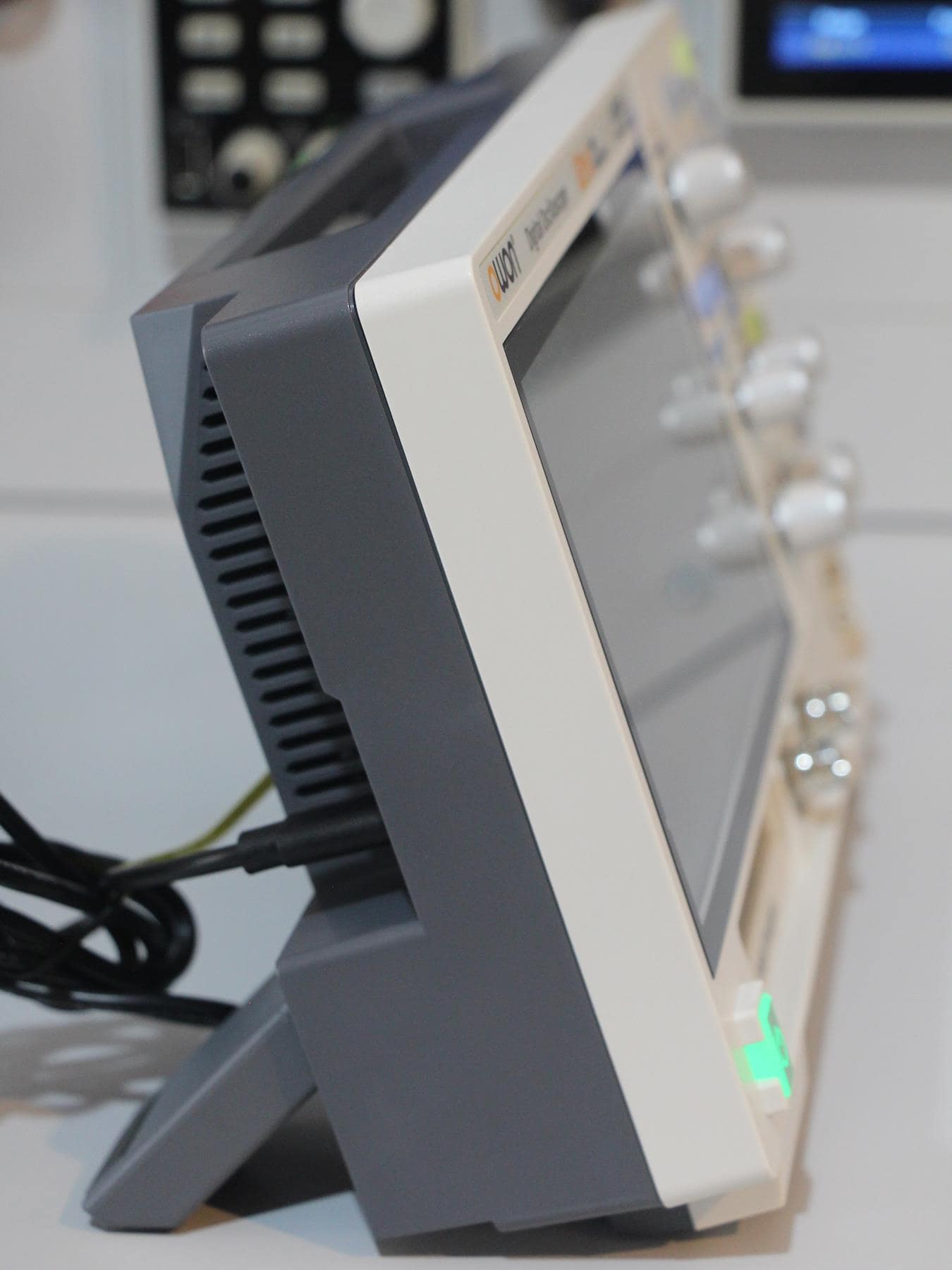

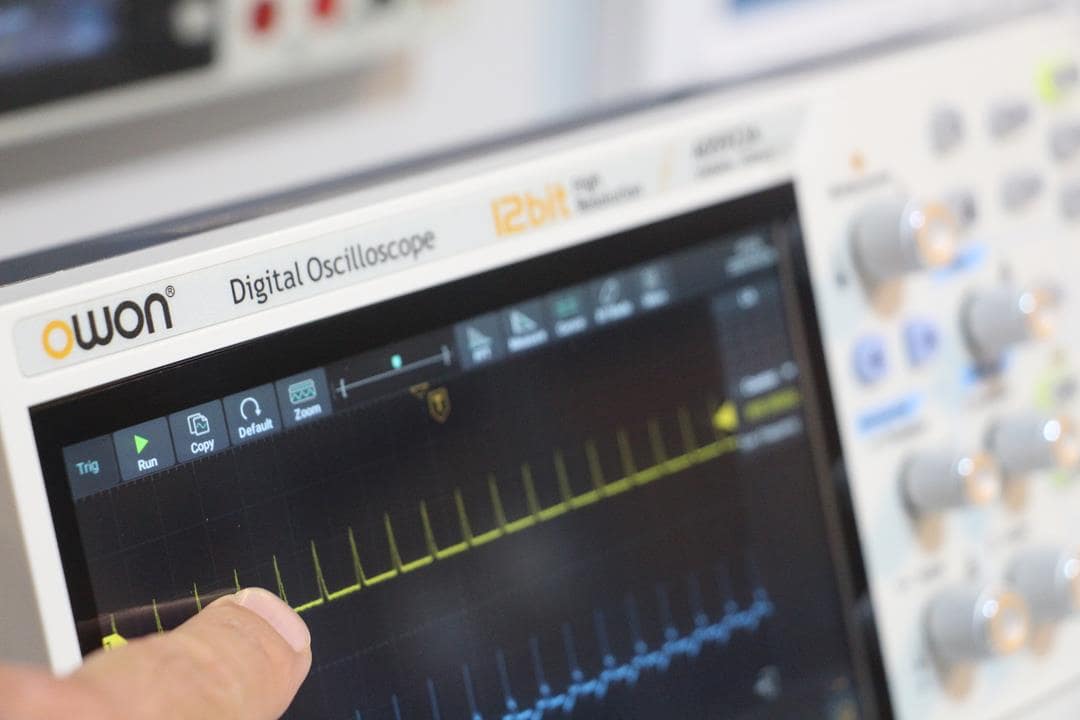

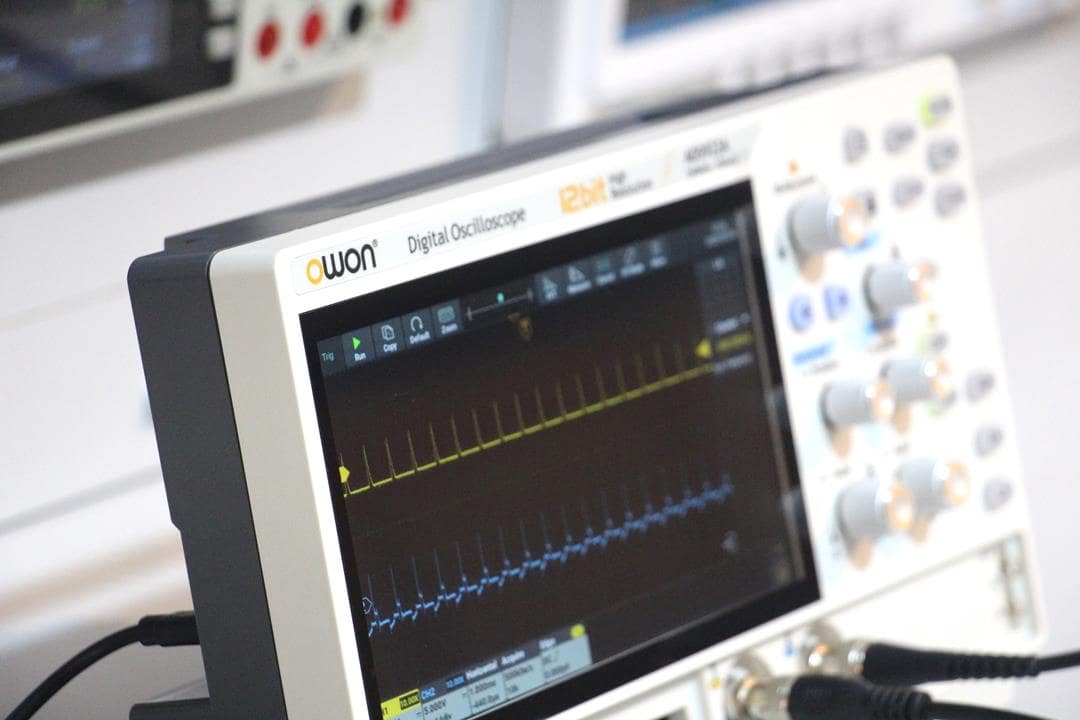

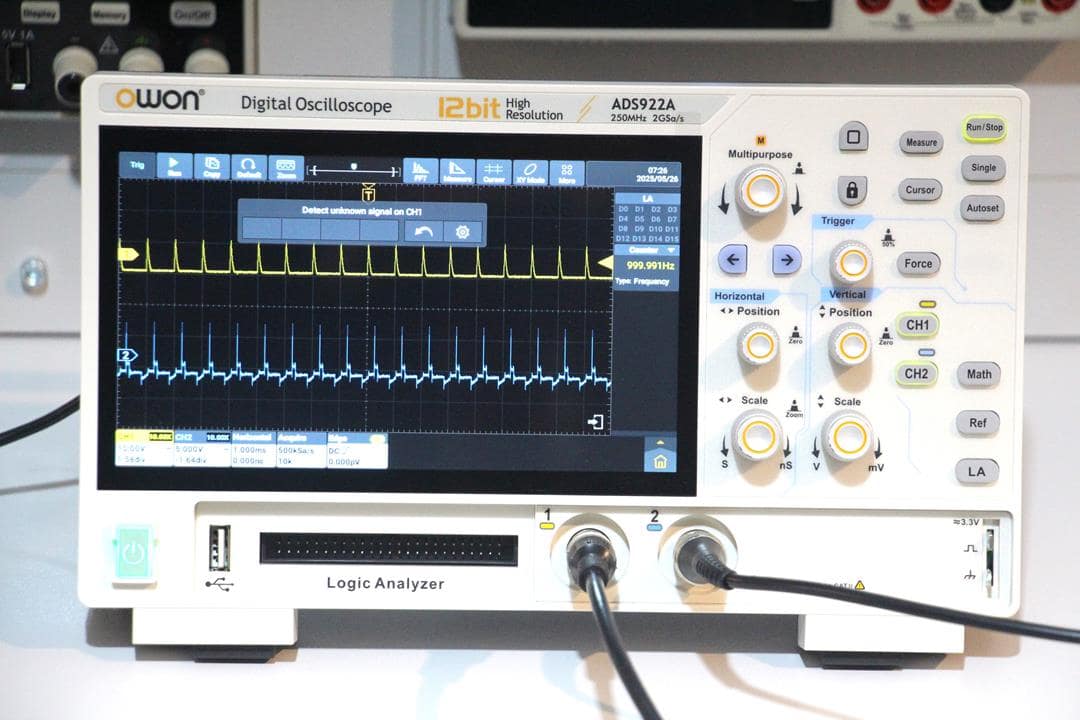

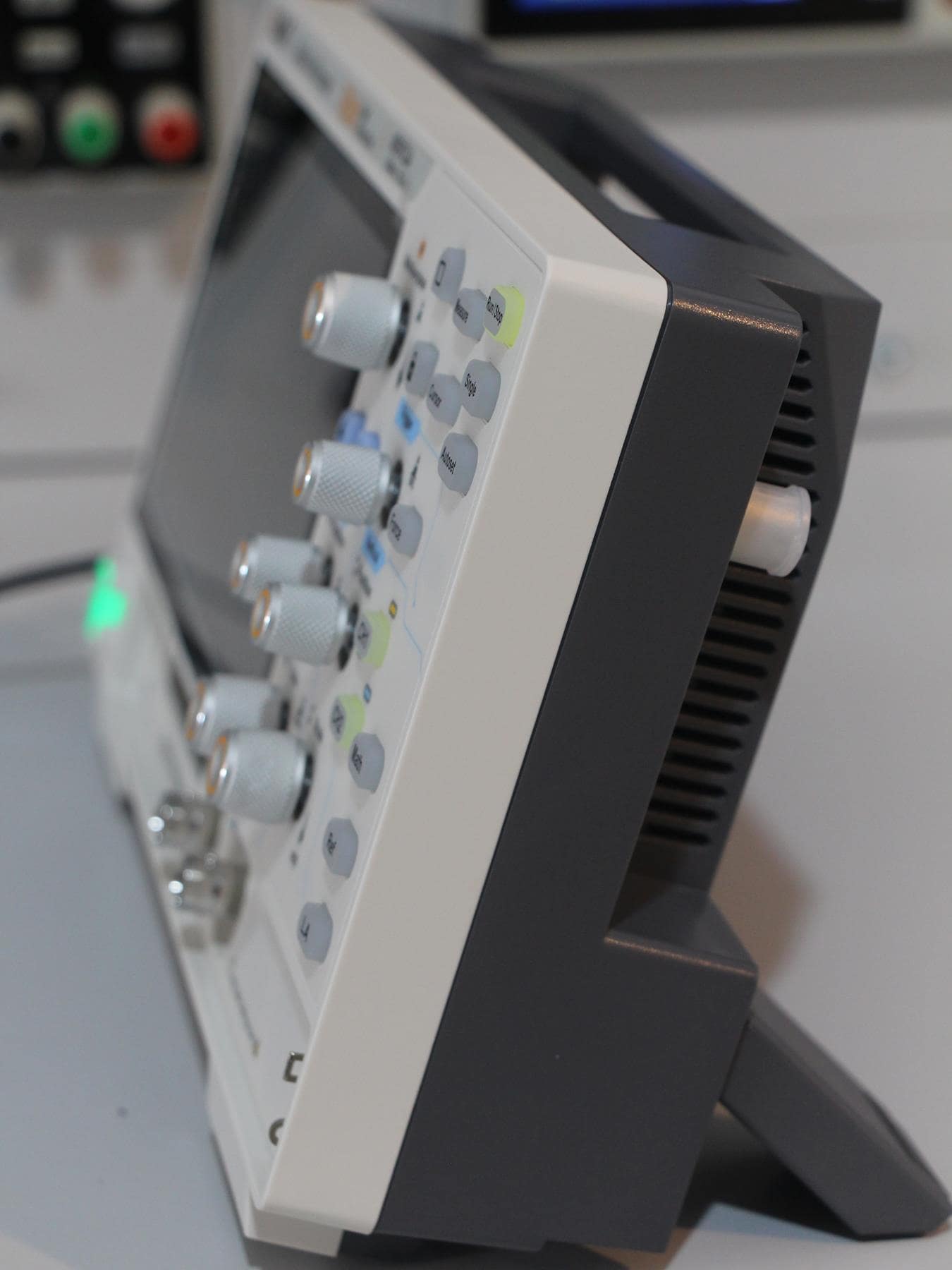

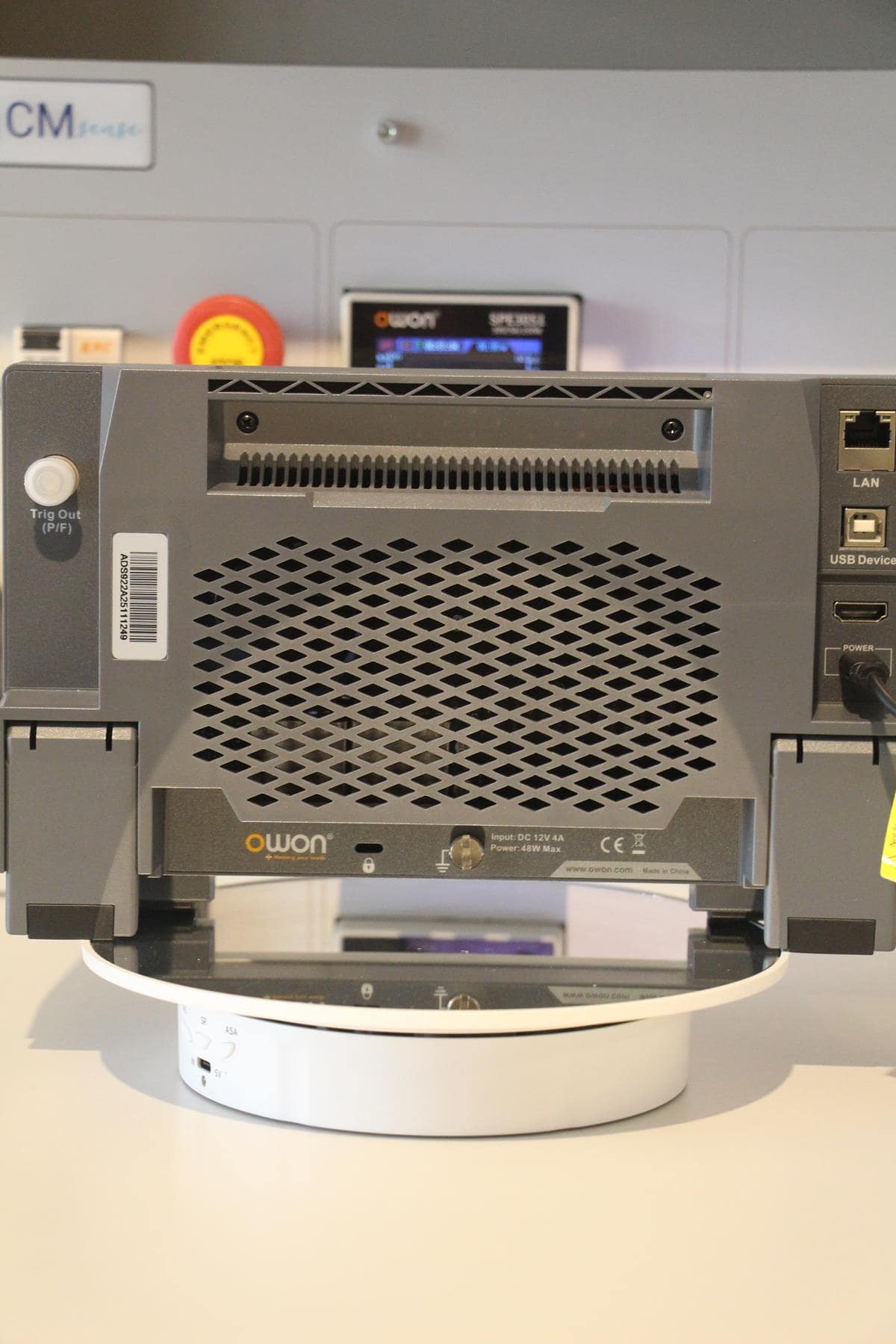

Owon ADS922A 200 MHz 12-bit Touchscreen Oscilloscope

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

The Owon ADS922A is a powerful 5-in-1 digital oscilloscope that combines advanced signal analysis features with 12-bit resolution and a user-friendly 7-inch touchscreen. With its 200 MHz bandwidth, 1.25 GS/s real-time sampling, and deep 40M memory, it delivers high precision measurements in a compact form. Integrated functions include digital multimeter, signal generator, spectrum analyzer, and optional logic analyzer—making it ideal for engineers, labs, and technical education environments.

Oscilloscope Features
–––––––––––––––––––––––––
Channels: 2
Bandwidth: 200 MHz
Sampling Rate: 1.25 GS/s
Memory Depth: 40 Mpts
Waveform Update Rate: 1,000,000 wfms/s
Vertical Resolution: 12-bit
Vertical Sensitivity: 500 µV/div – 10 V/div
FFT Length: 1 million points
Trigger Modes: Edge, Video, Pulse Width, Slope, Timeout, Nth Edge, Logic, UART, I2C, SPI, CAN, LIN
Math Functions: +, –, ×, ÷, FFT, Log, Integration, Derivative, Filter
Protocol Decoding: UART, I2C, SPI, CAN, LIN (2-channel hardware decoding)
Display: 7" Touchscreen, 800×600 resolution
Dimensions: 270 × 190 × 90 mm
Weight: Approx. 1.7 kg

Digital Multimeter Functions
–––––––––––––––––––––––––
Input Source: CH1–CH4
Measurements: AC RMS, DC, AC+DC RMS
Resolution: 4-bit RMS display
Limit Alerts: Configurable upper/lower limits with alarm display

Signal Generator (Included)
–––––––––––––––––––––––––
Max Frequency: 25 MHz
Waveforms: Sine, Square, Ramp, Pulse, Arbitrary
Special Functions: Sinc, Gaussian, Exponential, and 160+ ARBs
Sample Rate: 125 MSa/s
Vertical Resolution: 14-bit
Waveform Length: 8k
Output Amplitude (50Ω): 0.005 Vpp – 3 Vpp
DC Offset: ±3 V

Logic Analyzer (Optional)
–––––––––––––––––––––––––
Channels: 16 digital channels
Sampling Rate: 1 GS/s
Protocols Supported: UART, SPI, I2C, CAN
Analysis Types: Timing and Protocol Analysis

Additional Features
–––––––––––––––––––––––––
Segmented Memory: Yes
Pass/Fail Mask Test: Yes
USB Ports: USB Host & Device
PC Software: SCPI & LabVIEW Compatible
Power Input: USB Type-C (12V/3A adapter)
Touchscreen Interface: Multi-touch operation
Design: Compact & desktop-friendly

Included Accessories
–––––––––––––––––––––––––
Power cable
USB cable
2x oscilloscope probes
Multimeter probe set
Probe adjustment tool
Quick start guide
Optional: Signal generator, logic analyzer, BNC-to-alligator clip cable, carrying case
