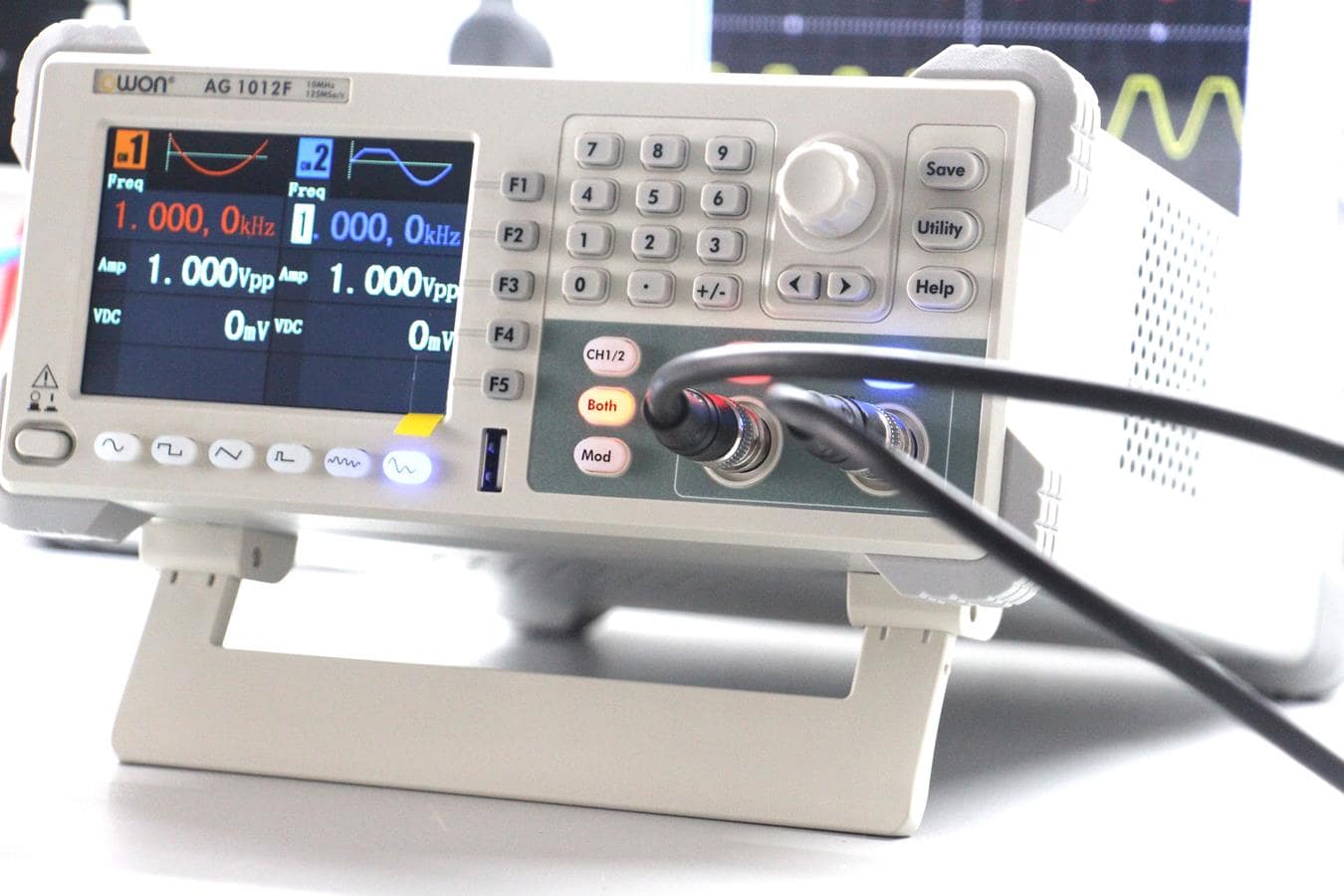

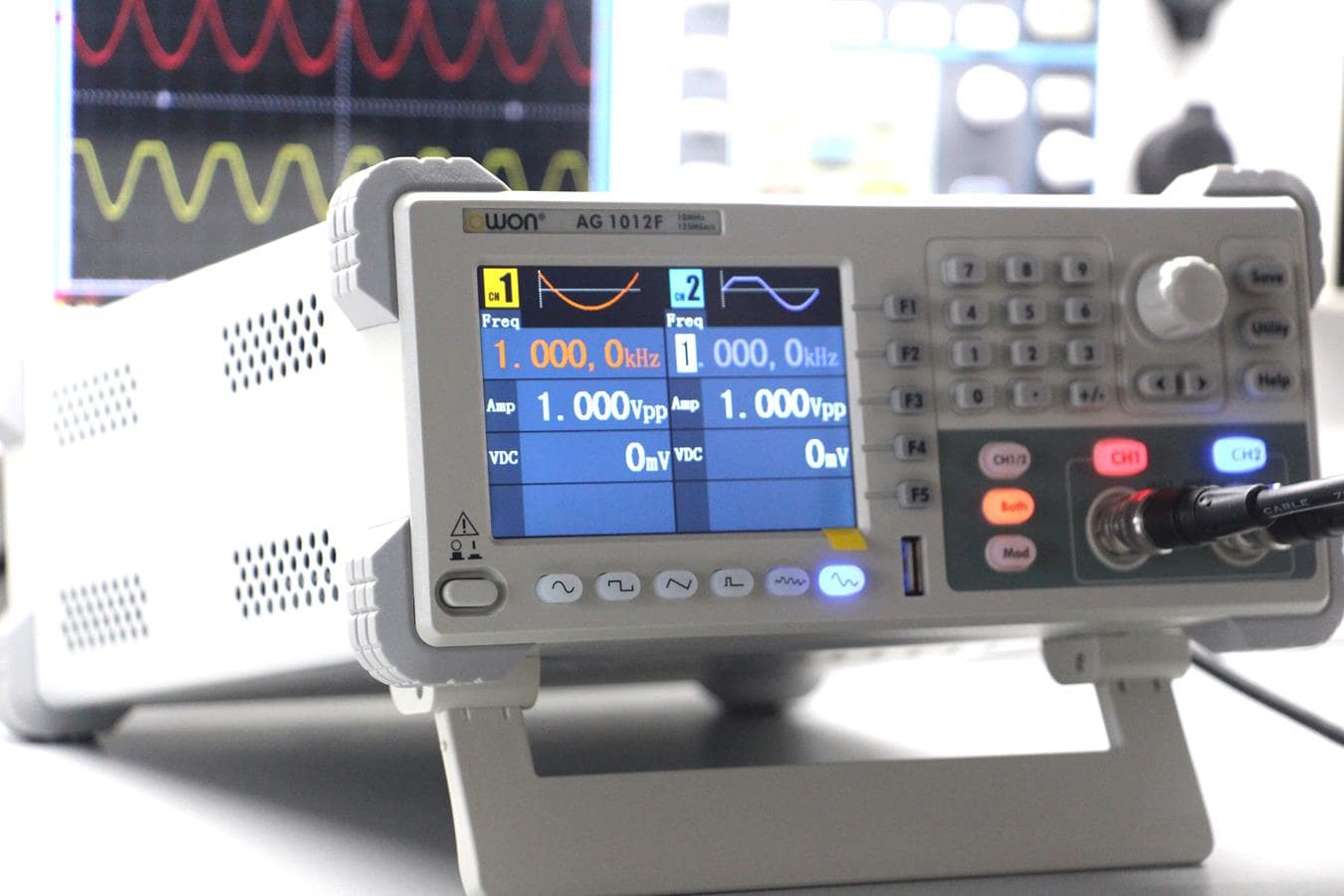

OWON AG1012F Arbitrary Function Generator – 10 MHz

OWON AG1012F Arbitrary Function Generator – 10 MHz

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

The OWON AG1012F is a compact and cost-effective arbitrary function generator designed for reliable and accurate signal generation. With a 10 MHz output frequency, dual-channel DDS architecture, and 14-bit vertical resolution, it delivers stable waveforms for professional test and measurement applications. Its 4-inch high-resolution display, rich modulation capabilities, and support for user-defined arbitrary waveforms make it an ideal choice for laboratories, education, and R&D environments where performance and value are equally important.

Frequency & Waveforms

Frequency Range
Sine: 1 μHz – 10 MHz
Square: 1 μHz – 5 MHz
Pulse: 1 μHz – 5 MHz
Ramp: 1 μHz – 1 MHz
Noise: 25 MHz (–3 dB, typical)
Arbitrary Waveform: 1 μHz – 10 MHz

Vertical Resolution: 14-bit
Arbitrary Waveform Memory: 8K points
Standard Waveforms: Sine, square, pulse, ramp, noise
Arbitrary Waveforms: 45 built-in + user-defined

Modulation & Functions

Supported Modulations:
AM, FM, PM, PWM, FSK, Sweep, Burst

DC Offset Range:
±5 V (50 Ω) / ±10 V (high impedance)
Offset Resolution: 1 mV or 4 digits

Amplitude Range:
1 mVpp – 10 Vpp (50 Ω)
1 mVpp – 20 Vpp (high impedance)

Frequency Counter

Frequency Range: 100 mHz – 200 MHz
Resolution: 1 μHz

Display & Interfaces

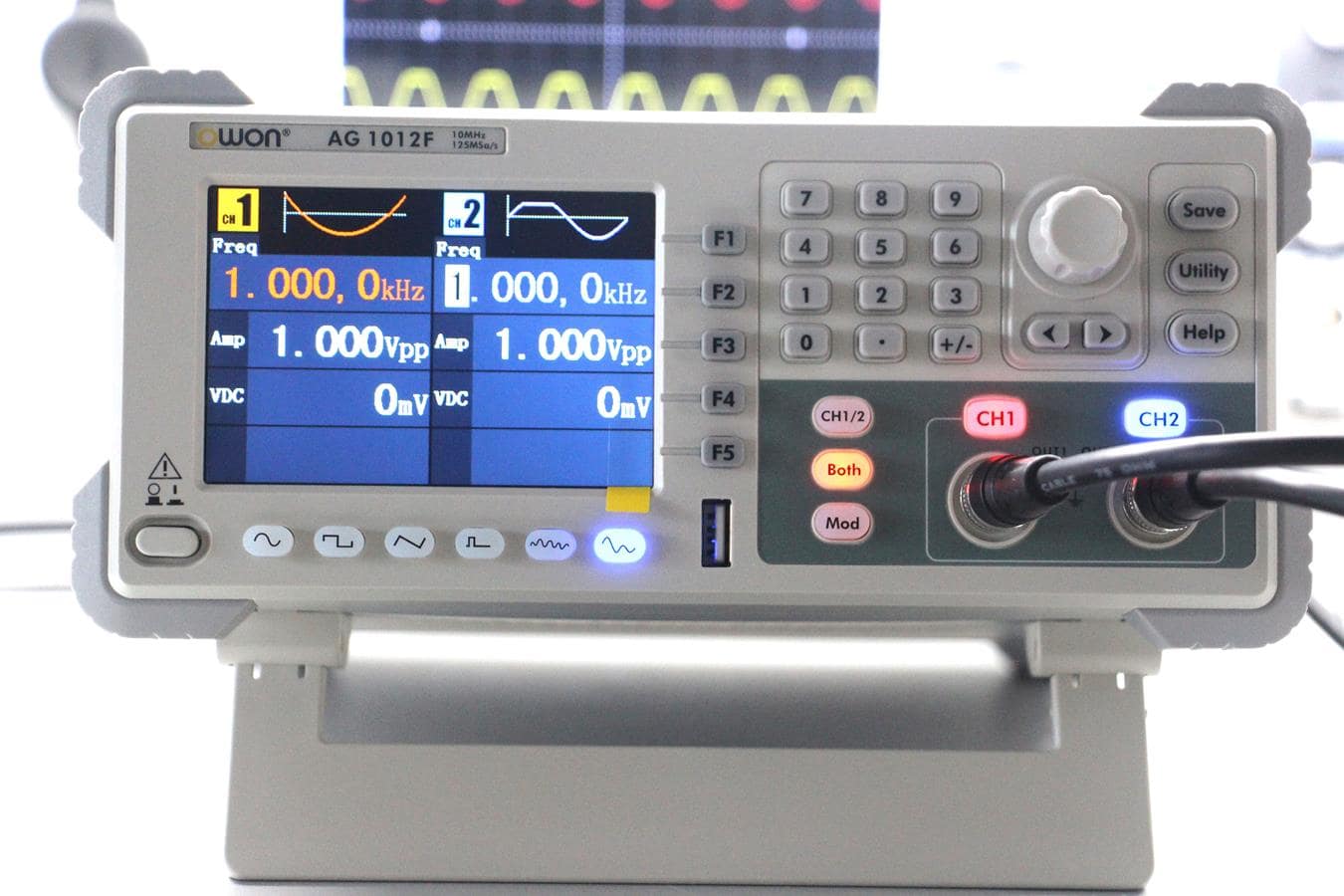

Display: 4-inch TFT LCD, 480 × 320 resolution

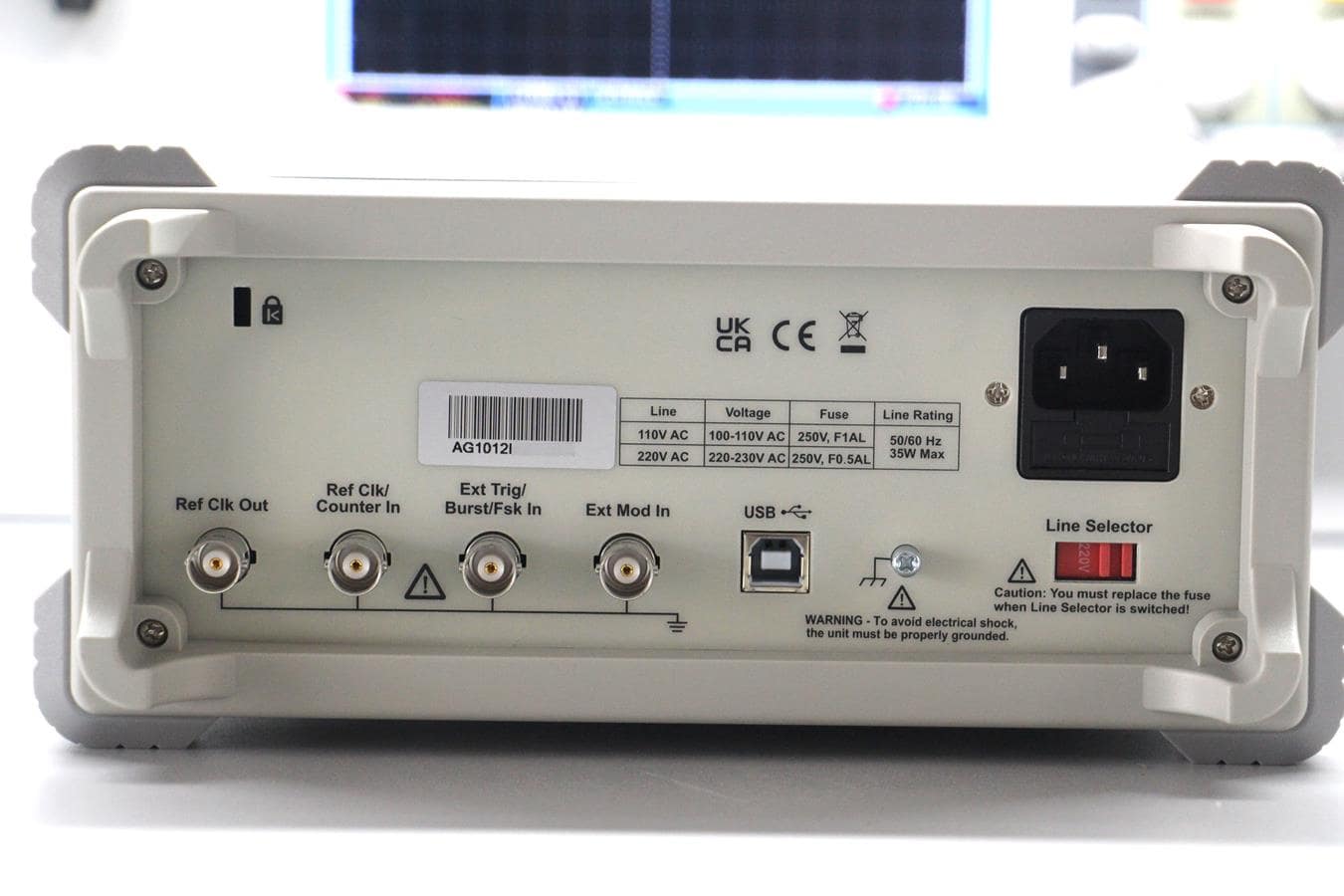

Interfaces: USB Host, USB Device, RS232 (optional)
Remote Control: SCPI supported

Physical Characteristics

Dimensions: 235 × 110 × 295 mm
Weight: Approx. 3.0 kg
Design: Compact, bench-friendly form factor

Typical Applications

Electronics testing and development
University and education laboratories
Waveform simulation
R&D and engineering measurements

Box Contents

OWON AG1012F Function Generator
Power cord
CD-ROM
Quick start guide
USB cable
Q9 cable
