OWON DGE3062 Arbitrary Function Generator – 60 MHz

OWON DGE3062 Arbitrary Function Generator – 60 MHz

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

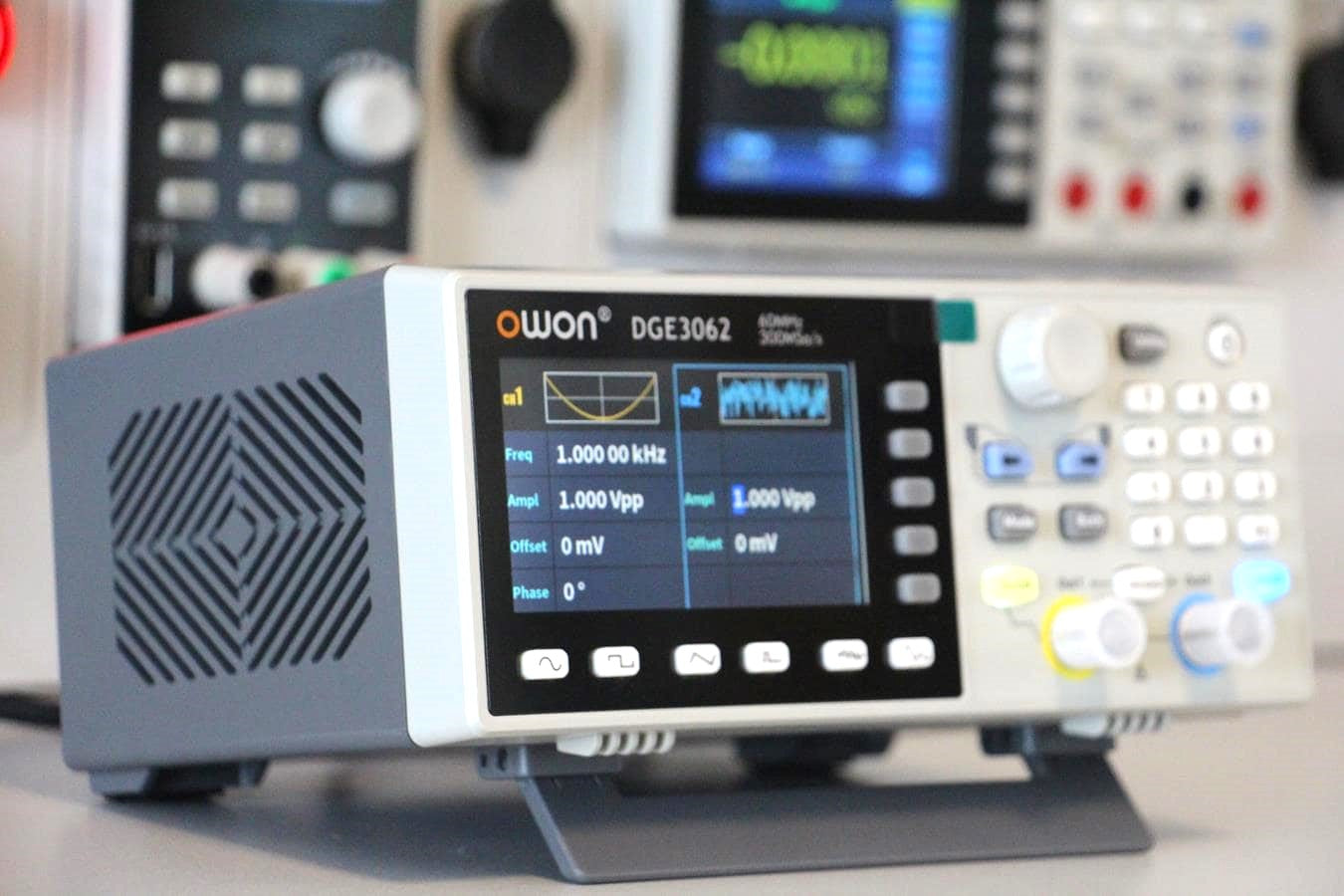

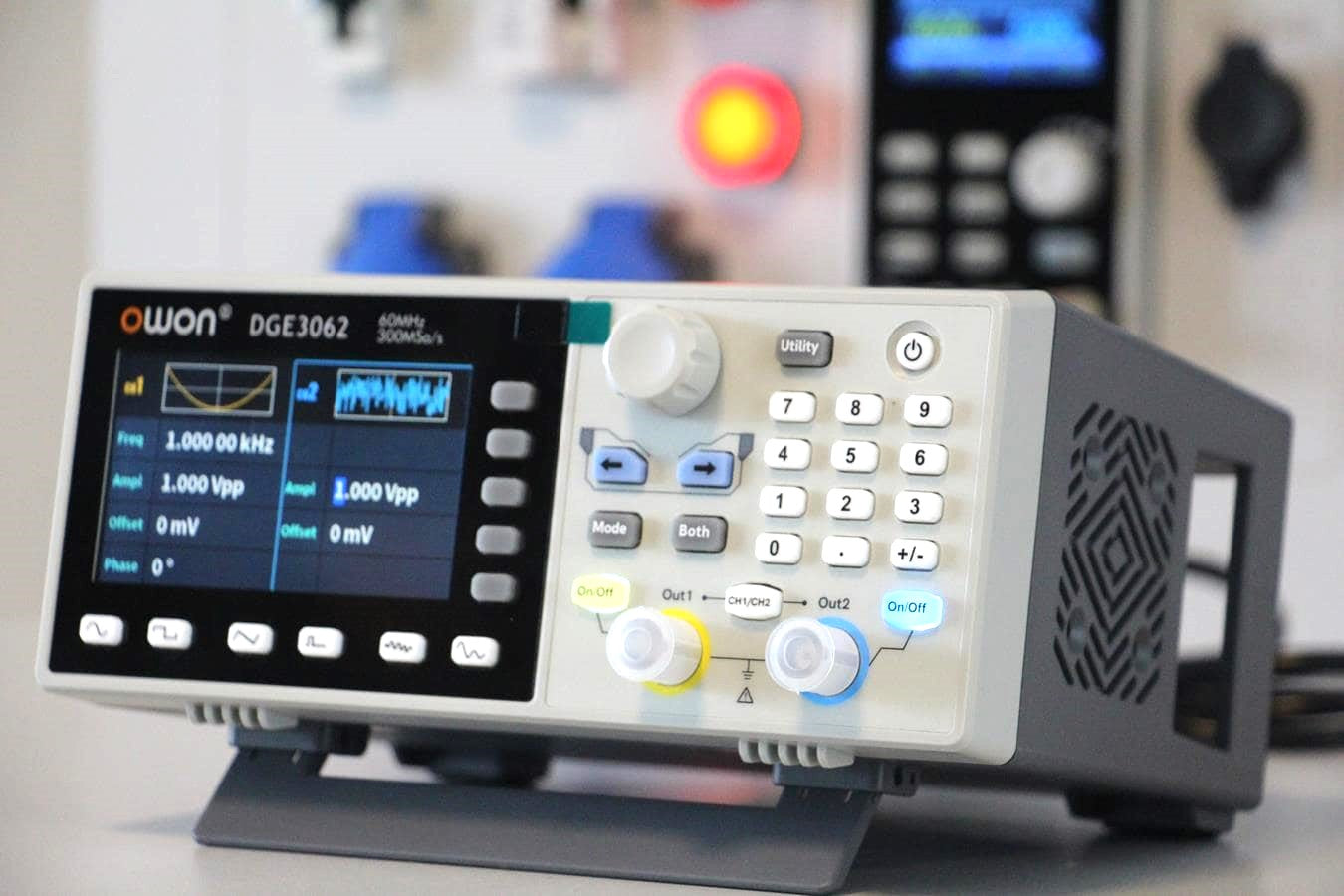

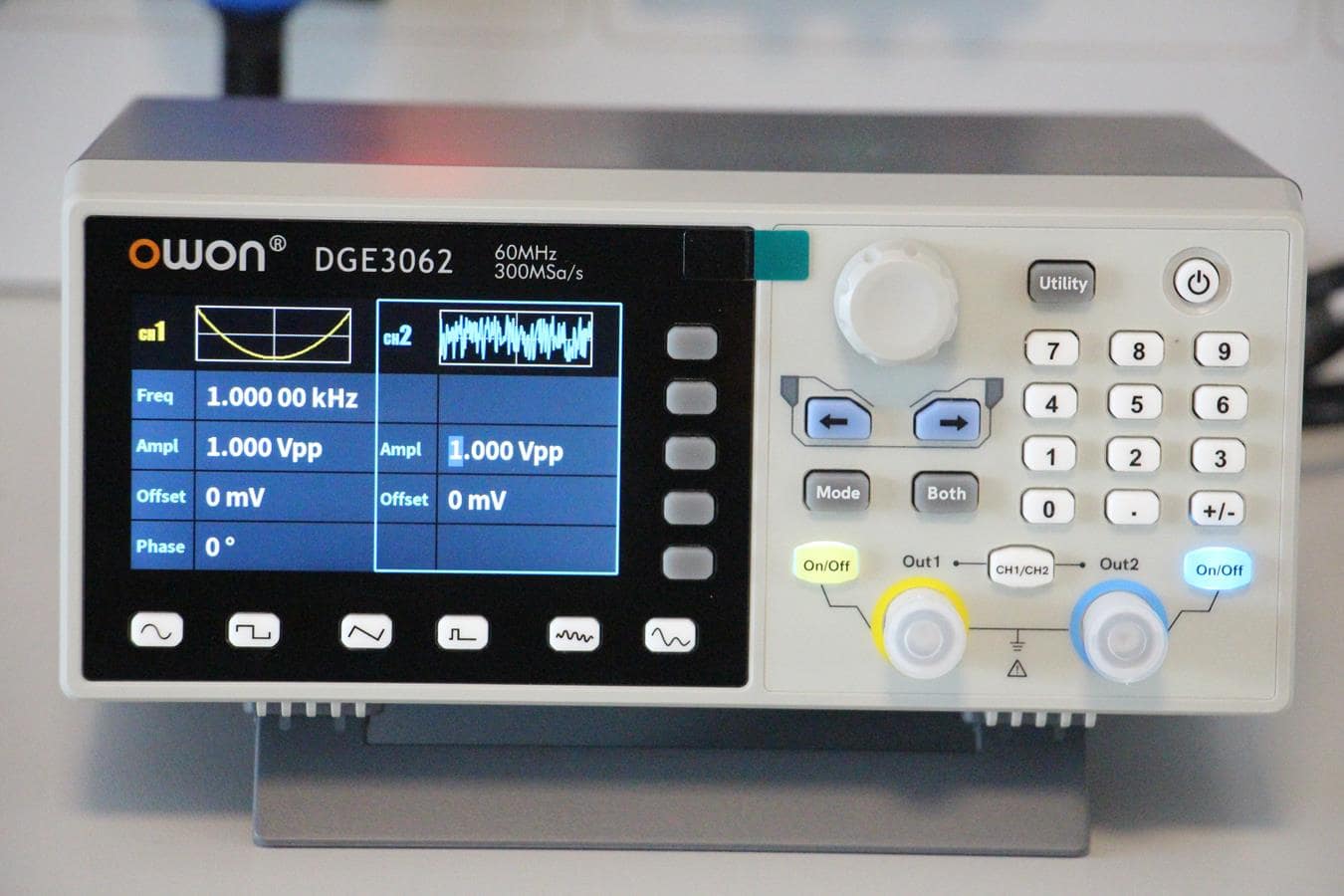

The OWON DGE3062 is a professional arbitrary function generator designed to meet advanced test and measurement requirements with wide waveform capabilities, high sampling performance, and dual-channel output. With 14-bit vertical resolution and a 300 MSa/s sampling rate, it delivers precise and stable signal generation. Its compact desktop design saves bench space, while SCPI and LabVIEW compatibility make it easy to integrate into automated test systems.

OWON DGE3062 Arbitrary Function Generator – 60 MHz

Frequency & Waveforms

Frequency Range
Sine: 1 μHz – 60 MHz
Square: 1 μHz – 20 MHz
Pulse: 1 μHz – 20 MHz
Ramp: 1 μHz – 2 MHz
Noise: 20 MHz (–3 dB, typical)
Arbitrary Waveform: 1 μHz – 10 MHz

Waveform Types
Sine, square, pulse, ramp, noise
150 built-in arbitrary waveforms + user-defined waveforms
Arbitrary Waveform Length: 100 K points

Modulation Features

Supported Modulations:
AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSB-AM, QPSK, SUM, Sweep, Burst

External modulation input
External trigger input
External reference clock input/output

Frequency Counter

Functions: Frequency, period
Frequency Range: 0.00000001 MHz – 100 MHz
Resolution: 7 digits

Display & Interface

Display: 3.6-inch TFT LCD (480 × 272 resolution)
Interfaces: USB Host, USB Device
SCPI and LabVIEW support for easy system integration

Physical Characteristics

Number of Channels: 2
Dimensions (W × H × D): 200 × 92 × 157 mm
Weight: Approx. 0.8 kg
Compact and portable design, ideal for desktop use

Applications

Electronic product testing
Laboratory measurements
Automation and control systems
Education and training
Development and prototyping

OWON DGE3062 Arbitrary Function Generator – 60 MHz

Box Contents

OWON DGE3062 Function Generator
Power cord
USB cable
Q9 cable
BNC to alligator clip probe
Quick start guide
