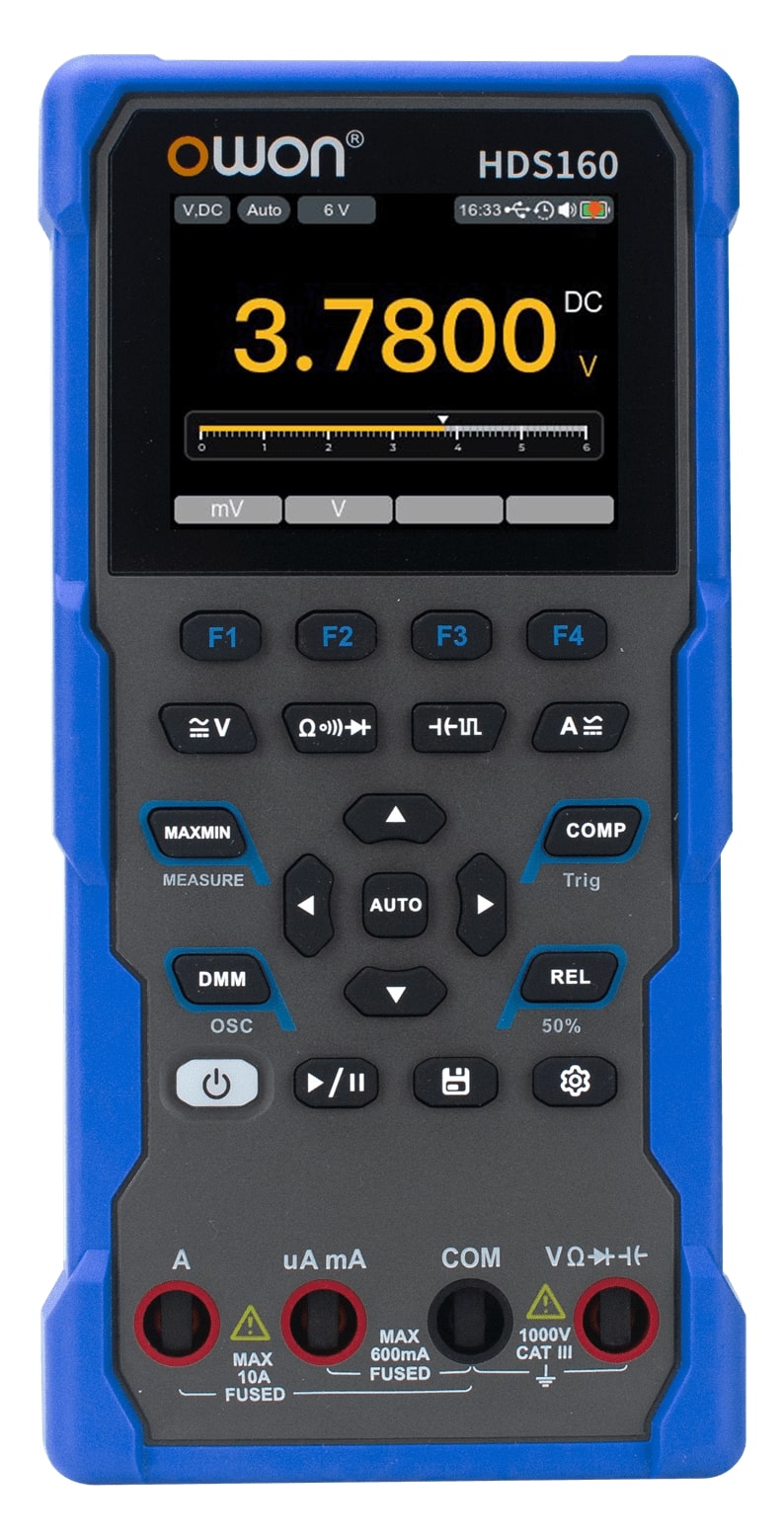

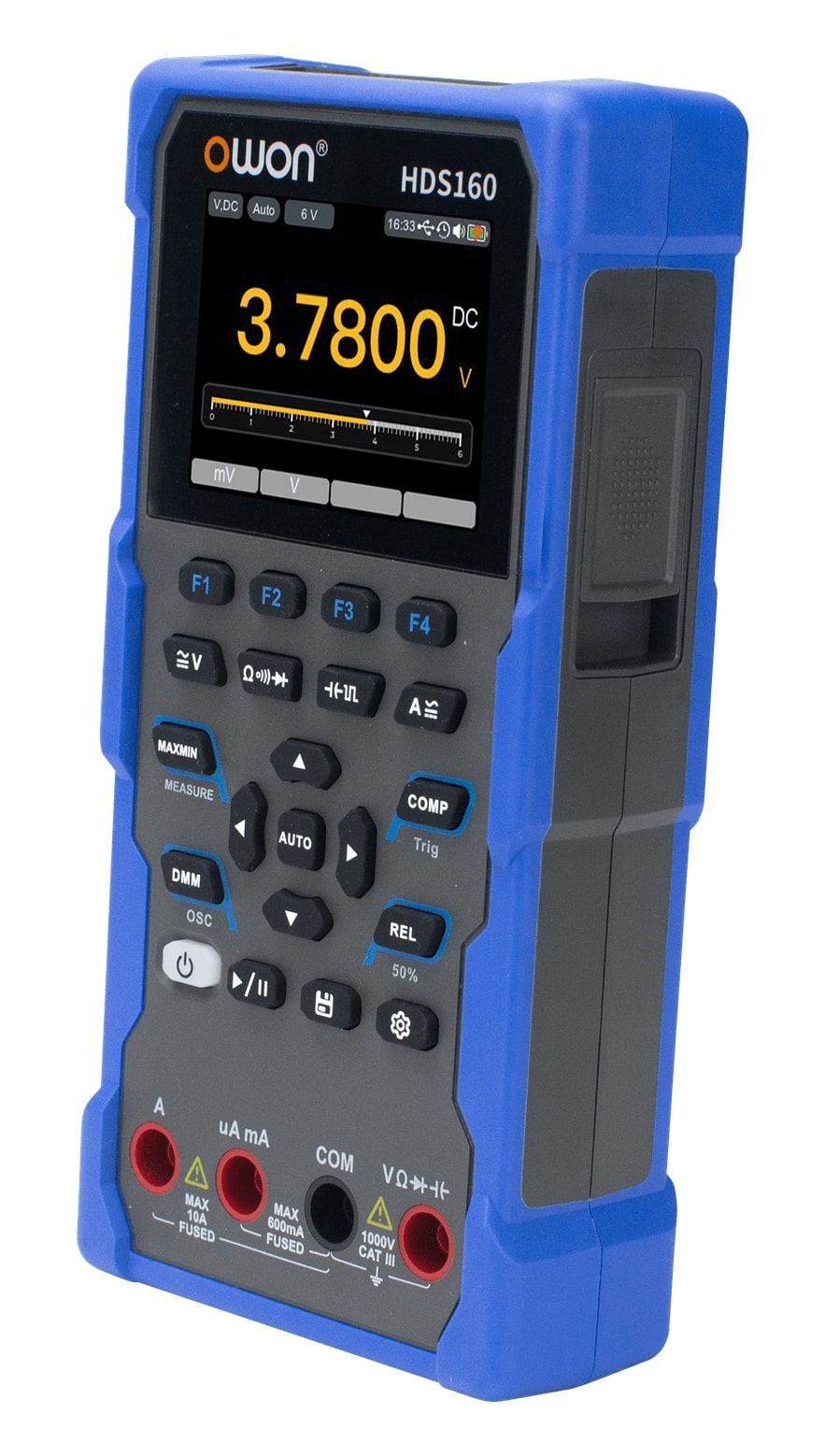

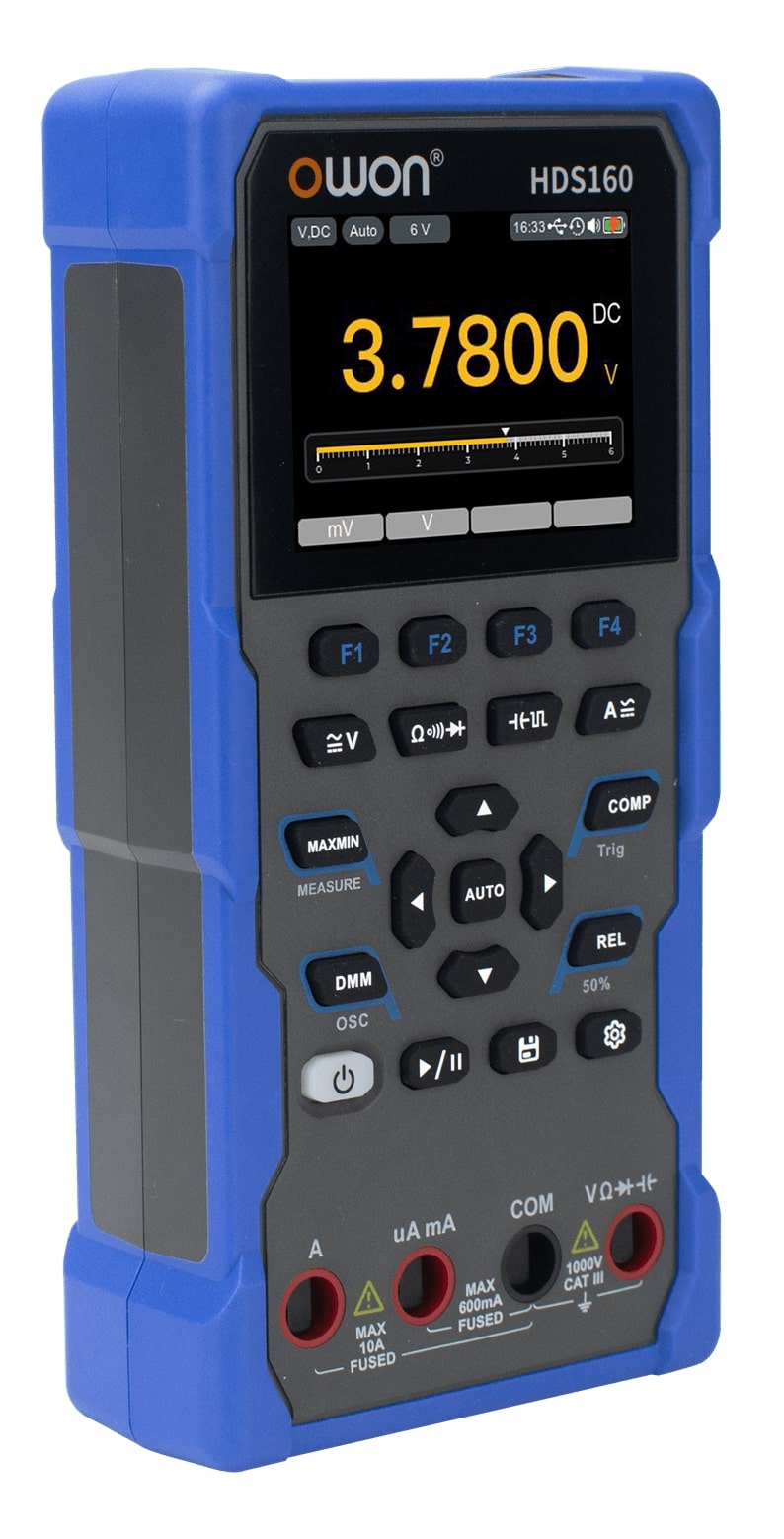

The OWON HDS160 combines a high-precision 4½-digit True RMS digital multimeter with a single-channel oscilloscope, offering a compact and reliable solution for both field service and laboratory applications. With 60,000 counts resolution, CAT III 1000 V safety rating, and an IPS color display, it delivers accurate measurements, high safety, and excellent readability in demanding environments.

Designed for professionals who require durability and reliability, the HDS160 stands out with its rugged handheld construction, intelligent probe protection, and long battery life powered by a 18650 lithium battery.

Key Features

Display: 2.8-inch IPS color display with wide viewing angle and high contrast
Design: Fully button-controlled, ergonomic handheld design
Power Supply: 18650 lithium battery for extended operation
Safety: Intelligent probe detection and CAT III 1000 V compliance
Functionality: Multimeter and oscilloscope combined in a single device
Visibility: Optimized display themes for both high- and low-light conditions

Multimeter Specifications

DC Voltage: 60 mV – 1000 V
AC Voltage (True RMS): 60 mV – 750 V
DC / AC Current: 600 µA – 10 A
Resistance: 600 Ω – 60 MΩ
Capacitance: 6 nF – 60 mF
Frequency: 60 Hz – 60 MHz
Diode Test Voltage: Up to 3.0 V
Continuity Threshold: < 1000 Ω
Display Resolution: 60,000 counts

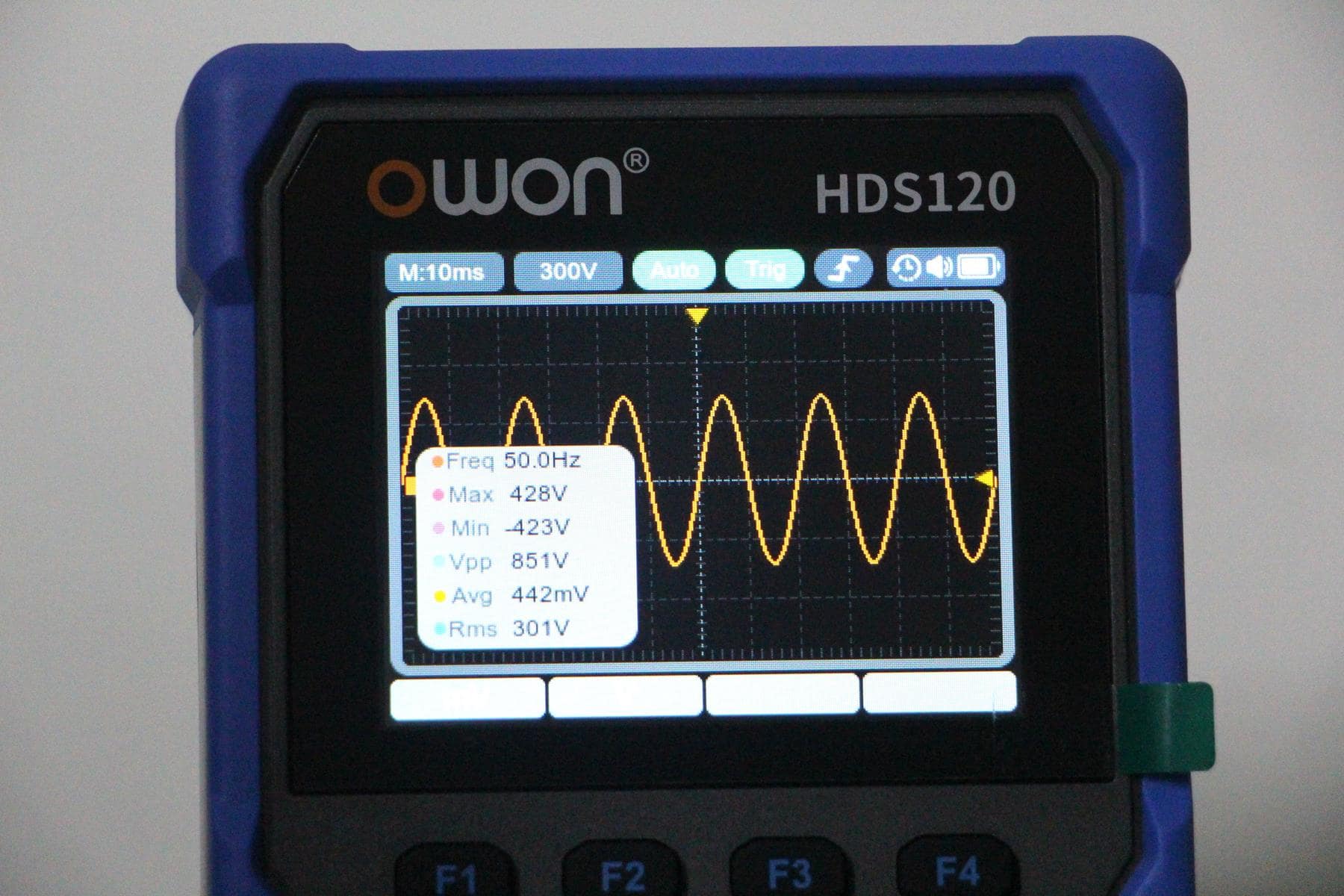

Oscilloscope Specifications

Bandwidth: 1 MHz (available in AC voltage measurement mode)
Sampling Rate: 5 MSa/s
Channels: 1
Input Impedance: Approx. 10 MΩ
Measurements: Vmax, Vmin, Vpp, Vavg, Vrms, Frequency
Maximum Voltage Input: 1000 V DC + AC peak
Maximum Current Input: 15 A DC + AC peak

Additional Functions

Duty Cycle Measurement
Relative Measurement Mode
Low Battery Indicator
Automatic Sleep Mode
High-impedance input protection
Safety Category: CAT III 1000 V

Physical Specifications

Dimensions: 93 × 41.5 × 188 mm
Weight: Approx. 0.35 kg

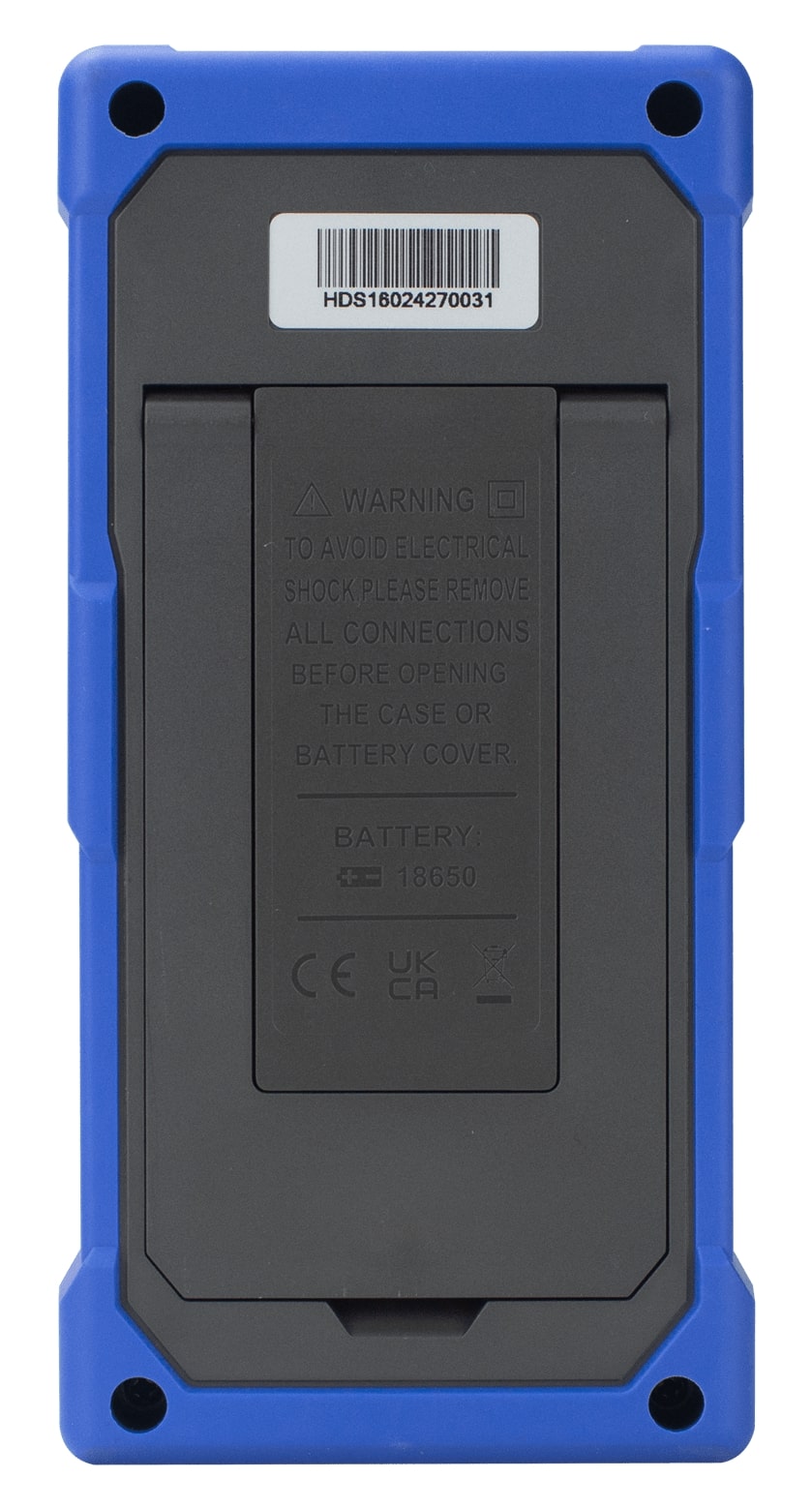

Battery Type: 18650 rechargeable lithium battery

Box Contents

Quick start guide
USB cable
Multimeter probe set
Carrying case
