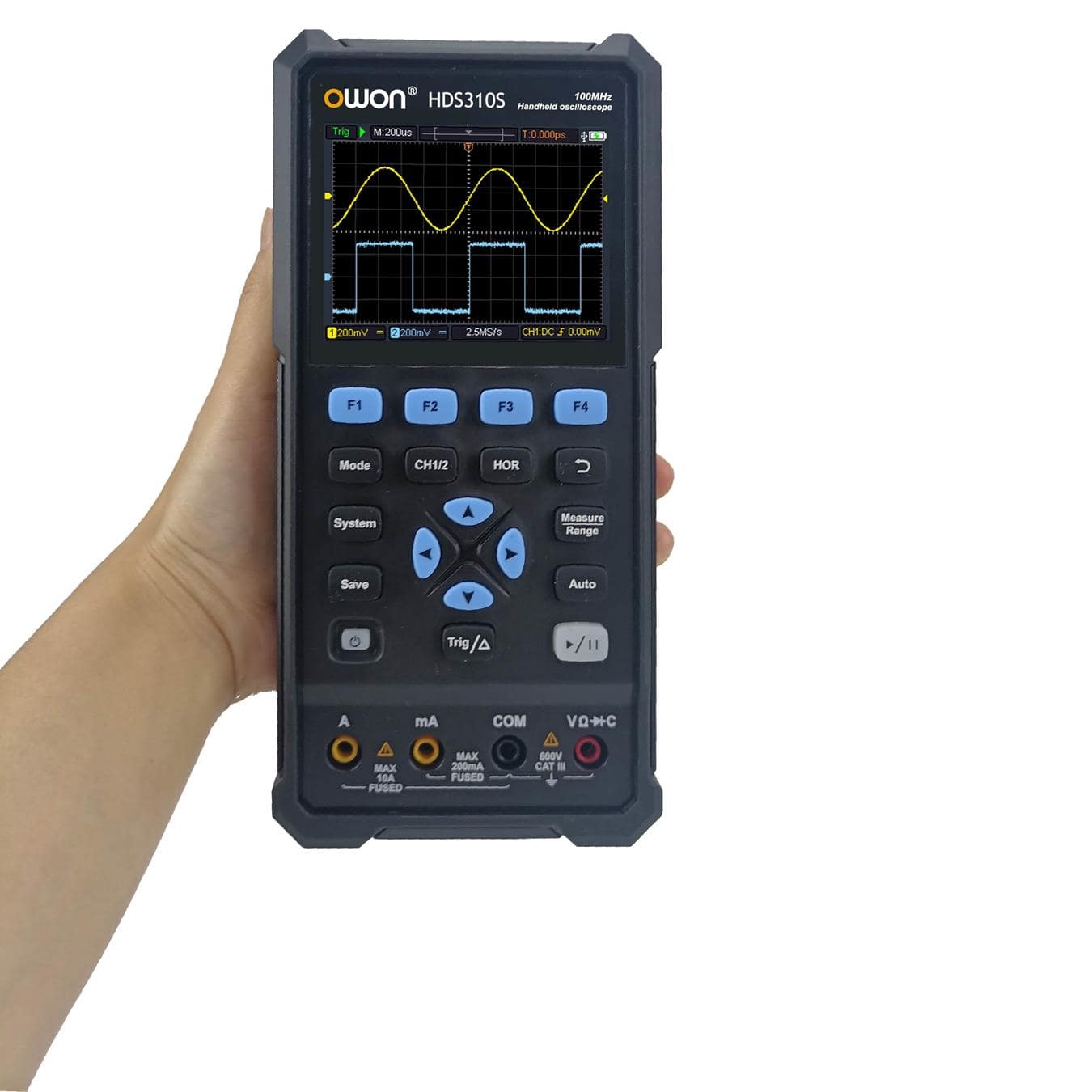

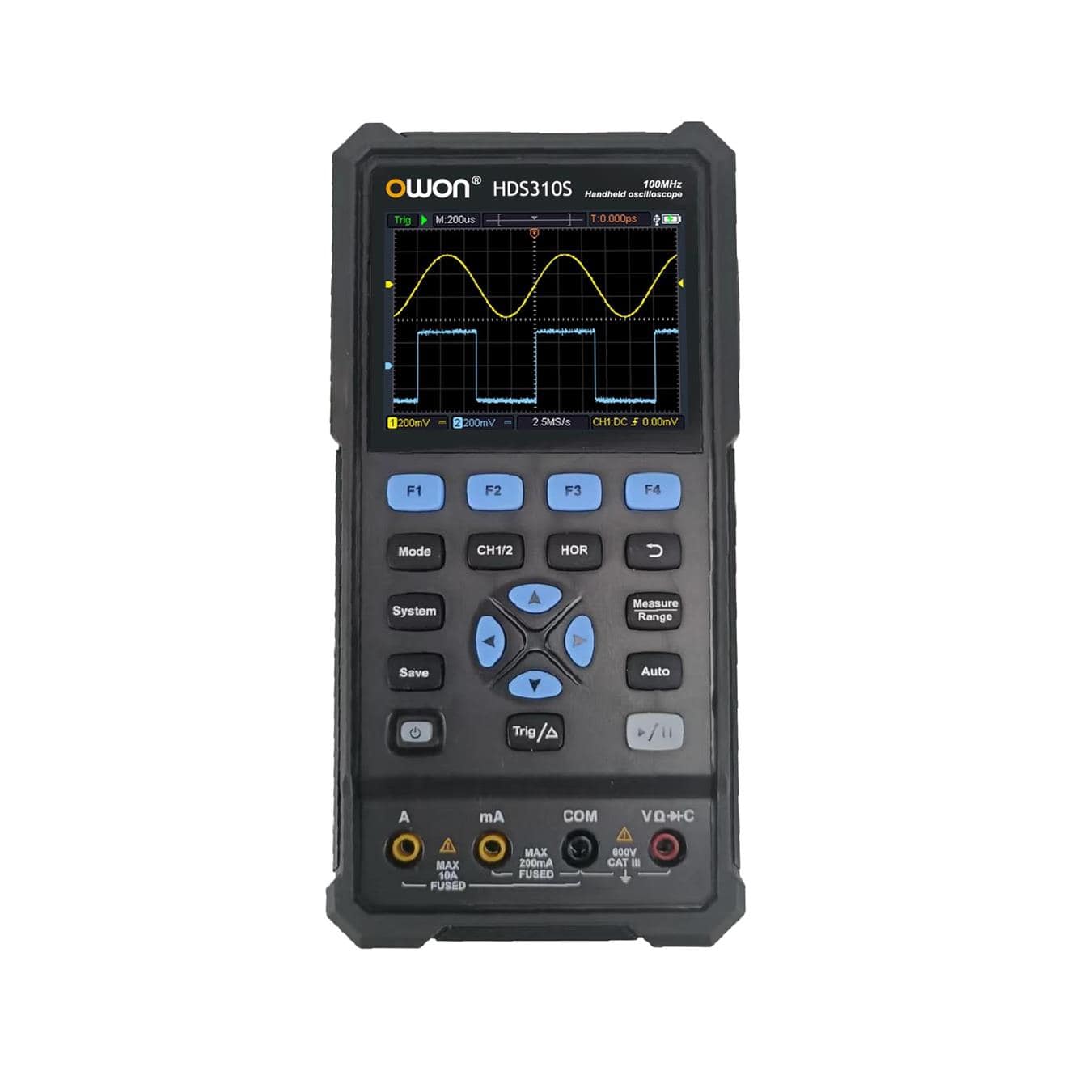

OWON HDS310S Handheld Oscilloscope, Multimeter & Function Generator – 100 MHz

OWON HDS310S Handheld Oscilloscope, Multimeter & Function Generator – 100 MHz

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

The OWON HDS310S combines three essential measurement instruments in a single portable device: oscilloscope, digital multimeter, and function generator. Designed for both field service and laboratory use, it features a compact form factor, battery operation, USB Type-C connectivity, and a clear 3.5-inch color LCD. With SCPI support and versatile measurement capabilities, it delivers high efficiency for technical service, education, and general electronics testing.

Oscilloscope Specifications

Model: HDS310S
Bandwidth: 100 MHz

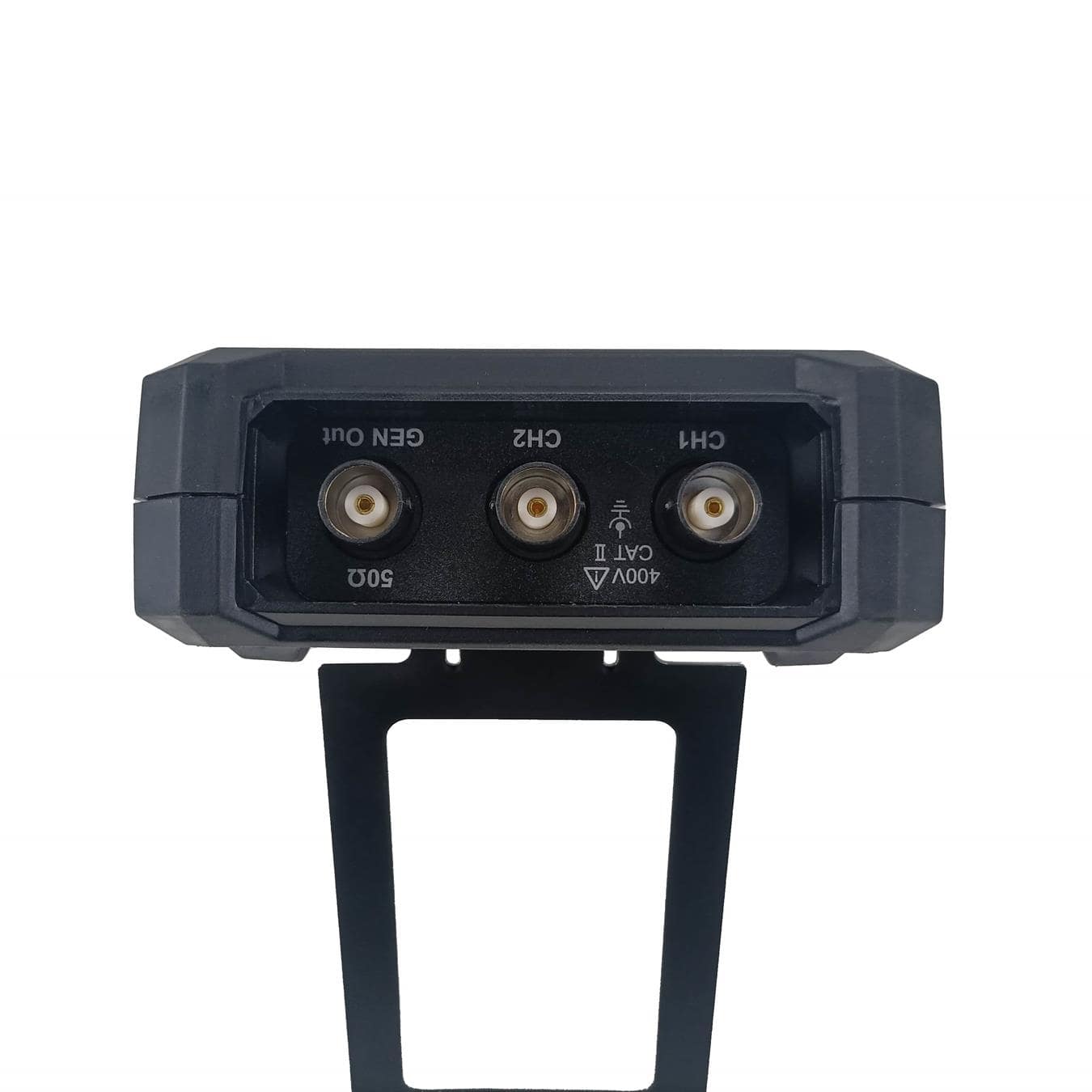

Channels: 2 + 1 (function generator output)
Sampling Rate: 500 MSa/s
Acquisition Modes: Sample, Peak Detect
Record Length: 8K
Waveform Update Rate: 10,000 wfms/s
Display: 3.5-inch high-contrast color LCD
Input Coupling: DC / AC / GND
Input Impedance: 1 MΩ ±2%, 16 pF ±10 pF (parallel)
Probe Attenuation: 1X, 10X, 100X, 1000X, 10000X
Maximum Input Voltage: 400 V (DC + AC, pk-pk, 1 MΩ input)
Bandwidth Limit: 20 MHz (optional)
Rise Time (typ.): ≤ 3.5 ns
Communication Interface: USB Type-C
Calibration: Automatic self-calibration
SCPI Support: Yes

Multimeter Specifications

Display: 4½ digits, up to 20,000 counts
Measurement Functions: Voltage, current, resistance, capacitance, diode test, continuity
Maximum Input Voltage: AC 750 V / DC 1000 V
Maximum Input Current: AC / DC 10 A
Diode Test Range: 0 – 2 V

Function Generator Specifications

Output Frequency Ranges:
Sine: 0.1 Hz – 30 MHz
Square: 0.1 Hz – 6 MHz
Ramp: 0.1 Hz – 1 MHz
Pulse: 0.1 Hz – 5 MHz
Arbitrary Waveform: 0.1 Hz – 5 MHz

Sampling Rate: 125 MSa/s
Channels: 1
Amplitude:
• 20 mVpp – 5 Vpp (high impedance)
• 10 mVpp – 2.5 Vpp (50 Ω)
Waveform Length: 8K
Vertical Resolution: 14-bit
Load Impedance: 1 MΩ / 50 Ω

Box Contents

Oscilloscope probe (1 pair)
Multimeter probe
USB cable
Probe adjustment screwdriver
Quick start guide
