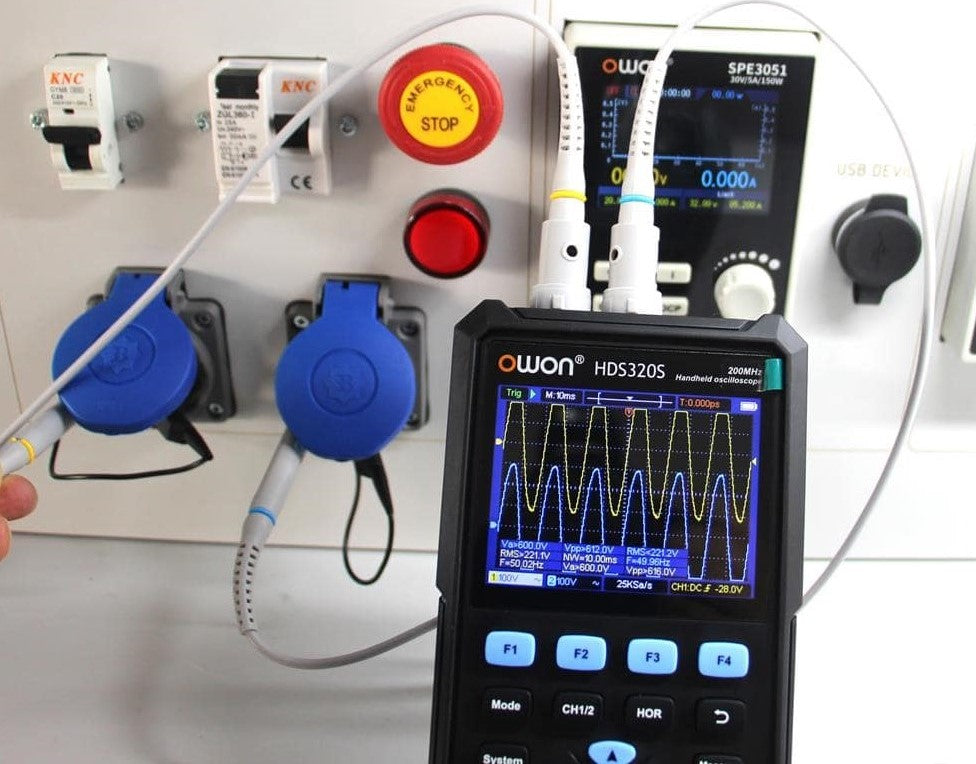

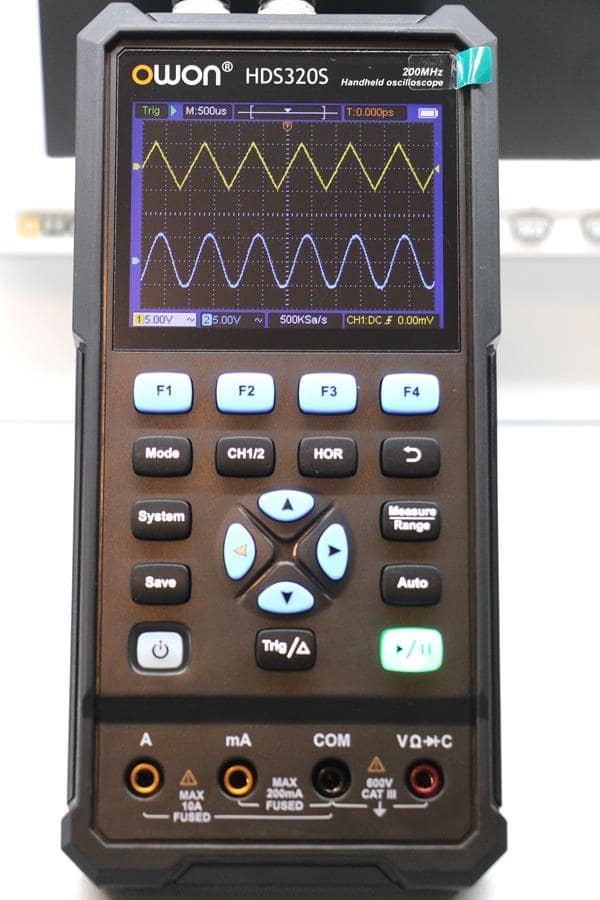

The OWON HDS320S is a compact, all-in-one handheld test instrument that integrates three devices in a single unit: oscilloscope, digital multimeter, and function generator. With 200 MHz bandwidth, a 1 GS/s sampling rate, and USB Type-C connectivity with SCPI support, it delivers high performance for both field service and laboratory use. Its 3.5-inch high-contrast color display ensures clear readability in all working environments.

OWON HDS320S Handheld Oscilloscope, Multimeter & Function Generator – 200 MHz

Oscilloscope Specifications

Model: HDS320S
Bandwidth: 200 MHz
Channels: 2 + 1 (waveform generator output)
Real-Time Sampling Rate: 1 GS/s
Waveform Update Rate: 10,000 wfms/s
Record Length: 8K
Display: 3.5-inch color LCD
Rise Time: ≤ 1.75 ns (typ.)
Input Coupling: DC, AC, GND
Input Impedance: 1 MΩ ±2%, 16 pF ±10 pF
Probe Attenuation: 1X, 10X, 100X, 1000X, 10000X
Maximum Input Voltage: 400 V (DC + AC, pk-pk)
Bandwidth Limit: 20 MHz or full bandwidth
Acquisition Modes: Sample, Peak Detect
Communication Interface: USB Type-C (PC and power bank compatible)
Additional Feature: Self-calibration

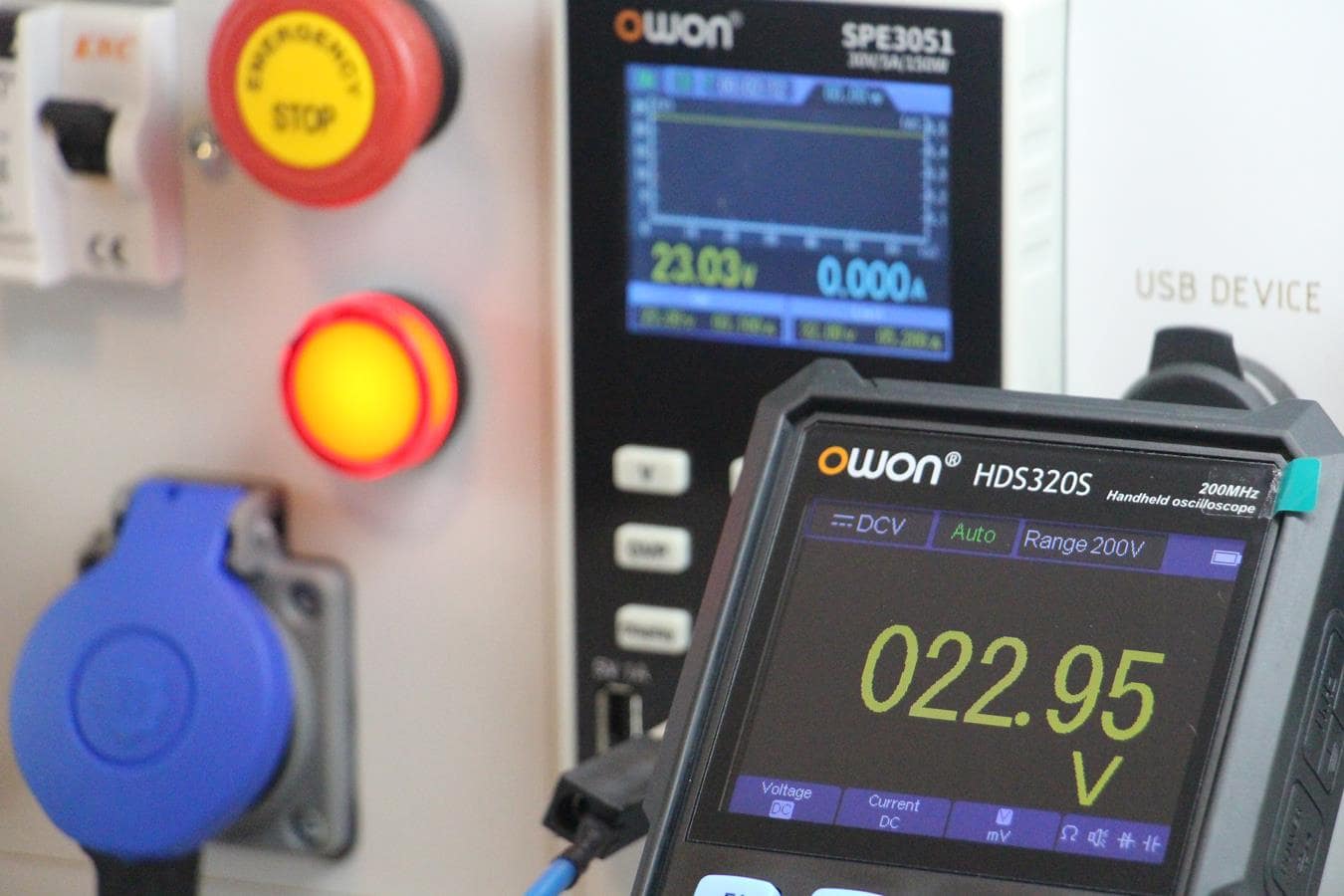

Multimeter Specifications

Display: 4½ digits, up to 20,000 counts
Measurement Functions: Voltage, current, resistance, capacitance, diode test, continuity
Maximum Input Voltage: AC 750 V / DC 1000 V
Maximum Input Current: 10 A (AC / DC)
Diode Test Voltage: 0 – 2 V

Function Generator Specifications

Output Frequency Range:
Sine: 0.1 Hz – 30 MHz
Square: 0.1 Hz – 6 MHz
Ramp: 0.1 Hz – 1 MHz
Pulse: 0.1 Hz – 5 MHz
Arbitrary: 0.1 Hz – 5 MHz

Sampling Rate: 125 MSa/s
Channels: 1
Waveform Length: 8K
Vertical Resolution: 14-bit
Amplitude:
High Impedance: 20 mVpp – 5 Vpp
50 Ω Load: 10 mVpp – 2.5 Vpp
Load Impedance: 1 MΩ / 50 Ω

Additional Advantages

SCPI-supported remote control
Fast data transfer and charging via USB Type-C
Power bank compatible for portable operation
Auto scale function
Waveform save and playback support

OWON HDS320S Handheld Oscilloscope, Multimeter & Function Generator – 200 MHz

Box Contents

Oscilloscope probe (1 pair)
Multimeter probe
Probe adjustment screwdriver
USB Type-C cable
Quick start guide
Soft carrying case
