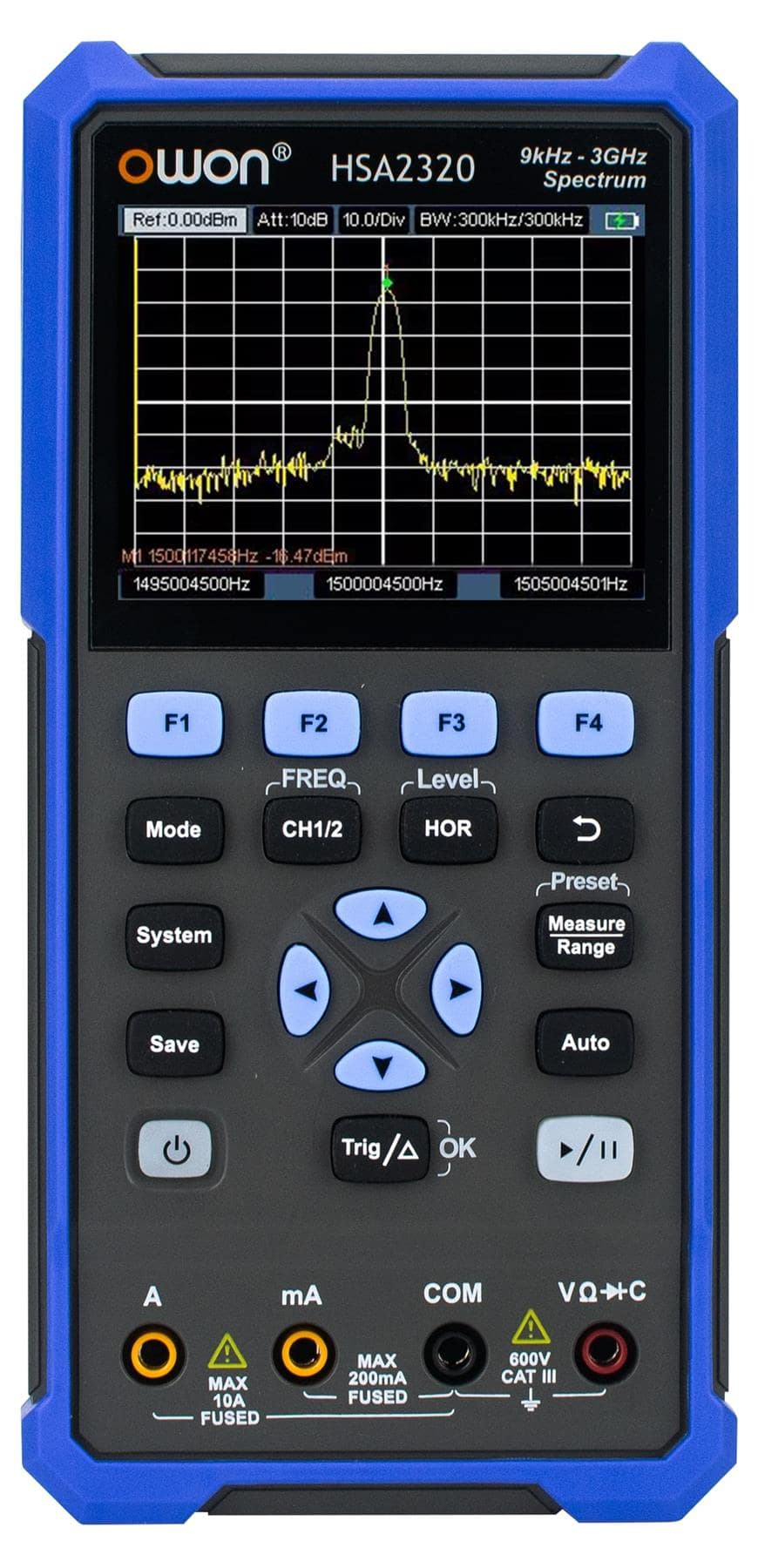

OWON HSA2320 Handheld Spectrum Analyzer 3 GHz + Oscilloscope 200 MHz + Digital Multimeter

OWON HSA2320 Handheld Spectrum Analyzer 3 GHz + Oscilloscope 200 MHz + Digital Multimeter

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

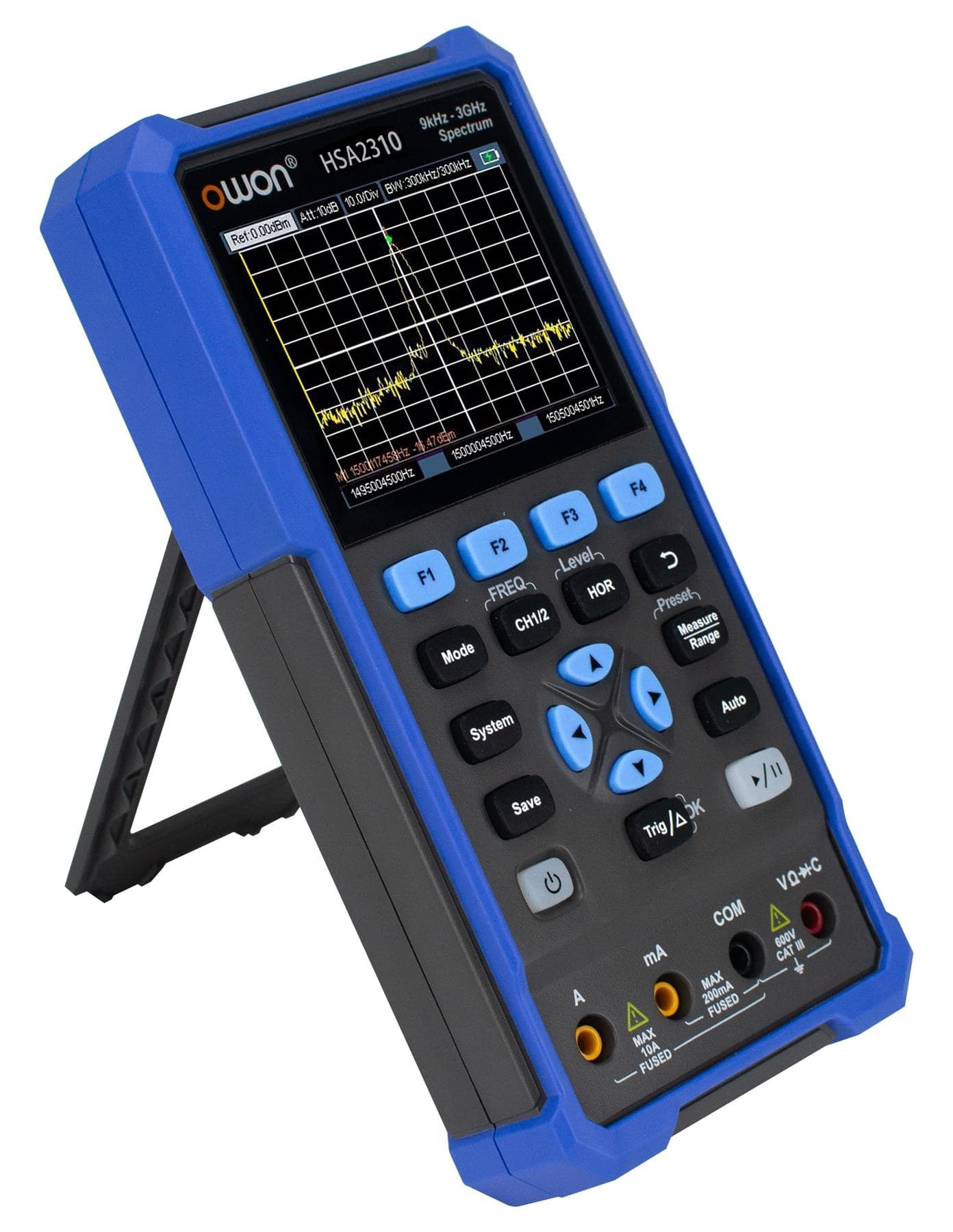

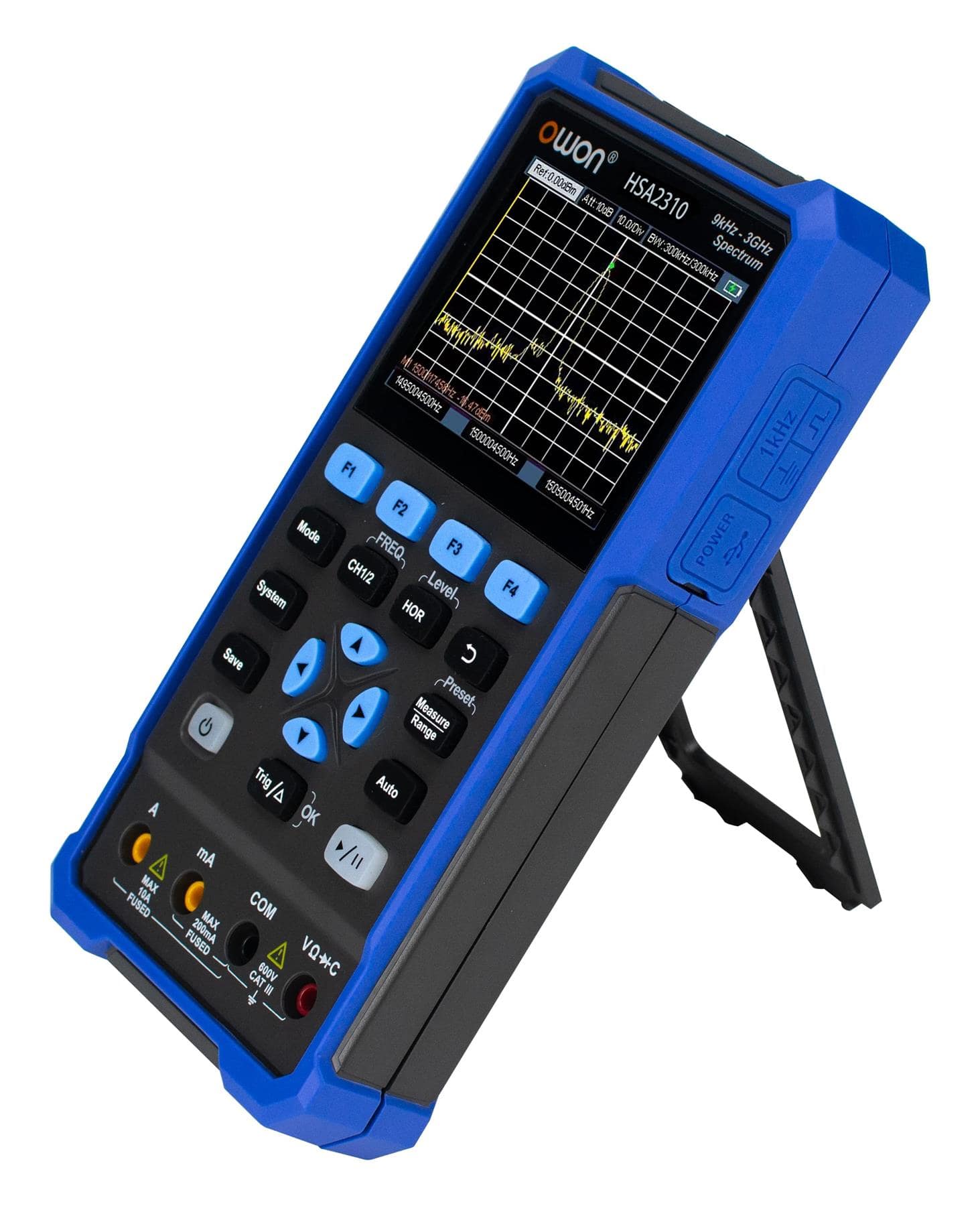

The OWON HSA2320 is a rugged, handheld 3-in-1 test instrument that combines a 3 GHz spectrum analyzer, 200 MHz digital oscilloscope, and a full-featured digital multimeter in a single portable device. Designed for RF analysis, field diagnostics, and laboratory use, it delivers professional-grade measurement performance in a compact and durable enclosure.

With its touchscreen interface, battery-powered operation, and versatile connectivity options, the HSA2320 is ideal for R&D labs, field engineers, RF testing, education, and maintenance applications where mobility and reliability are essential.

Spectrum Analyzer Specifications

Frequency Range: 9 kHz – 3.2 GHz
Resolution Bandwidth (RBW): 10 Hz – 3 MHz
Video Bandwidth (VBW): 1 Hz – 3 MHz
Reference Level: –110 dBm to +10 dBm
Frequency Accuracy: ±(center frequency × 1 ppm + 10 Hz)
Displayed Average Noise Level (DANL): –161 dBm/Hz (typ., preamp on)
Harmonic Distortion: ≤ –60 dBc
I/O Interfaces: Tracking Generator output, headphone jack, USB, LAN

Oscilloscope Specifications

Channels: 2
Bandwidth: 200 MHz
Sampling Rate: 1 GSa/s (real-time)
Maximum Record Length: 40 kpts
Trigger Modes: Edge, Pulse, Video, Alternate
Time Base Range: 5 ns/div – 100 s/div
Rise Time: < 1.75 ns
Vertical Resolution: 8-bit
Vertical Scale: 1 mV/div – 10 V/div

Digital Multimeter Specifications

DC Voltage: 400 mV – 1000 V
AC Voltage: 400 mV – 750 V
DC Current: 400 µA – 10 A
AC Current: 400 µA – 10 A
Resistance: 400 Ω – 40 MΩ
Capacitance: 40 nF – 100 µF
Temperature Measurement: –55 °C to 1250 °C
Measurement Speed: < 0.5 s

Display and User Interface

Display Type: 3.5-inch color TFT touchscreen
Resolution: 320 × 240 pixels
Interface Language: English (multi-language support available)

Data Storage and Software

Screenshot Capture: Supported
Internal Memory: Available
Data Export: USB flash drive support
PC Software: Included for data monitoring and analysis

Power and Physical Characteristics

Power Supply: Built-in rechargeable battery
Operating Time: Approx. 4 hours per full charge
Charging Method: DC power adapter (included)
Dimensions: 265 × 180 × 50 mm
Weight: Approx. 1.5 kg

Connectivity

USB Ports: USB-A and USB-B
LAN: Ethernet connection
Headphone Output: Available
Tracking Generator Output: Supported

Typical Applications

RF signal analysis and spectrum monitoring
Field diagnostics and electronic troubleshooting
Research and development laboratories
Educational and training laboratories
Maintenance, service, and repair operations

Box Contents

OWON HSA2320 Handheld Analyzer
Oscilloscope Probes (2 pcs)
Multimeter Test Leads
AC/DC Power Adapter
USB Cable
User Manual
Carrying Case
