Product Overview

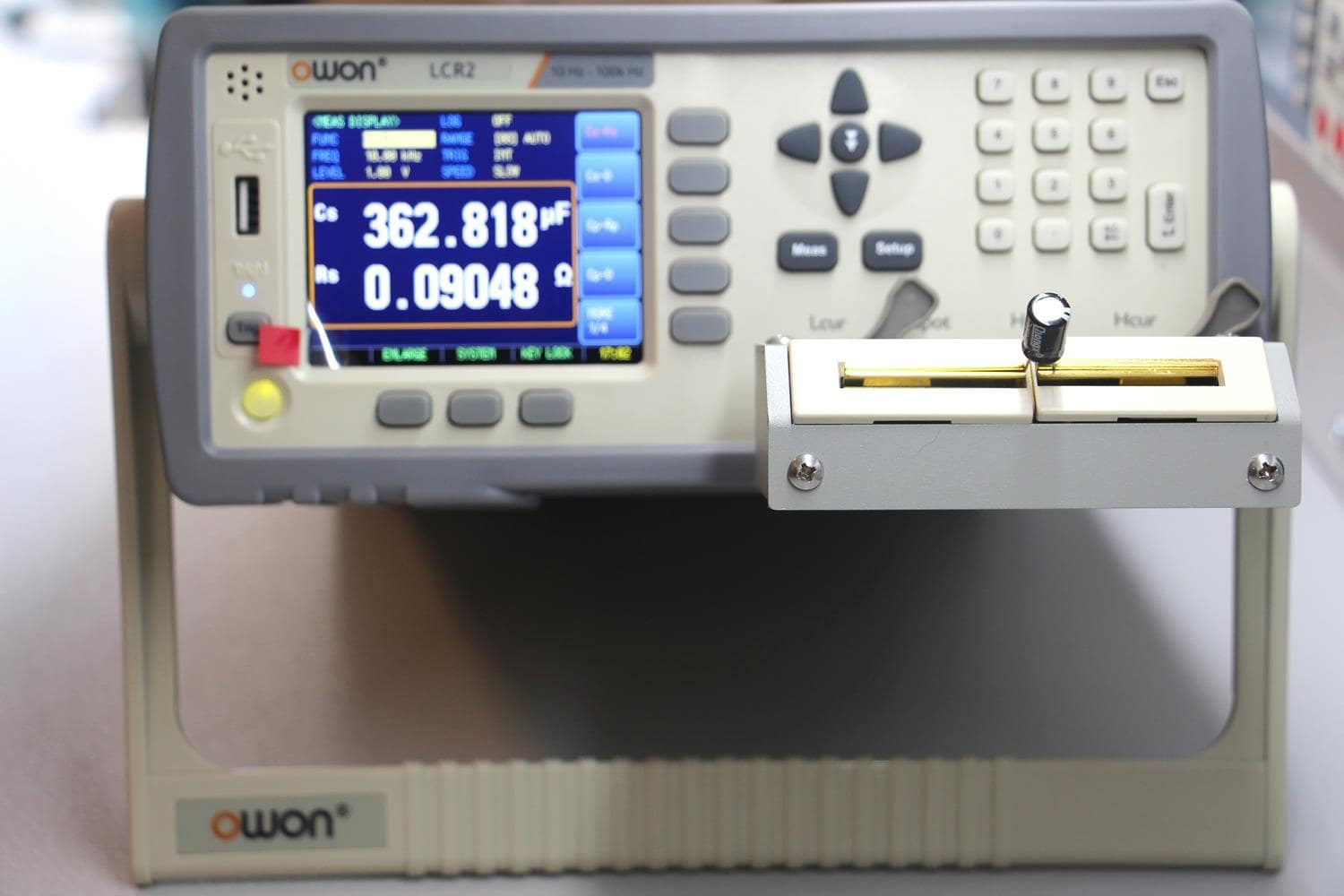

The OWON LCR2200 is an advanced, high-precision LCR meter designed for accurate component measurements across a wide frequency range from 10 Hz to 200 kHz, with basic accuracy up to 0.05%. With measurement speeds of up to 40 readings per second, 9-step automatic range selection, built-in DC bias, and a user-friendly interface, it is an essential instrument for modern electronic test laboratories.

Application Areas
Electronic component testing
Production line quality control
R&D and engineering applications
Laboratory measurements
Automated test systems

Technical Specifications
Test Frequency: 10 Hz – 200 kHz
Basic Accuracy: 0.05% (Slow/Med), 0.1% (Fast)
Measurement Speed: 3 / 10 / 40 readings per second

Measurement Ranges
L: 0.00001 μH – 9999.99 H
C: 0.00001 pF – 9999.99 mF
R, X, Z: 0.00001 Ω – 99.9999 MΩ
B, G: 0.01 nS – 999.999 S
D: 0.00001 – 9.99999
Q: 0.00001 – 99999.9
θd: −179.999° – 179.999°
θr: −3.14159 – 3.14159
%: −999.999% – +999.999%

Output Impedance: 30 Ω, 50 Ω, 100 Ω
DC Bias (Built-in): −2.50 V to +2.50 V

Test Functions
Cs-Rs, Cs-D, Cp-Rp, Cp-D
Lp-Rp, Lp-Q, Ls-Rs, Ls-Q
G-B, R-X, Z-θr, Z-θd
DCR measurement
Additional monitored parameters: Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Lac, Δ, Δ%

Additional Features
Range Modes: Auto, Hold, Nominal
Open/Short Compensation: OPEN / SHORT
Buzzer: OFF / PASS / FAIL + HIGH / LOW tone
Trigger Modes: Internal, Manual, External, Remote
Internal Memory: 10 file storage
10-step list test function

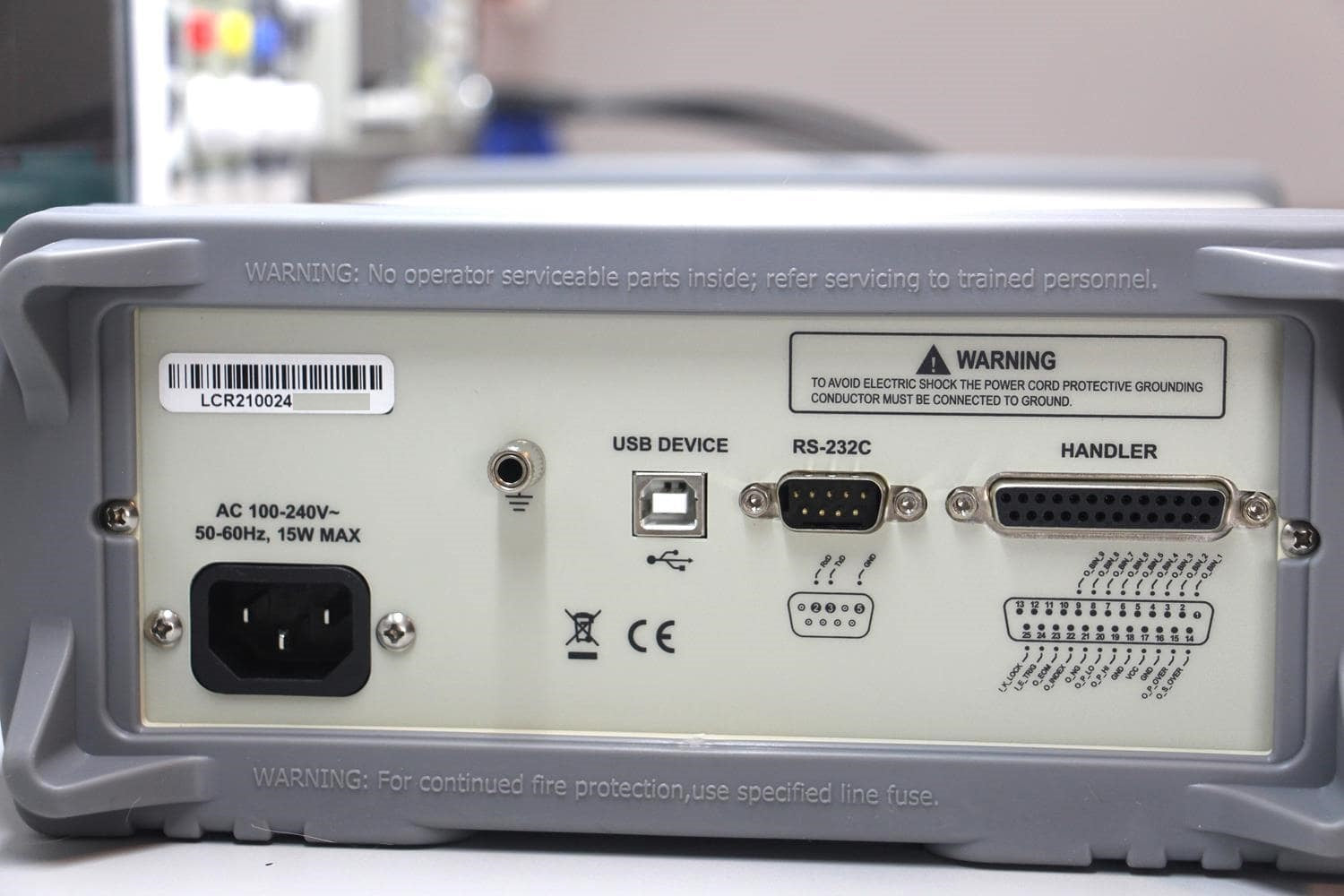

Communication & Interfaces
USB Host / Device
RS232
Handler interface
SCPI and Modbus RTU protocol support

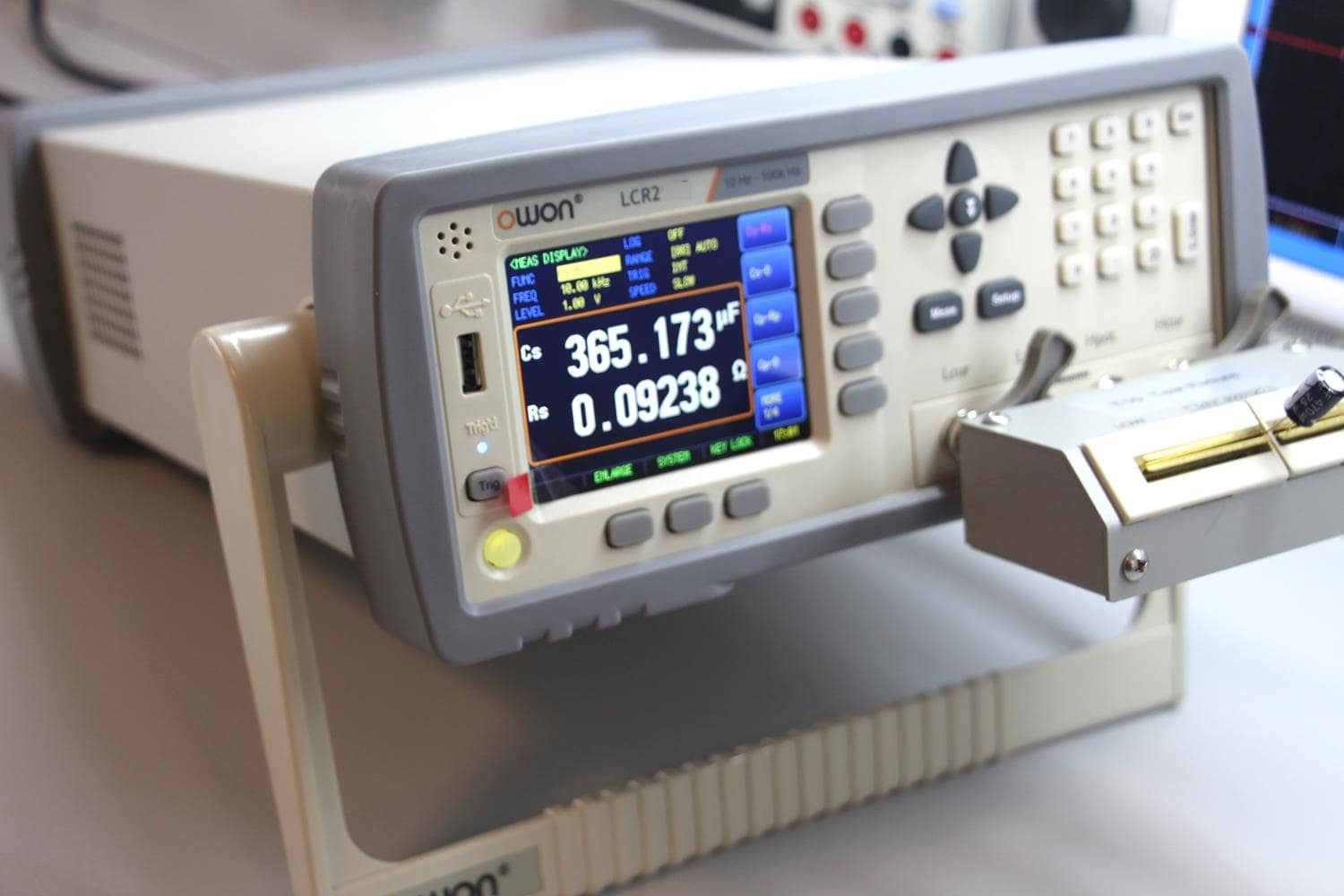

Display & Design
Display: 3.5-inch color LCD
Design: Compact, bench-top optimized enclosure

OWON LCR2200 LCR Meter – 10 Hz to 200 kHz

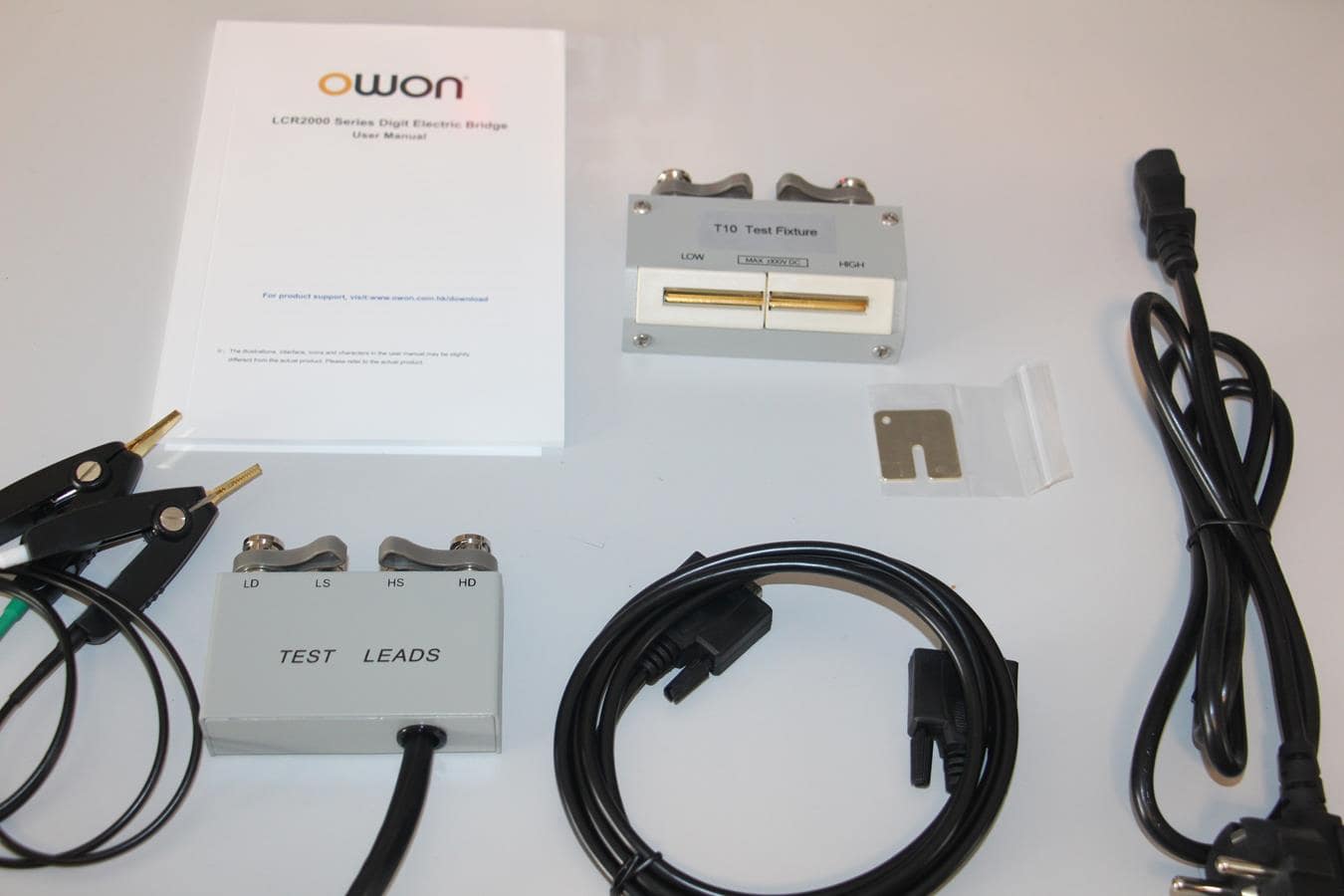

Box Contents
Power cord
User manual
USB cable
T10 test fixture
Test leads
Short-circuit foil
F10 SMD tweezers
Optional: F11 / F12 SMD tweezers
