Owon SDS220 Digital Oscilloscope | 200 MHz, 2 Channels

Owon SDS220 Digital Oscilloscope | 200 MHz, 2 Channels

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

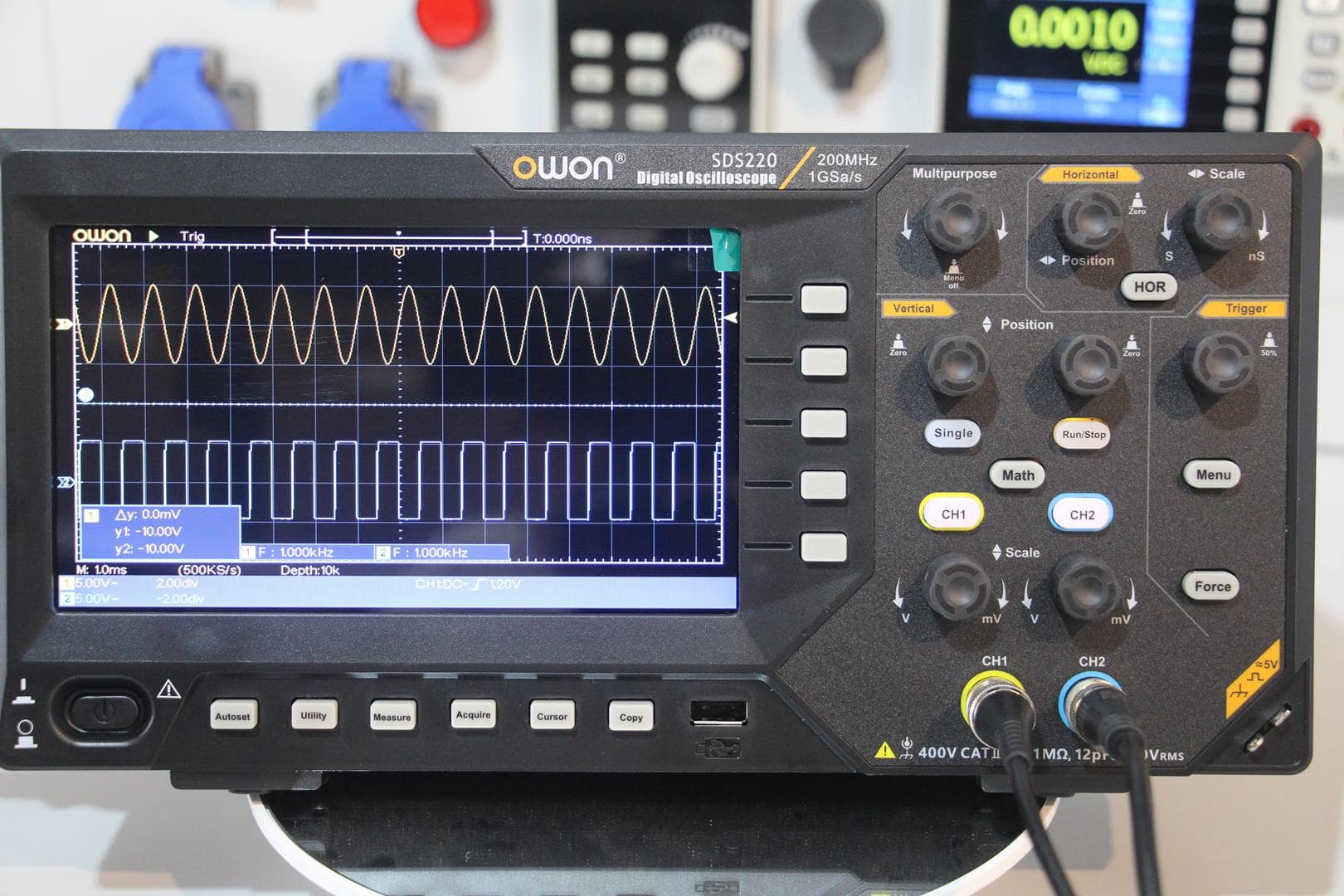

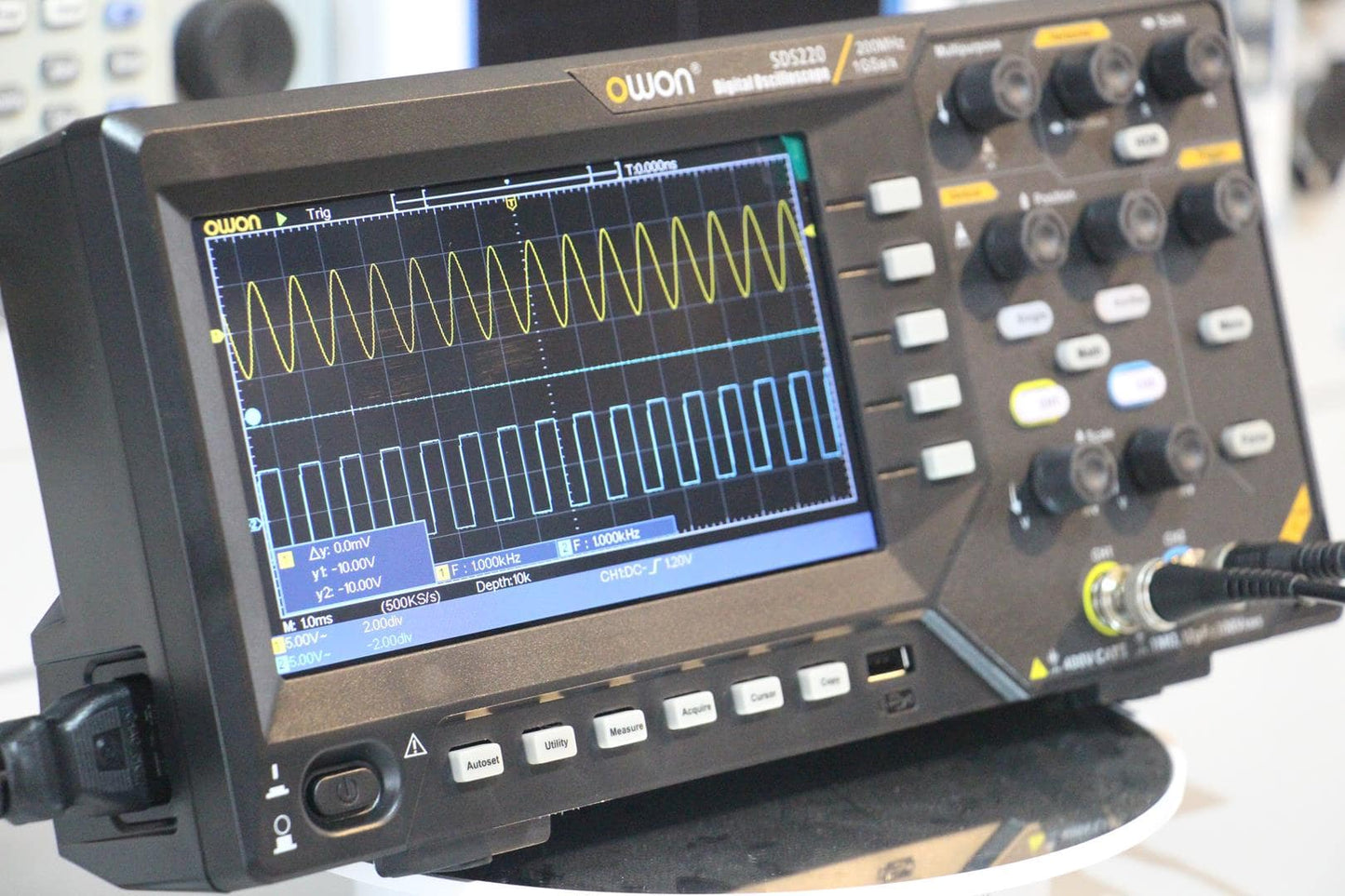

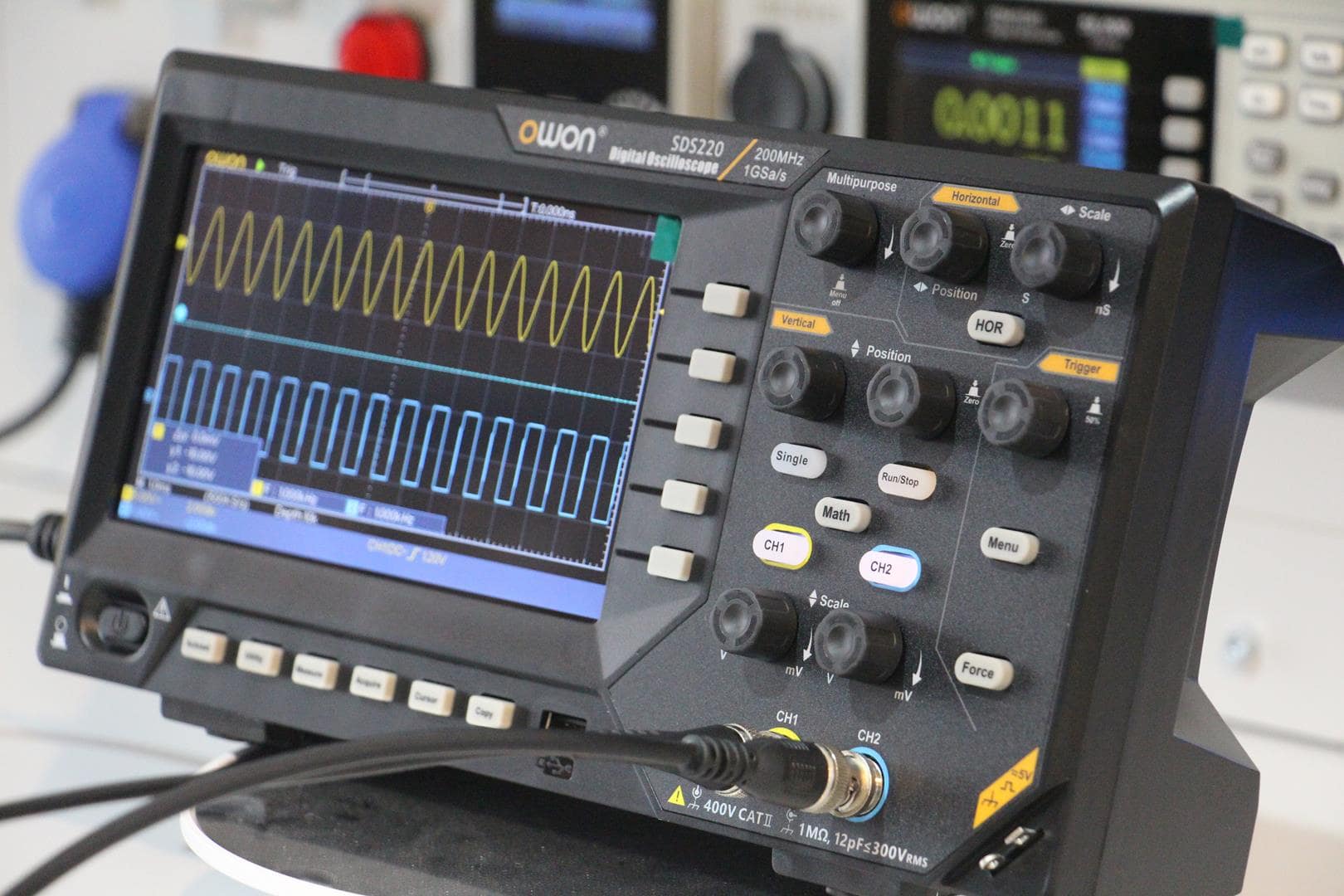

The Owon SDS220 is a compact, high-precision digital oscilloscope engineered for accurate signal analysis in lab, R&D, and repair environments. With 200 MHz bandwidth and 1 GS/s real-time sampling rate, it delivers fast, reliable performance. It features a 7-inch TFT LCD display, deep memory, math functions, and USB connectivity — all in a portable benchtop design. SCPI and LabVIEW support make it ideal for remote control and automation.

Perfect for engineers, technicians, and educators who demand reliable measurements with a user-friendly interface.

Technical Specifications

––––––––––––––––––––––––––
Bandwidth: 200 MHz
Channels: 2
Real-Time Sampling Rate: 1 GS/s
Memory Depth: 20 M
Vertical Sensitivity: 2 mV/div – 10 V/div
Input Impedance: 1 MΩ ±2%, parallel 20 pF ±5 pF
Time Base Range: 2 ns/div – 1000 s/div (1-2-5 step)
Probe Attenuation Settings: 1X, 10X, 100X, 1000X
Trigger Modes: Edge, Video
Math Functions: +, –, ×, ÷, FFT
Auto Measurements: Period, Frequency, RMS, Peak, Overshoot, Phase, Area, Duty Cycle, Delay, and more
Waveform Record Length: 16 sets
Screen: 7-inch TFT LCD, 800×480 resolution

Interfaces and Connectivity

––––––––––––––––––––––––––
USB: USB Host & USB Device
Remote Control: SCPI and LabVIEW compatible

Physical & Power

––––––––––––––––––––––––––
Dimensions: 301 × 152 × 70 mm
Weight: Approx. 1.1 kg

What’s in the Box

––––––––––––––––––––––––––
Power Cable
USB Cable
2× Oscilloscope Probes
Probe Adjustment Tool
Quick Start Guide
Optional: Owon Q9 BNC-to-Alligator Clip Probe
