OWON SPE8205 DC Power Supply – 80 V / 20 A, 500 W

OWON SPE8205 DC Power Supply – 80 V / 20 A, 500 W

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

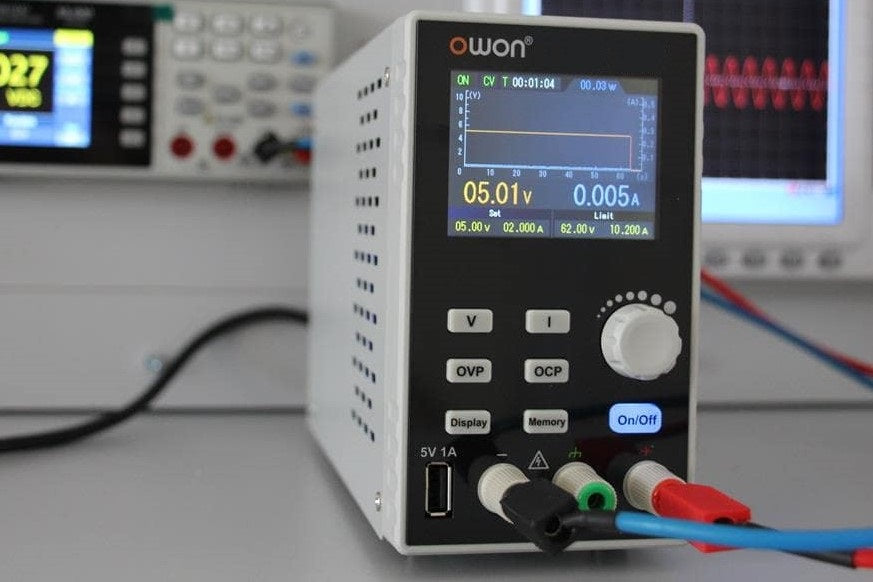

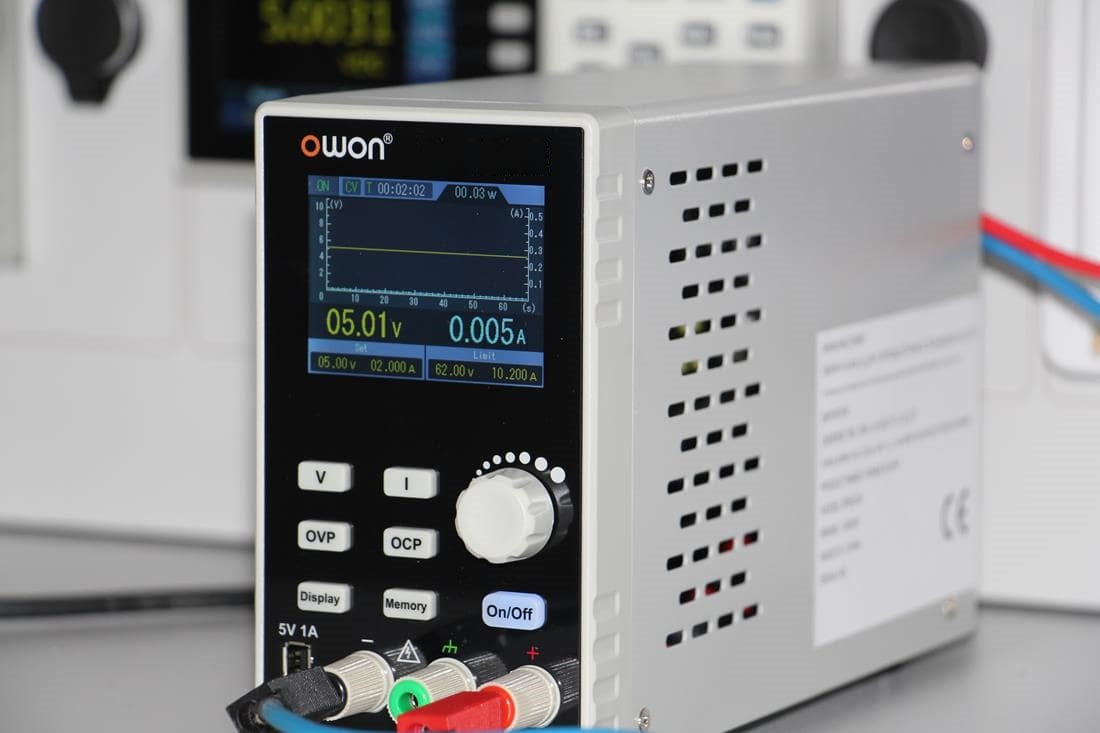

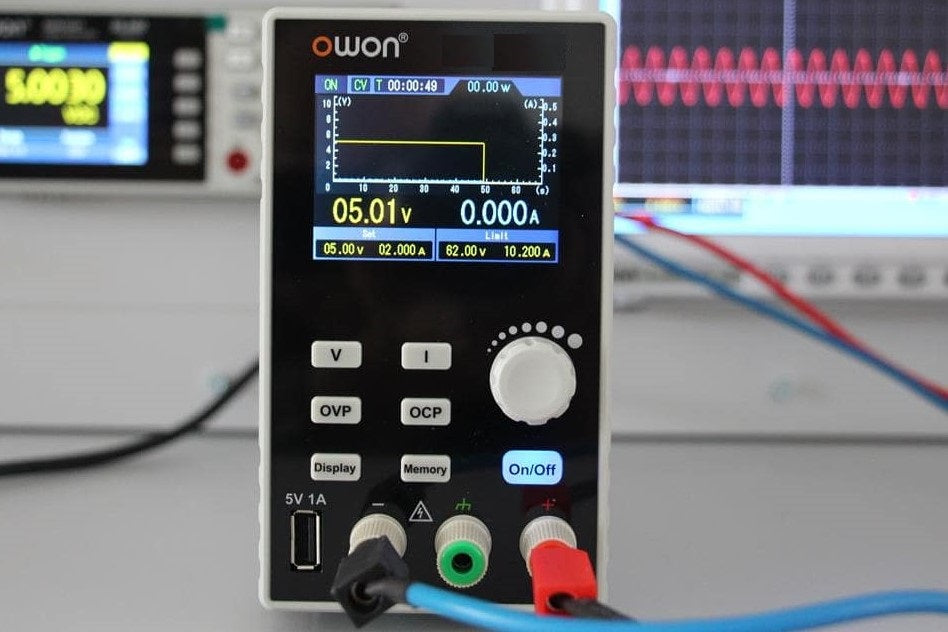

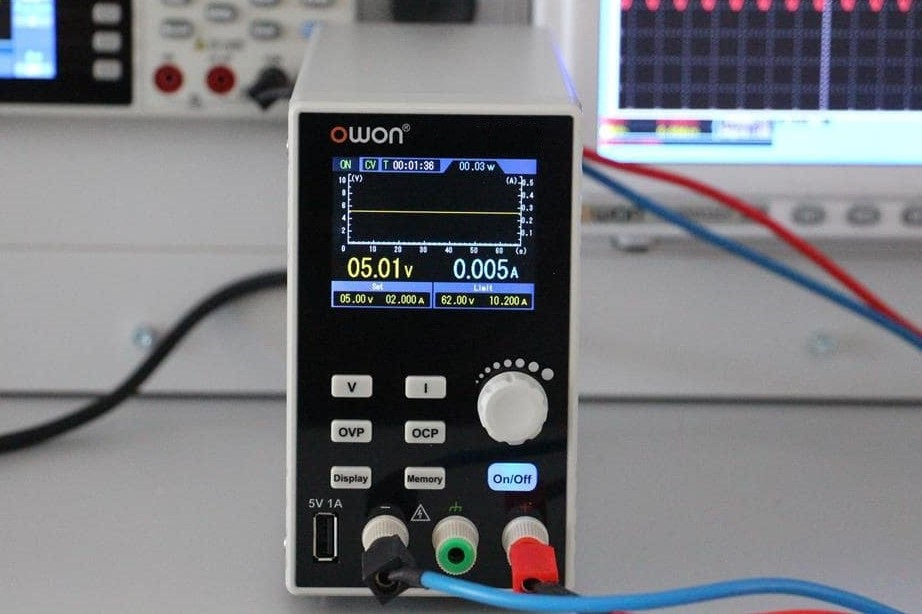

The OWON SPE8205 is a high-power DC power supply designed to deliver reliable performance in demanding test and development environments. With an output capability of up to 80 V and 20 A, it is well suited for high-power laboratory, production, and service applications. Its compact form factor, intuitive user interface, and SCPI-supported USB connectivity enable easy integration into automated test systems. Programmable timing functions and low noise operation ensure precise and flexible power delivery.

OWON SPE8205 DC Power Supply – 80 V / 20 A, 500 W

Technical Specifications

Model: SPE8205
Number of Channels: 1
Output Voltage: 0 – 80 V
Output Current: 0 – 20 A
Output Power: 500 W
Setting Resolution: Voltage 10 mV / Current 1 mA
Ripple & Noise (Vp-p): ≤ 50 mVp-p
Ripple & Noise (rms): Voltage ≤ 5 mVrms / Current ≤ 30 mAp-p

Display

Display: 2.8-inch color TFT LCD
Display Function: Simultaneous indication of set and actual voltage, current, and power values

Communication & Control

Interface: USB device
Remote Control: SCPI protocol supported

Power & Physical Characteristics

Cooling: Intelligent fan with automatic temperature control
Dimensions (W × H × D): 226 × 82 × 142 mm
Weight: Approx. 1.8 kg

OWON SPE8205 DC Power Supply – 80 V / 20 A, 500 W

Box Contents

Power cord
Quick start guide
USB cable
Fuse
