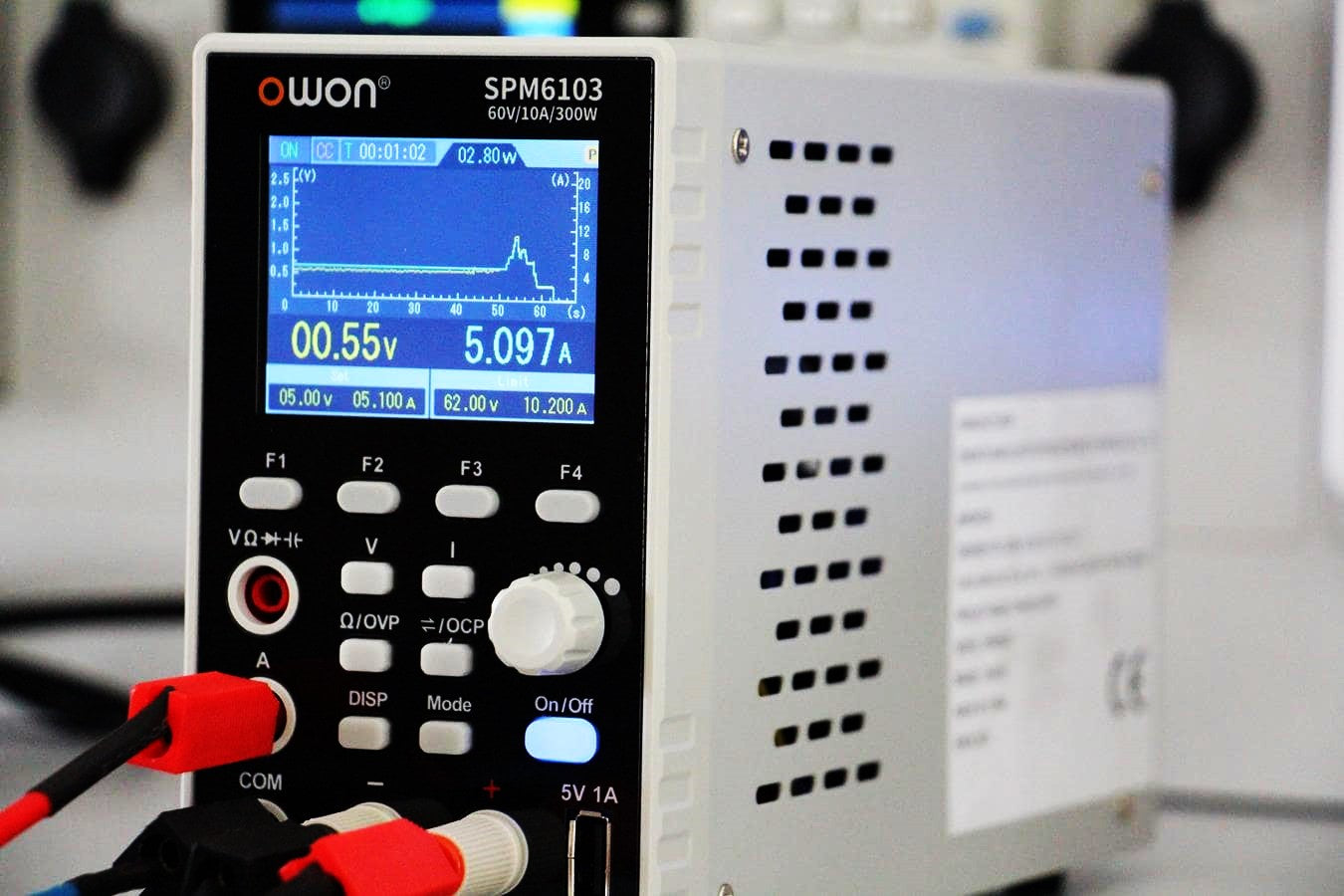

OWON SPM6103 DC Power Supply with Multimeter – 60 V / 10 A, 300 W

OWON SPM6103 DC Power Supply with Multimeter – 60 V / 10 A, 300 W

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

The OWON SPM6103 is a compact and versatile solution for laboratory and technical service applications, combining a programmable DC power supply with a 4½-digit digital multimeter in a single device. With USB connectivity and SCPI support, it can be easily integrated into automated test systems. Its precise output control, real-time monitoring features, and built-in protection functions make it a reliable instrument for both bench and system-level use.

OWON SPM6103 DC Power Supply with Multimeter – 60 V / 10 A, 300 W

DC Power Supply Specifications

Model: SPM6103
Number of Channels: 1
Output Voltage: 0 – 60 V
Output Current: 0 – 10 A
Output Power: 300 W
Setting Resolution: 10 mV / 1 mA
Load Regulation: ≤ 30 mV / ≤ 20 mA
Line Regulation: ≤ 30 mV / ≤ 20 mA
Voltage Ripple (Vp-p): ≤ 50 mVp-p
Voltage Ripple (rms): ≤ 5 mVrms
Current Ripple (rms): ≤ 30 mArms
Functions: Timed output, voltage/current curve monitoring, OVP / OCP protection

Multimeter Specifications

Display: 4½-digit, auto-ranging
Measurement Functions: Voltage, current, capacitance, resistance, continuity, diode test

Voltage Measurement Range:
DCV: 200 mV – 1000 V
ACV: 200 mV – 750 V

Current Measurement Range:
DCA: 200 mA – 10 A
ACA: 200 mA – 10 A

Resistance Range: 200 Ω – 100 MΩ
Capacitance Range: 20 nF – 2 mF
Diode Test Range: 0 – 2 V

Display & Interface

Display: 2.8-inch color LCD
Interfaces: USB Device, USB Host (5 V / 1 A)

Physical Characteristics

Dimensions: 82 × 142 × 226 mm
Weight: Approx. 1.5 kg

OWON SPM6103 DC Power Supply with Multimeter – 60 V / 10 A, 300 W

Box Contents

Power cord
USB cable
Multimeter test leads
Quick start guide
Optional test probes
