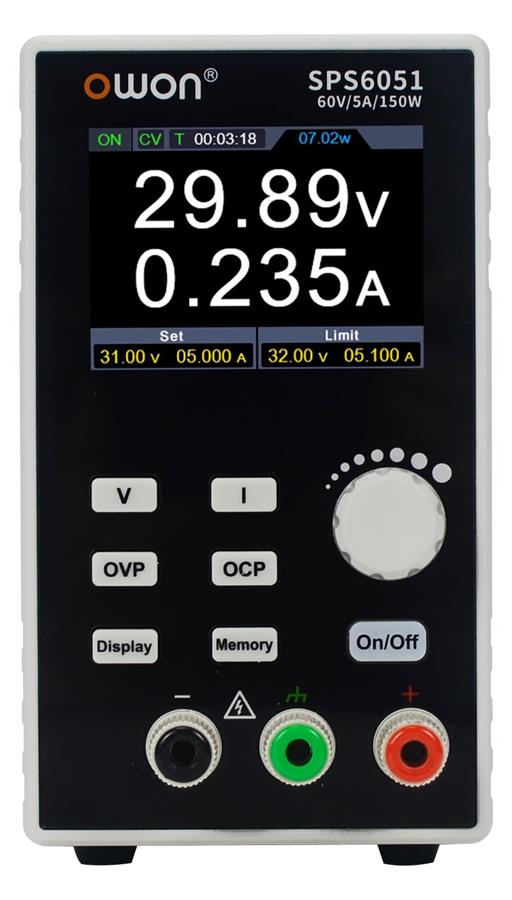

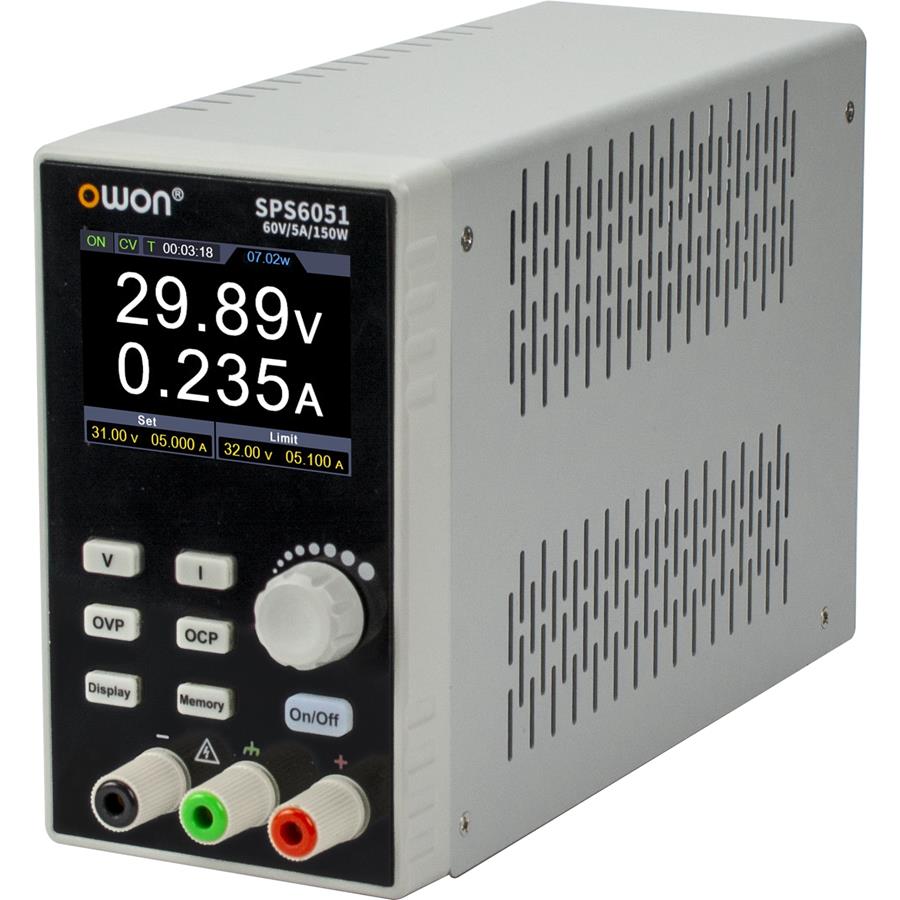

The OWON SPS6051 is a compact fanless and silent DC power supply designed for laboratories and office environments where noise-free operation is essential. Its vibration-free, convection-cooled design ensures comfortable use in quiet working spaces. With USB connectivity and SCPI protocol support, it enables remote control and programmable operation via a PC. High-precision output control and comprehensive protection functions provide stable, safe, and reliable performance.

OWON SPS6051 Silent DC Power Supply – 150 W / 61 V / 5.1 A

Technical Specifications

Model: SPS6051
Output Voltage: 0 – 61 V
Output Current: 0 – 5.1 A
Output Power: 150 W
Load Regulation: Voltage ≤ 30 mV, Current ≤ 20 mA
Line Regulation: Voltage ≤ 30 mV, Current ≤ 20 mA
Setting Resolution: Voltage 10 mV, Current 1 mA
Readback Resolution: Voltage 10 mV, Current 1 mA
Setting Accuracy (25 °C ±5 °C):
• Voltage ≤ ±0.05% + 20 mV
• Current ≤ ±0.05% + 20 mA
Ripple & Noise:
• Voltage ≤ 30 mVp-p / ≤ 4 mVrms
• Current ≤ 10 mAp-p
Transient Response (50%–100% load): ≤ 1.0 ms
Data Memory: 4 internal storage groups

Display

Display Type: 2.8-inch color TFT LCD
Displayed Parameters: Output voltage, current, and power in real time

Communication & Control

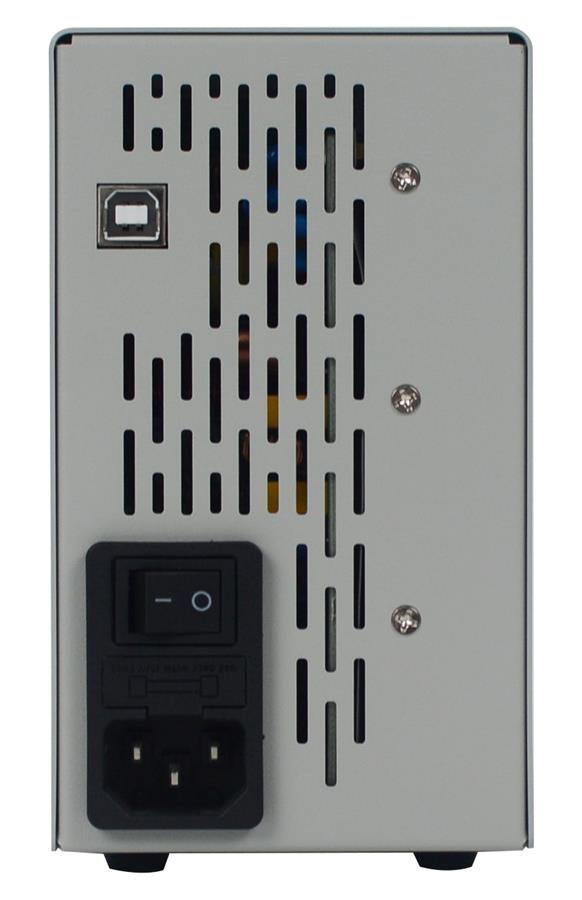

Interface: USB device
Protocol: SCPI supported
Remote Operation: Fully programmable and PC-controlled

Power & Physical Characteristics

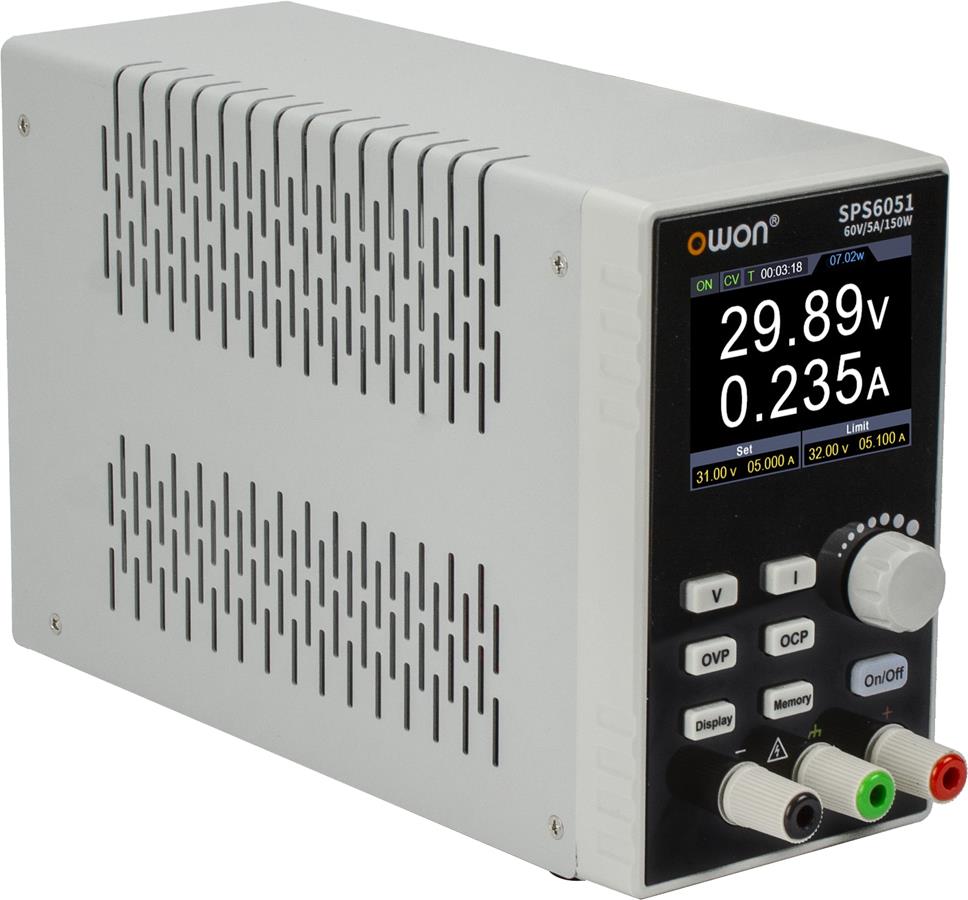

Cooling: Fanless silent design, natural convection
Dimensions (W × H × D): 82 × 142 × 226 mm
Weight: Approx. 1.8 kg
Protection Functions: Over-voltage, over-current, over-temperature, low input voltage

Typical Applications

Office and laboratory environments
Noise-sensitive measurement and test setups
Remote-controlled and automated power supply systems

OWON SPS6051 Silent DC Power Supply – 150 W / 61 V / 5.1 A

Box Contents

Power cord
USB cable
Test leads (1 pair)
Quick start guide
