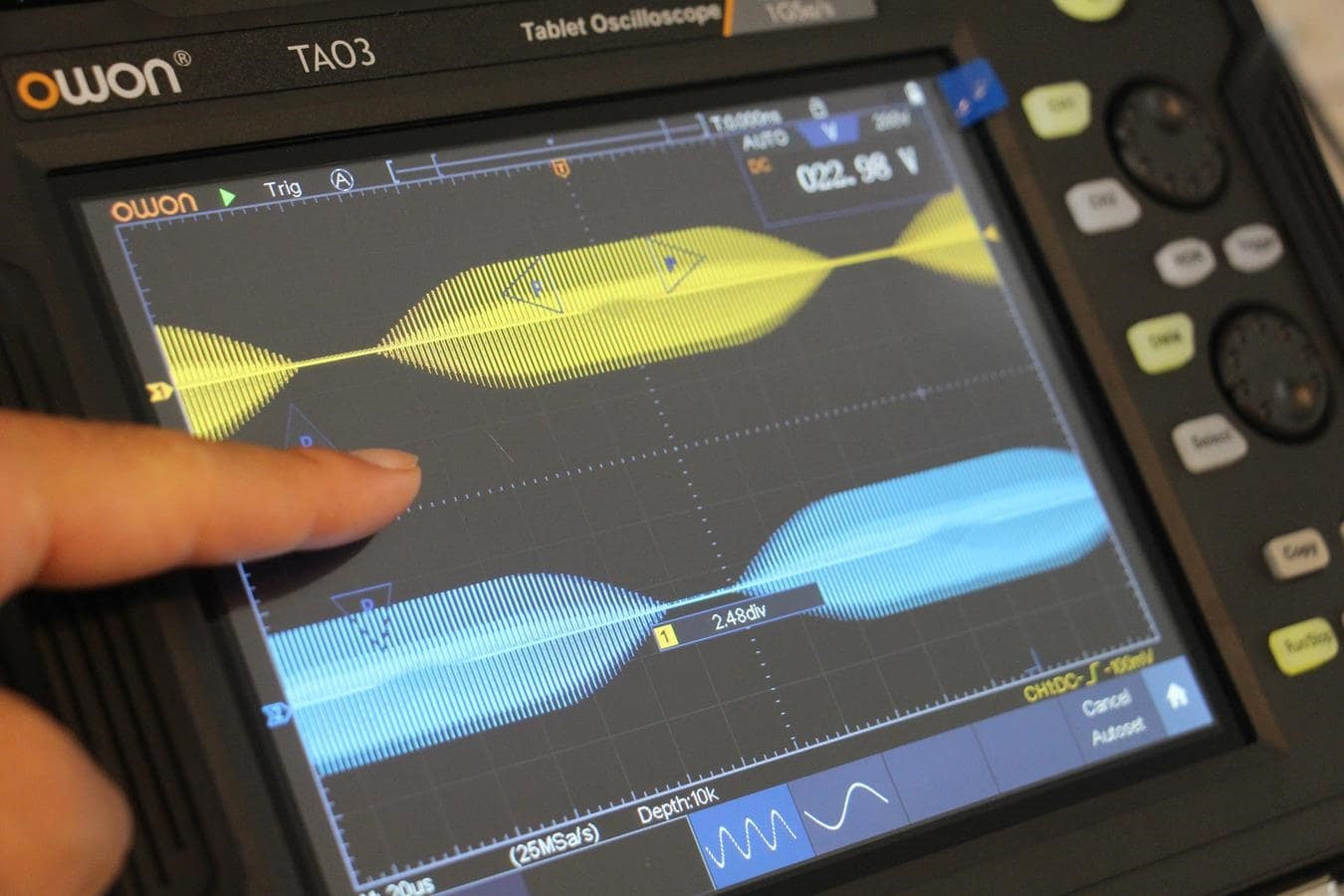

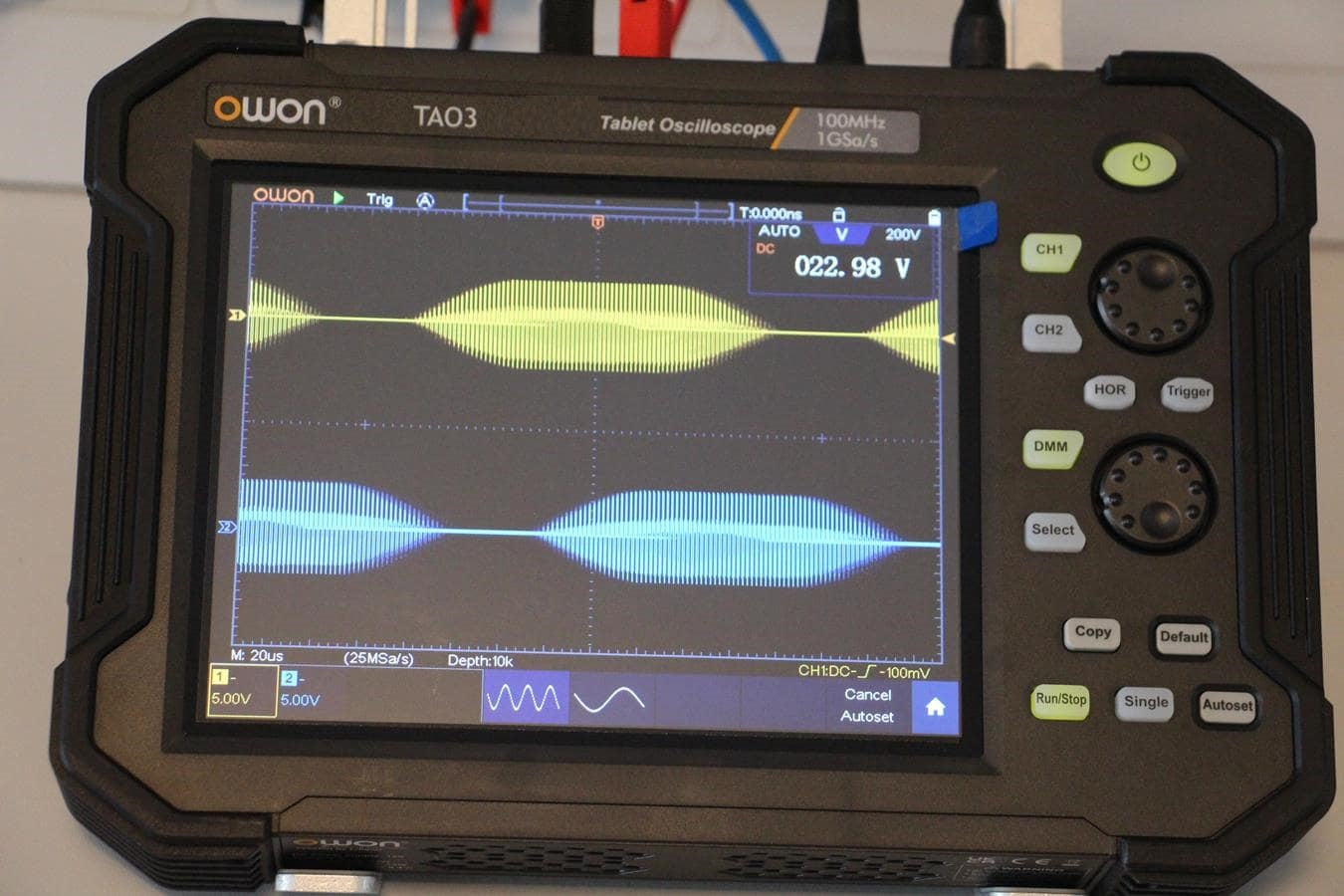

Owon TAO3072 is a compact and portable measuring instrument that combines a 70 MHz two-channel oscilloscope and a full-featured multimeter. It is designed for field engineers and lab professionals who need flexibility, reliability, and high-resolution signal analysis. With a large 8-inch touchscreen, built-in protocol decoding, and extended battery life, TAO3072 delivers professional performance in a lightweight form factor.

Technical Specifications – Oscilloscope
–––––––––––––––––––––––––––––––––––––––––
Bandwidth: 70 MHz
Sampling Rate: 1 GS/s
Vertical Resolution (A/D): 8 bit
Record Length: 40 M
Waveform Refresh Rate: 45,000 wfms/s
Time Base (s/div): 1 ns/div – 1000 s/div, step: 1–2–5
Number of Channels: 2
Display: 8-inch color LCD, 800 × 600 pixels, multi-touch
Coupling Modes: DC, AC, GND
Vertical Sensitivity: 1 mV/div – 10 V/div
Trigger Types: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN
Bus Decoding (Included): I2C, SPI, RS232, CAN

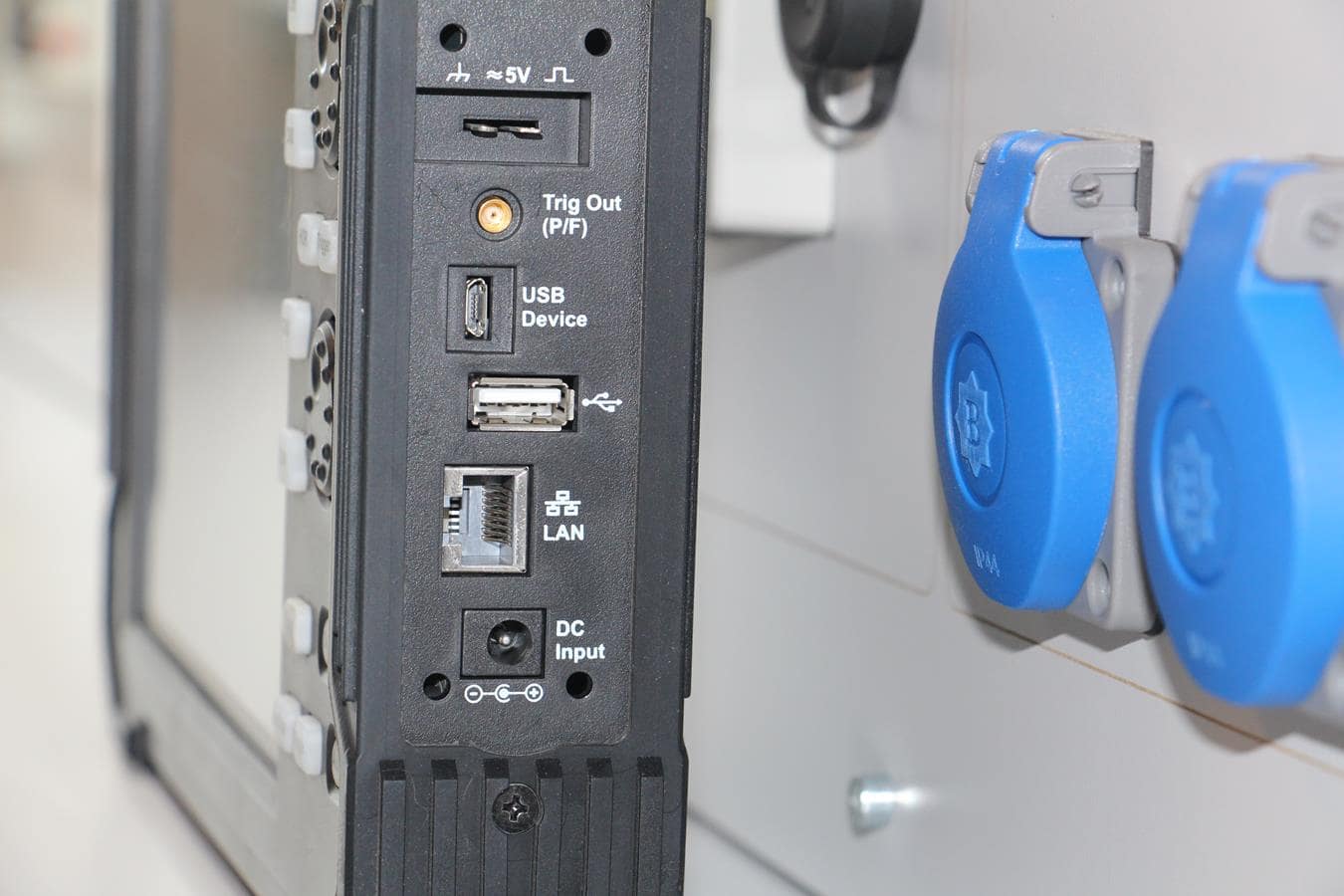

Interfaces: USB Host, USB Device, PictBridge, LAN, optional WiFi
Frequency Counter: Yes
Battery: 7.4 V, 8000 mAh – approx. 5 hours operation
Dimensions (W × H × D): 270 × 191 × 48 mm
Weight: Approx. 1.7 kg

Technical Specifications – Multimeter
–––––––––––––––––––––––––––––––––––––––––
Display: 4½ digits
Voltage Range: 20.000 mV – 200.00 mV
DC Voltage: 2.0000 V – 1000.0 V
AC Voltage: 2.0000 V – 750.0 V
Current Range: DC / AC: 0 – 20.00 A
Resistance: 200.00 Ω – 100.00 MΩ
Diode Test: Yes
Auto Range: Yes

Package Contents
–––––––––––––––––––––––––––––––––––––––––
Oscilloscope probes
Multimeter probes
BNC to SAM adapter
USB cable
Micro USB cable
Power cord
Power adapter
Probe adjustment screwdriver
CD-ROM
Quick start guide
Stand holder
Carrying case
Optional current probe module
