Owon TAO3102 Tablet Oscilloscope + Multimeter 100MHz

 Owon TAO3102 Tablet Oscilloscope + Multimeter 100MHz

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only

🛠️ Product Description

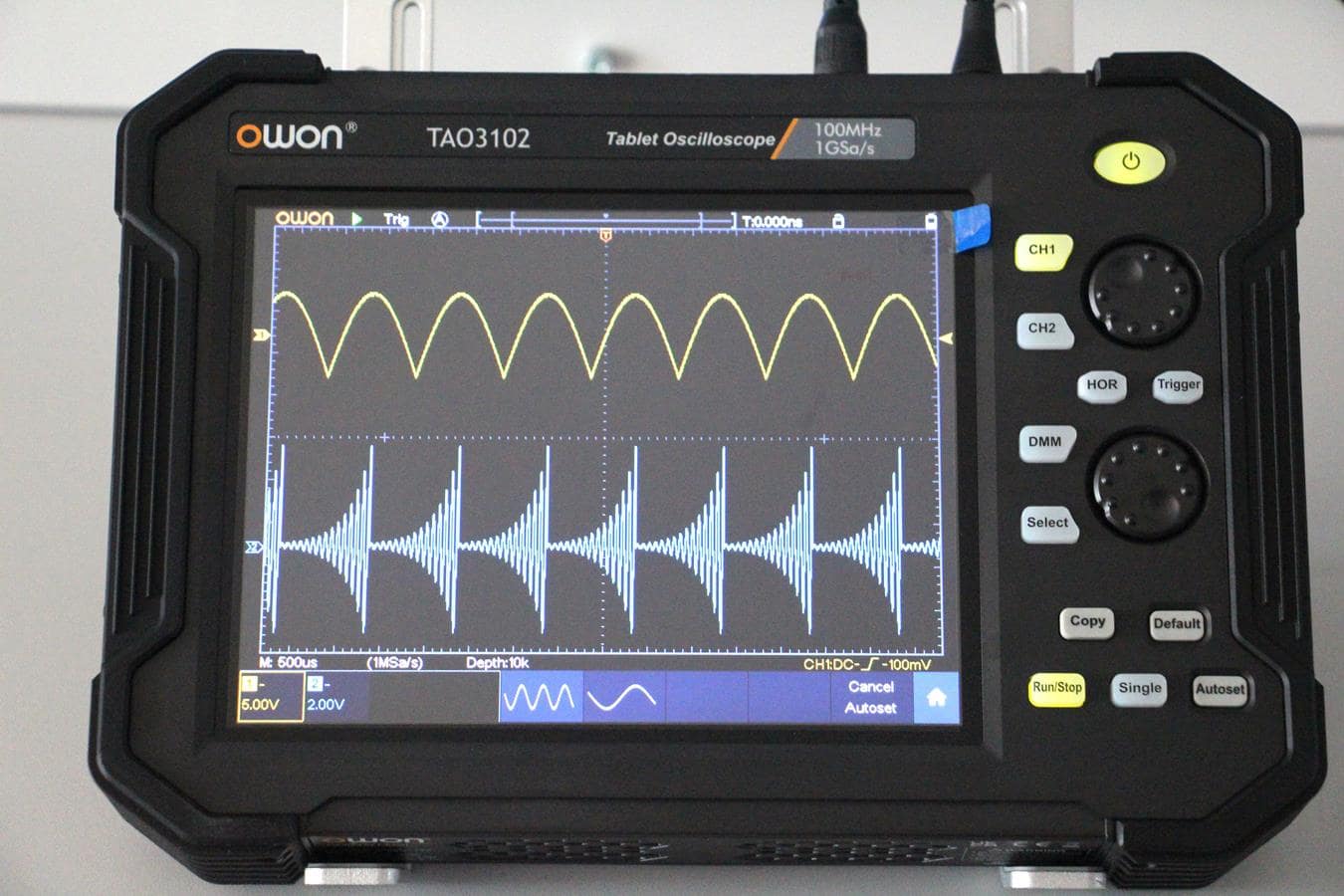

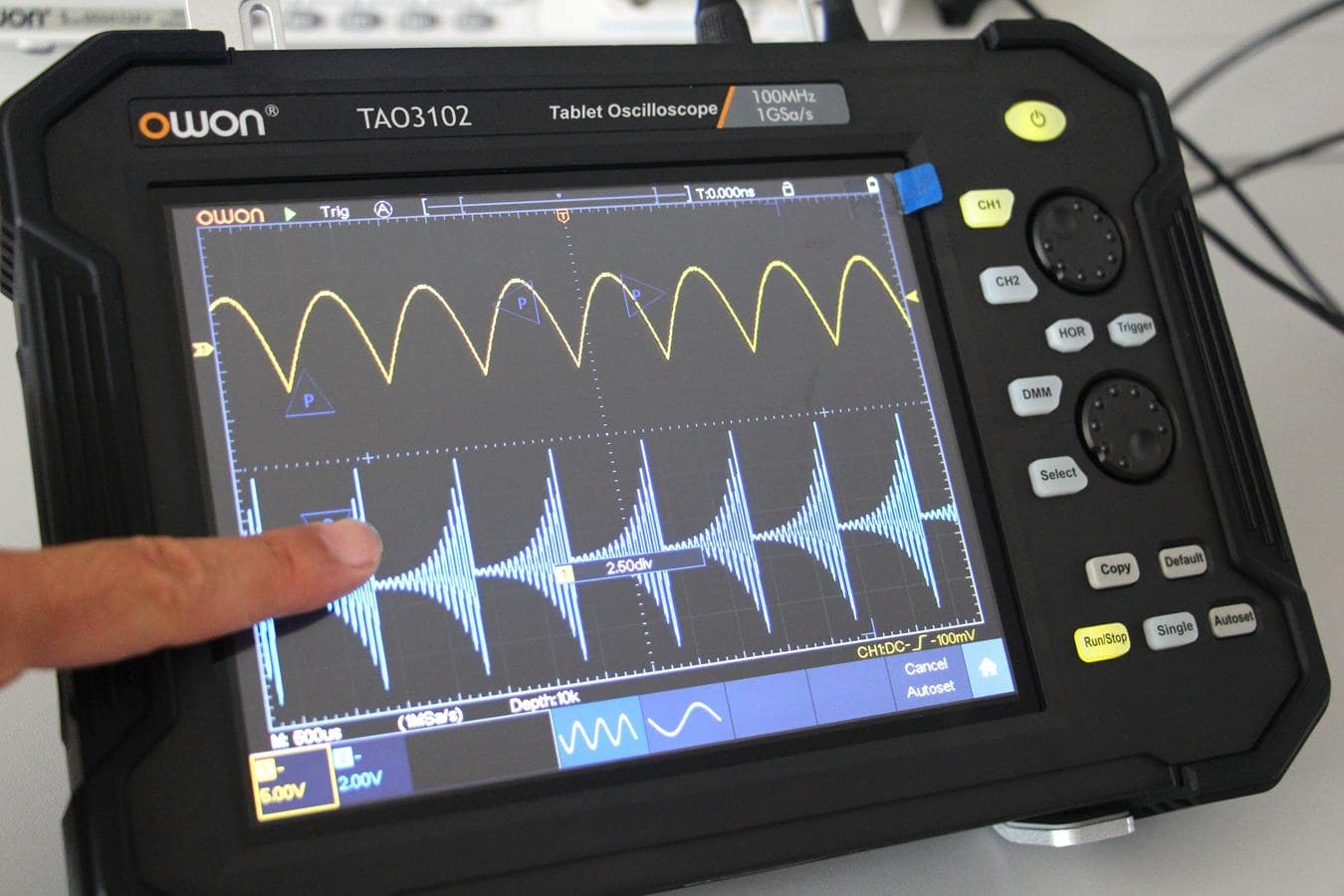

Owon TAO3102 is a powerful 2-in-1 test instrument that combines a 100MHz digital oscilloscope and a 4½-digit multimeter into a compact, portable form factor. Equipped with an 8-inch touchscreen, built-in protocol decoding, 40M memory depth, and SCPI command support, it provides an intuitive and efficient workflow for engineers and technicians in both field and lab environments.

With its long battery life and multifunctional interface, TAO3102 is ideal for diagnostic, maintenance, and embedded system applications.

Perfect for professional and academic users seeking high performance, touch operation, and all-in-one functionality.

📊 Oscilloscope Specifications

–––––––––––––––––––––––––
Bandwidth: 100 MHz
Sample Rate: 1 GS/s
Vertical Resolution: 8-bit
Memory Depth: 40 Mpts
Waveform Refresh Rate: 45,000 wfms/s
Time Base Range: 1 ns/div to 1000 s/div (1-2-5 steps)
Channels: 2
Display: 8” color LCD, 800x600, capacitive multi-touch
Input Coupling: DC, AC, GND
Vertical Sensitivity: 1 mV/div to 10 V/div
Trigger Types: Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN
Built-in Protocol Decode: I2C, SPI, RS232, CAN
Frequency Counter: Included
Interfaces: USB Host, USB Device, LAN, WiFi (optional), PictBridge
Battery: 7.4V 8000mAh, up to 5 hours of operation
Dimensions: 270 × 191 × 48 mm
Weight: Approx. 1.7 kg

🔧 Multimeter Specifications

–––––––––––––––––––––––––
Display Resolution: 4½ digits
DC Voltage Range: 20.000 mV to 1000.0 V
AC Voltage Range: 2.0000 V to 750.0 V
Current Range (AC/DC): up to 20.00 A
Resistance Range: 200.00 Ω to 100.00 MΩ
Diode Test: Yes
Auto Range: Supported

📦 Box Contents

–––––––––––––––––––––––––
Oscilloscope Probes
Multimeter Probes
Probe Adjustment Screwdriver
BNC-SAM Adapter
Micro USB Cable
Power Adapter and Cable
CD-ROM
Quick Start Guide
Stand Holder
Carrying Case
Optional: Current Measurement Module
