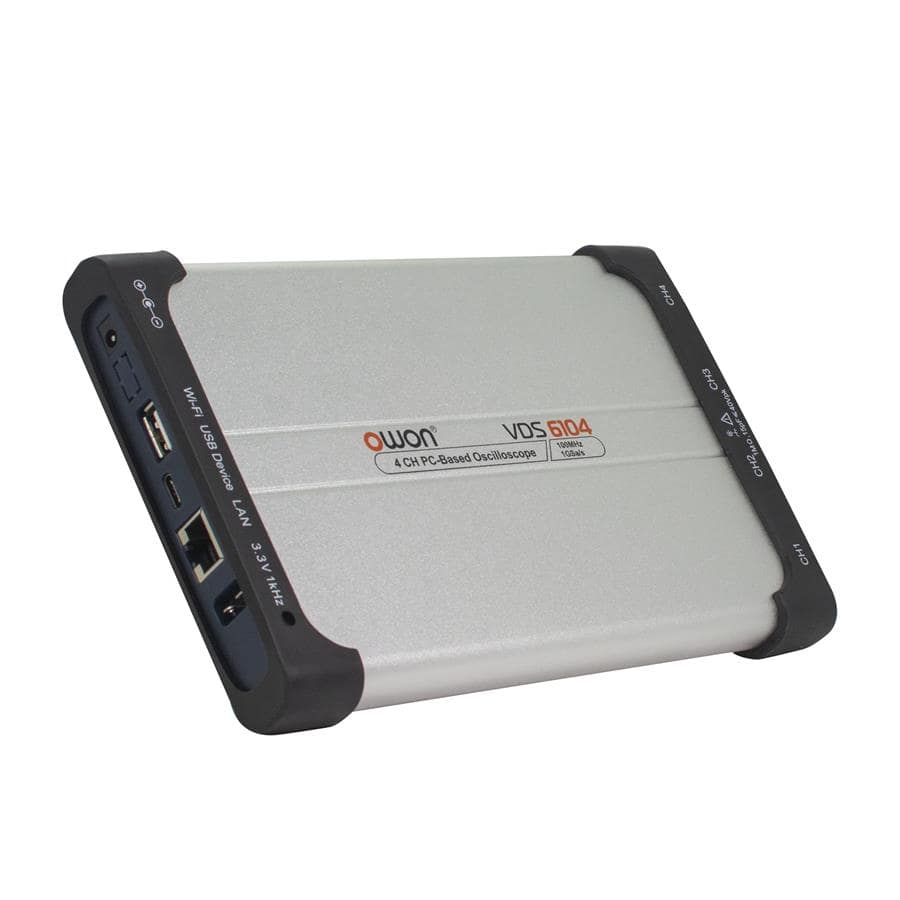

OWON VDS6104 Virtual PC Oscilloscope – 100 MHz, 4 Channel

OWON VDS6104 Virtual PC Oscilloscope – 100 MHz, 4 Channel

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

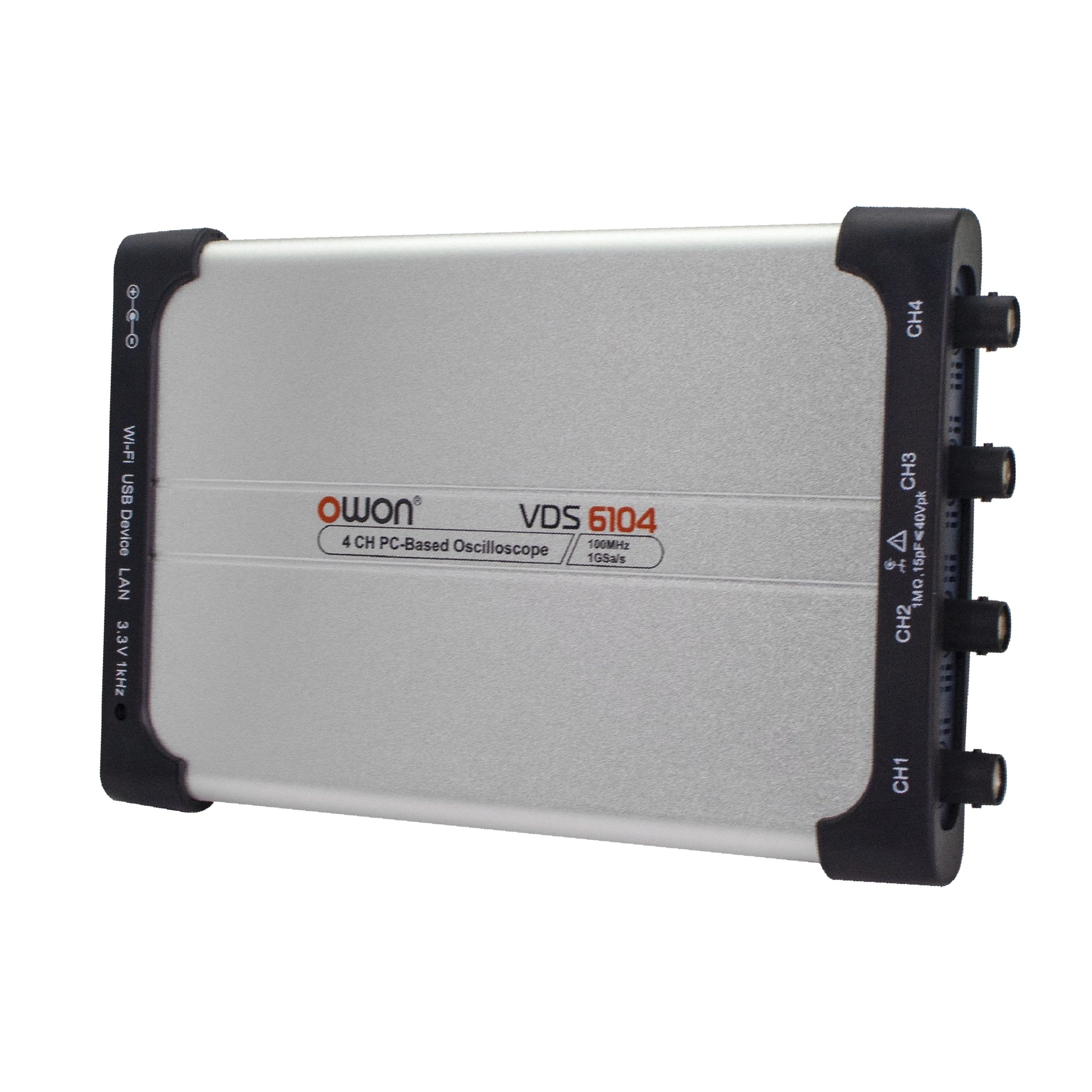

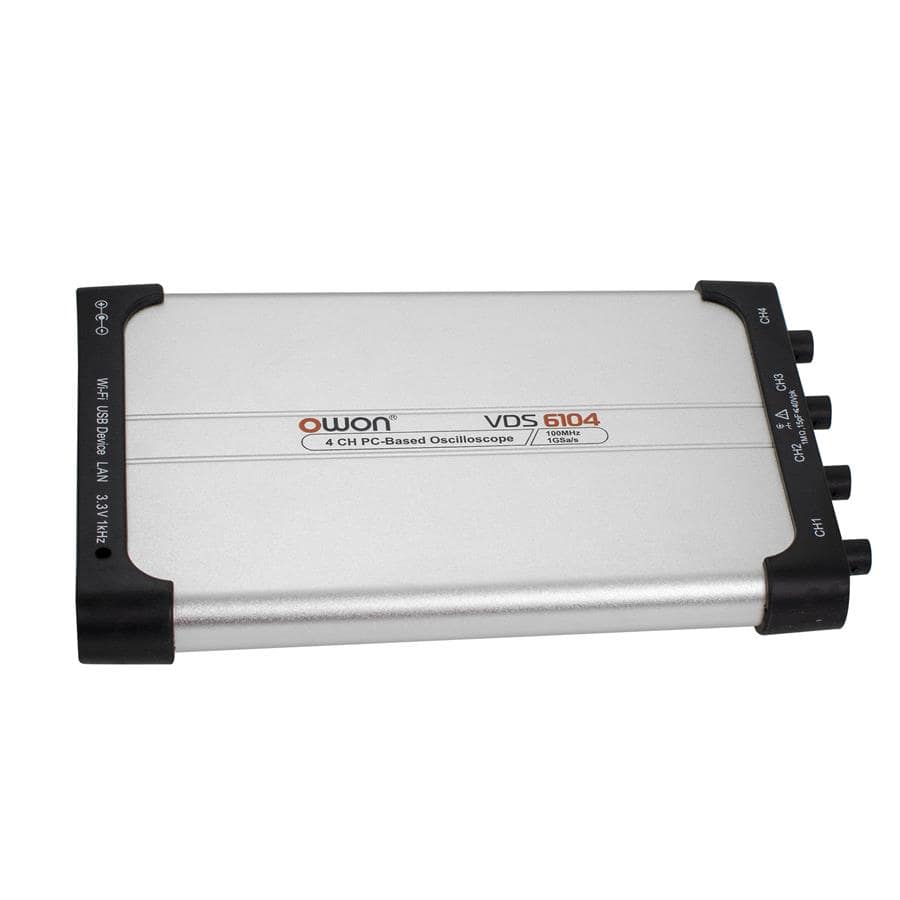

The OWON VDS6104 is a 4-channel virtual PC oscilloscope compatible with Windows, Linux, Android, and iOS platforms. Its ultra-slim design, 100 MHz bandwidth, and 1 GS/s sampling rate make it a powerful solution for professional test and analysis tasks. With a long record length and protocol decoding support, it is widely used in laboratories, R&D environments, education, and production testing.

Oscilloscope Specifications

Model: VDS6104
Channels: 4
Bandwidth: 100 MHz
Sampling Rate: 1 GS/s
Vertical Resolution (A/D): 8 bit
Vertical Sensitivity: 2 mV/div – 5 V/div
Time Base Range: 1 ns/div – 100 s/div (1-2-5 steps)
Record Length: 10 M
Input Coupling: DC / AC / GND
Input Impedance: 1 MΩ ±2%, 15 pF ±5 pF (parallel)
Maximum Input Voltage: 40 Vpk (DC + AC)
Bandwidth Limit: 20 MHz (selectable)
Probe Attenuation: 1X, 10X, 100X, 1000X

Trigger Types: Edge, Pulse, Video, Slope
Trigger Modes: Auto, Normal, Single

Automatic Measurements: Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Rise/Fall Time, Delay, Phase, Duty Cycle, ± Pulse Count
Cursor Measurement: ΔV and ΔT

Connectivity & Physical Features

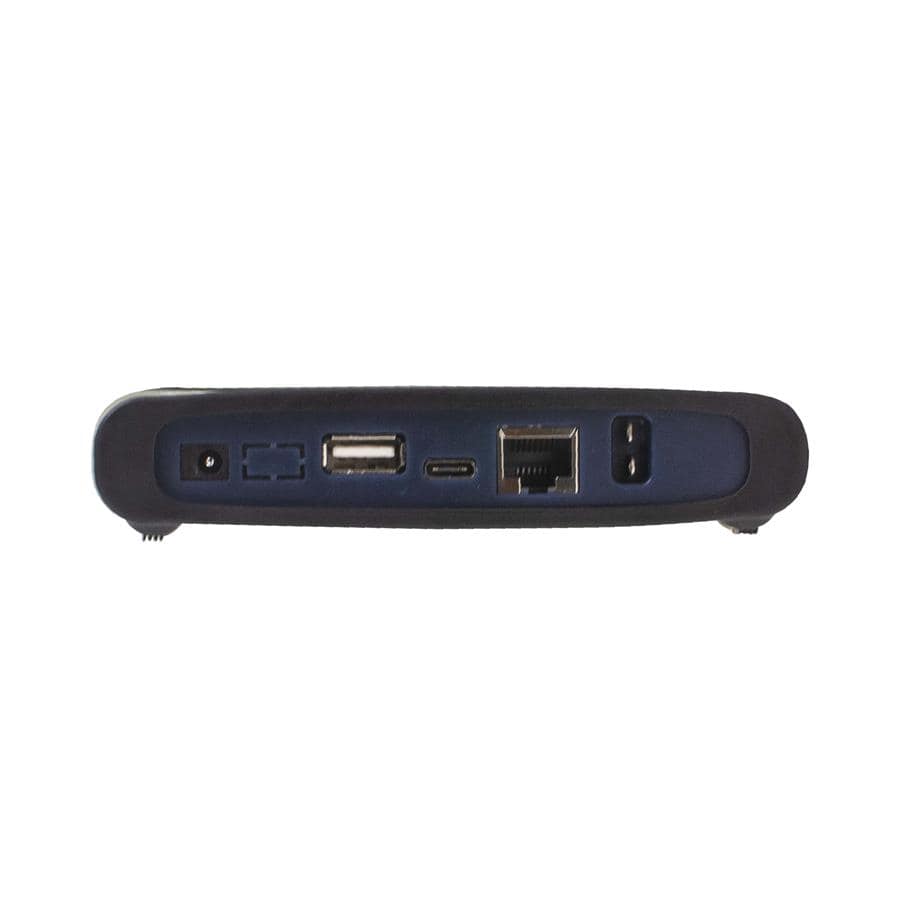

Interfaces: USB Device (Type-C), USB Host, LAN, Wi-Fi (optional)
Remote Control: SCPI and LabVIEW supported
Frequency Counter: Yes
Dimensions: 190 × 120 × 18 mm
Weight: Approx. 0.45 kg

Box Contents

Power cable
USB cable
4 × Oscilloscope probes
Probe adjustment tool
Silicone protective case
Q9 cable
CD-ROM
Quick start guide
Wi-Fi module (optional)
