The OWON XDG3162 is a professional 160 MHz dual-channel arbitrary function generator designed for advanced electronics development, testing, and R&D applications. Featuring a large 8-inch capacitive touchscreen, high sampling rate, and extensive modulation capabilities, it provides precise signal generation with fast and intuitive control. With SCPI and LabVIEW compatibility, the XDG3162 integrates seamlessly into automated test systems and modern laboratory environments.

Frequency and Waveform Performance

Sine Wave Frequency Range: 1 µHz – 160 MHz
Square Wave Frequency Range: 1 µHz – 100 MHz
Pulse Wave Frequency Range: 1 µHz – 80 MHz
Ramp Wave Frequency Range: 1 µHz – 3 MHz
Noise Bandwidth: up to 250 MHz (-3 dB, typical)
Arbitrary Waveform Frequency: 1 µHz – 40 MHz
Harmonic Output: up to 80 MHz (16th harmonic)

Sampling Rate: 1.25 GSa/s
Vertical Resolution: 16-bit
Frequency Stability: ±1 ppm
Arbitrary Waveform Memory: 16 M points
Standard Waveforms: sine, square, pulse, ramp, noise, harmonic
Arbitrary Waveforms: 150 built-in plus user-defined waveforms

Display and User Interface

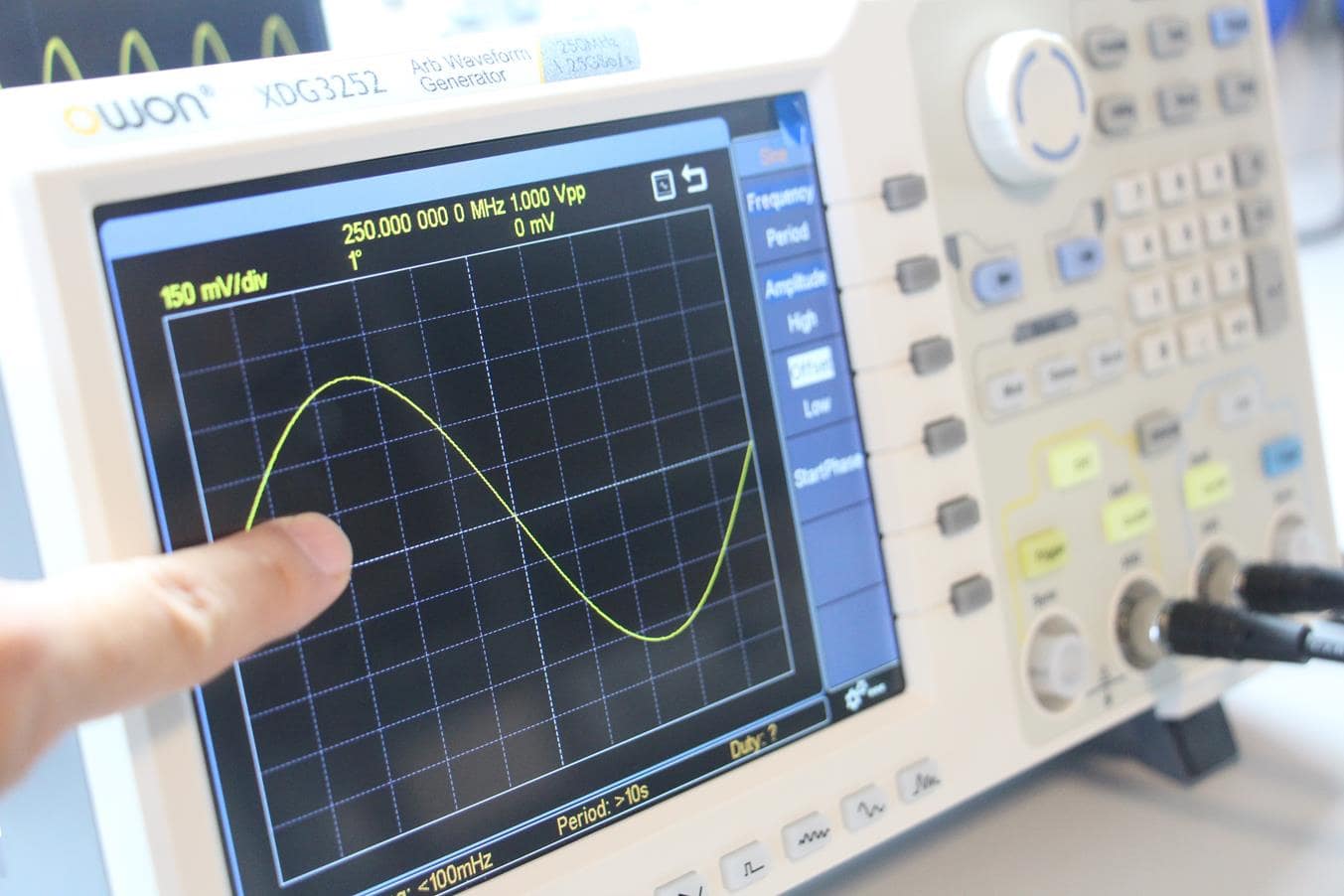

Display: 8-inch color TFT capacitive touchscreen (800 × 480 resolution)
User Interface: Touchscreen operation combined with physical controls
Menu Structure: Modern, intuitive, and fast-access design

Modulation and Advanced Functions

Supported Modulations:
AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, BPSK, OSK, ASK, QPSK, DSB-AM, SUM, Sweep, Burst

Trigger Options: Internal and external trigger, modulation trigger, reference clock input/output

Frequency Counter

Measurement Range: 0.00000001 MHz – 200 MHz
Measurement Functions: Frequency, period, positive and negative pulse width, duty cycle
Resolution: 7-digit

Connectivity and Remote Control

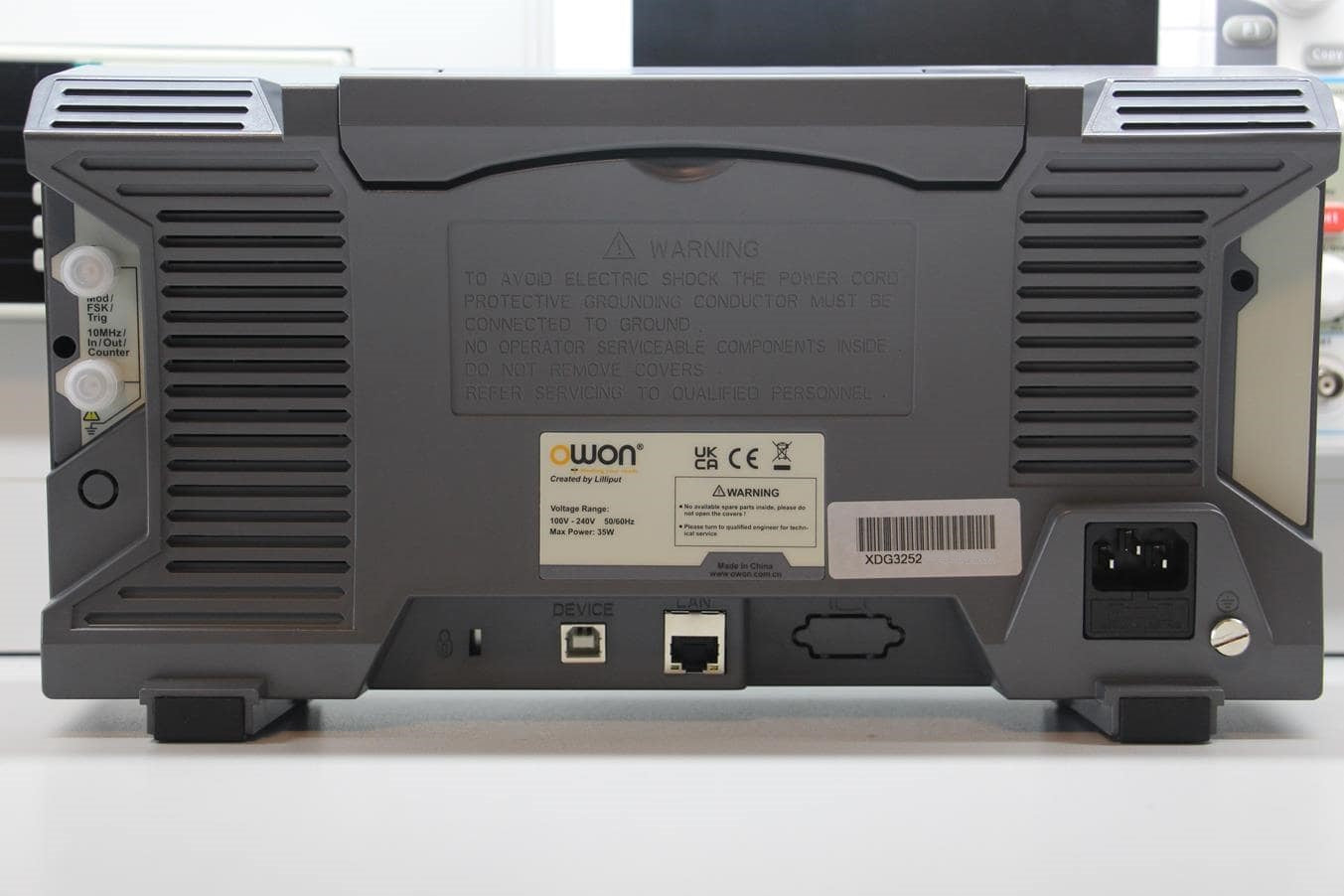

Interfaces: USB Host, USB Device, LAN, RS-232 (optional)
Remote Control Support: SCPI and LabVIEW compatible

Power and Physical Characteristics

Output Channels: 2 independent channels
Dimensions: 340 × 177 × 90 mm
Weight: approximately 2.3 kg
Design: Compact, desktop-friendly metal enclosure

Applications

Electronics design and debugging
University and educational laboratories
Signal simulation and device verification
Telecommunications and R&D testing

Box Contents

OWON XDG3162 Function Generator
Power cable
USB cable
User manual
2 × BNC / Q9 cables
