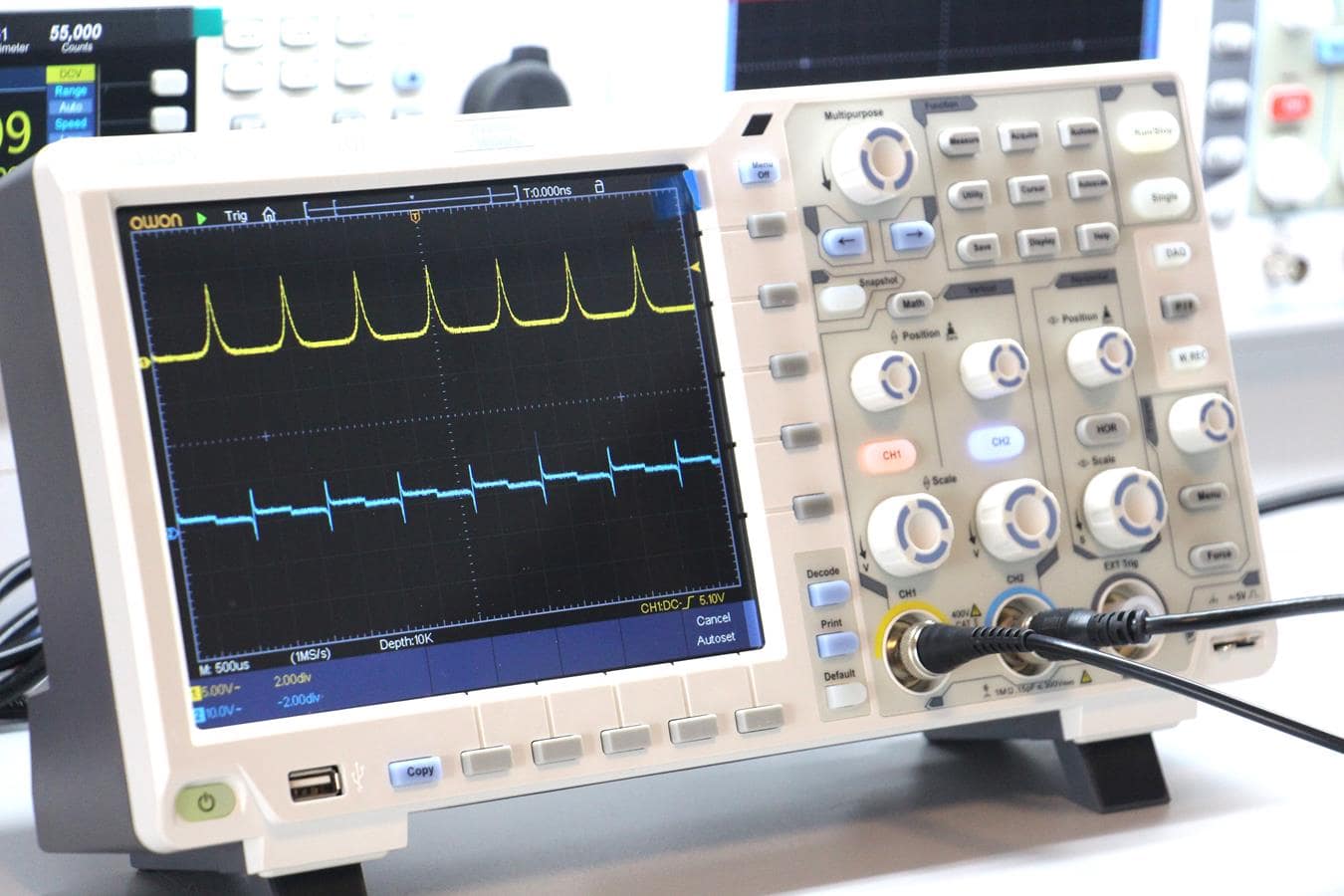

OWON XDS2202 Digital Oscilloscope – 200 MHz, 2 Channel, 8” Touch Display, Protocol Decode

OWON XDS2202 Digital Oscilloscope – 200 MHz, 2 Channel, 8” Touch Display, Protocol Decode

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

The OWON XDS2202 is an advanced digital oscilloscope delivering fast and detailed signal capture with 200 MHz bandwidth and a 1 GS/s real-time sampling rate. Featuring comprehensive triggering options, built-in protocol decoding, and FFT-based analysis tools, it is an ideal solution for R&D, production testing, and technical training. Its large touch display, intuitive user interface, and versatile connectivity make it a powerful and reliable test instrument.

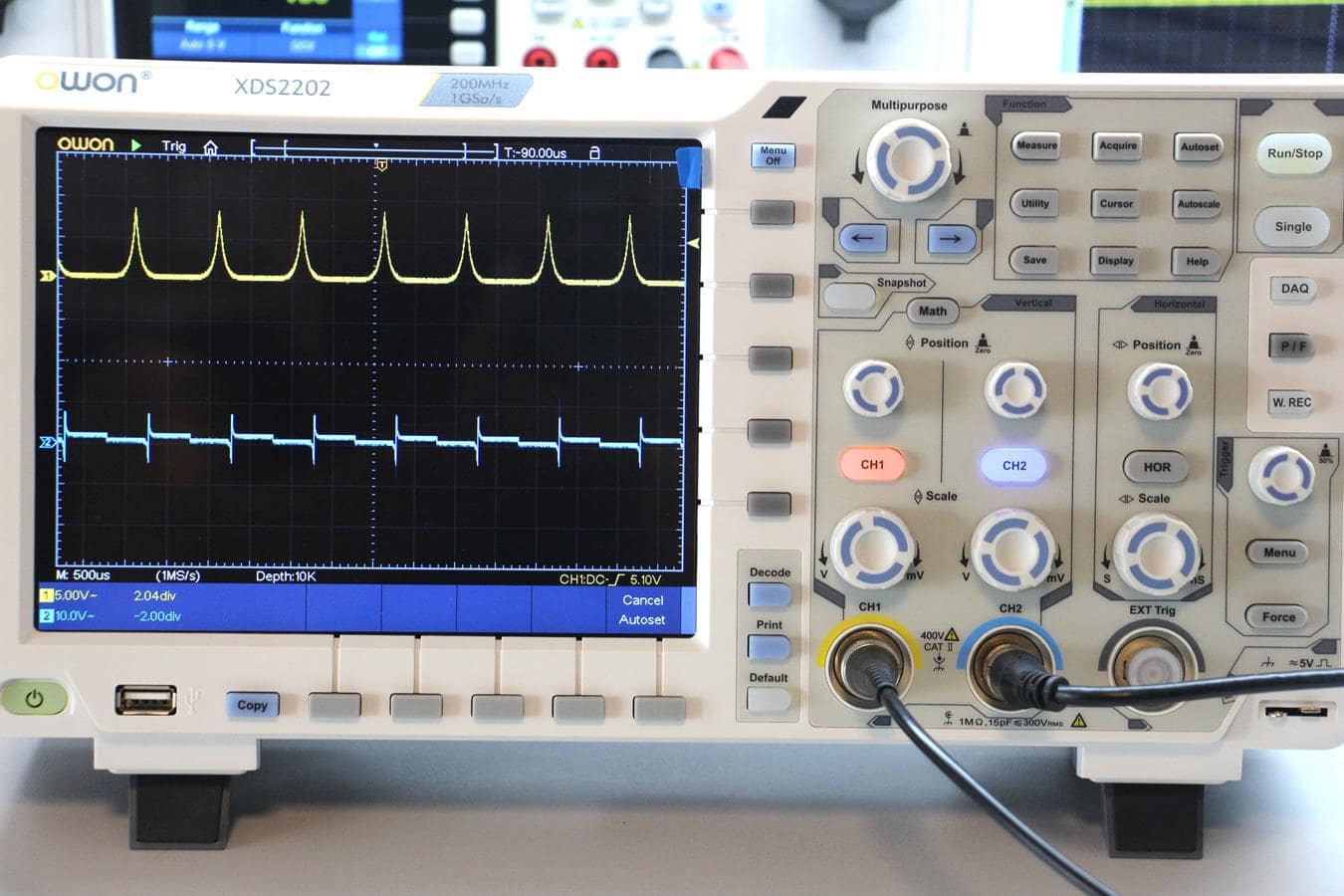

OWON XDS2202 Digital Oscilloscope – 200 MHz, 2 Channel, 8” Touch Display, Protocol Decode

Oscilloscope Specifications

Channels: 2 + 1 (external)
Bandwidth: 200 MHz
Real-Time Sampling Rate: 1 GS/s
Memory Depth: 40 Mpts (optional 80 Mpts)
Waveform Update Rate: Up to 75,000 wfms/s
Vertical Resolution: 8-bit
Vertical Sensitivity: 1 mV/div – 10 V/div
Time Base Range: 2 ns/div – 1000 s/div
Rise Time (typ.): ≤ 1.75 ns
Vertical Voltage Range: ±2 V (1 mV/div – 100 mV/div), ±200 V (200 mV/div – 10 V/div)
Input Impedance: 1 MΩ ±2%, 20 pF ±3 pF (parallel)
Maximum Input Voltage: 300 Vrms
Input Coupling: DC, AC, GND

Trigger Types: Edge, video, pulse, slope, timeout, window, Nth edge, logic, UART, I2C, SPI, CAN
Trigger Modes: Auto, Normal, Single
Protocol Decoding: I2C, SPI, RS232, CAN

Math Functions: +, −, ×, ÷, FFT, FFT RMS, integration, differentiation, square root, user-defined functions, digital filters (low-pass, high-pass, band-pass, band-stop)

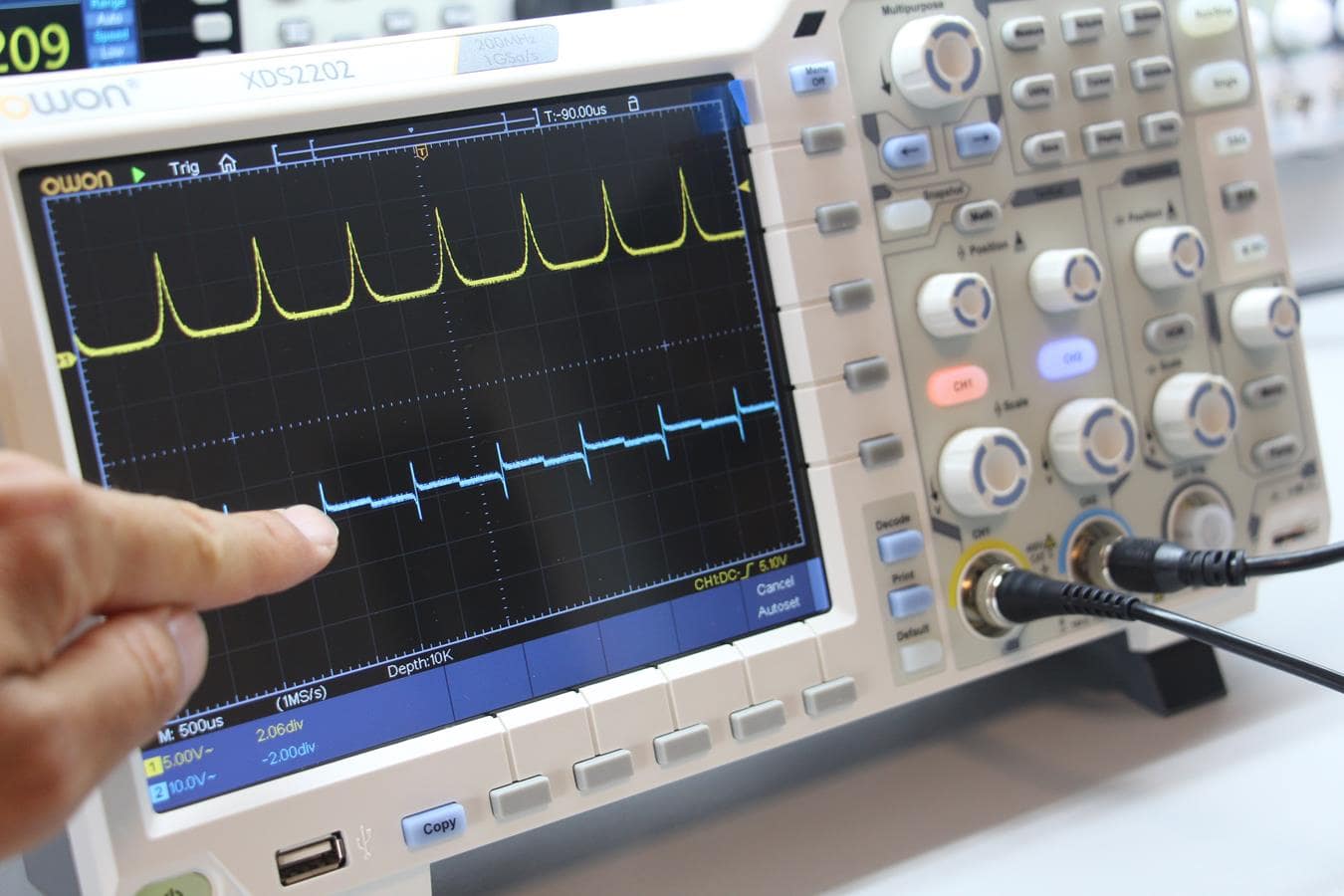

Display: 8-inch LCD, 800 × 600 resolution, touch screen
Lissajous Display: Supported
Phase Difference Measurement: ±3° accuracy
Channel Isolation: 100:1 @ 50 Hz, 40:1 @ 10 MHz

Automatic Measurements: Vpp, Vavg, Vrms, frequency, period, Vmax, Vmin, rise/fall time, delay, phase, duty cycle, ± pulse count, and more
Cursor Measurement: ΔV and ΔT with manual/automatic cursor support
Waveform Storage: 100 waveforms

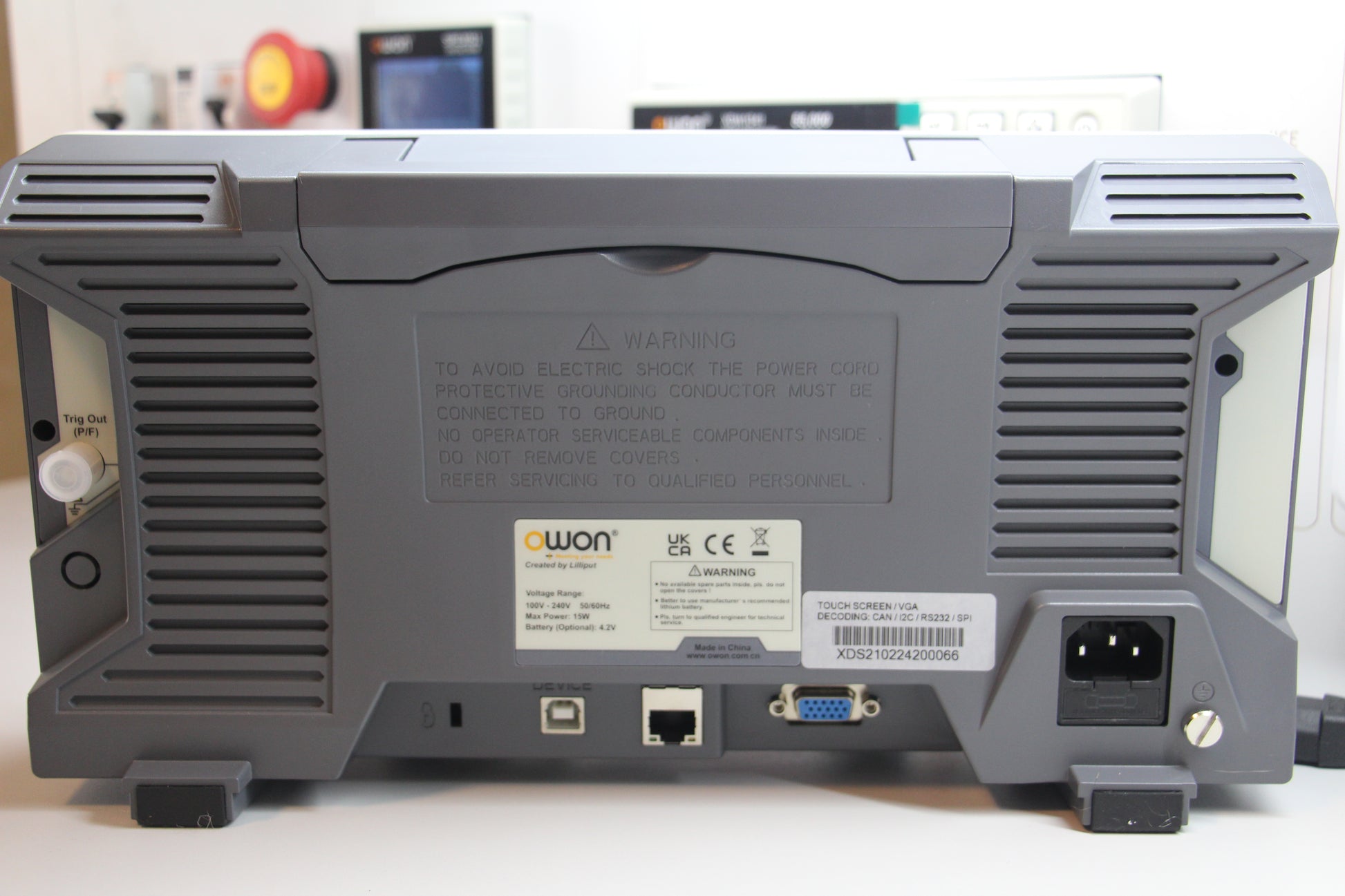

Communication & Interfaces

USB: USB Host & Device
LAN: Ethernet
Trig Out: Pass/Fail trigger output
VGA: External display support
Remote Control: SCPI and LabVIEW compatible

Power & Physical Characteristics

Power Input: 100 V – 240 V AC, 50/60 Hz (CAT II)

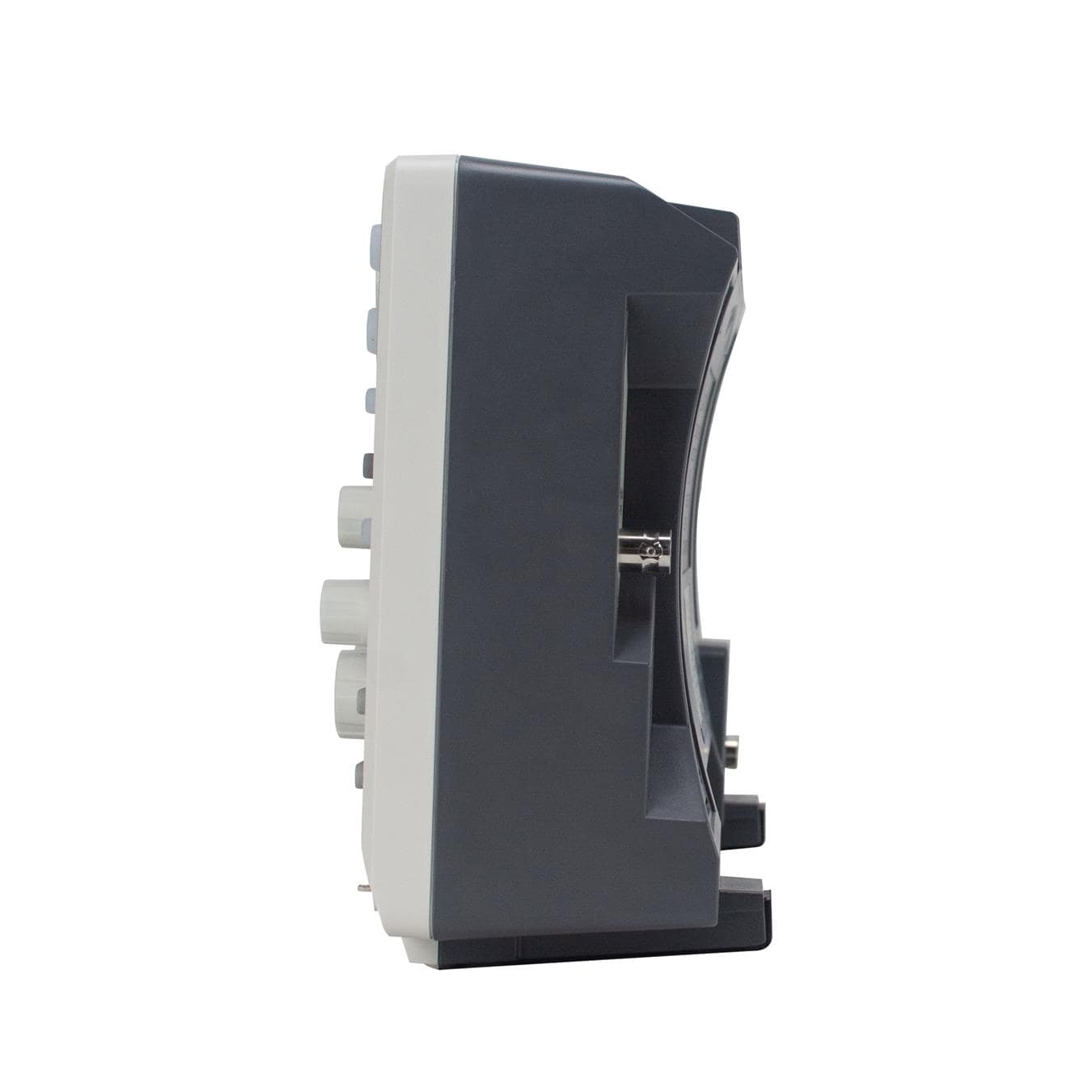

Dimensions: 340 × 177 × 90 mm
Weight: Approx. 2.6 kg
Power Consumption: < 24 W

OWON XDS2202 Digital Oscilloscope – 200 MHz, 2 Channel, 8” Touch Display, Protocol Decode

Box Contents

Power cord
USB cable
2 × Oscilloscope probes
Probe adjustment tool
Q9 cable
CD-ROM
Quick start guide
