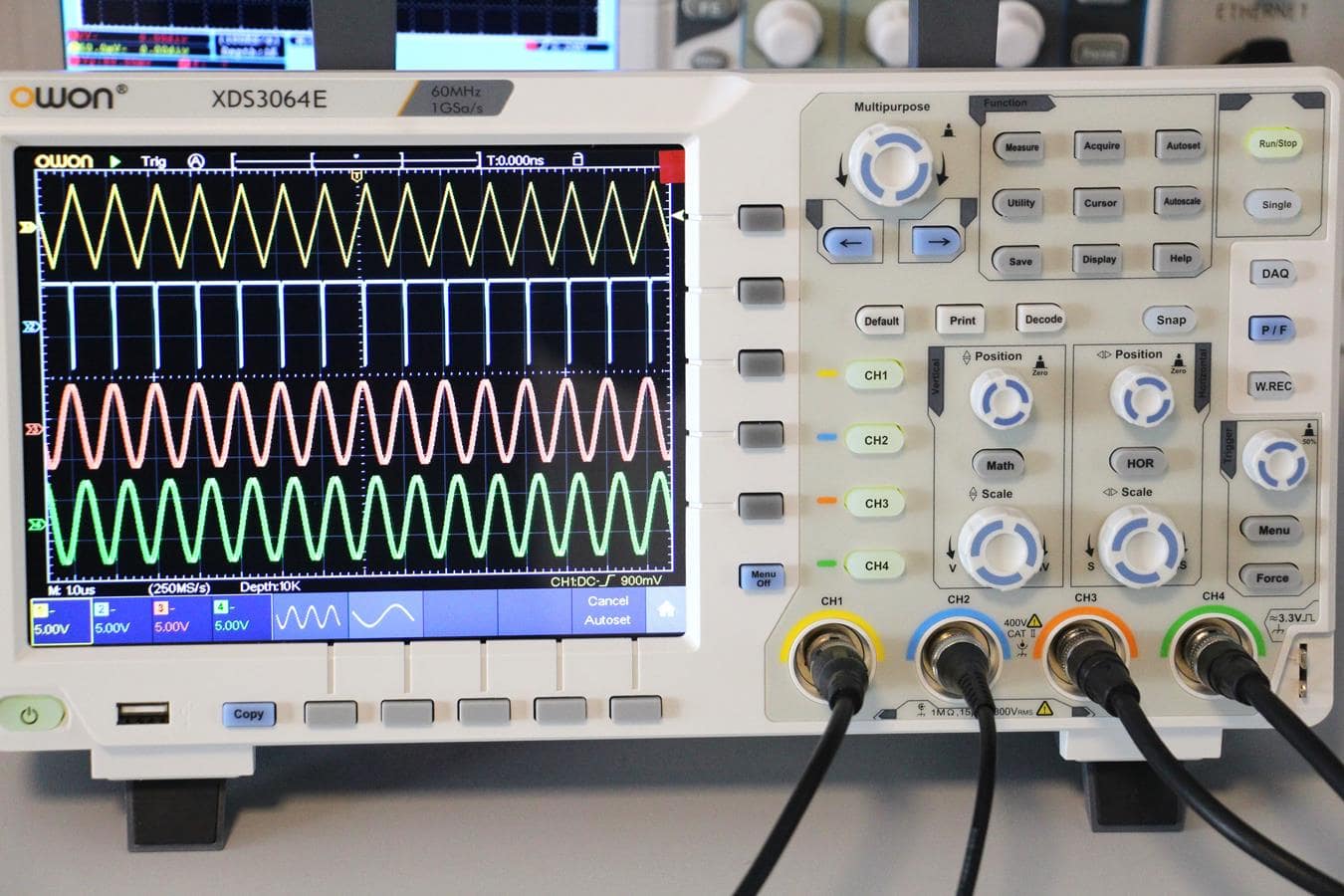

The OWON XDS3064E is a 4-channel digital oscilloscope optimized for general measurement and analysis tasks. With 60 MHz bandwidth, 1 GS/s real-time sampling, and a large 8-inch capacitive touchscreen, it delivers a smooth and intuitive user experience. Its deep memory, advanced triggering, and built-in protocol decoding make it suitable for laboratories, education, R&D, and production test environments.

Oscilloscope Specifications

Model: XDS3064E
Channels: 4
Bandwidth: 60 MHz
Real-Time Sampling Rate: 1 GS/s
Vertical Resolution: 8 bit
Memory Depth: 40 M
Waveform Update Rate: up to 45,000 wfms/s
Time Base Range: 2 ns/div – 1000 s/div
Vertical Sensitivity: 1 mV/div – 10 V/div
Vertical Voltage Range:
±2 V (1 mV – 50 mV)
±20 V (100 mV – 1 V)
±200 V (2 V – 10 V)

Input Coupling: DC / AC / GND
Timing Accuracy: ±2.5 ppm
Interpolation: sin(x)/x

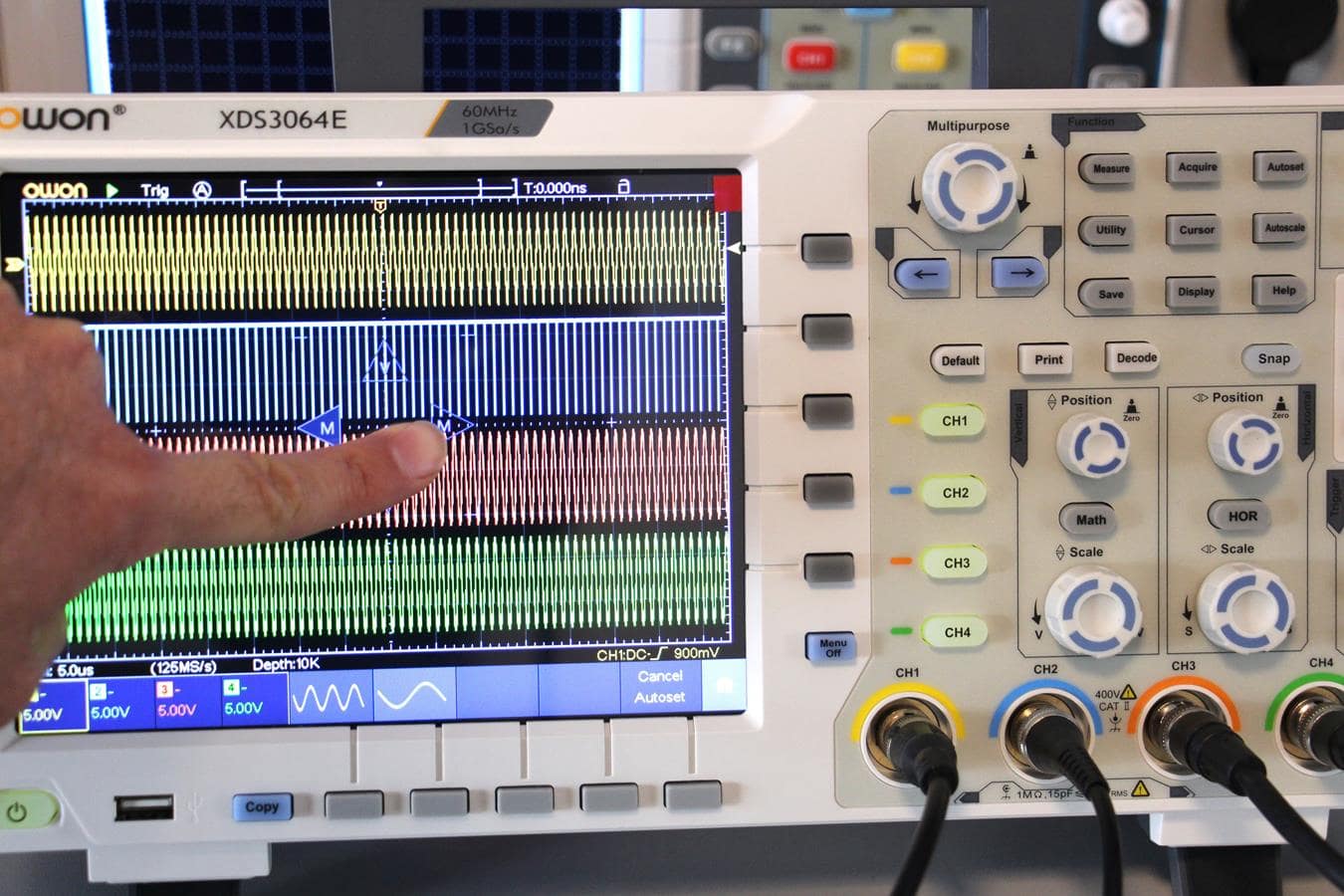

Display: 8-inch color LCD, 800 × 600 resolution, capacitive touchscreen

Triggering & Measurement Functions

Trigger Types: Edge, Video, Pulse, Slope, Timeout, Window, Nth Edge, Logic, I2C, SPI, RS232, CAN
Trigger Modes: Auto, Normal, Single

Protocol Decoding (built-in): I2C, SPI, RS232, CAN

Math Functions: +, −, ×, ÷, FFT, Integral, Derivative, Square Root, User-defined functions
Automatic Measurements: Vpp, Vrms, Vavg, Frequency, Period, Rise/Fall Time, Delay, Phase, Duty Cycle, Pulse Count, and more
Waveform Storage: up to 100 waveforms

Optional Modules / Functions: Battery, Wi-Fi, AWG (signal generator), DMM

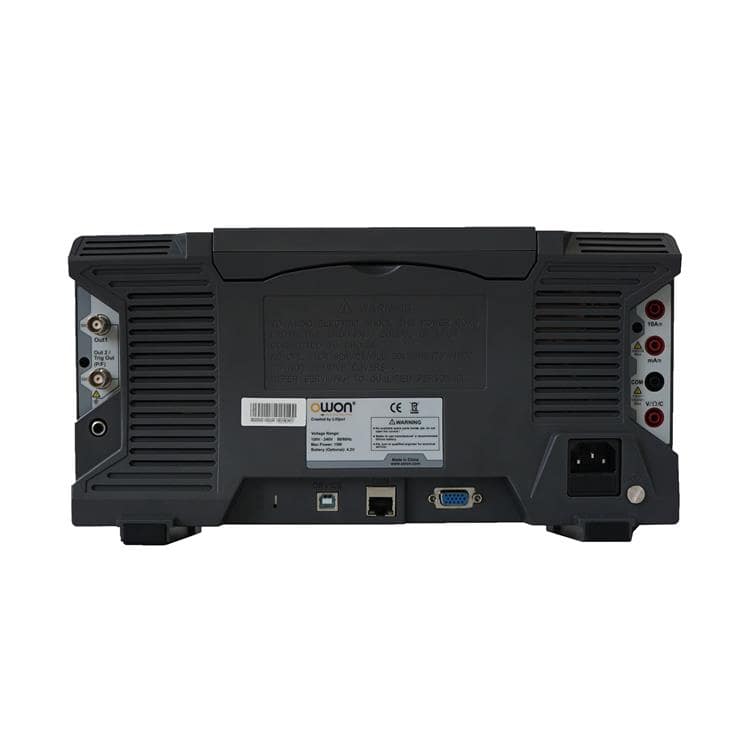

Connectivity & Interfaces

USB: USB Host & USB Device
LAN: Ethernet
Trigger Out: Pass/Fail output
VGA: External monitor output
PictBridge: Printer support
Remote Control: SCPI and LabVIEW compatible

Power & Physical Specifications

Power Input: 100 V – 240 V AC, 50/60 Hz (CAT II)
Dimensions (W × H × D): 340 × 177 × 90 mm
Weight: Approx. 2.6 kg
Battery Support (optional): 3.7 V, 13,200 mAh

Box Contents

Power cable
USB cable
4 × Oscilloscope probes
Probe adjustment tool
CD-ROM
Quick start guide

Optional accessories: Multimeter probes, capacitance module, soft carrying case, battery, Q9 cable
