Owon XDS3104E Digital Oscilloscope – 100 MHz, 4 Channel, 8” Touch Display, Protocol Decode

Owon XDS3104E Digital Oscilloscope – 100 MHz, 4 Channel, 8” Touch Display, Protocol Decode

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

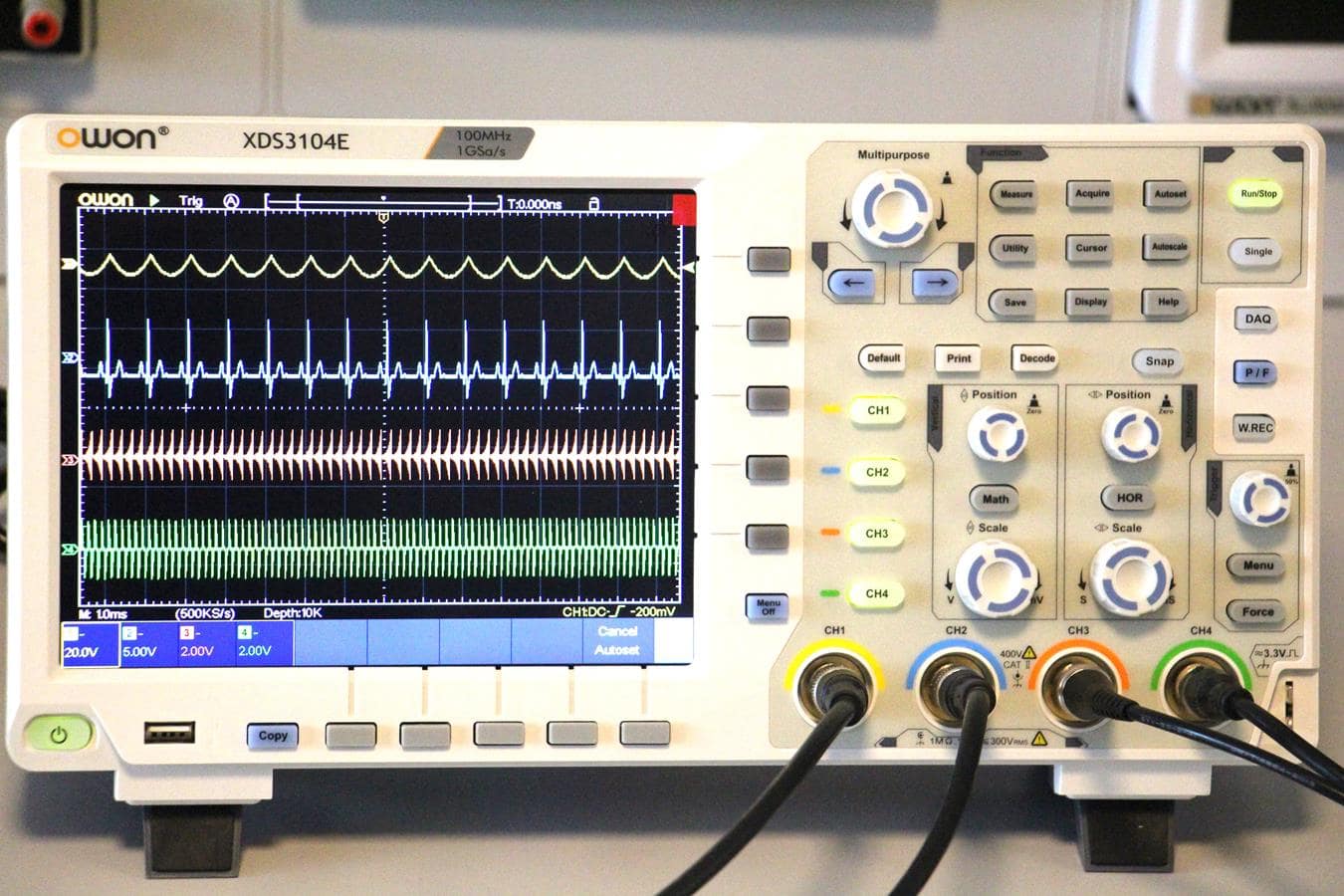

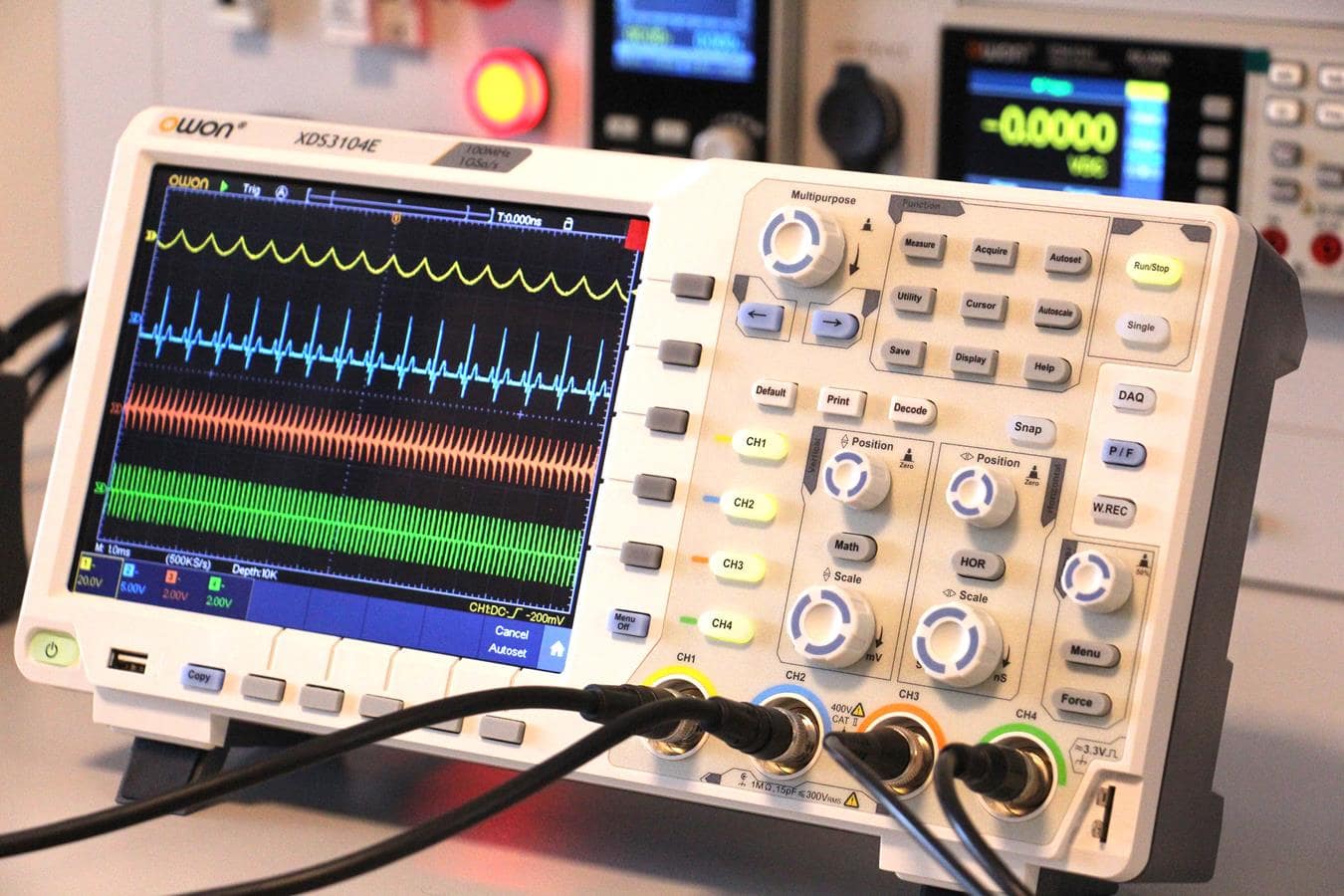

The Owon XDS3104E is a versatile digital oscilloscope designed for mid- to advanced-level signal analysis, featuring four independent channels, 100 MHz bandwidth, and a 1 GS/s real-time sampling rate. Its 8-inch high-resolution capacitive touch display, advanced triggering system, and built-in protocol decoding make it a preferred solution for engineering, R&D, and technical education applications.

Owon XDS3104E Digital Oscilloscope – 100 MHz, 4 Channel, 8” Touch Display, Protocol Decode

Oscilloscope Specifications
Channels: 4
Bandwidth: 100 MHz
Real-Time Sampling Rate: 1 GS/s
Vertical Resolution: 8-bit
Memory Depth: 40 Mpts
Waveform Update Rate: Up to 45,000 wfms/s
Time Base Range: 2 ns/div – 1000 s/div (1-2-5 steps)
Vertical Sensitivity: 1 mV/div – 10 V/div
Vertical Voltage Range: ±2 V (1 mV – 50 mV), ±20 V (100 mV – 1 V), ±200 V (2 V – 10 V)

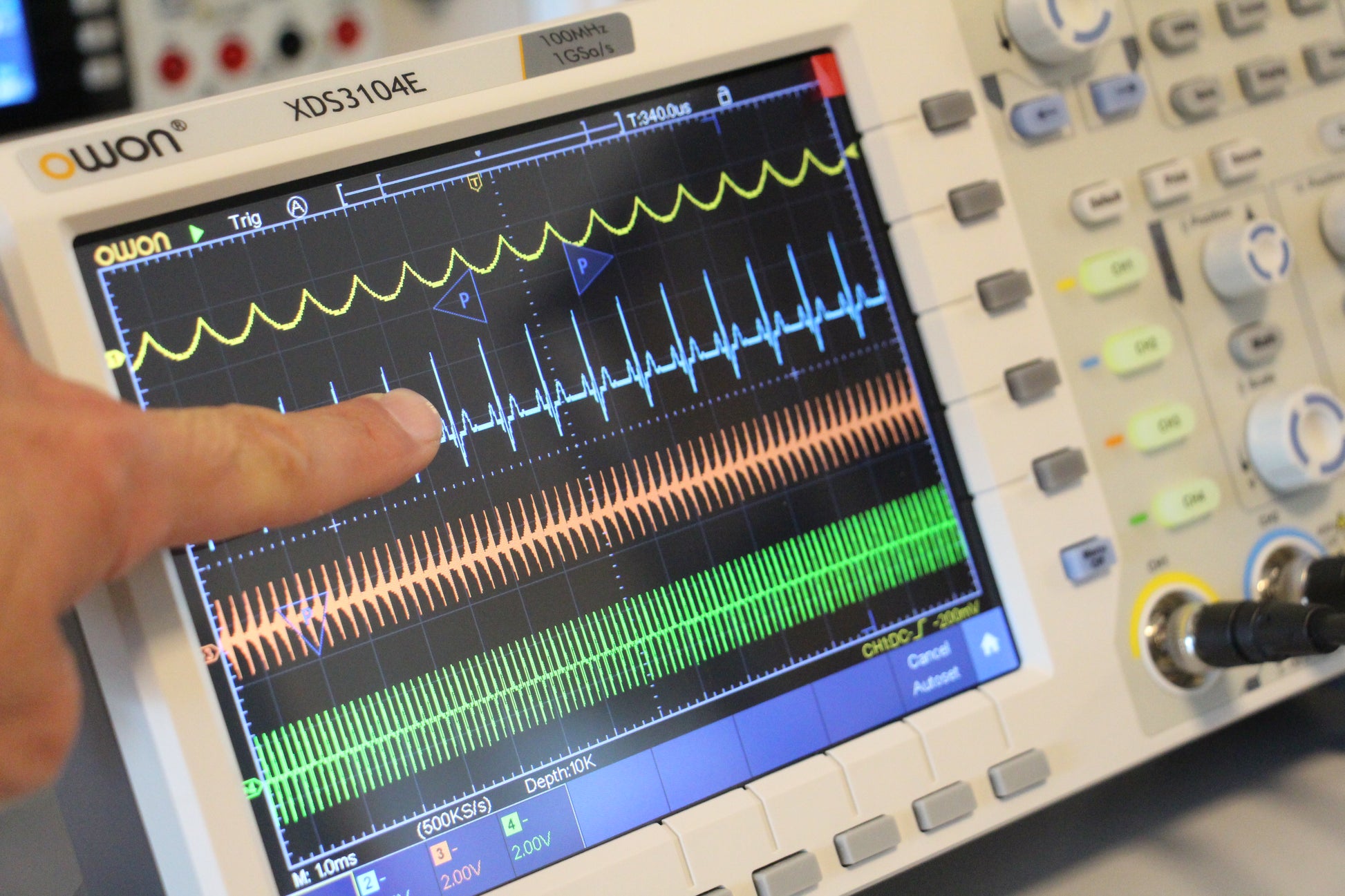

Display: 8-inch color LCD, 800 × 600 resolution, capacitive touch
Timebase Accuracy: ±2.5 ppm
Input Coupling: DC, AC, GND

Triggering & Measurement Features
Trigger Types: Edge, video, pulse, slope, timeout, window, Nth edge, logic, I2C, SPI, RS232, CAN
Built-in Protocol Decoding: I2C, SPI, RS232, CAN
Math Functions: +, −, ×, ÷, FFT, integration, differentiation, square root, user-defined functions
Automatic Measurements: Vpp, Vrms, Vavg, frequency, period, rise/fall time, delay, phase, duty cycle, pulse count, and more
Waveform Storage: 100 waveforms

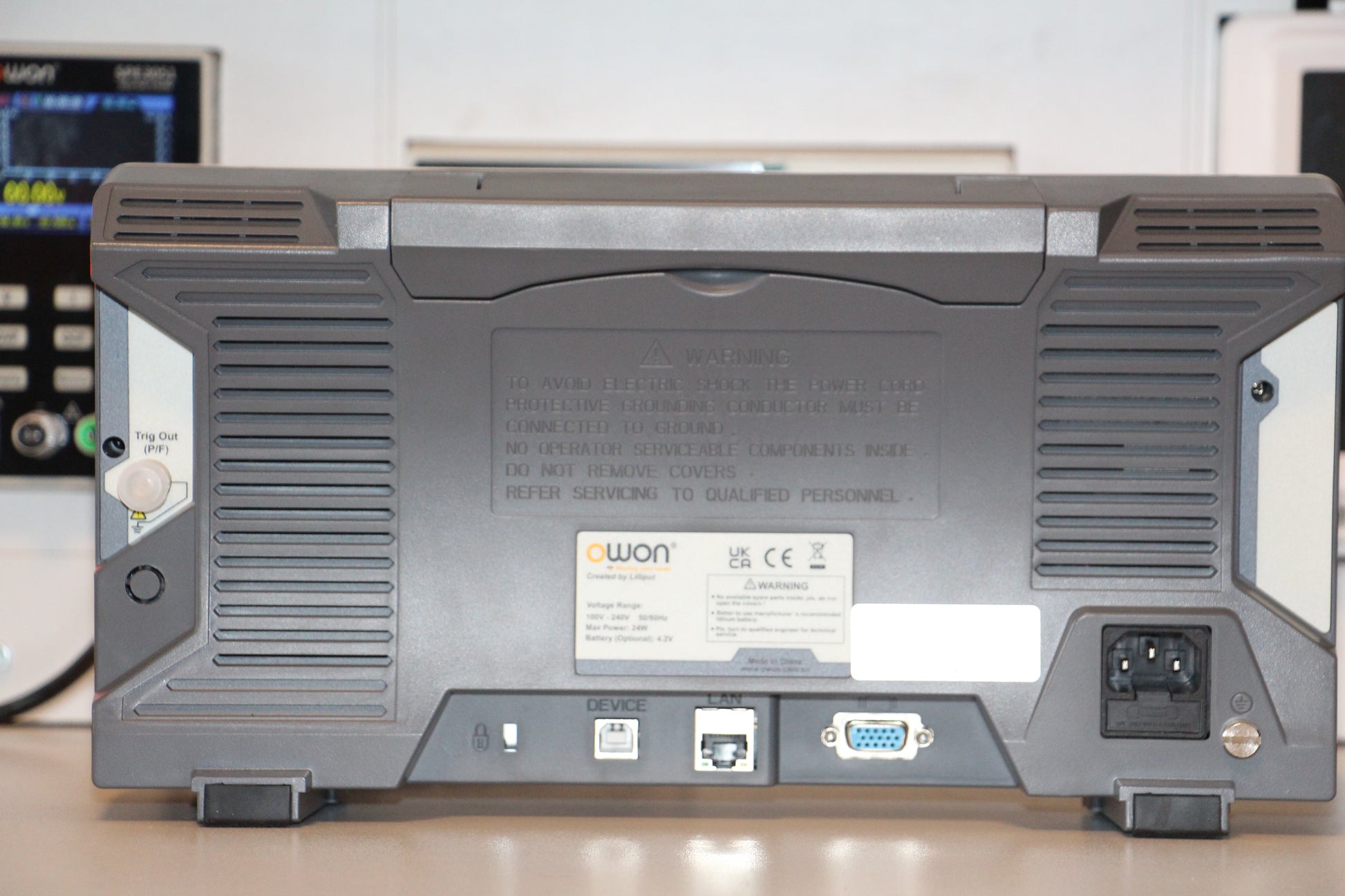

Communication & Interfaces
USB: USB Host & USB Device
LAN: Ethernet port
Trig Out: Pass/Fail trigger output
VGA: External monitor support
PictBridge: Printer support
SCPI / LabVIEW: Remote control supported

Power & Physical Characteristics
Power Input: 100 V – 240 V AC, 50/60 Hz (CAT II)
Dimensions (W × H × D): 340 × 177 × 90 mm
Weight: Approx. 2.6 kg

Optional Features & Modules
Battery Module: 3.7 V, 13,200 mAh portable battery
WiFi Module: Wireless connectivity expansion
AWG (Arbitrary Waveform Generator): Supported on specific models
DMM (Digital Multimeter): Expanded measurement functions
Accessories: Soft carrying case, Q9 cable, capacitance module

Owon XDS3104E Digital Oscilloscope – 100 MHz, 4 Channel, 8” Touch Display, Protocol Decode

Box Contents
Power cord
USB cable
4 × Oscilloscope probes
Probe adjustment tool
CD-ROM
Quick start guide
