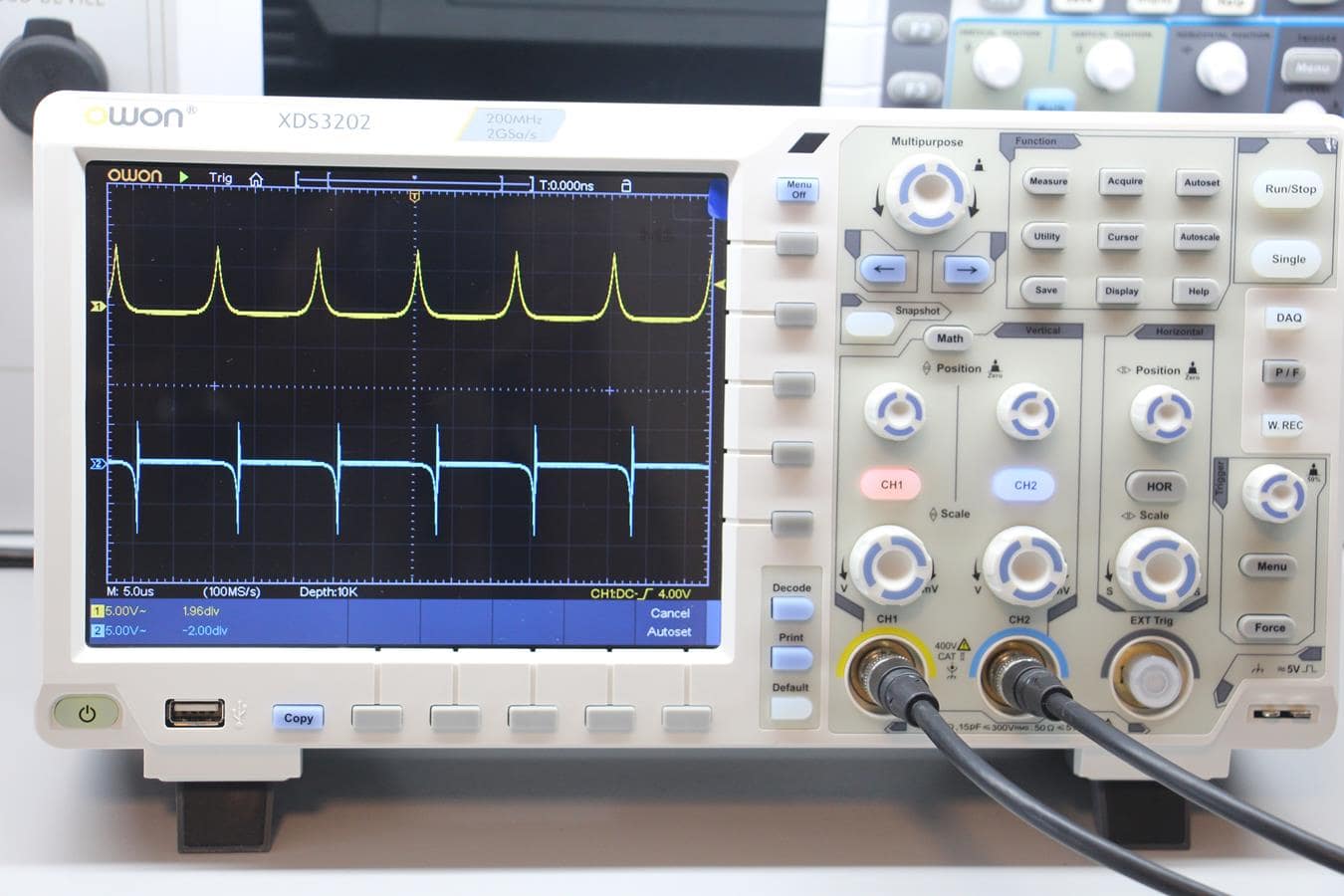

The OWON XDS3202 is a high-performance digital oscilloscope designed for fast signal capture and reliable measurements, featuring 200 MHz bandwidth and a 2 GS/s real-time sampling rate. With its low-noise 8-bit ADC architecture and deep 40 Mpts memory, it is well suited for precision measurements. Advanced triggering options, built-in protocol decoding, and expandable modules make it an excellent choice for education, production, maintenance, and test applications.

In Stock in Türkiye – Fast Delivery

This model is available from CMsense Teknoloji stock, offering fast delivery with no waiting time for project-based applications.

Project-Based Pricing & Flexible Payment Options

Special pricing and flexible payment terms are available for corporate and project-based customers. Please contact us to evaluate the most suitable conditions for your application.

OWON XDS3202 Digital Oscilloscope – 200 MHz, 2 Channel, 8” Touch Display, 2 GS/s

Oscilloscope Specifications

Channels: 2 + EXT
Bandwidth: 200 MHz
Real-Time Sampling Rate: 2 GS/s
Vertical Resolution: 8-bit
Memory Depth: 40 Mpts
Waveform Update Rate: Up to 70,000 wfms/s
Vertical Sensitivity: 1 mV/div – 10 V/div
Time Base Range: 1 ns/div – 1000 s/div
Input Impedance: 1 MΩ ±2%, 20 pF ±3 pF (parallel)
Trigger Types: Edge, video, pulse, slope, timeout, window, Nth edge, logic, UART, I2C, SPI, CAN
Protocol Decoding: RS232, I2C, SPI, CAN
Math Functions: +, −, ×, ÷, FFT, FFT RMS, integration, differentiation, square root, user-defined functions, digital filters

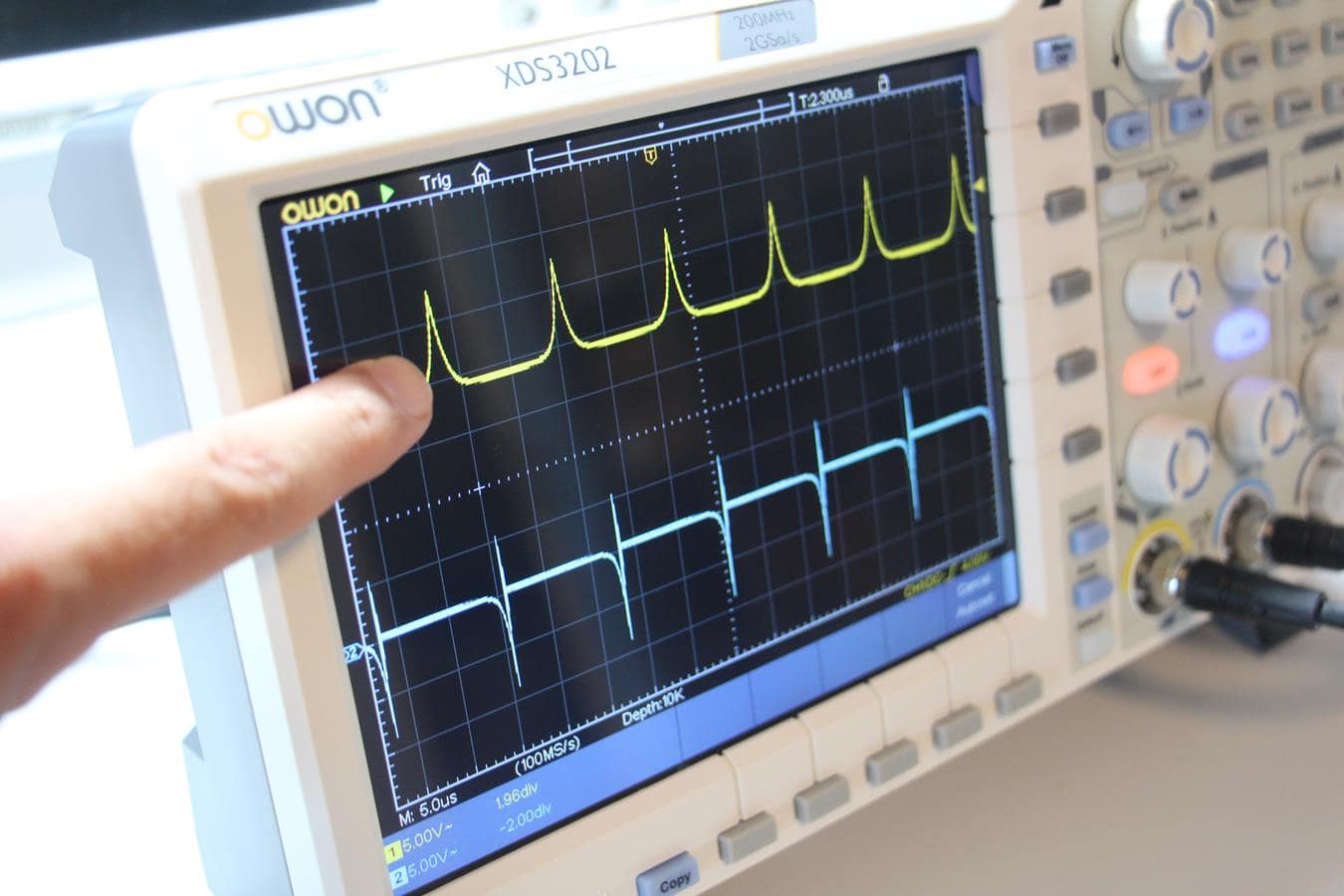

Display: 8-inch color LCD, 800 × 600 resolution, touch screen
Dimensions: 340 × 177 × 90 mm
Weight: Approx. 2.6 kg

Expandable Features (Optional)

AWG (Signal Generator): 25 MHz / 50 MHz arbitrary waveform generation
Multimeter Module: Voltage, current, resistance, capacitance, frequency, continuity, diode test
Data Logger: Long-term data monitoring and recording
Battery Support: 3.7 V, 13,200 mAh portable battery
WiFi Module: Wireless connectivity expansion

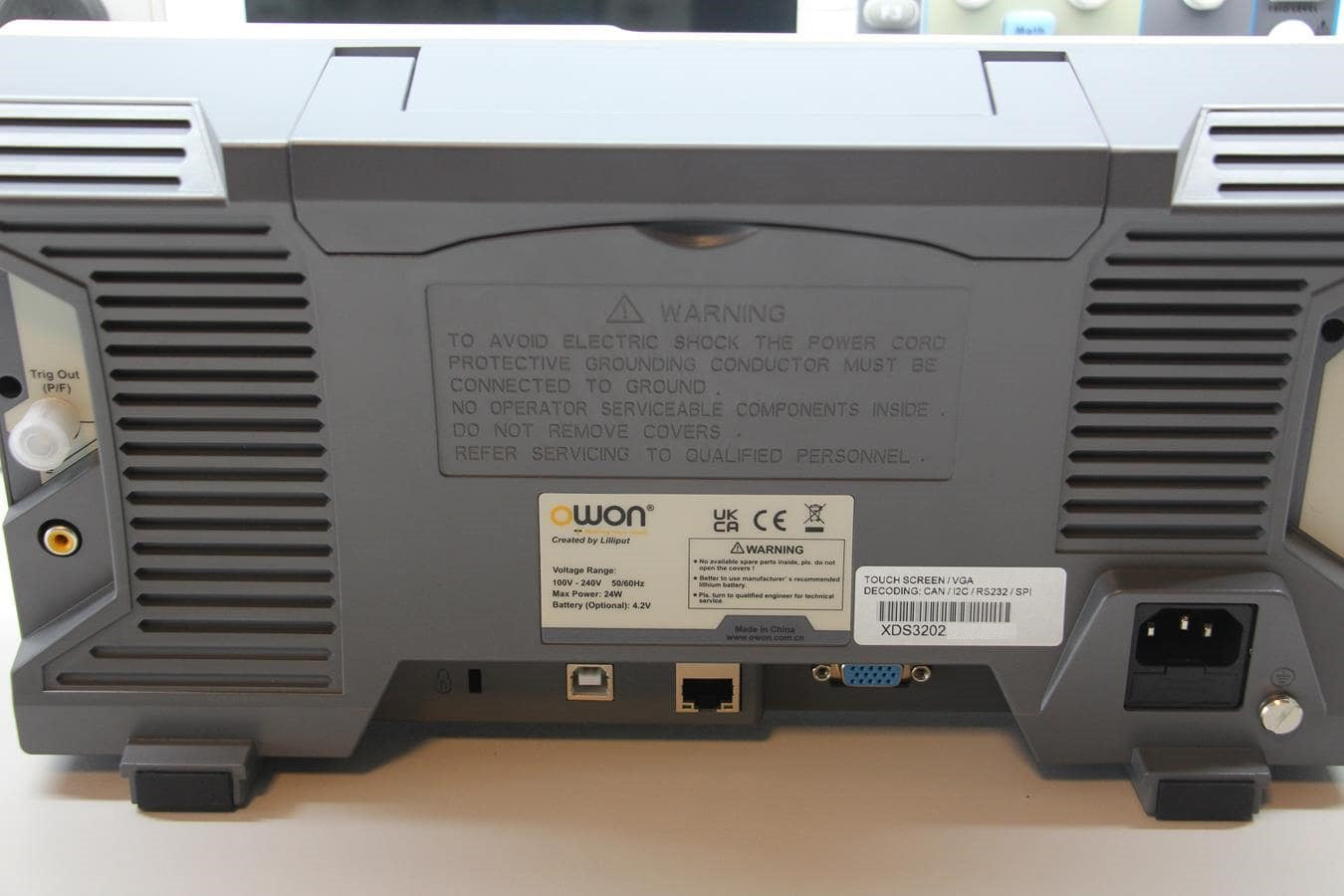

Communication & Interfaces

USB: USB Host & USB Device
LAN: Ethernet port
Trigger Output: Trig Out (Pass/Fail)
VGA: External monitor support (optional)
Printer Support: PictBridge compatible

OWON XDS3202 Digital Oscilloscope – 200 MHz, 2 Channel, 8” Touch Display, 2 GS/s

Box Contents

Power cord
USB cable
2 × Oscilloscope probes
Probe adjustment tool
Q9 cable
CD-ROM
Quick start guide
Optional: Multimeter probes, capacitance module, carrying case, battery
