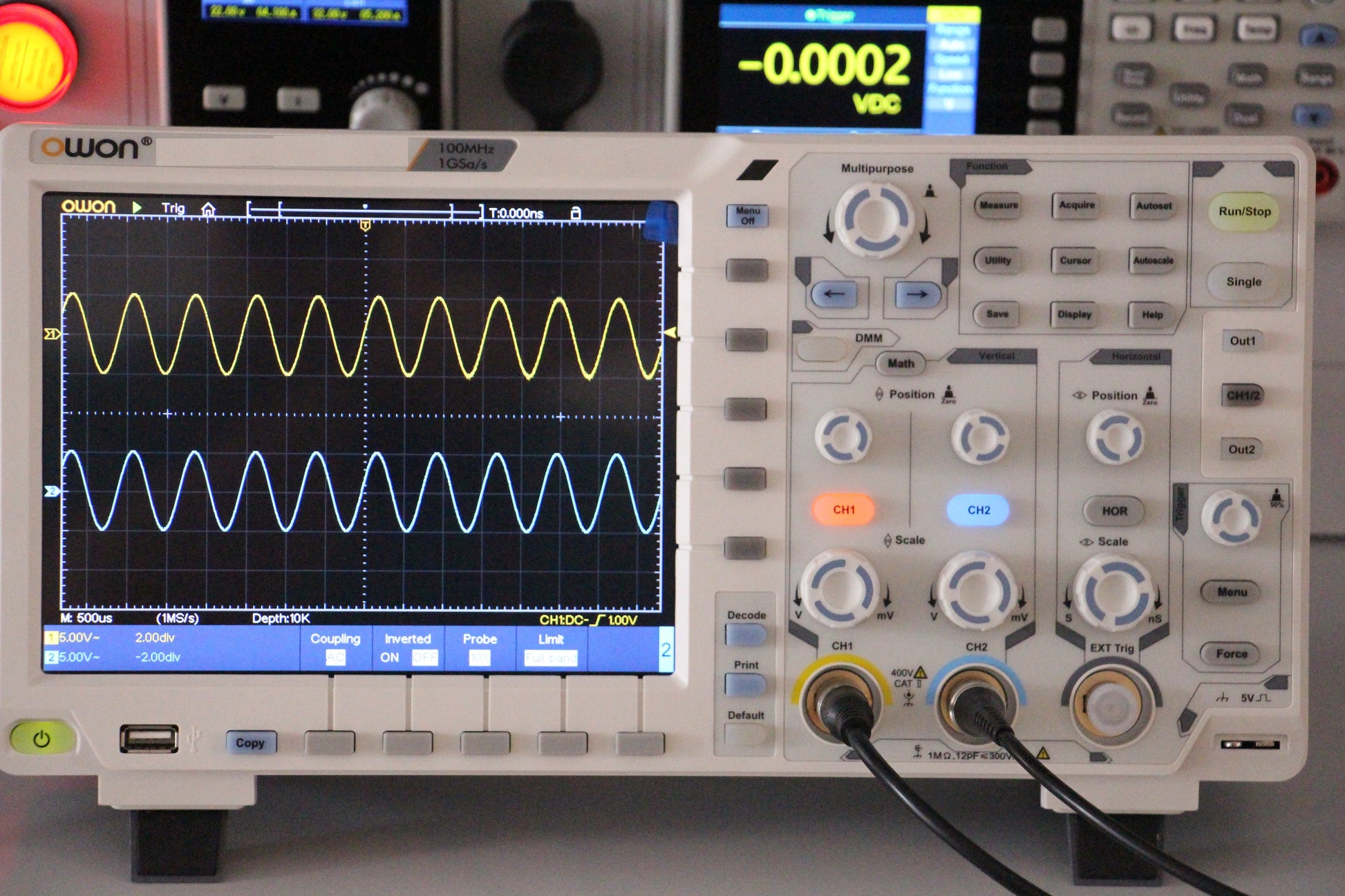

Owon XDS3202E Digital Oscilloscope – 200 MHz, 2 Channel, 8” Display, Protocol Decode

Owon XDS3202E Digital Oscilloscope – 200 MHz, 2 Channel, 8” Display, Protocol Decode

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

The Owon XDS3202E is a versatile digital oscilloscope offering 200 MHz bandwidth, a 1 GS/s real-time sampling rate, and a low-noise 8-bit ADC architecture for reliable digital signal analysis. With 40 Mpts memory depth and comprehensive triggering options, it is well suited for education, testing, troubleshooting, and maintenance applications. Its compact form factor and expandable platform deliver excellent portability and flexibility.

Owon XDS3202E Digital Oscilloscope – 200 MHz, 2 Channel, 8” Display, Protocol Decode

Oscilloscope Specifications
Channels: 2 + EXT
Bandwidth: 200 MHz
Real-Time Sampling Rate: 1 GS/s
Vertical Resolution: 8-bit
Memory Depth: 40 Mpts
Waveform Update Rate: Up to 70,000 wfms/s
Vertical Sensitivity: 1 mV/div – 10 V/div
Time Base Range: 1 ns/div – 1000 s/div
Input Impedance: 1 MΩ ±2%, 20 pF ±3 pF (parallel)
Trigger Types: Edge, video, pulse, slope, timeout, window, Nth edge, logic, UART, I2C, SPI, CAN
Protocol Decoding: RS232, I2C, SPI, CAN
Math Functions: +, −, ×, ÷, FFT, FFT RMS, integration, differentiation, square root, user-defined functions, digital filters
Display: 8-inch color LCD, 800 × 600 resolution
Dimensions: 340 × 177 × 90 mm
Weight: Approx. 2.6 kg

Communication & Interfaces
USB: USB Host & USB Device
LAN: Ethernet port
Trigger Output: Trig Out (Pass/Fail)
VGA: External monitor support (optional)
Printer Support: PictBridge compatible

Owon XDS3202E Digital Oscilloscope – 200 MHz, 2 Channel, 8” Display, Protocol Decode

Box Contents
Power cord
USB cable
2 × Oscilloscope probes
Probe adjustment tool
Q9 cable
CD-ROM
Quick start guide
