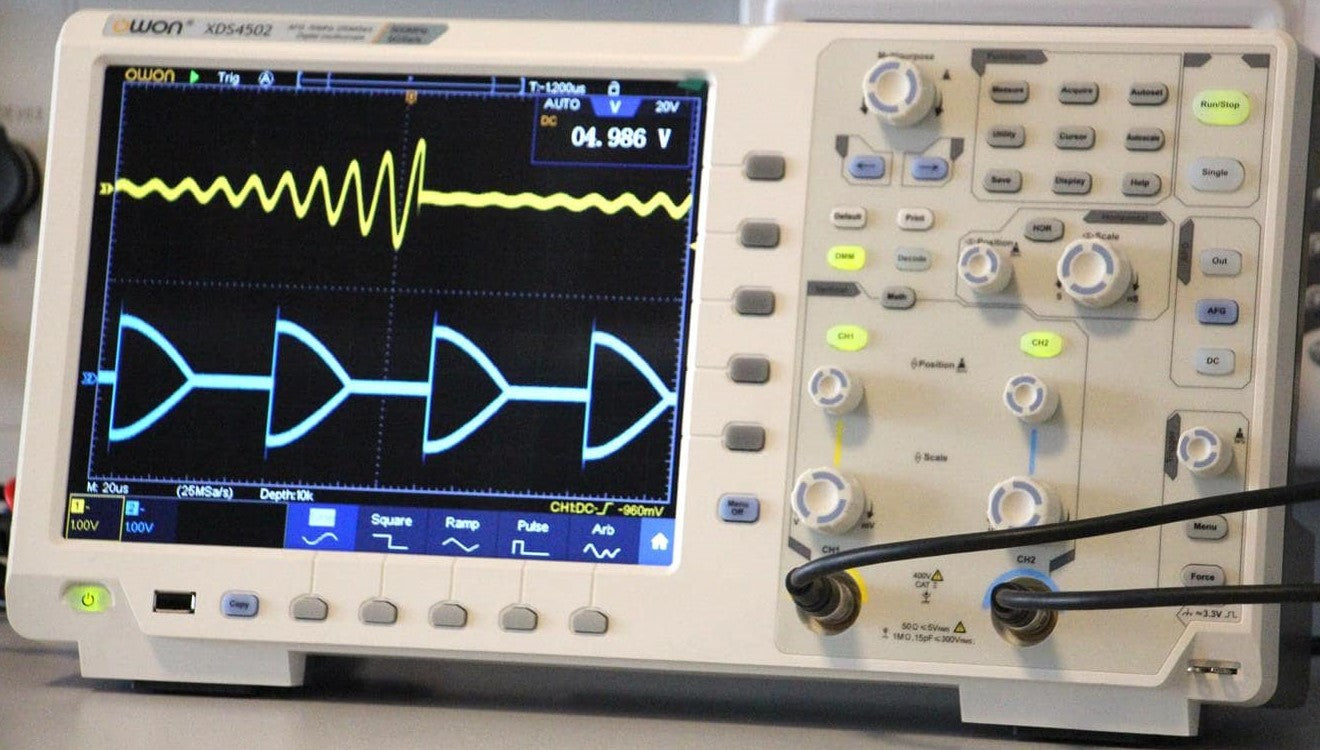

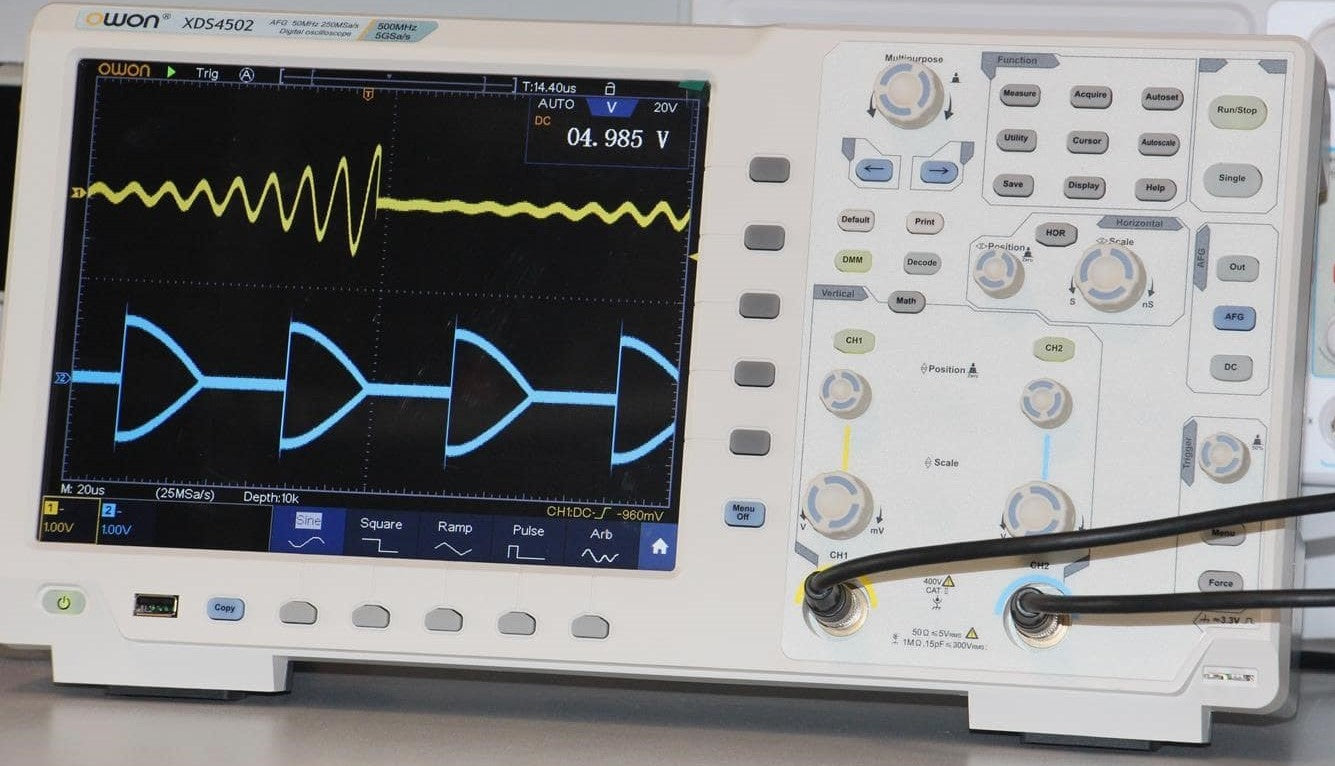

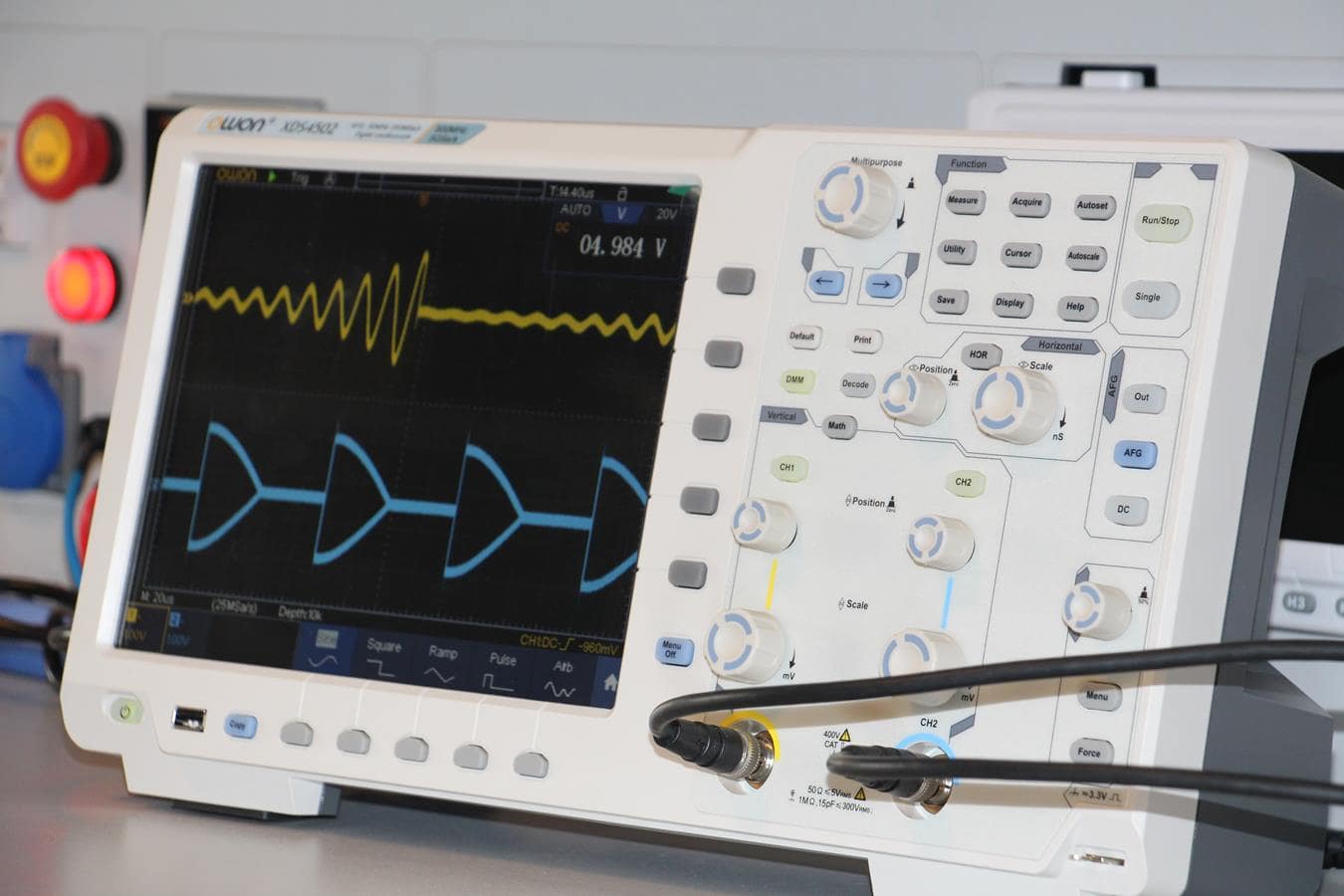

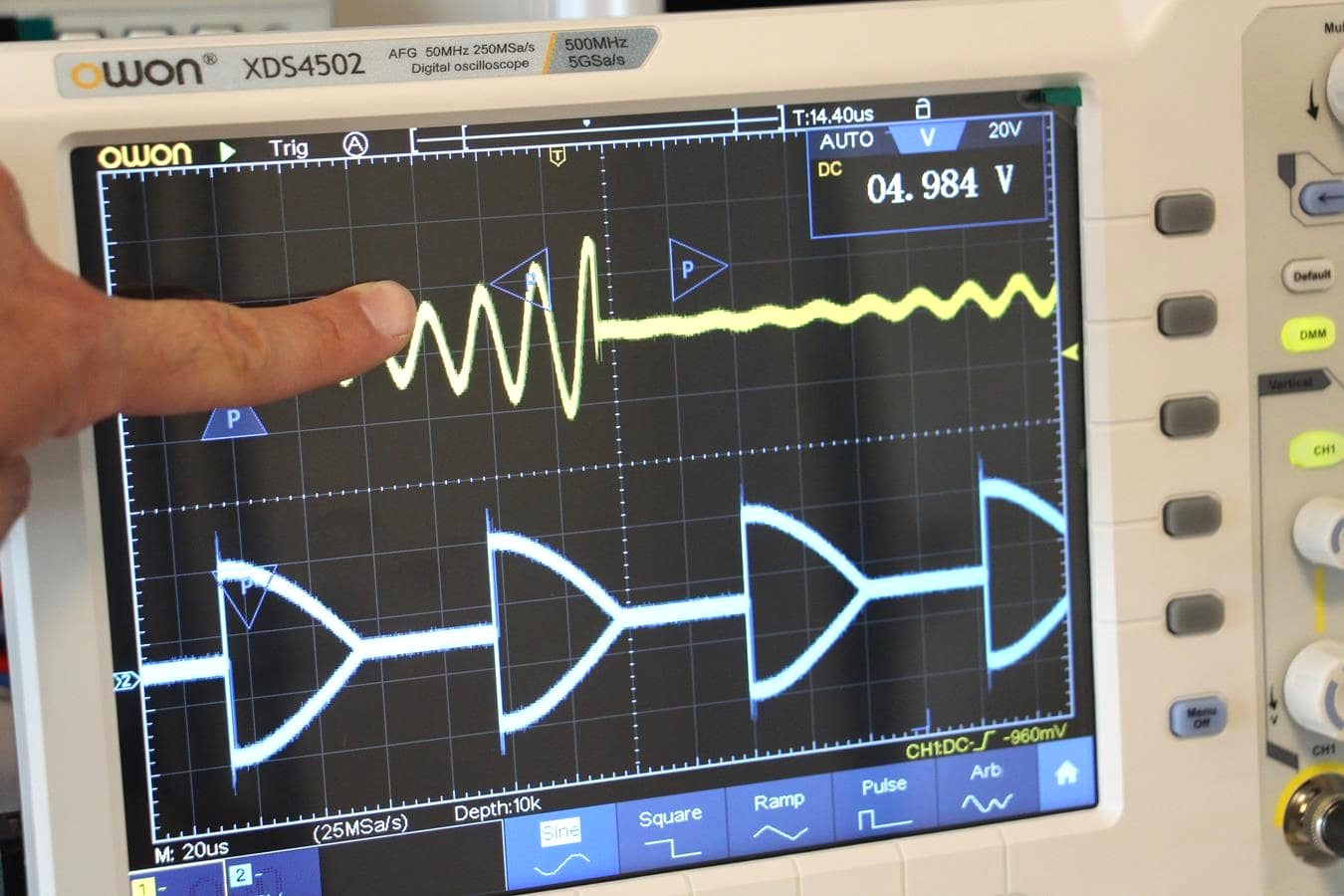

OWON XDS4502 Oscilloscope – 500 MHz, 2 Channels, 10.4" Touchscreen (Full Package)

OWON XDS4502 Oscilloscope – 500 MHz, 2 Channels, 10.4" Touchscreen (Full Package)

The OWON XDS4502 is a high-performance digital oscilloscope designed for advanced signal analysis in R&D, laboratory, and professional testing environments. With 500 MHz bandwidth, 5 GS/s real-time sampling, and a large 10.4-inch multi-touch display, it delivers fast, accurate, and intuitive measurements.

This full-package model combines seven essential measurement instruments in a single platform: Oscilloscope, Signal Generator, FFT Spectrum Analyzer, Frequency Counter, Protocol Decoder, Digital Multimeter, and Bode Analyzer. Its deep memory and high waveform update rate ensure precise capture of complex and high-speed signals.

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

Oscilloscope Specifications

–––––––––––––––––––––––––
Channels: 2
Bandwidth: 500 MHz
Real-Time Sampling Rate: 5 GS/s
Memory Depth: 400 Mpts
Waveform Update Rate: 600,000 wfms/s
Vertical Resolution: 8-bit
Vertical Sensitivity:
1 mV/div – 10 V/div (1 MΩ)
1 mV/div – 1 V/div (50 Ω)
Time Base Range: 500 ps/div – 1000 s/div
Input Impedance: 1 MΩ ±2% || 15 pF ±5 pF, 50 Ω ±2%
Trigger Types: Edge, Video, Pulse, Slope, Timeout, Window, Nth Edge, Logic, UART, I2C, SPI, CAN
Protocol Decoding: RS232, I2C, SPI, CAN
Automatic Measurements: Period, frequency, RMS, Vpp, duty cycle, phase, pulse width, delay, area, and more
Math Functions: Add, subtract, multiply, divide, FFT, FFT RMS, integration, differentiation, digital filtering, user-defined
Display: 10.4-inch multi-touch LCD

FFT Spectrum Analyzer

–––––––––––––––––––––––––
FFT Length: Up to 1 million points
Analysis Functions: FFT, FFT RMS, zoom, digital filtering (low-pass, high-pass, band-pass, band-stop)
Application: Accurate frequency-domain analysis of voltage signals

Signal Generator (Built-In)

–––––––––––––––––––––––––
Channels: 1
Maximum Frequency: 50 MHz
Sampling Rate: 250 MSa/s
Vertical Resolution: 14-bit
Amplitude Range:
≤ 50 MHz: 2 mVpp – 5 Vpp
≤ 25 MHz: 2 mVpp – 20 Vpp
Waveform Length: 16 K
Standard Waveforms: Sine, square, ramp, pulse, noise
Arbitrary Waveforms: Sin(x)/x, step, exponential, 64 built-in + user-defined
Modulation: AM, FM, PM, FSK, Sweep, Burst

Frequency Counter

–––––––––––––––––––––––––
High-resolution frequency measurement
Synchronized operation with oscilloscope module

Digital Multimeter

–––––––––––––––––––––––––
Display: 4½ digits
Measurement Types: Voltage, current, resistance, capacitance, frequency, duty cycle, continuity, diode test
True RMS: Supported
Auto-Ranging: Supported

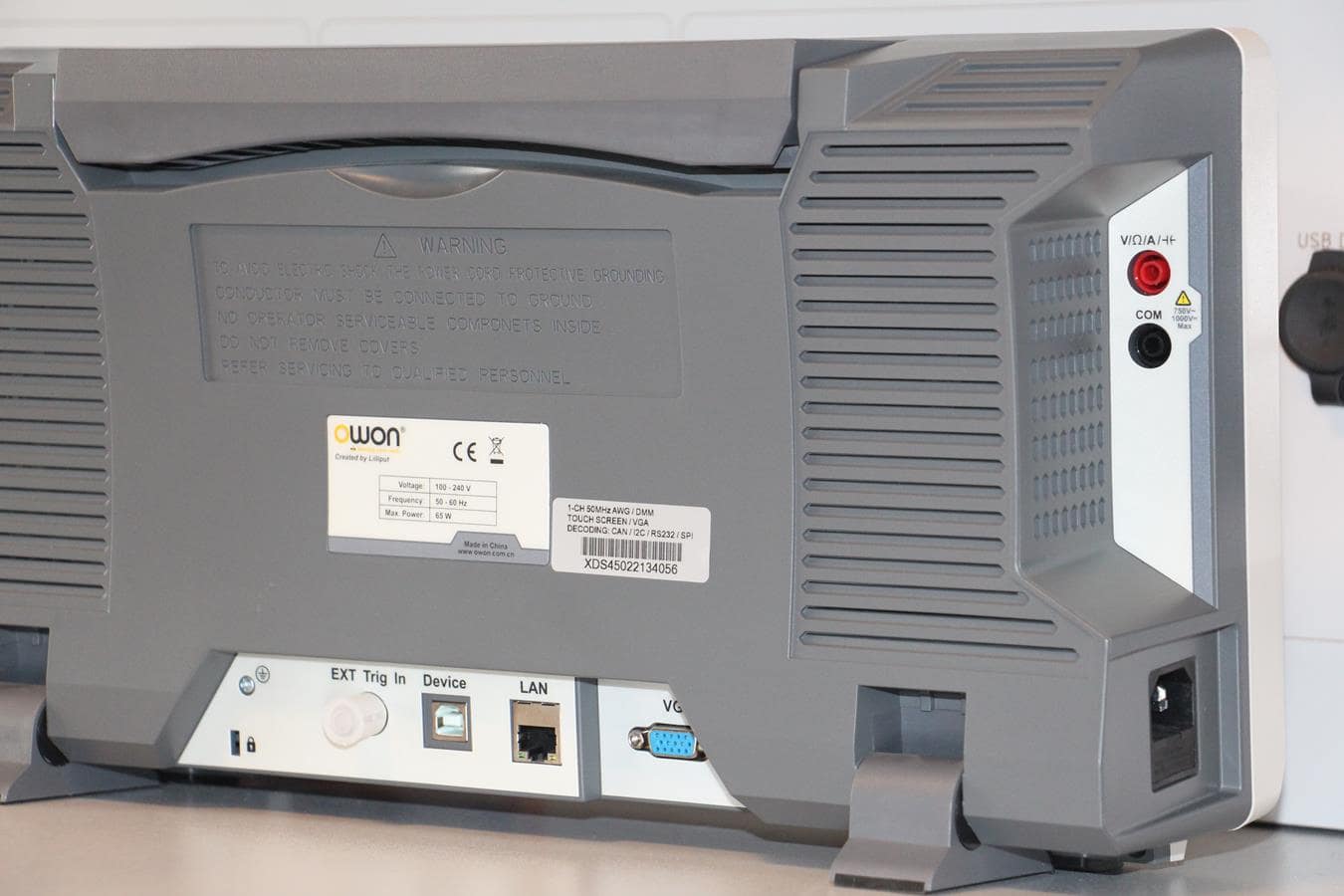

Interfaces & Additional Features

–––––––––––––––––––––––––
USB Host & Device
LAN (Ethernet)
VGA Output
Trigger Out (Pass/Fail)
External Trigger Input
Printer Support: PictBridge compatible
Waveform Cloning: Supported
Bode Plot Analysis: Standard

Power & Physical Specifications

–––––––––––––––––––––––––
Dimensions: 422 × 226 × 135 mm
Weight: Approx. 5 kg

Box Contents

–––––––––––––––––––––––––
OWON XDS4502 Oscilloscope
Power cable
USB cable
2 oscilloscope probes
Probe adjustment tool
Q9 cable
CD-ROM
Quick start guide
Multimeter probes
Current extension module
