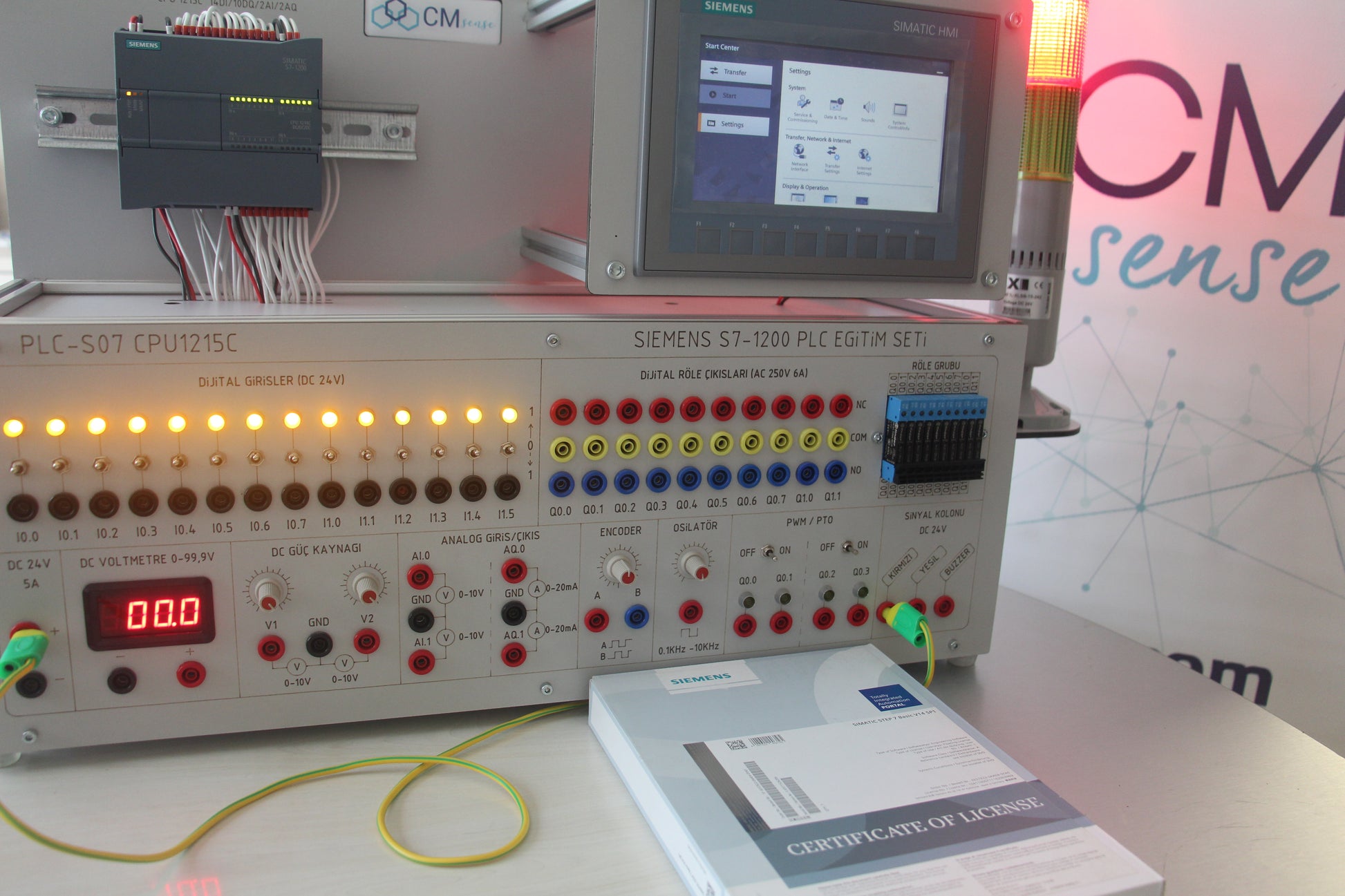

Panel Type PLC Training Set (Siemens S7-1215 / KTP700)

Panel Type PLC Training Set (Siemens S7-1215 / KTP700)

IMPORTANT EXPORT NOTICE

This product is shipped from Türkiye and sold under standard international export procedures.
Delivery times may vary depending on customs clearance, international logistics processes, and real-time stock availability.

The product price includes international shipping (courier) costs.
However, import duties, customs fees, local taxes, and VAT (if applicable in the destination country) are not included and remain the responsibility of the buyer.

For export sales, delivery timelines are determined by current stock status and international shipping procedures, and may therefore differ from local retail deliveries.
All orders are prepared and dispatched in full compliance with international export standards.

Direct Contact with CMsense

For product information, pricing, export procedures, and technical questions, you may contact us directly:

Phone:
📞 +90 216 232 22 50

WhatsApp (messages only):
📱 +90 546 232 22 51

E-mail:
📧 cmsense@cmsense.eu

Web:
🌐 https://cmsense.eu

Note: The WhatsApp line is available for written messages only.

General Overview

The Panel Type PLC Training Set is a comprehensive educational solution designed for basic, intermediate, and advanced automation training.
Built around the Siemens SIMATIC S7-1200 CPU 1215 and KTP700 HMI panel, the system provides a safe, practical, and user-friendly laboratory environment suitable for technical schools, universities, and professional training centers.

Its panel-mounted, inclined desktop design ensures ergonomic use for both instructors and students, enabling hands-on PLC programming, HMI integration, and industrial automation exercises.

Technical Features

• Digital inputs simulated using switches and LED indicators

• All inputs and outputs accessible via 4 mm laboratory sockets

• Digital outputs protected by 10A relays with LED status indication

• CPU includes 6 high-speed counters and 4 high-speed outputs

• Transistor outputs can be electrically isolated via selector switches

• Relay outputs (NO / NC / COM) externally available through 4 mm sockets

Electrical Components

• DC 24V / 5A power supply

• 2 × DC 0–10V / 100mA auxiliary power supplies

• DC voltmeter (0–99.9V)

• DC 24V buzzer

• Square wave oscillator output (1 kHz – 10 kHz)

Communication & HMI Panel Features

• Integrated 4-port Ethernet switch

• Ethernet communication interface

• 7-inch capacitive touchscreen HMI

  • Resolution: 800 × 480

  • Color depth: 65,536 colors

• Support for up to 800 HMI tags

• 10 MB internal flash memory

• USB data logging and archiving support

• Fully compatible Siemens PLC & HMI software environment

• Mounted in an angled desktop enclosure for table-top use

Set Contents

• Siemens SIMATIC CPU 1215

• KTP700 HMI panel

• SIMATIC TIA Portal Basic V13 software license

• Sample application CD

• Experiment and training manual

• Ethernet cable for PLC-PC communication

• 1.5 m IEC filtered power cable

• 24 × 100 cm 4 mm laboratory cables

• 24 × 50 cm 4 mm laboratory cables
